This series of geotechnical testing equipment includes fully automatic pneumatic consolidation apparatus, lever-type consolidation instruments, multi-unit consolidation systems, and supporting testing devices, providing a complete solution for soil mechanics testing. It is widely used in highway engineering, foundation projects, research institutions, and laboratories.
GZQ Series Fully Automatic Pneumatic Consolidation Apparatus
Adopts pneumatic loading and intelligent control technology, supporting up to 16 simultaneous tests with centralized control and data acquisition via RS485 communication. It enables accurate analysis of soil deformation, void ratio, and time-dependent behavior under different pressure conditions.
WG Series Lever-Type Consolidation Apparatus
Adopts a traditional mechanical loading structure, providing a cost-effective and reliable solution for routine soil compression testing. Available in single, double, and triple-unit configurations.
YYW-2 Strain-Controlled Unconfined Compression Tester
Used to determine the unconfined compressive strength of saturated soft clay under axial loading without lateral restraint, supporting both manual and motorized operation.

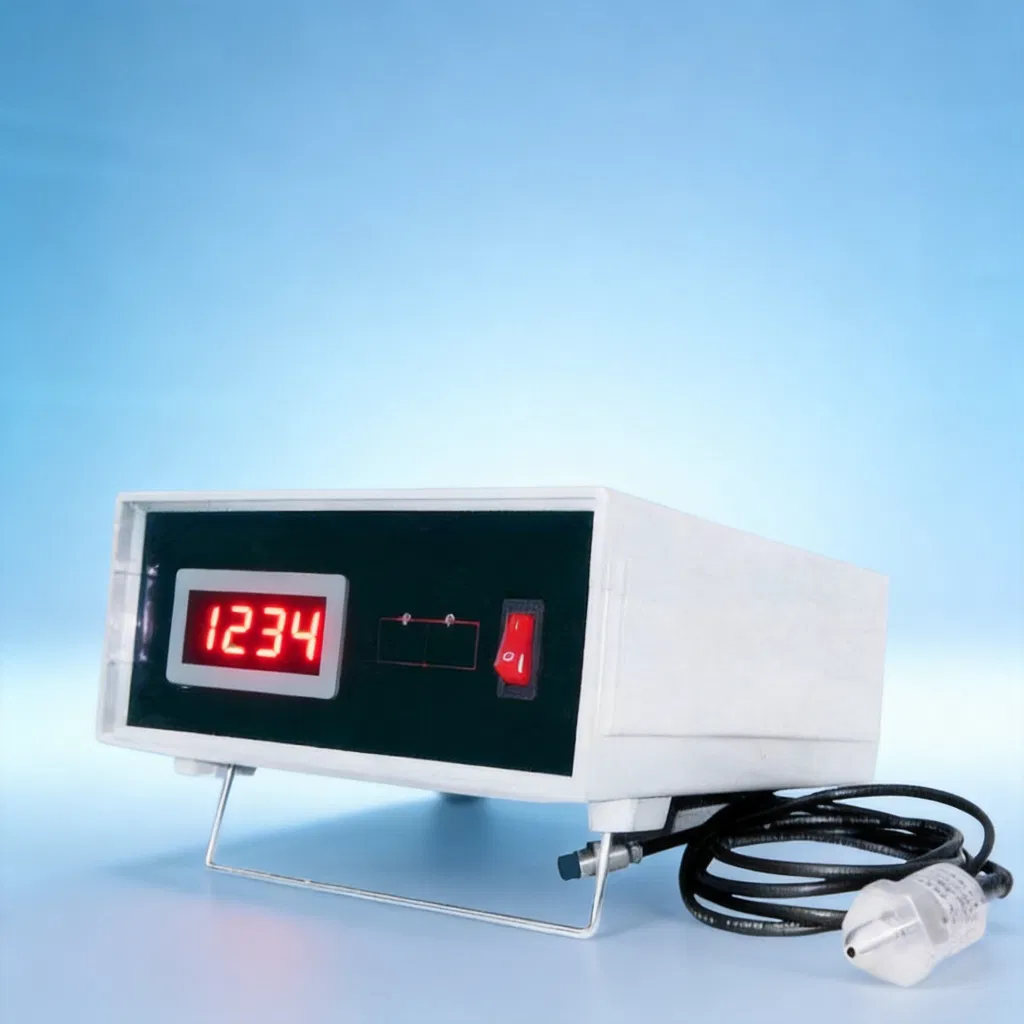

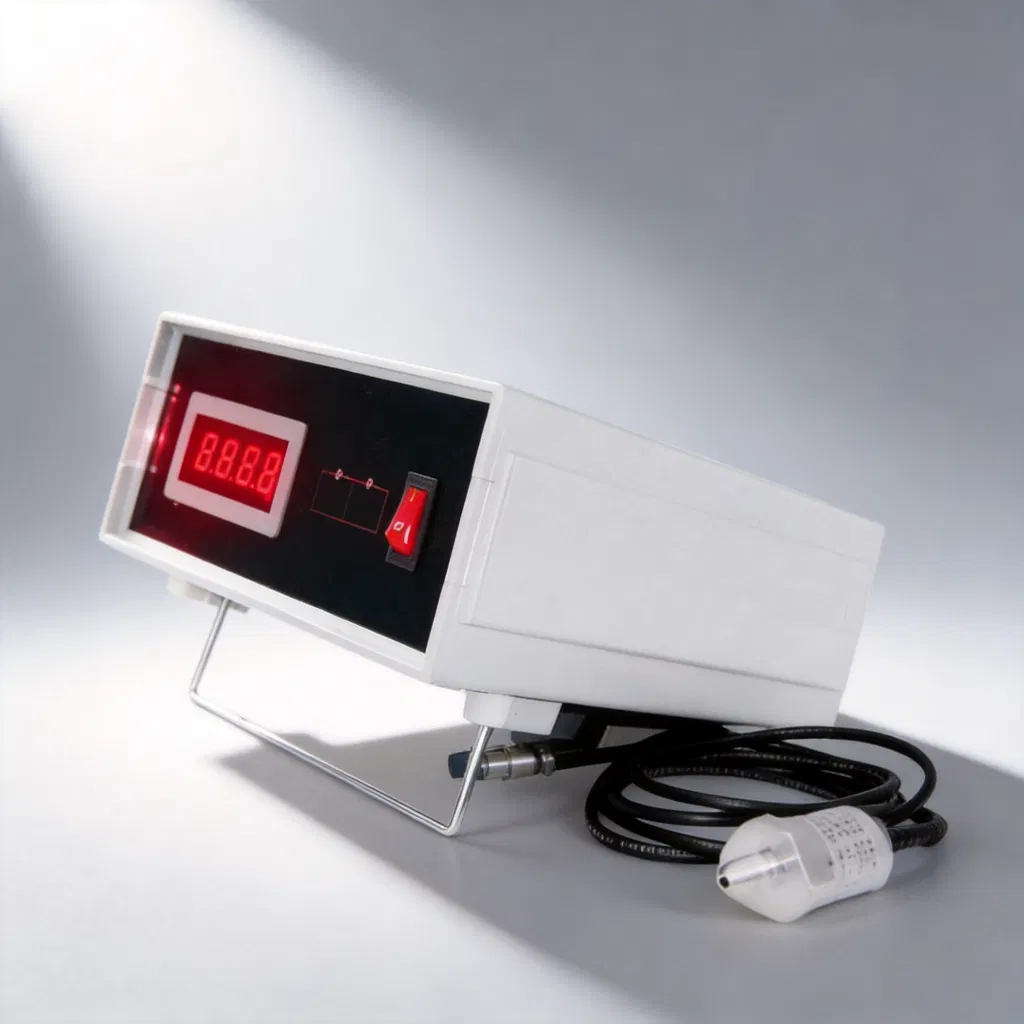

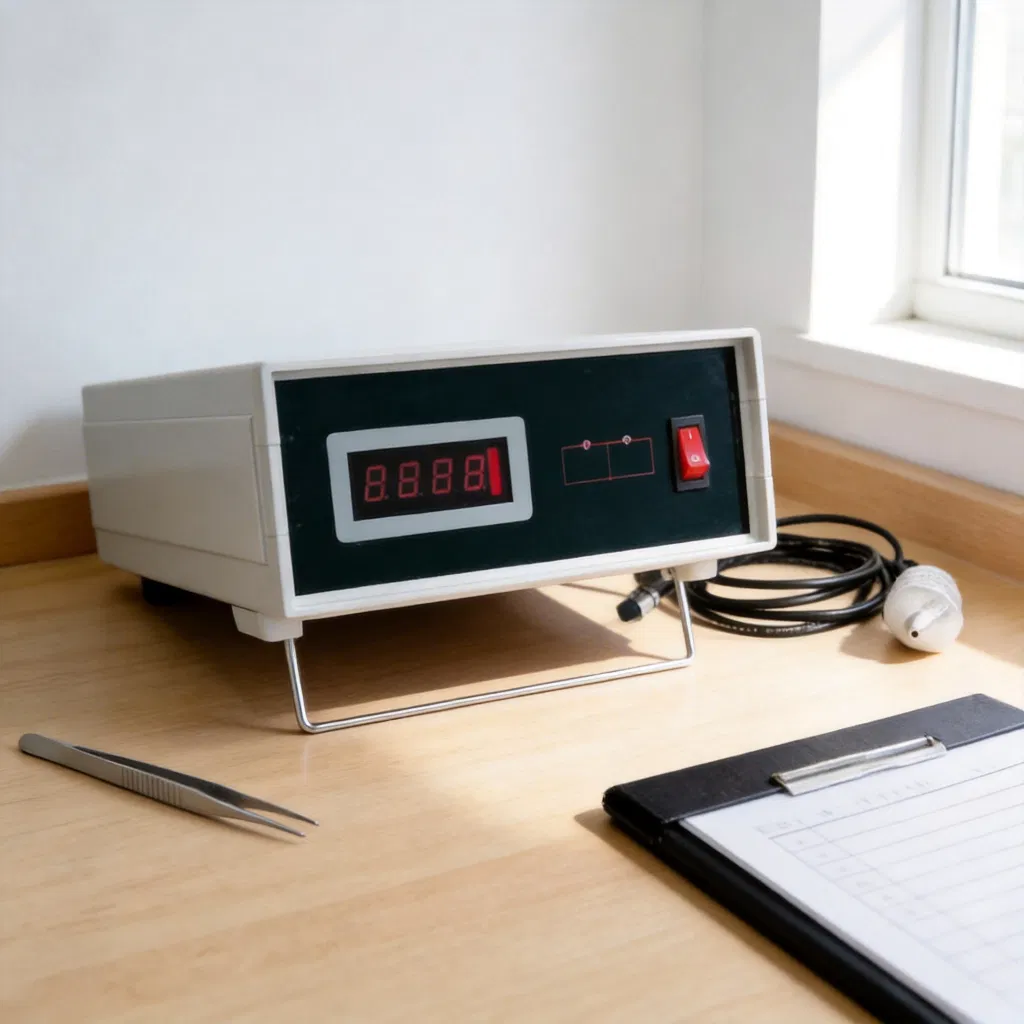

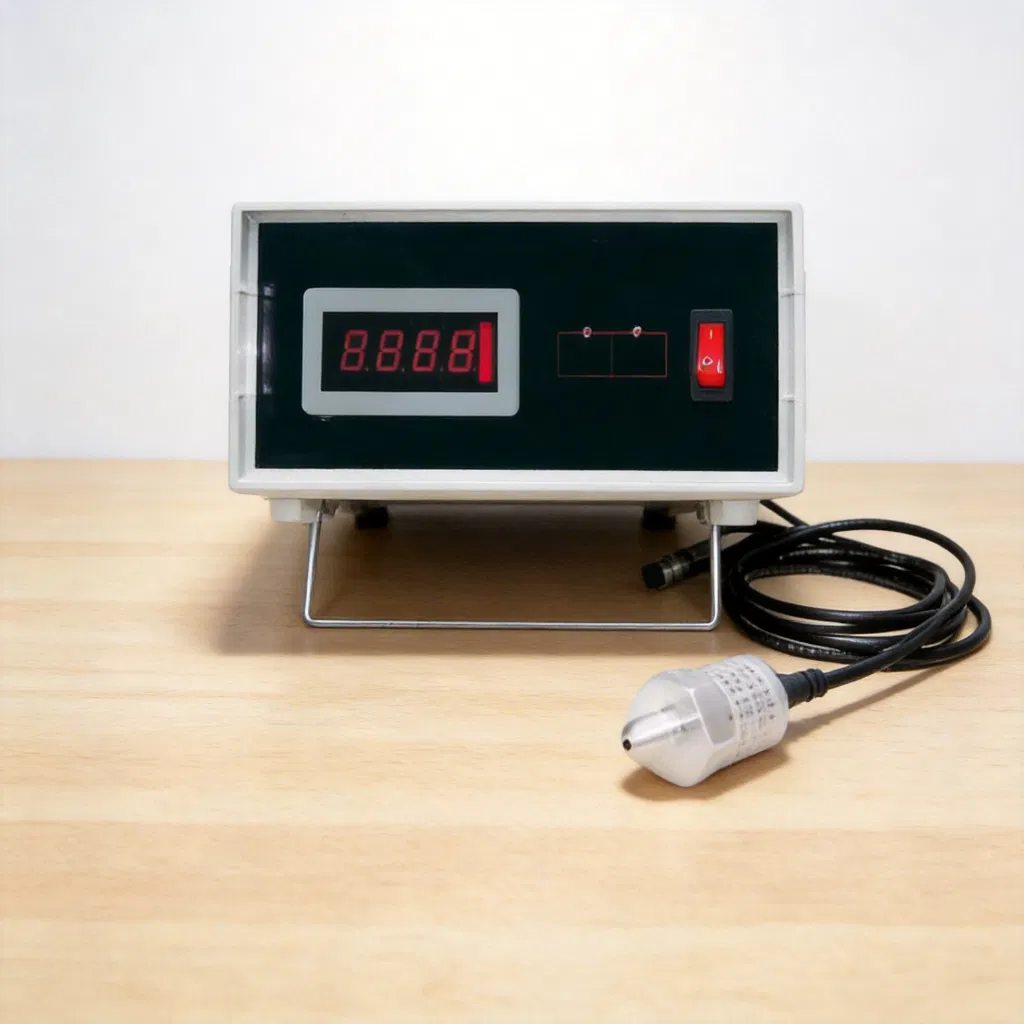

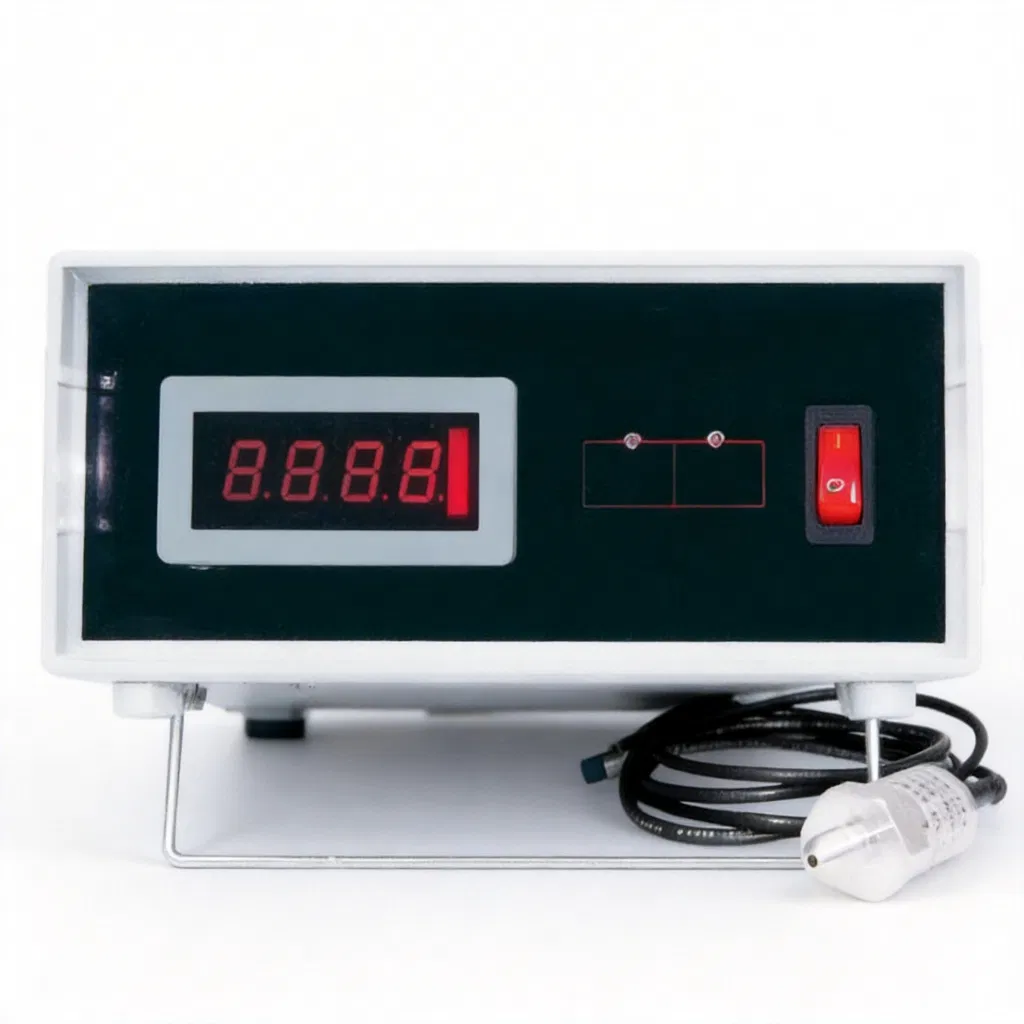

TYC-1 Pore Pressure Measuring Instrument
A digital pressure measurement device used for monitoring pore water pressure in geotechnical tests such as triaxial testing and KO consolidation tests. Range up to 999.9 kPa and accuracy up to 0.1 kPa.
| Model & Equipment | Test Type | Sample Size | Pressure Range | Accuracy | Key Features |
|---|---|---|---|---|---|
| GZQ-1 Series (16-channel) | Soil Consolidation | 30/50 cm², H 20mm | Up to 3200 kPa | Settlement: 0.01mm | Automatic RS485 loading |
| WG-1C Single Lever | Soil Compression | 30/50 cm² | Up to 1600 kPa | - | Compact, 1:10/1:12 ratio |
| YYW-2 Unconfined Tester | Soil Strength | Ø40 × 100 mm | Max Load: 5 kN | - | Manual & Motorized |
| GJY-1KO Apparatus | Lateral Pressure | Ø61.8 × 40 mm | 6 kN Axial / 1000 kPa Lat | 0.01 mm | K0 measurement |
| TYC-1 Pore Pressure | Pressure Measurement | - | 0–999.9 kPa | 0.1 kPa | Digital display |
