Advanced Clinical Sterilization System for Enhanced Medical Equipment Care

Customization:	Available
Theory:	Pressure Steam
Type:	Pressure Steam Sterilization Equipments

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

VA-FD

Certification

CE, FDA, EEC, ISO13485

Electric Tension

220V

LCD Display

LED Display

Alarm System

Ultra High Temperature Alarm

Material

Stainless Steel

Temp Range

105-134 Degree C

Designed Pressure

0.22MPa

Application

Hospital, Laboratory, Pharmaceutical, Clinic

Sterilization Objects

Liquid, Dressings, Surgical Instruments, Food

Product Description

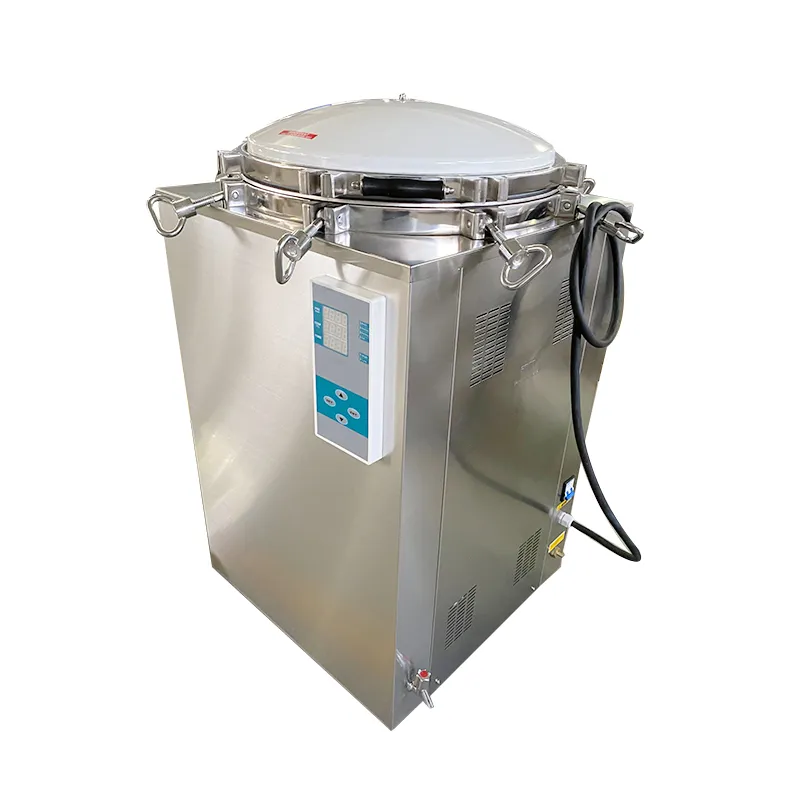

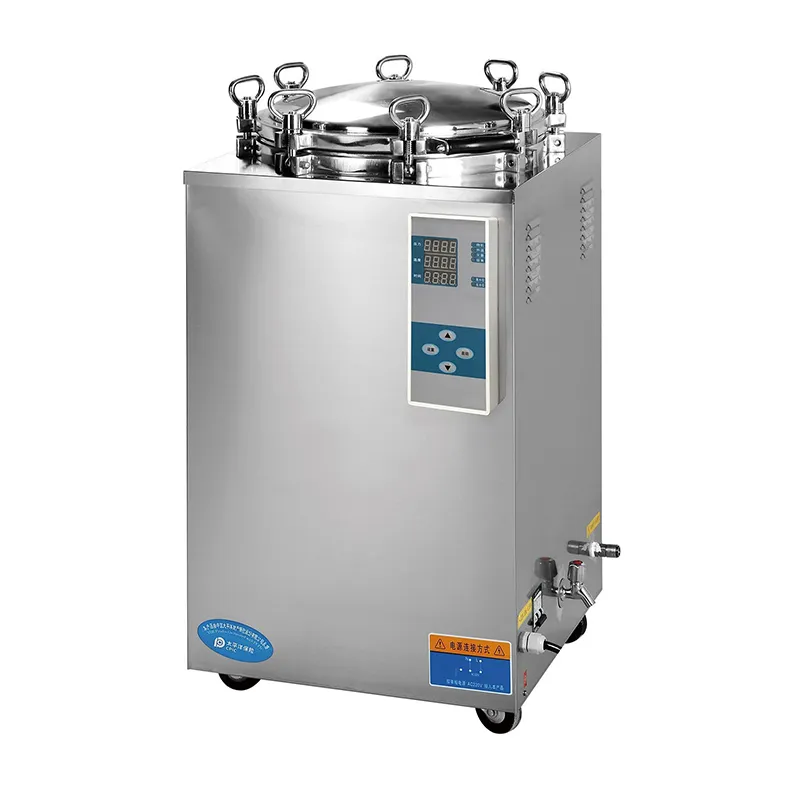

Introducing the VA-FD Medical Sterilizer Machine: a state-of-the-art vertical steam sterilizer designed to elevate the standards of sterilization in medical environments.

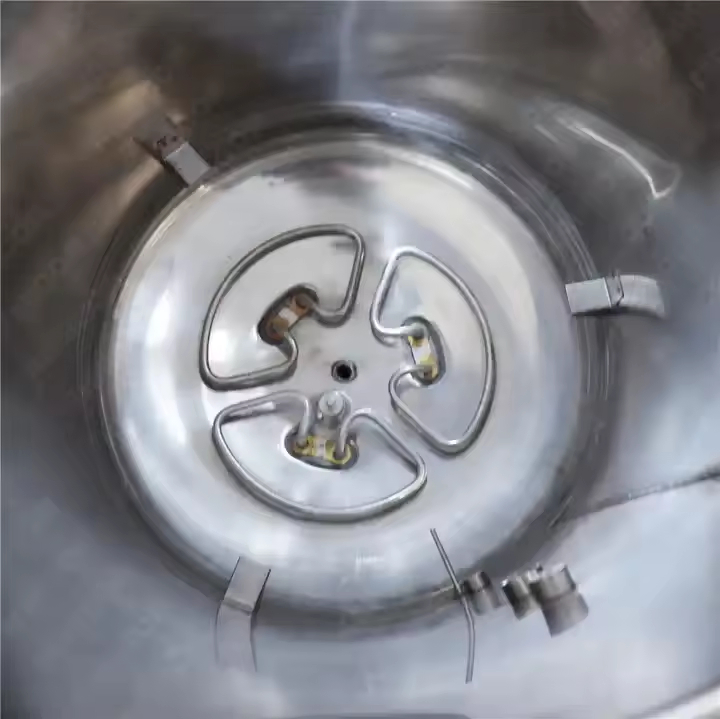

The vertical steam sterilizer is meticulously assembled with an advanced heating system, a micro-computer controlled system, alongside robust overheat and overpressure protection systems. This guarantees reliable and consistent sterilization effects, while simplifying operation and promoting energy efficiency. It stands as the quintessential equipment choice for clinics, research institutes, and a spectrum of organizations, adeptly sterilizing surgical instruments, fabrics, glassware, culture media, and more.

Technical Specifications

MODEL	VA-FD35	VA-FD50	VA-FD75	VA-FD100	VA-FD120	LS-150LD
Chamber volume	35L	50L	75L	100L	120L	150L
Chamber Size	318x450mm	340x550mm	400x600mm	440x650mm	480x660mm	510x740mm
Working Pressure	0.22Mpa
Working Temp	134ºC
Timer Range	0~99min or 0~99hour59min
Power	2.5Kw	3Kw	4.5Kw		6Kw
Overall Dim. (mm)	480x460x850	520x520x980	560x560x980	590x590x1080	600x640x1140	670x690x1130

Key Features

Crafted with a fully stainless steel structure for durability and hygiene.

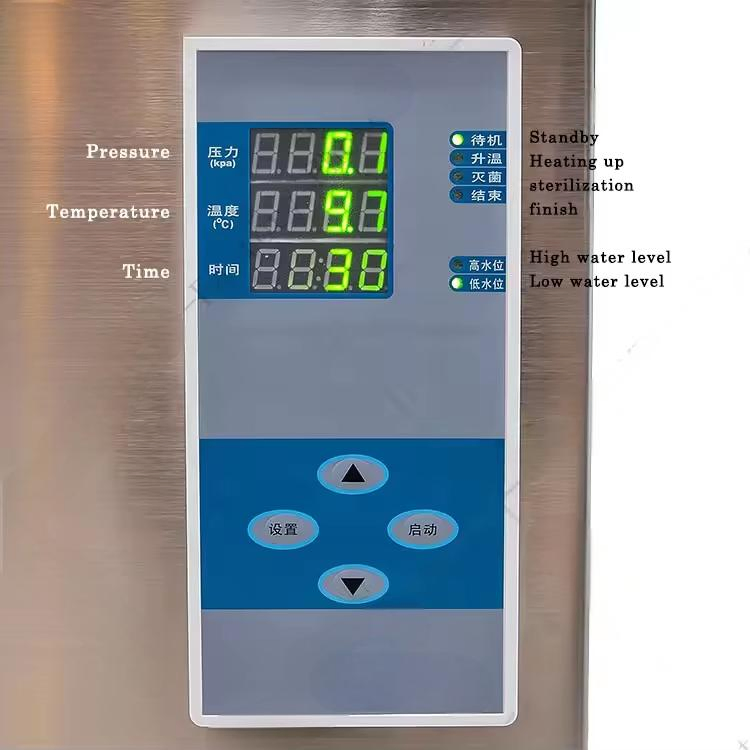

Equipped with an LED display showcasing working status and touch-type keys.

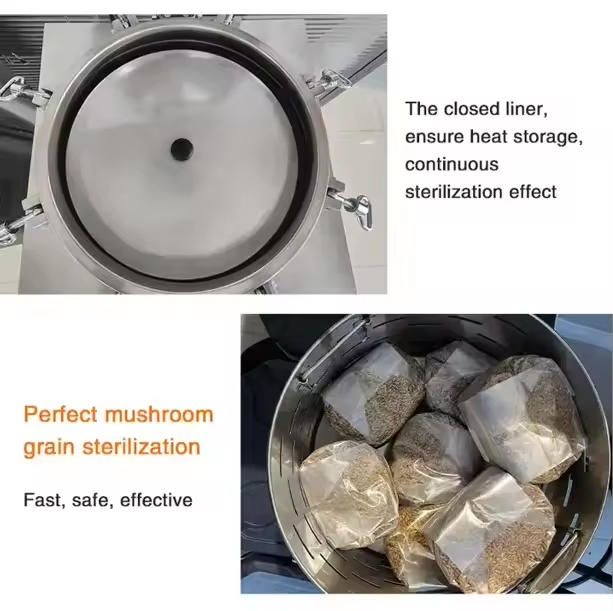

Automatically discharges cool air, ensuring seamless steam release.
Automatically shuts off with an audible beep to signal cycle completion.

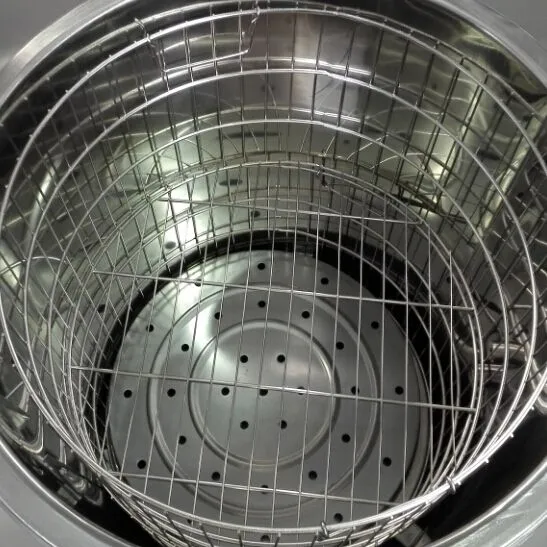

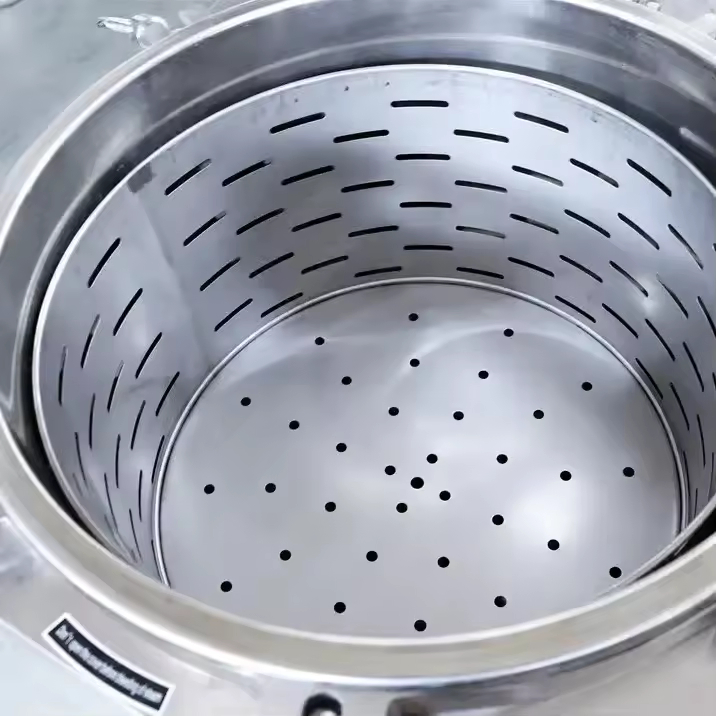

Includes two high-quality stainless steel sterilizing baskets.

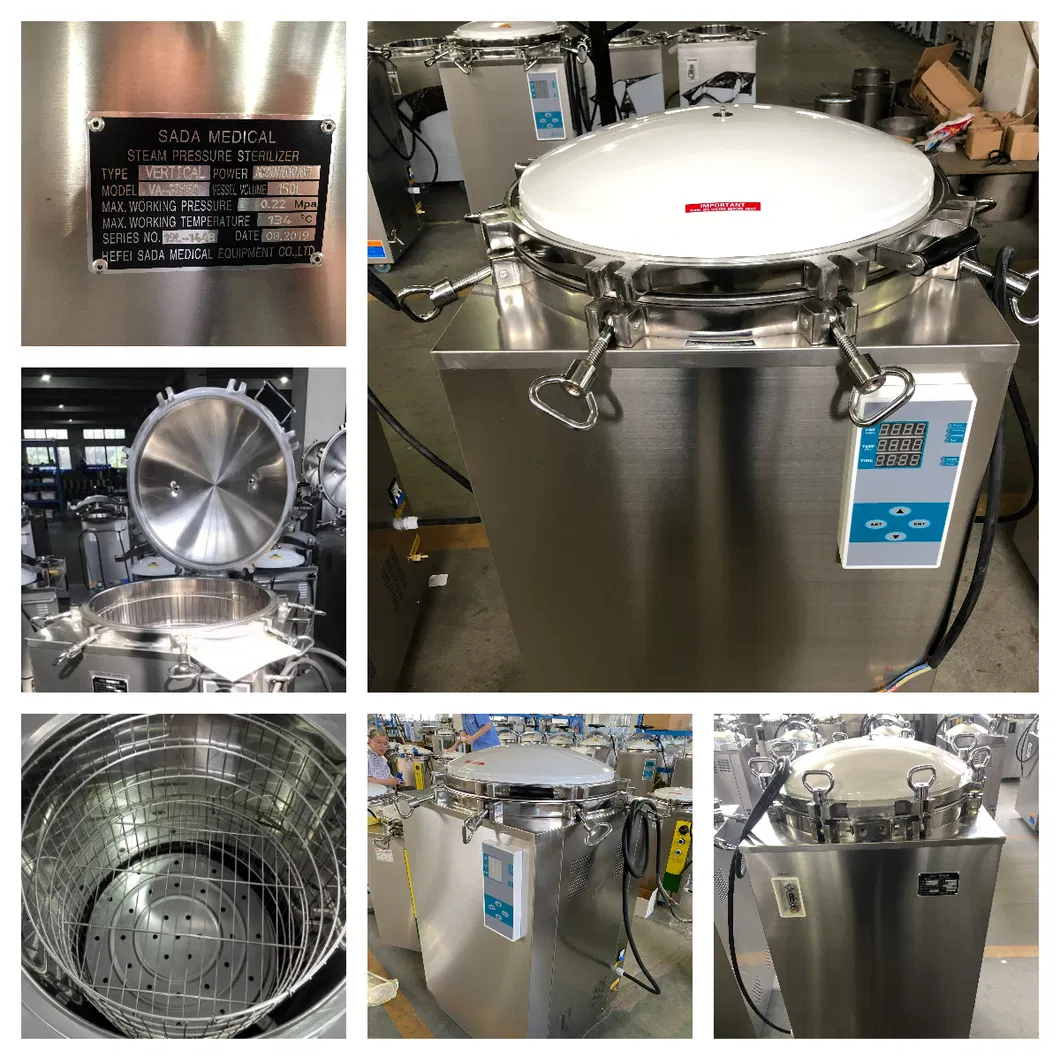

Detailed Photos

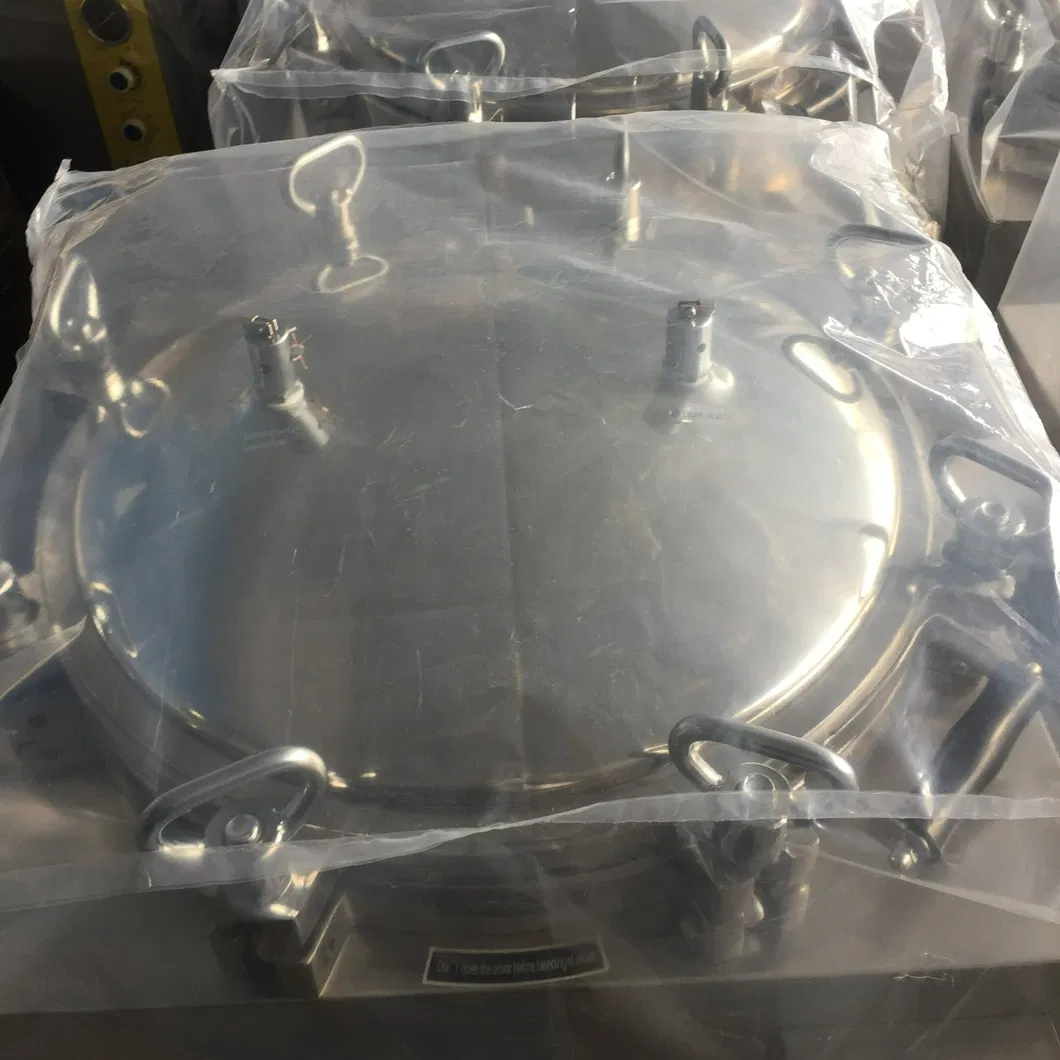

Packaging & Shipping

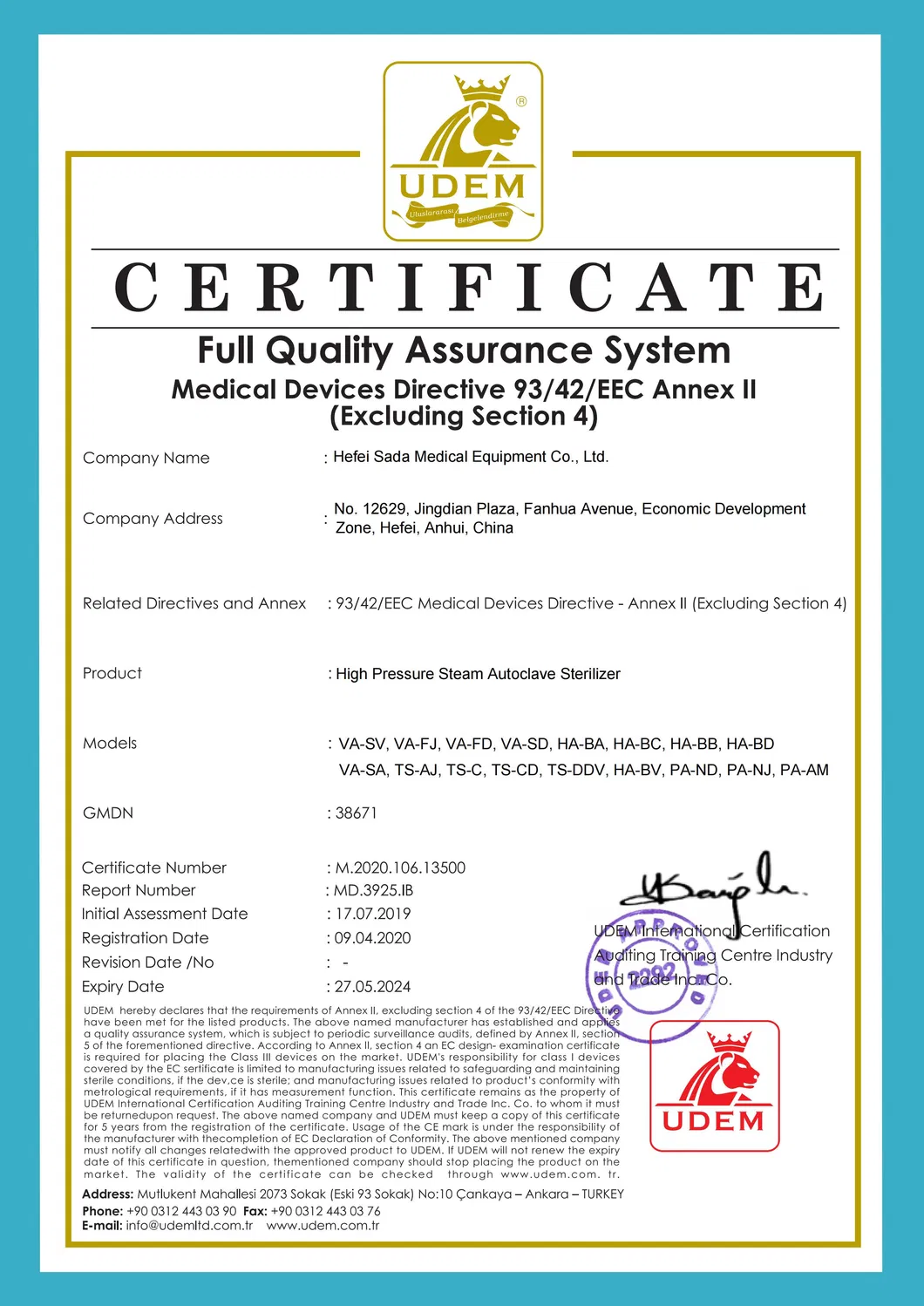

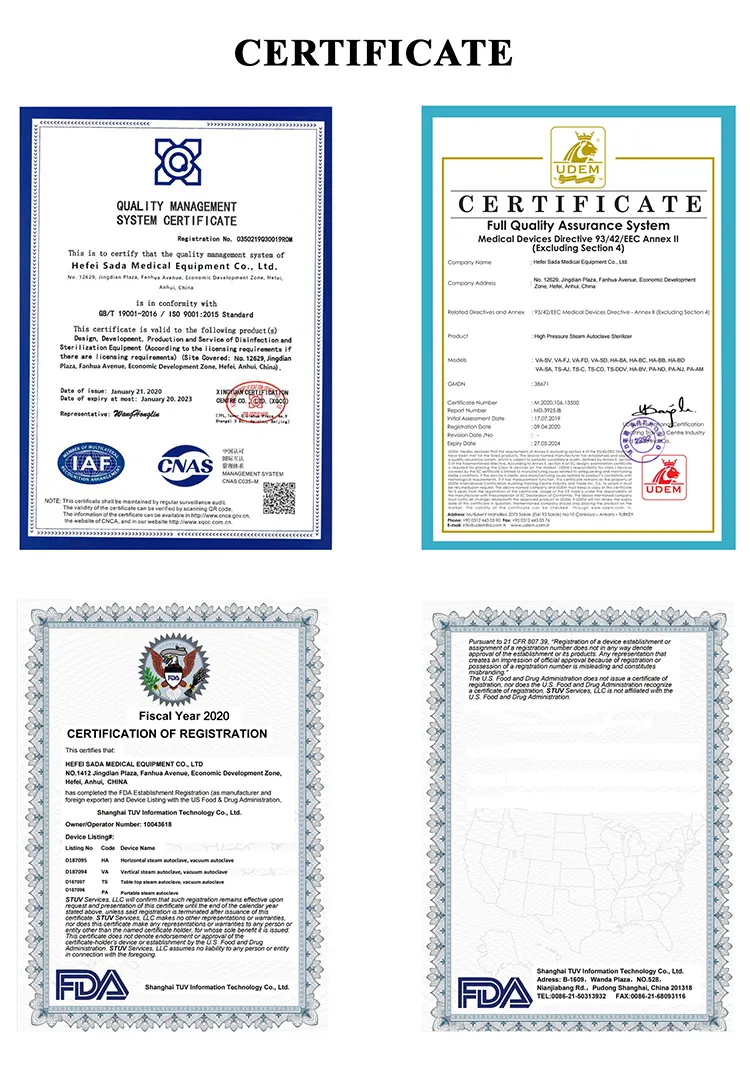

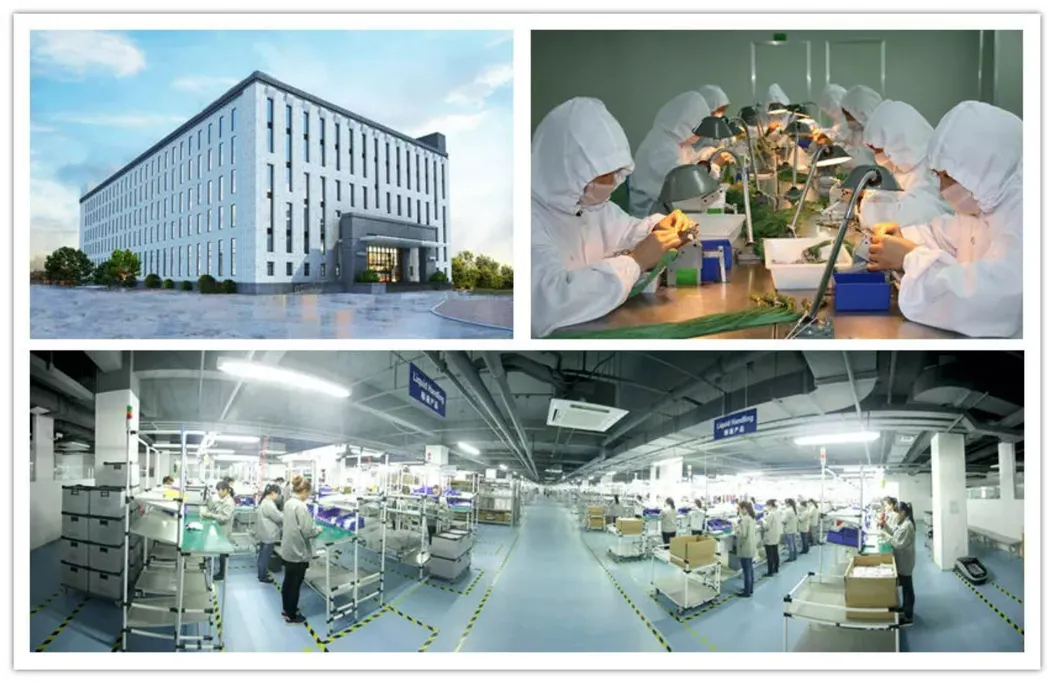

Professional Qualifications

With over a decade of experience, we are a distinguished professional sterilization equipment manufacturer and a leading supplier. We've been dedicated to providing a one-stop service in medical sterilization solutions, offering high-quality products to hospitals, clinics, research institutions, and universities worldwide.

Frequently Asked Questions

1. What is the warranty period for the medical sterilizers? We offer a comprehensive 2-year warranty along with lifetime technical support for all our sterilization products.

2. How do you handle after-sales service and technical support? We provide detailed operating manuals and video tutorials. For further assistance, our engineers offer prompt responses via email or video calls. During the warranty period, spare parts are provided free of charge for hardware issues.

3. What are the typical delivery times for different models? Portable models take 5-10 days, table-top and vertical types take 10-25 days, while larger industrial models may require 30-35 days for delivery.

4. Can the equipment be customized for specific requirements? Yes, we offer customization options for control panels, voltage requirements, and offer OEM/ODM services tailored to your specific needs.

5. What shipping methods are available? Products can be delivered via express (UPS, DHL, TNT), air freight, or sea freight depending on your location and urgency.

6. What payment terms do you accept? Our standard payment terms include Telegraphic Transfer (T/T) in advance, Western Union, MoneyGram, and PayPal.
