AMC AC Precision Power Distribution Monitoring Device
With the rapid development of data centers, the energy consumption of data centers has become more and more prominent, and the energy management and power supply and distribution design of data centers have become a hot issue. Efficient and reliable power distribution system scheme of data centers is an effective way to improve the power efficiency of data centers and reduce the energy consumption of equipment.
To realize energy saving in data centers, it is necessary to monitor each power load. However, traditional measuring instruments cannot meet the requirements of cost, volume, installation, and construction. Therefore, it is necessary to adopt multi-loop monitoring devices suitable for centralized monitoring requirements in data centers.

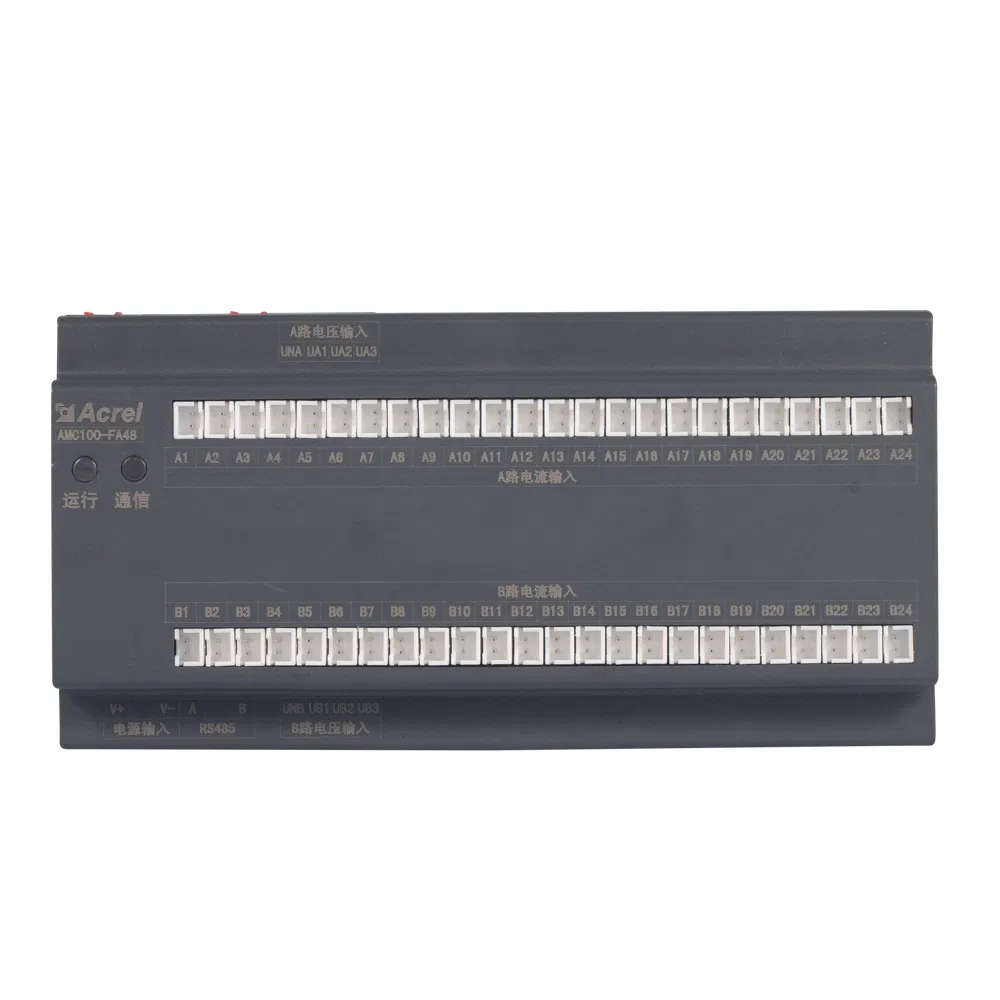

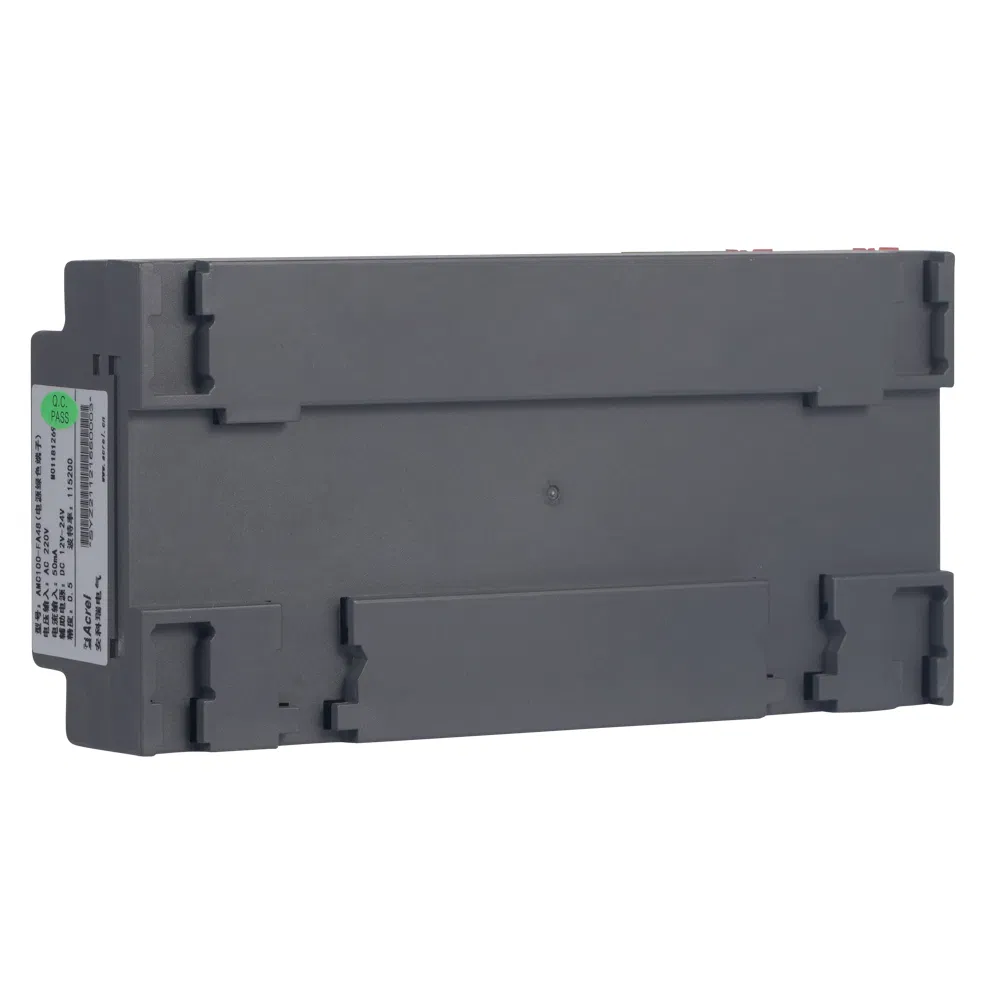

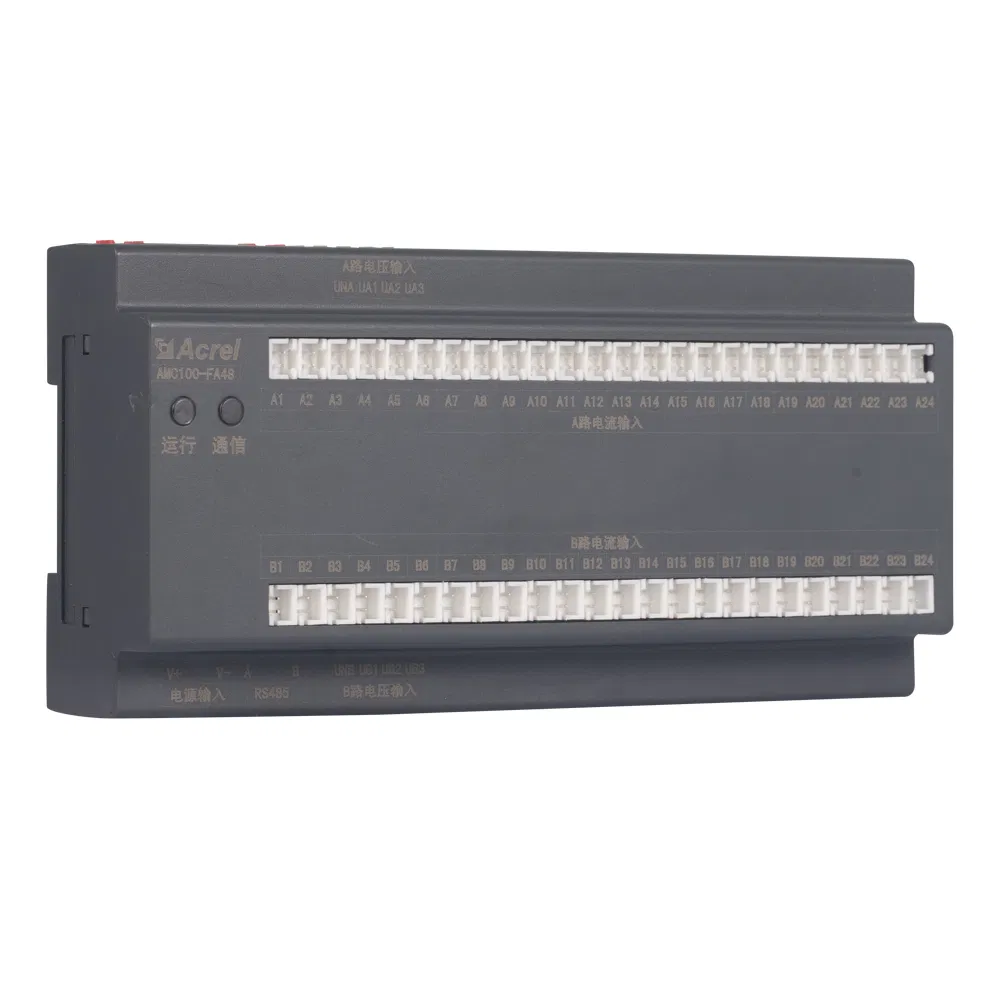

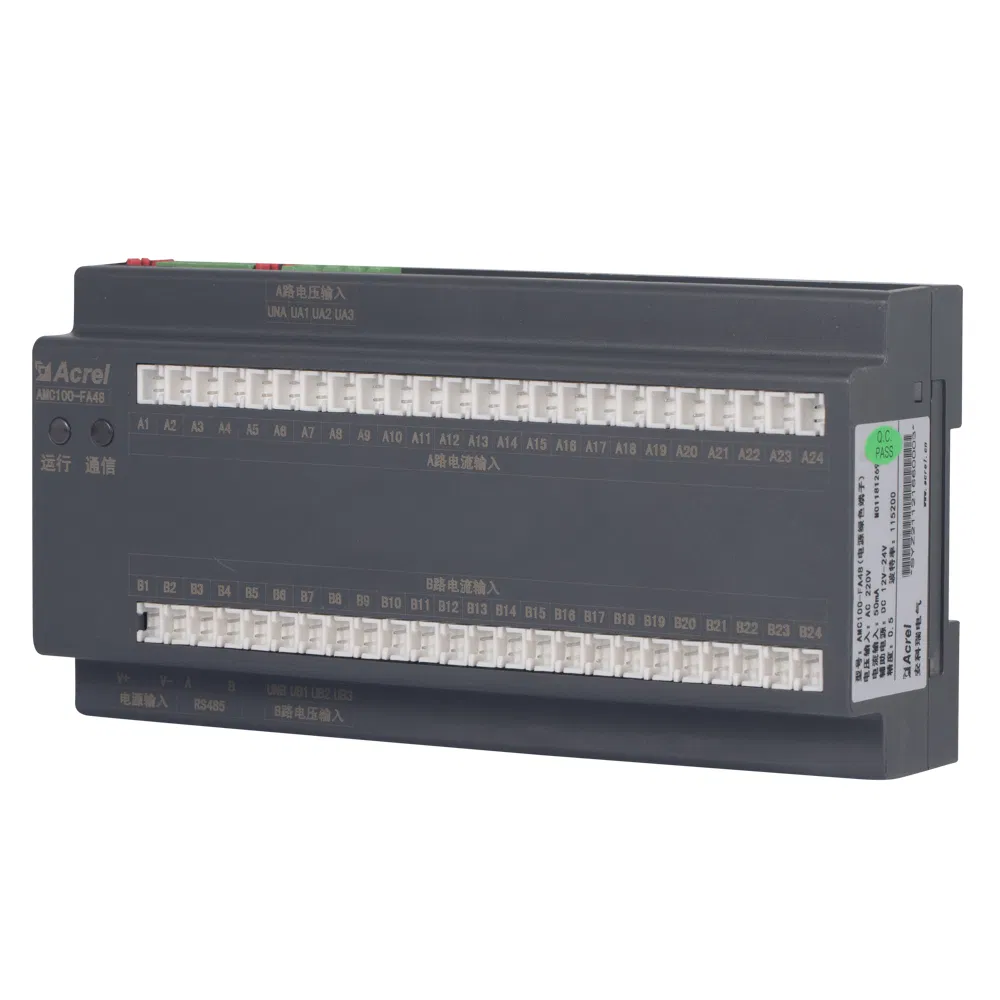

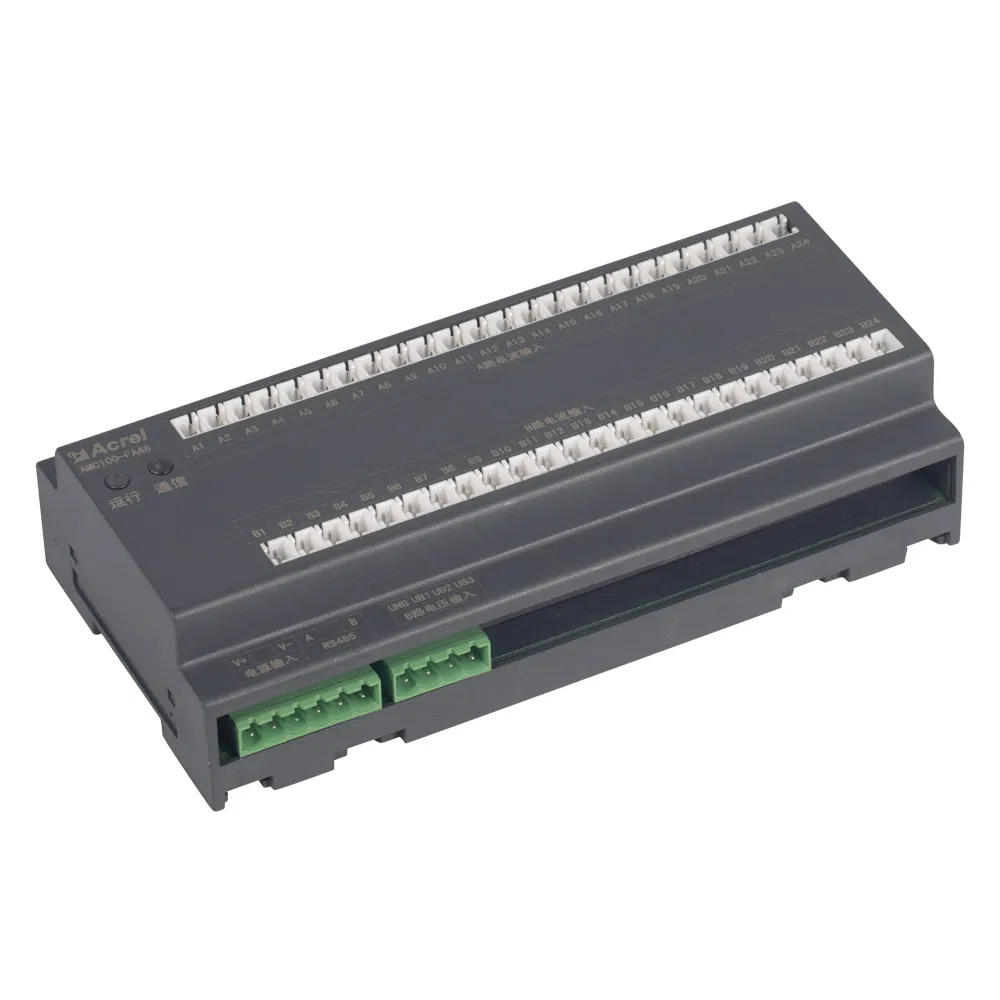

AMC100 series precision power distribution monitor is a measurement device designed specifically for power management of data center servers. The device design is exquisite, capable of monitoring A + B two incoming lines and 192 circuits for electrical parameters.
Product Description
Technical Data
| Item |
Data |
| Measurement parameters |
Voltage, current, power, energy, switching status |
| Bus voltage rated |
48VDC, 240VDC, 336VDC |
| Current outgoing loop rated |
5V (Hall sensor, external supply required ±12V) |
| Measurement accuracy |
Voltage/current 0.5 level, power/energy level 1 |
| Auxiliary power supply |
Powered by AMC100-ZD, DC 12-24V when used alone |
| Communication |
RS485/Modbus-RTU |
| Installation method |
DIN35mm rail or baseplate mounting |
| Working temperature |
-15°C ~ 55°C |
| Protection level |
IP20 |

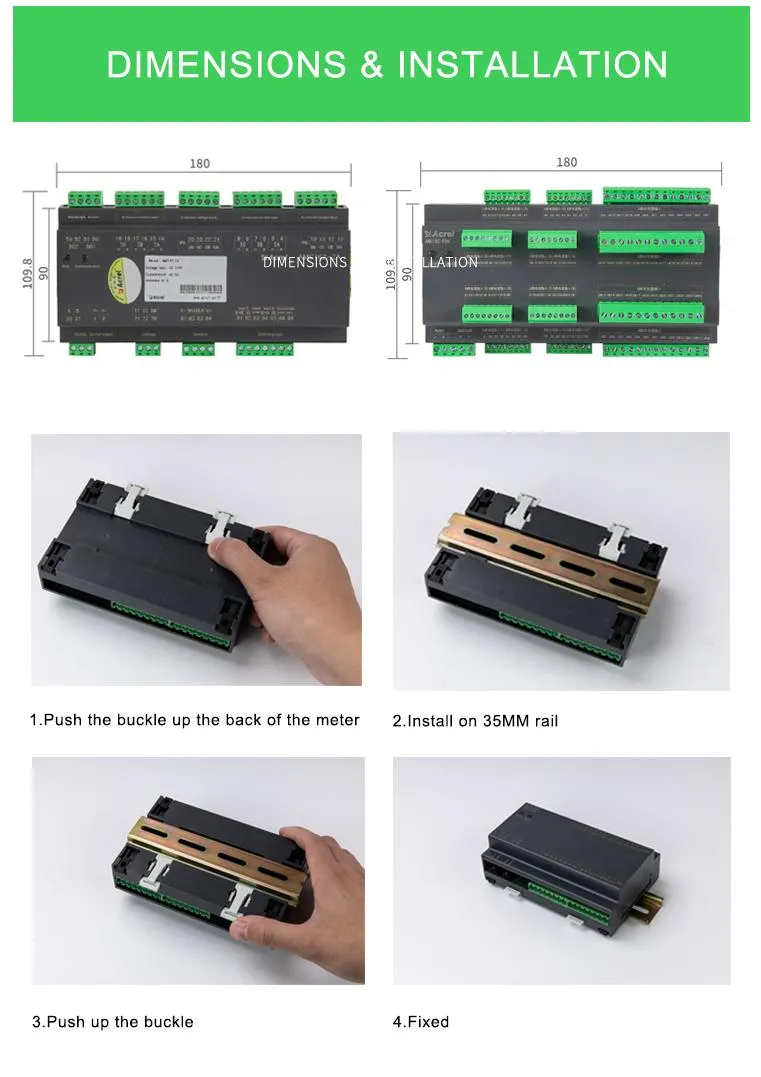

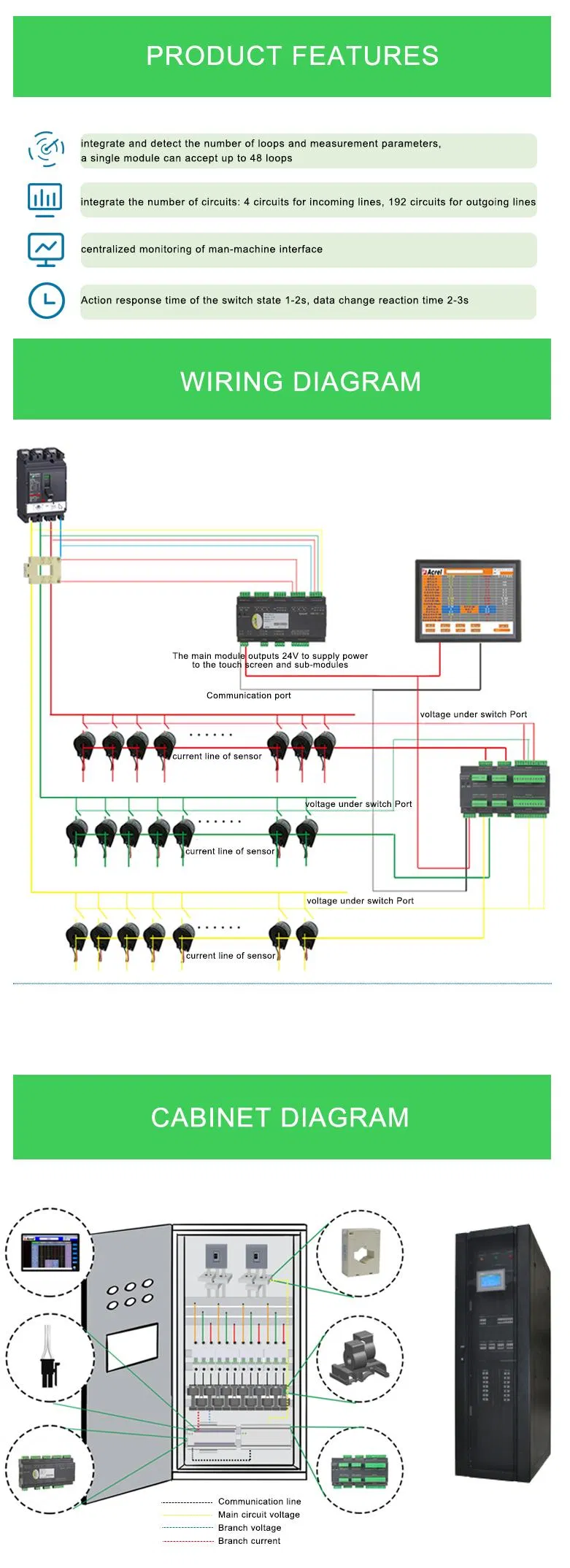

Installation Instructions

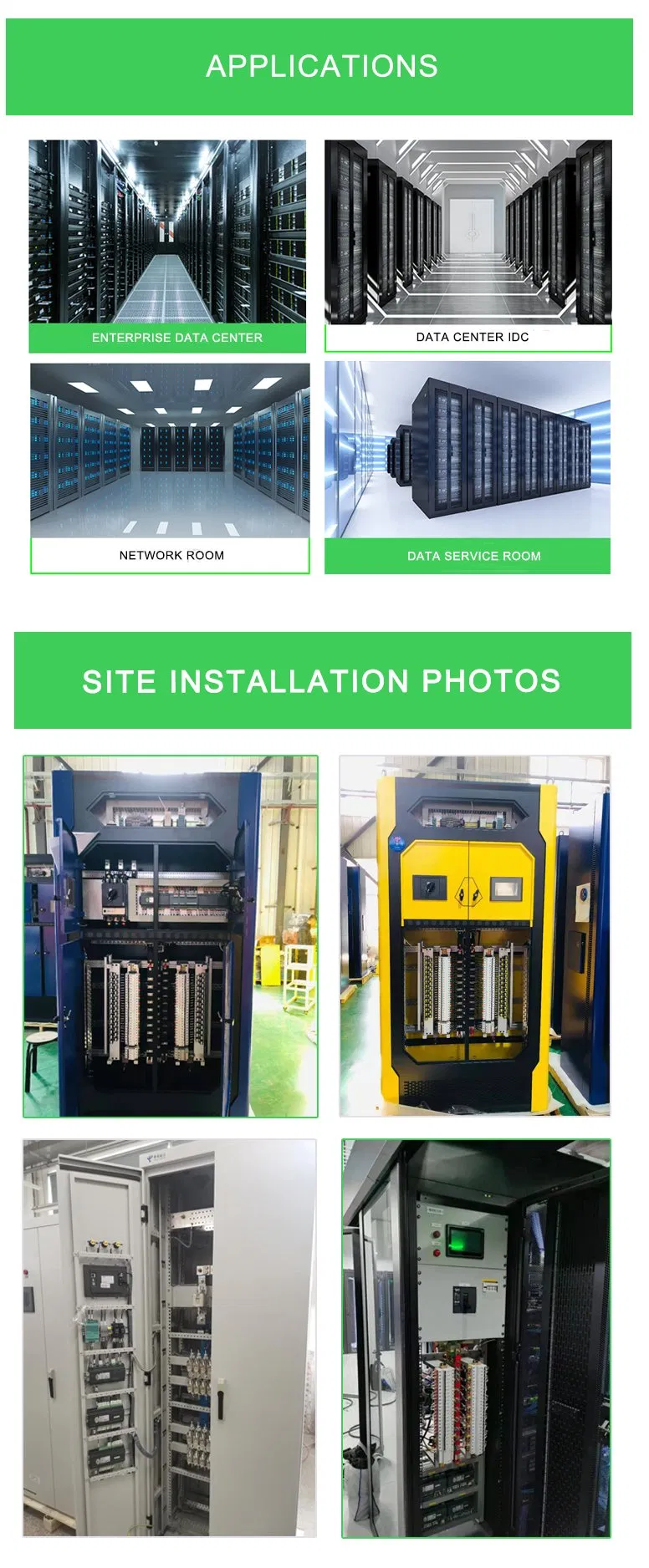

Picture in Real Site
Certifications

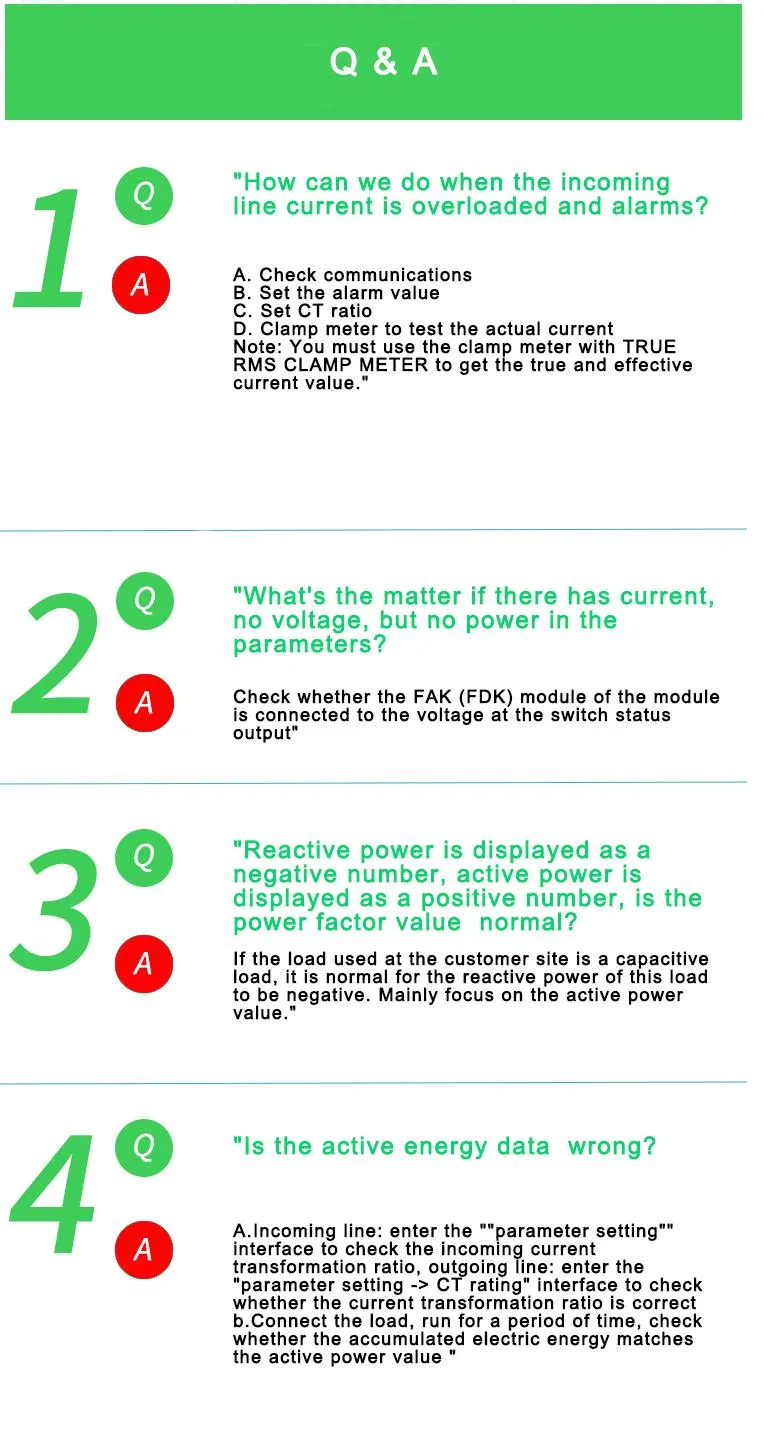

FAQ & Support
Production Overview
Q1: What is the main application of the AMC100 series?
The AMC100 series is specifically designed for the power management and monitoring of data center servers, providing precise measurement for multi-loop power distribution.
Q2: How many circuits can a single device monitor?
The device is highly integrated and can monitor A+B dual incoming lines and up to 192 outgoing electrical circuits.
Q3: What communication protocols are supported?
It supports standard RS485 communication with the Modbus-RTU protocol for easy integration into existing data center management systems.
Q4: What parameters can the AMC100 measure?
It measures a full range of electrical parameters including voltage, current, power, energy, and switching status for real-time monitoring.
Q5: What is the installation method for this device?
The device supports standard DIN 35mm rail mounting or baseplate mounting, making it suitable for various cabinet configurations.
Q6: Does the device provide alarm functions?
Yes, all alarm thresholds can be set separately for each measurement channel. It triggers sound and light alarms when limit events occur.
