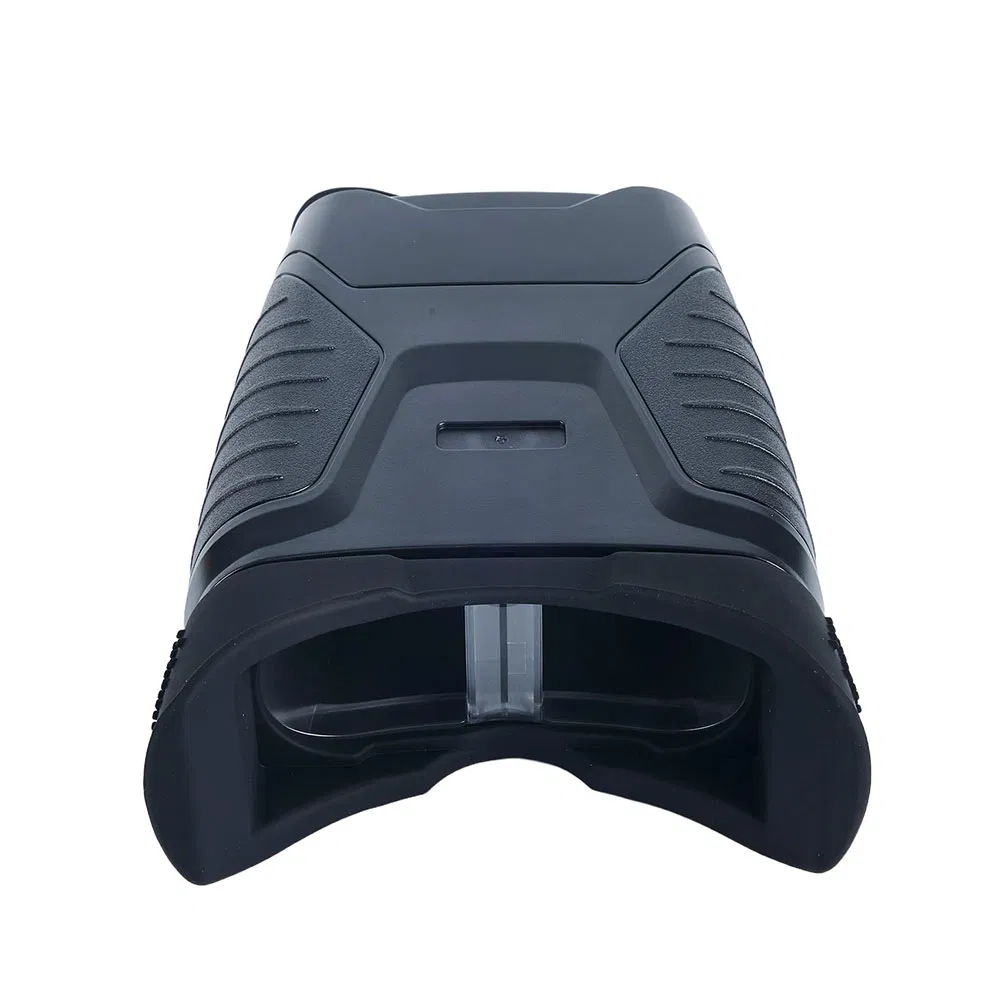

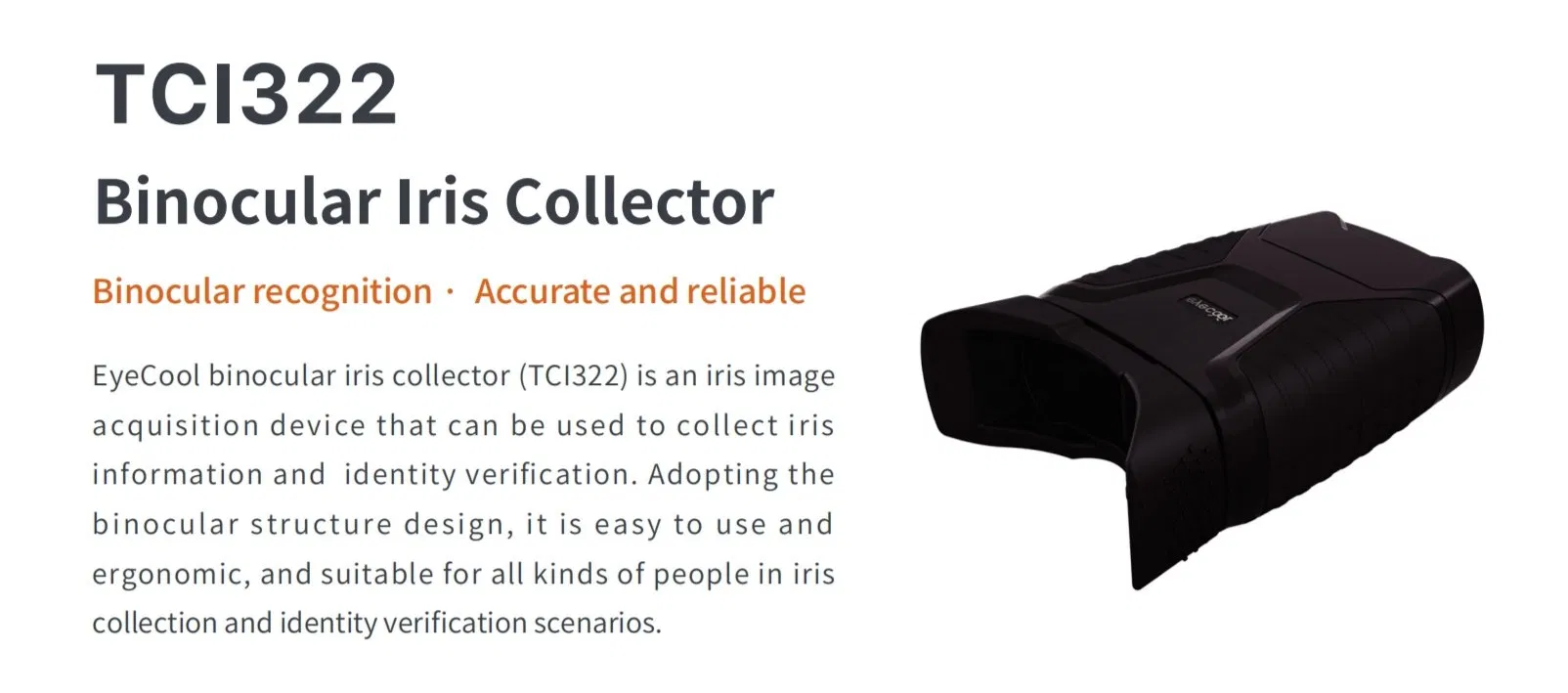

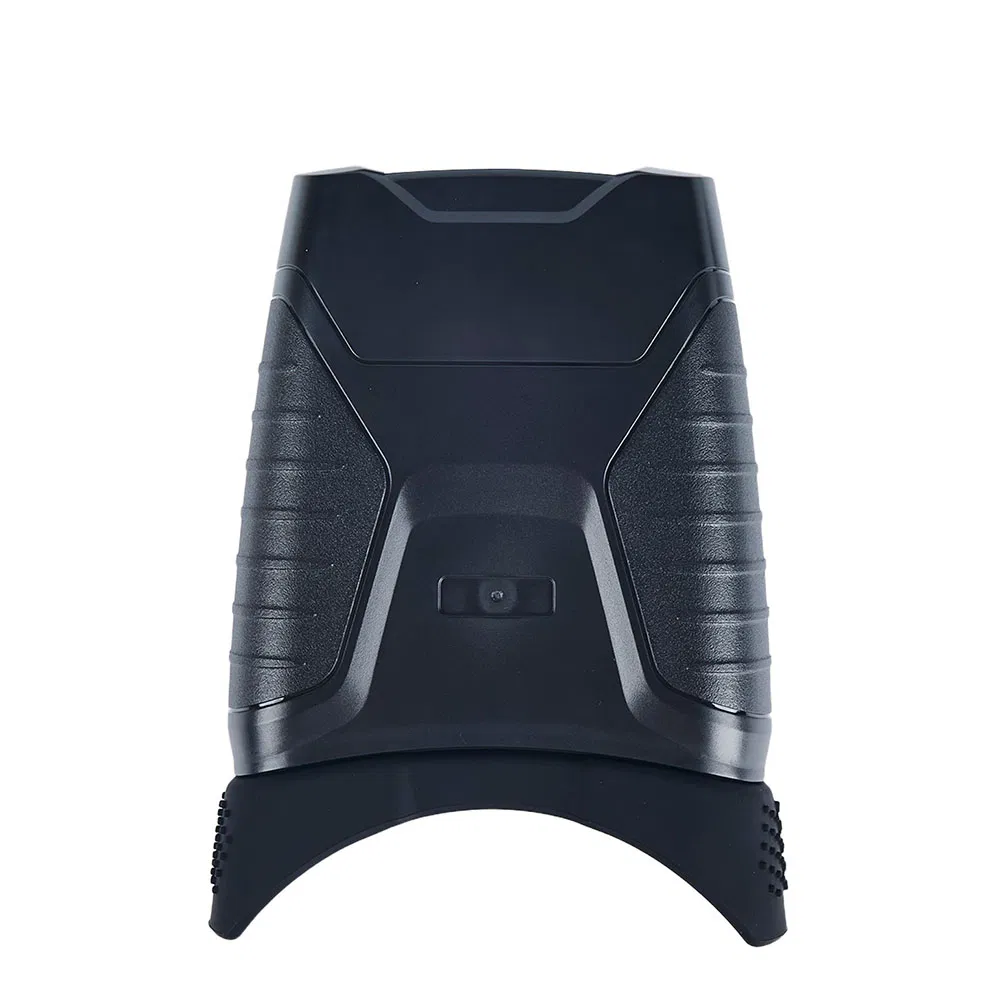

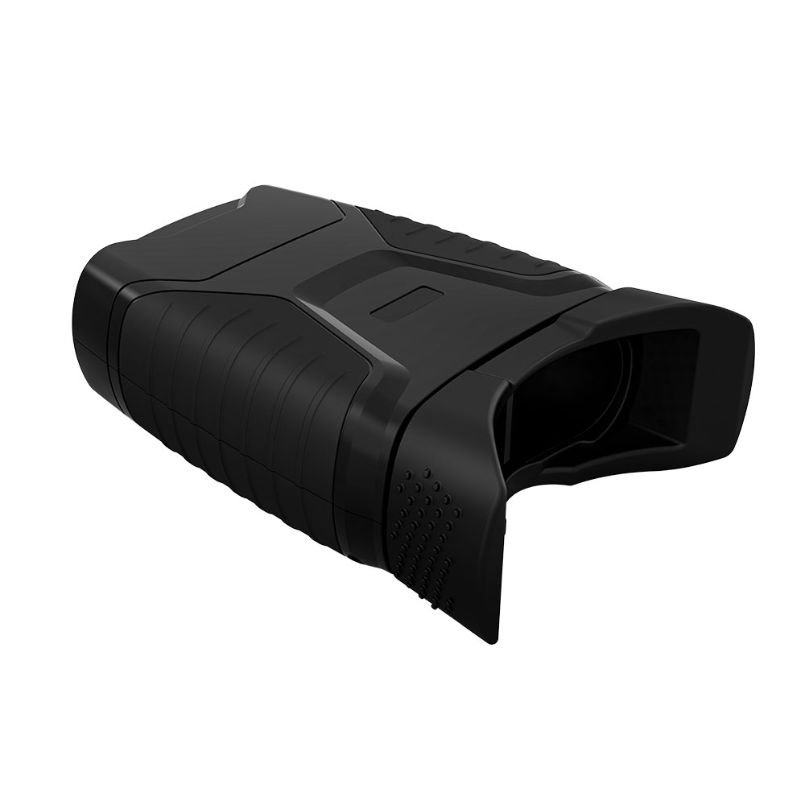

| Model NO. | TCI322 |
|---|---|
| Working Voltage | DC5V(±5%) |
| Power Waste | Standby 0.2W, Working 2.25W |
| Size | 207* 148 * 65mm |
| Installation Mode | Drive Free |
| Working Mode | Binocular Iris |
| Acquisition Time | <1s |
| IP Rating | IP64 |
Outputs high quality ISO standards compliant images.
Perfectly shields influence of external light for indoor/outdoor use.
High Speed - Dual Iris capture in just 1 second.
IP64 Compliant - Dust and Water Resistant.
1. Iris image quality meets international technical requirements for criminal investigation.

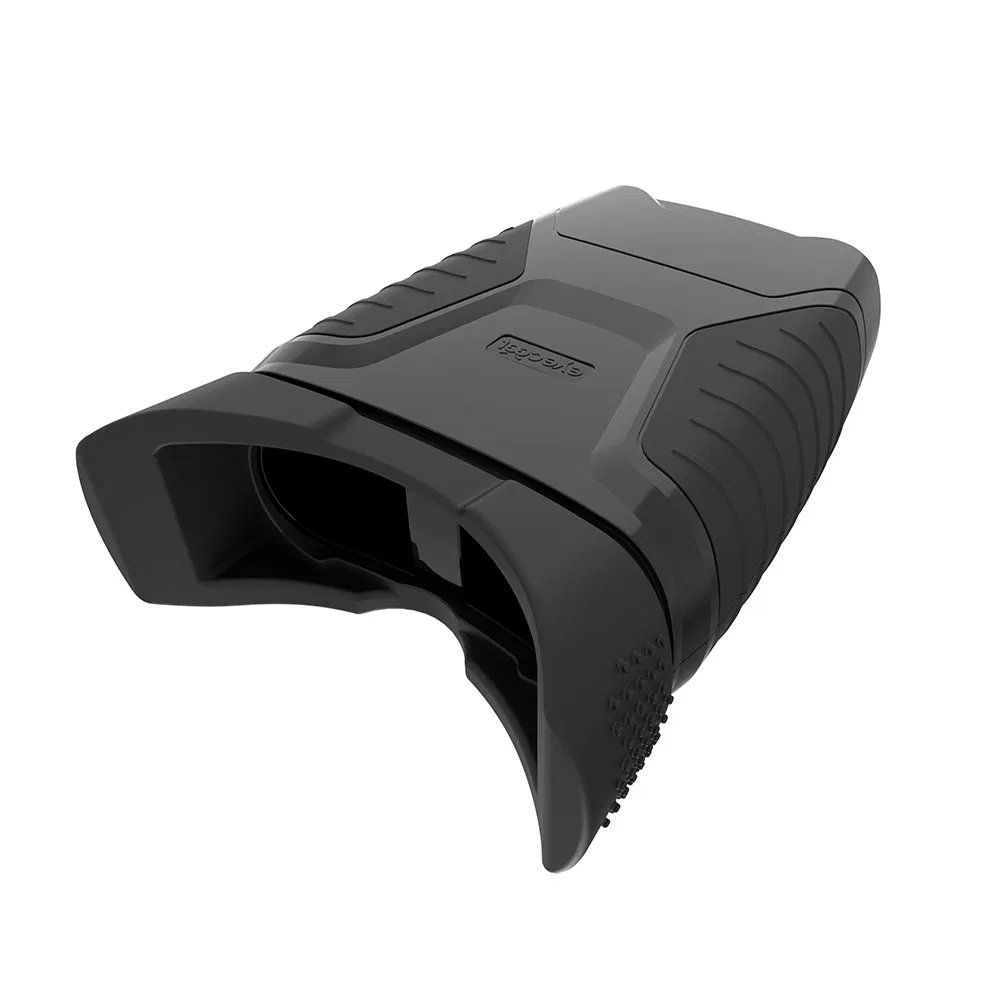

2. Telescope design for superior light shielding.
3. Supports both iris capture and identification functions simultaneously.
4. Ergonomic, lightweight, and easy to operate.
| Hardware Parameters | |
|---|---|
| Work Temperature | -10°C~ 55°C |
| Relative Humidity | 10%~90%(non-condensing) |
| Certifications | CE, RoHS, FCC |
| ESD Protection | 4kV (Contact), 4kV (Air) |
| Image Parameters | |
| Resolution | 640*480 pixel per eye |
| Images Per Second | ≥10fps |
| Data Standard | ISO/IEC 19794-6, JPEG2000 K1-K7 |
| Eye Safety | Comply with IEC62471 |
| Operating System | SDK for Windows (32/64bit), Linux, Android |
