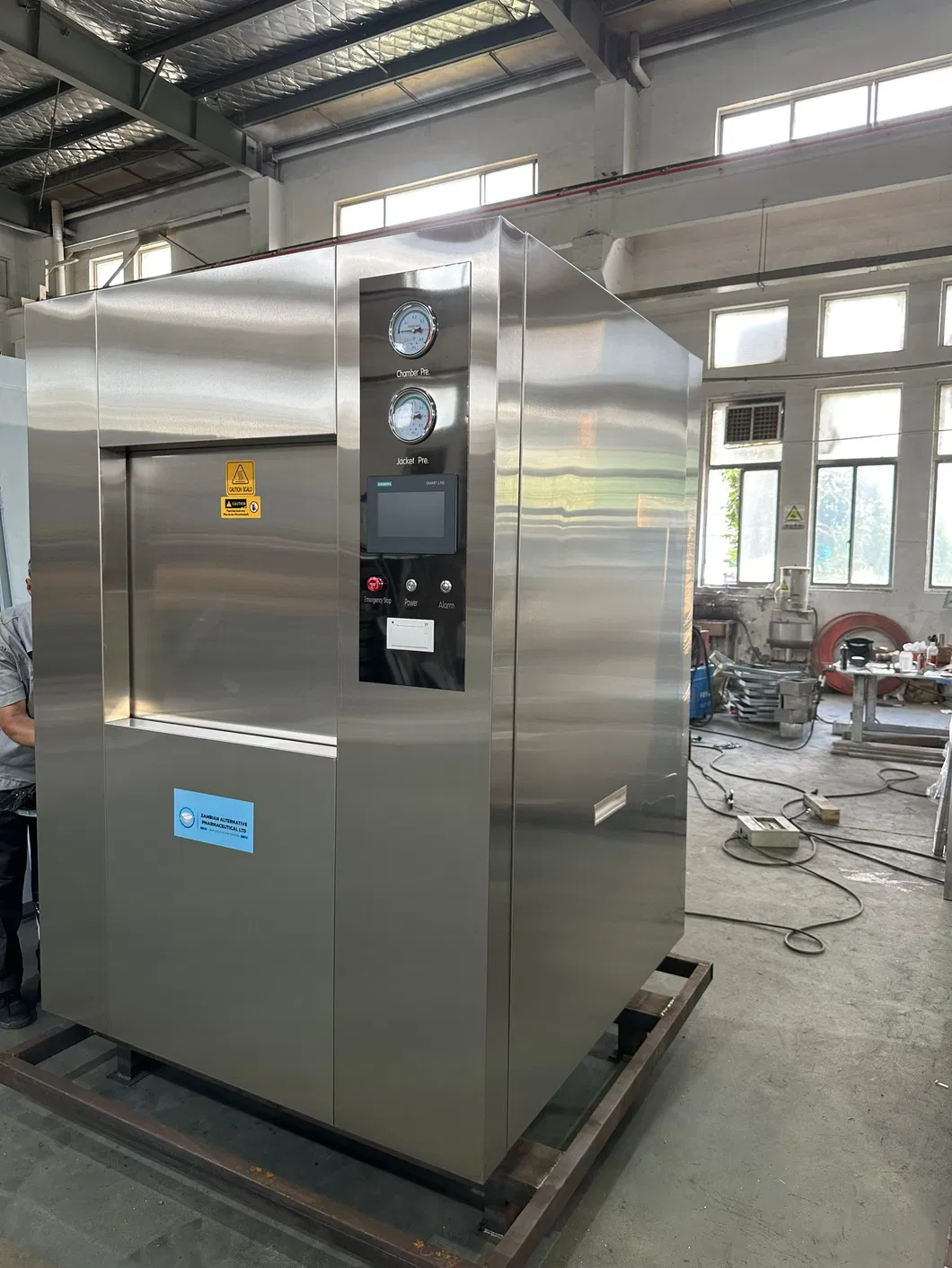

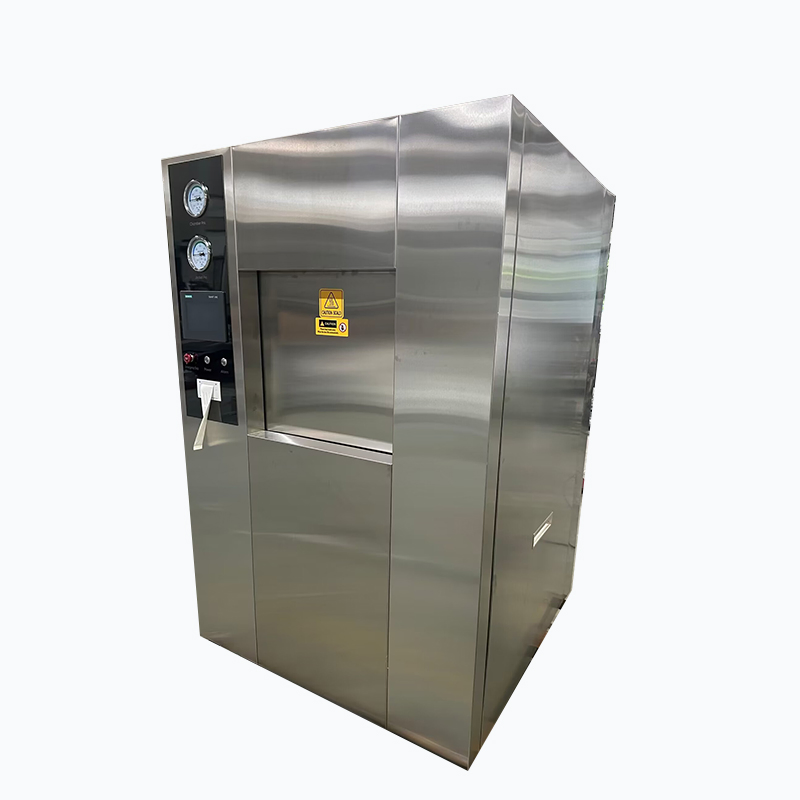

800L Lifting Door Horizontal Pulsating Vacuum Steam Sterilizer Autoclave for Scientific Research Laboratory

1 / 5

800L Lifting Door Horizontal Pulsating Vacuum Steam Sterilizer Autoclave for Scientific Research Laboratory

Send Inquiry

Product Description

Product Overview

600L Lifting Single Door Pulse Vacuum Autoclave HA-BVD

The series pulsating vacuum sterilizer uses saturated steam as the sterilization medium. It completely penetrates the surface of articles through pulsating vacuum, effectively eliminating all microorganisms and spores under high pressure.

This method is recognized as the most reliable physical sterilization technique. Pulsating vacuum exhaust removes cold air influence, followed by vacuum dehumidification combined with a jacket for thorough drying.

Note: "HA-BVD" refers to Double door models, and "HA-BVS" refers to Single door models.

Technical Parameters

Model	Liner Size W x H (mm)	Depth (mm)	Volume (L)	Overall Size L x W x H (mm)	Weight (Kg)
HA-BVD(S)150	450 x 450	800	150	1050x1200x1750	550
HA-BVD(S)200	450 x 450	1000	200	1360x1150x1820	750
HA-BVD(S)250	550 x 550	845	250	1150x1300x1800	850
HA-BVD(S)300	550 x 550	1000	300	1300x1300x1800	950
HA-BVD(S)360	610 x 610	1000	360	1300x1350x1900	1050
HA-BVD(S)450	652 x 700	1000	450	1300x1350x1950	1150
HA-BVD(S)600	652 x 700	1320	600	1620x1350x1950	1250
HA-BVD(S)800	652 x 700	1750	800	2050x1350x1950	1450

Chamber & Operational Specs

Designed Pressure (Inner)	-0.1~0.3MPa	Safety Valve Opening (Inner)	0.28MPa
Designed Pressure (Jacket)	0.3MPa	Safety Valve Opening (Jacket)	0.28MPa
Designed Temperature	150°C	Max Working Temperature	139°C
Temperature Uniformity	±0.5°C	Vacuum Leakage Rate	≤0.13KPa/min

Equipment Features

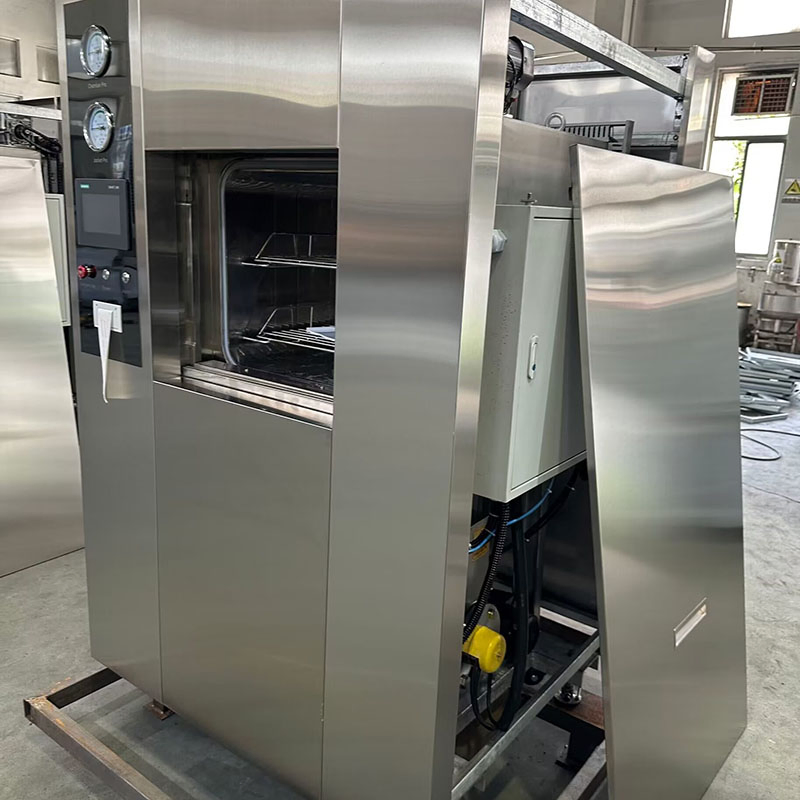

Lifting Door Structure

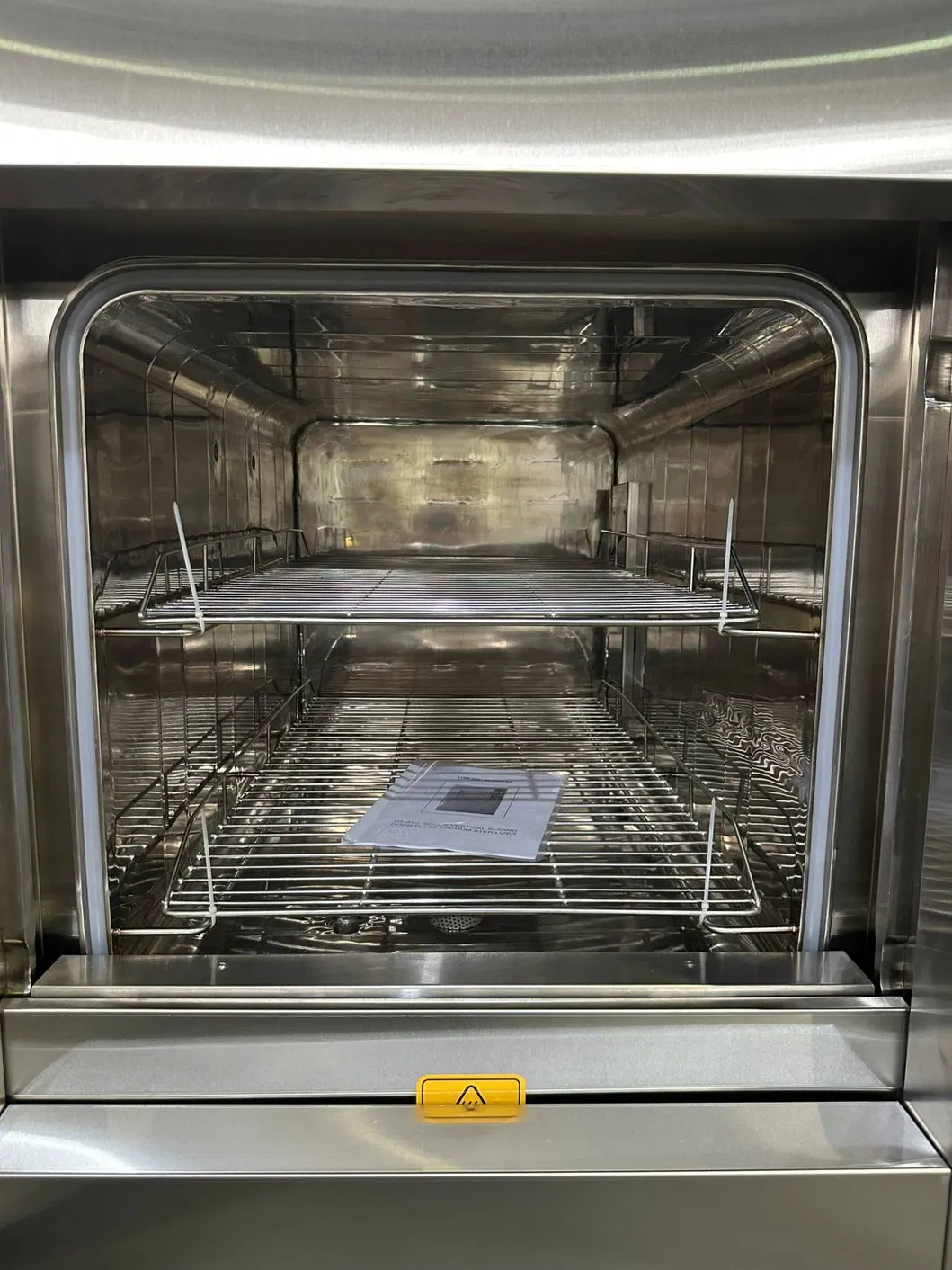

Motor chain driven with anti-pinch function. Removable racks allow more operation space and convenient loading.

Advanced Control System

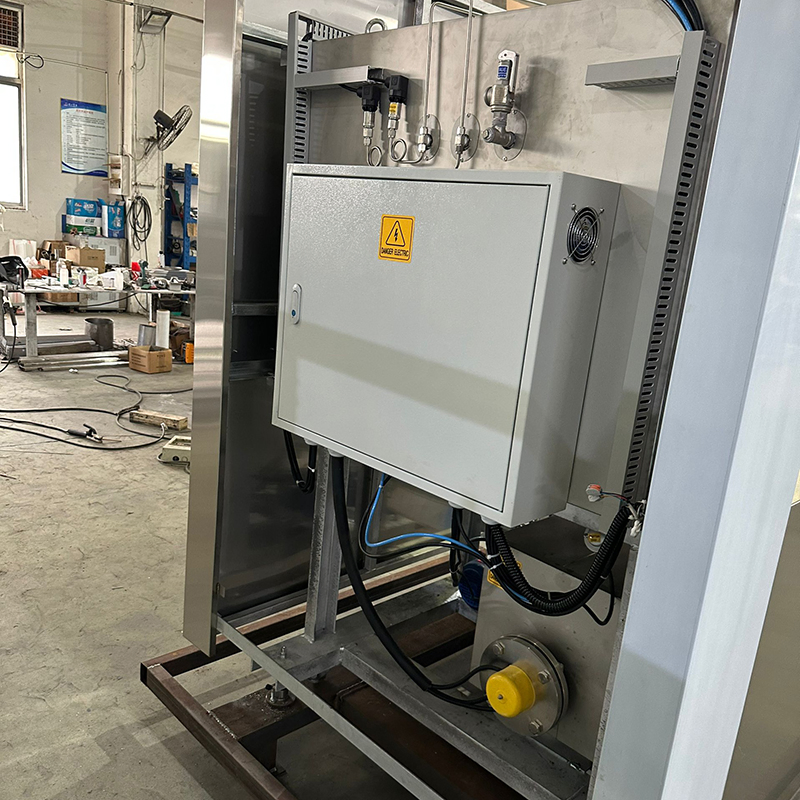

Siemens PLC with color touch screen. Automated process control displaying temperature, pressure, and time parameters.

High-Quality Sealing

Inflation pressure drives the silicone rubber sealing ring. Wear-resistant coating ensures service life up to 1500 cycles.

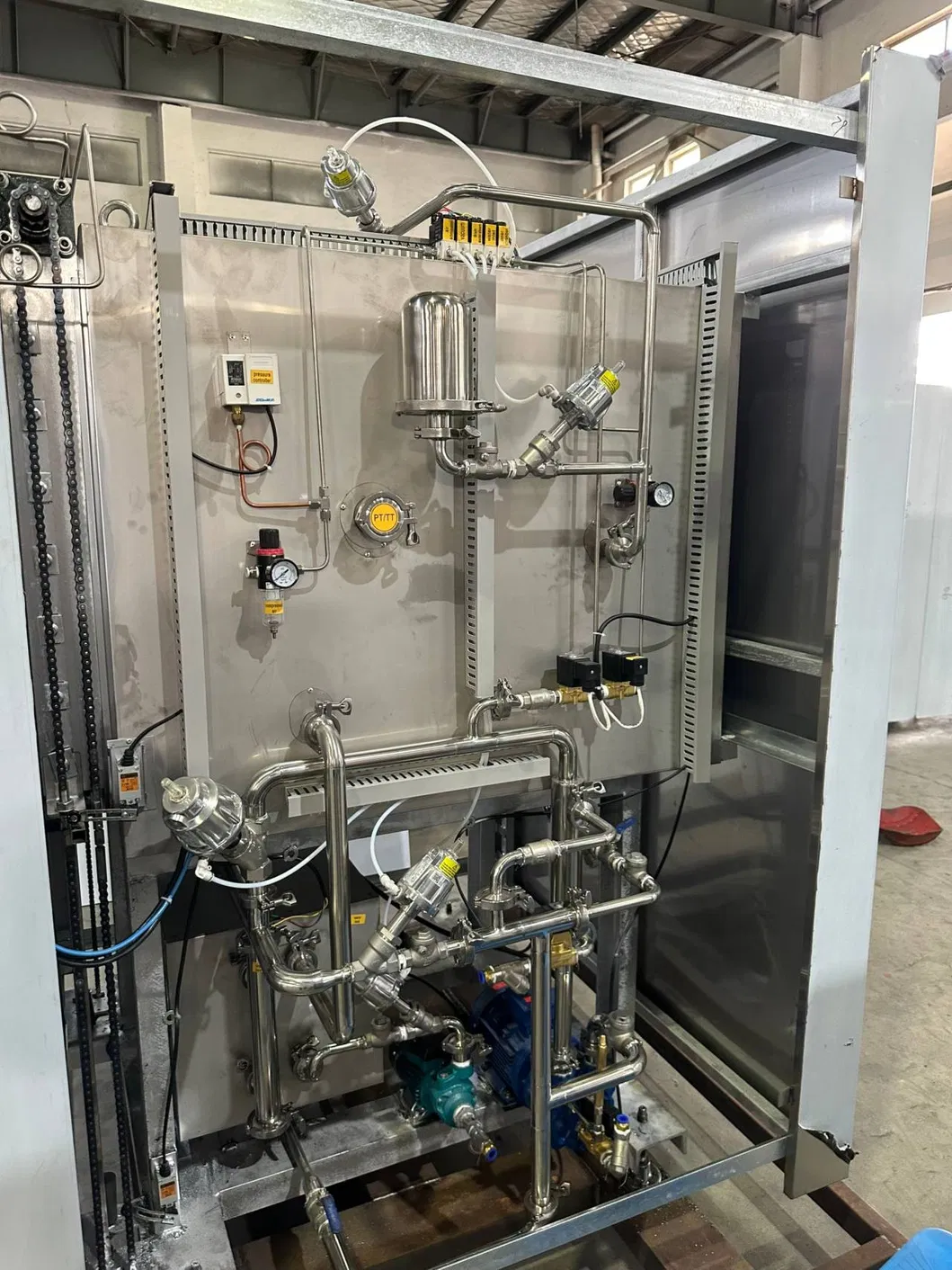

Sanitary Pipeline System

Stainless steel sanitary pipelines with clamp joints, German GEMUE angle seat valves, and SPECK vacuum pumps.

Product Details & Applications

Visual Documentation

Frequently Asked Questions

1. What is the standard warranty for these autoclaves? We provide a 2-year warranty along with lifetime technical service support for all our sterilization products.

2. How is after-sales technical support handled? Technical support is provided via operating manuals and instructional videos. For hardware issues within the warranty period, spare parts are sent free of charge.

3. What are the typical lead times for different models? Portable types take 5-10 days; Table top and Vertical types take 10-25 days; Medium horizontal models take 10-20 days; Large scale autoclaves require 30-35 days.

4. Can the equipment be customized for specific requirements? Yes, we offer customization options for the control panel interface and voltage requirements to suit local standards.

5. What sterilization programs are pre-installed? It includes procedures for sterile clothes, tools, rubber, liquids, culture media, and waste, plus BD and vacuum leakage tests.

6. How is the sterilization process data recorded? Data is printed in real-time via a built-in micro needle printer, and the equipment is also equipped with a paperless electronic recorder.
