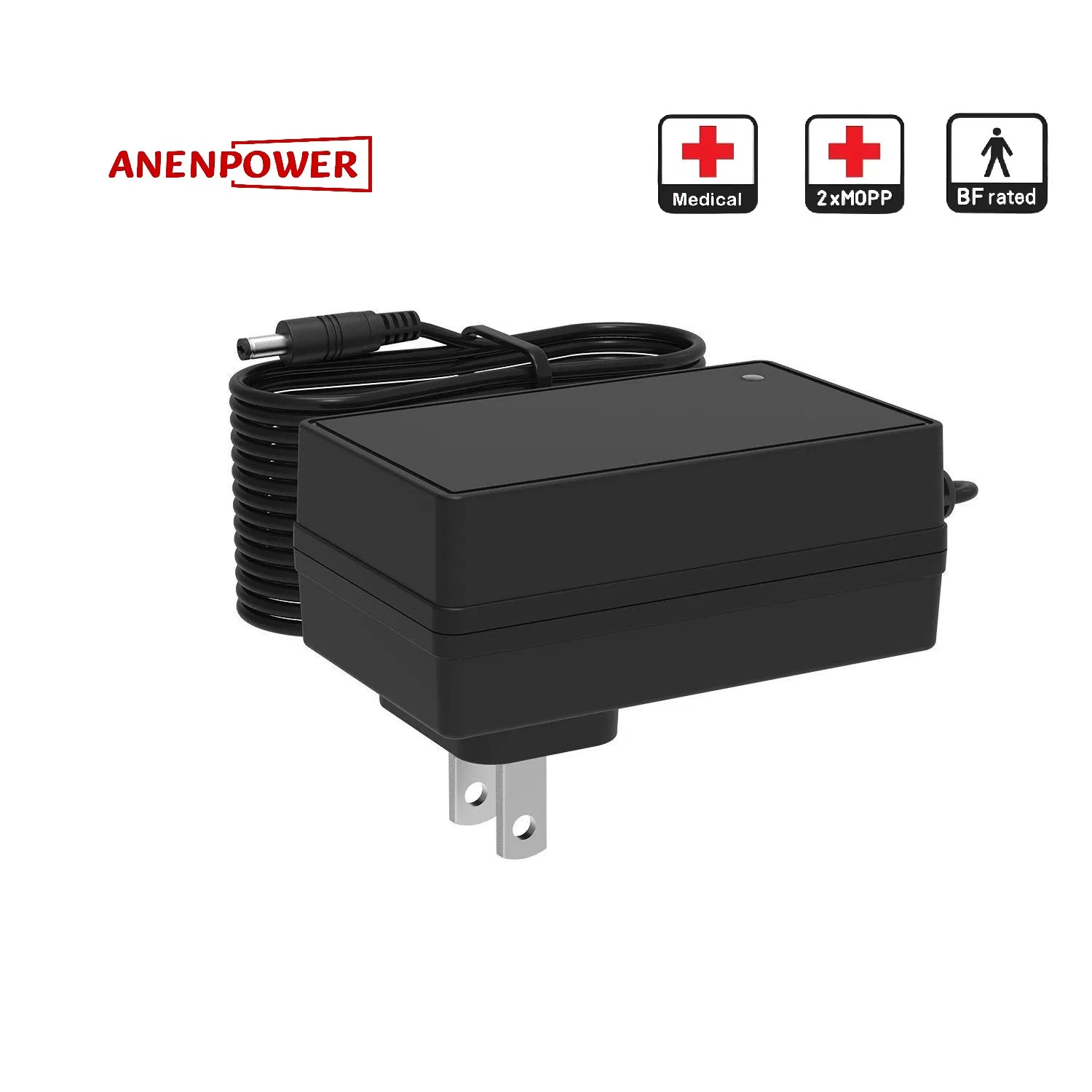

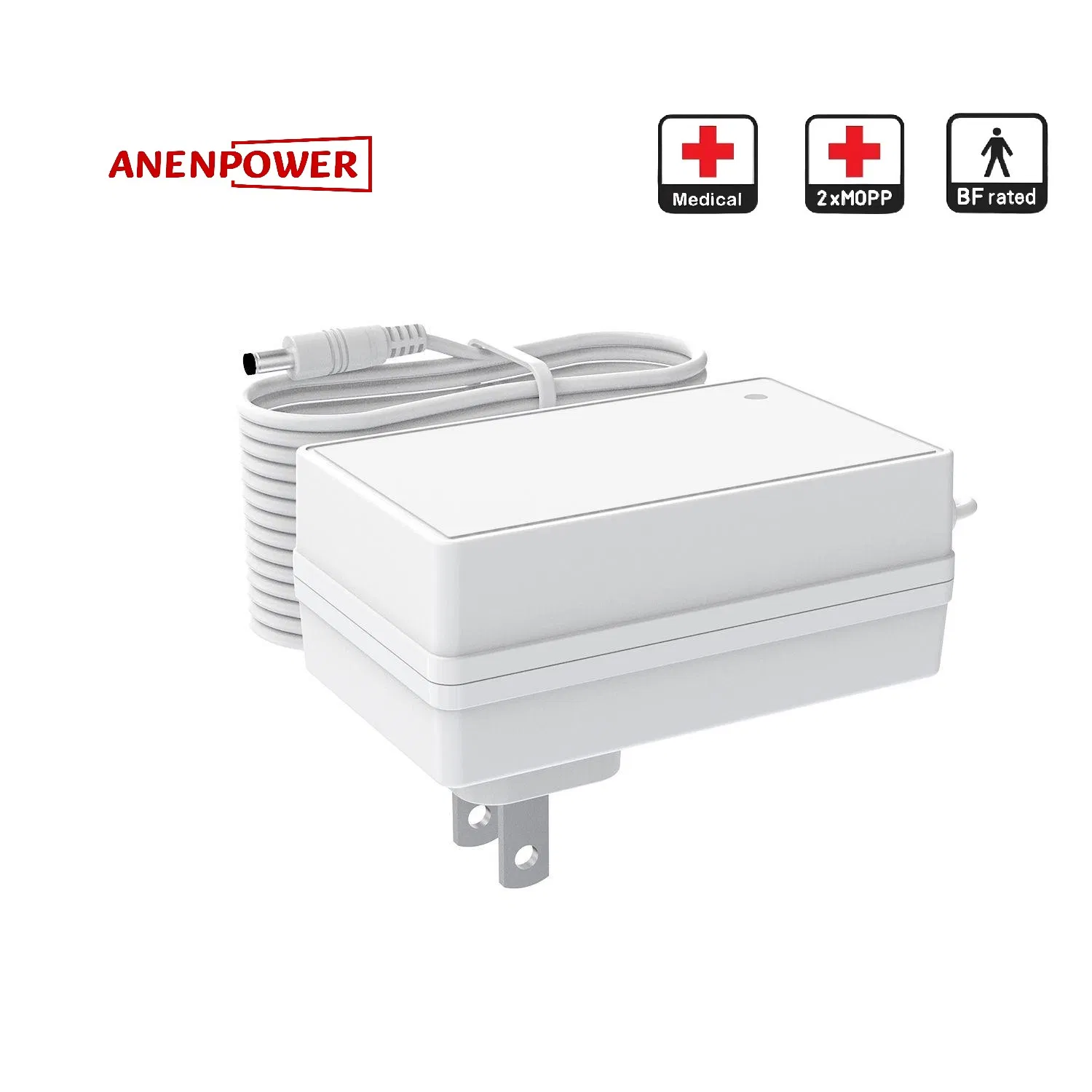

US Plug 12V 3A Medical Power Adapter | Low Leakage Current & 2×MOPP for Vital Signs Monitors
This 12V 3A (36W) medical-grade AC/DC power adapter is purpose-built for portable and bedside vital signs monitors—including devices that measure ECG, SpO2, blood pressure, respiration rate, and temperature—in U.S. clinical, home healthcare, and emergency settings. Certified to UL 60601-1 (4th Edition) and designed with 2×MOPP (Means of Patient Protection) isolation, it delivers ultra-low patient leakage current (<10 µA) to ensure electrical safety during direct or indirect patient contact. Featuring a fixed NEMA 5-15P grounded US plug, this adapter meets all FDA-recognized safety standards and FCC EMC requirements, making it ideal for integration into FDA-cleared monitoring systems requiring reliable, clean, and compliant power.
| Model NO. | Max Power | Voltage | Max Load | Min Load | Load Reg. | Line Reg. | Ripple & Noise |
|---|---|---|---|---|---|---|---|
| APM036UA | 36W | 9V | 4.0A | 0A | ±5% | ±1% | 100mV |
| APM036UB | 30W | 12V | 2.5A | 0A | ±5% | ±1% | 100mV |
| APM036UC | 36W | 12V | 3.0A | 0A | ±5% | ±1% | 100mV |
| APM036UD | 36W | 15V | 2.4A | 0A | ±5% | ±1% | 100mV |
| APM036UE | 36W | 18V | 2.0A | 0A | ±5% | ±1% | 100mV |
| APM036UF | 36W | 24V | 1.5A | 0A | ±5% | ±1% | 100mV |
| APM036UG | 36W | 36V | 1.0A | 0A | ±5% | ±1% | 100mV |
| APM036UH | 36W | 48V | 0.75A | 0A | ±5% | ±1% | 100mV |
