| Model NO. | WT W650 |
| Feature | Waterproof / Weatherproof, Explosion Proof |
| Video Capture System | Camera Lens |
| Video Transmission | Network Cable Transmission |
| Software Function | Monitoring + Control |
| Sensor / Technology | CMOS / Pan / Tilt / Zoom |
| Horizontal Resolution | 650tvl |
| IP Grade | IP68 |
| Production Capacity | 5000 Per Year |

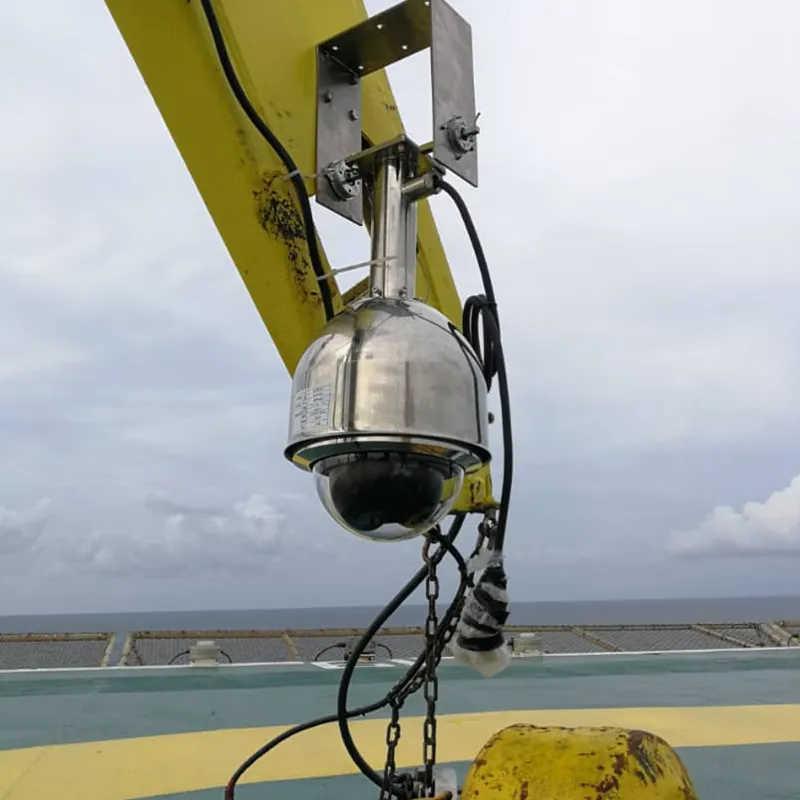

In the actual production and hoisting process, due to the complex environment of the offshore platform, all kinds of equipment and structural parts can be seen everywhere. The cranes on the same platform carry out different types of work at the same time, and the above characteristics determine the hanging. The machine operator must have a broad field of vision and know the current working parameters of the crane.
In the process of lifting the crane in the dead angle, the crane and the operator cooperate with each other, the operation requirements of the crane operator and various data monitoring requirements. It will be further improved. Otherwise, the hoisting operation will take a lot of time and is prone to hoisting accidents, which will endanger the safety of the crane and the operators and ground personnel.

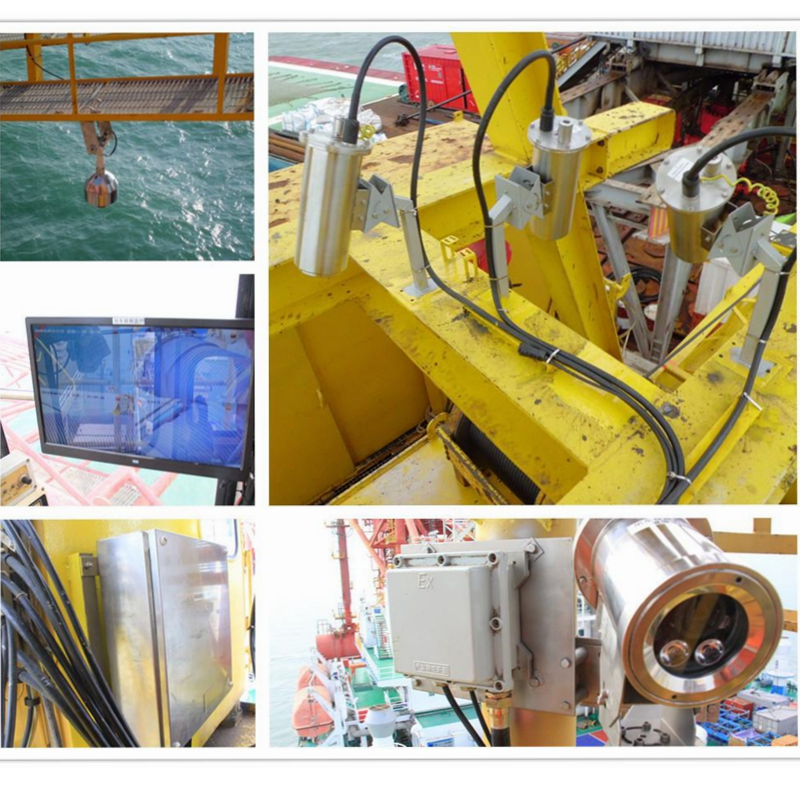

Therefore, the offshore platform crane needs to install a comprehensive safety monitoring system for each working link of the crane, various safety points, various working conditions and various instructions, to ensure the safe operation of the lifting equipment, operators Safety, improve work efficiency and reduce safety hazards.

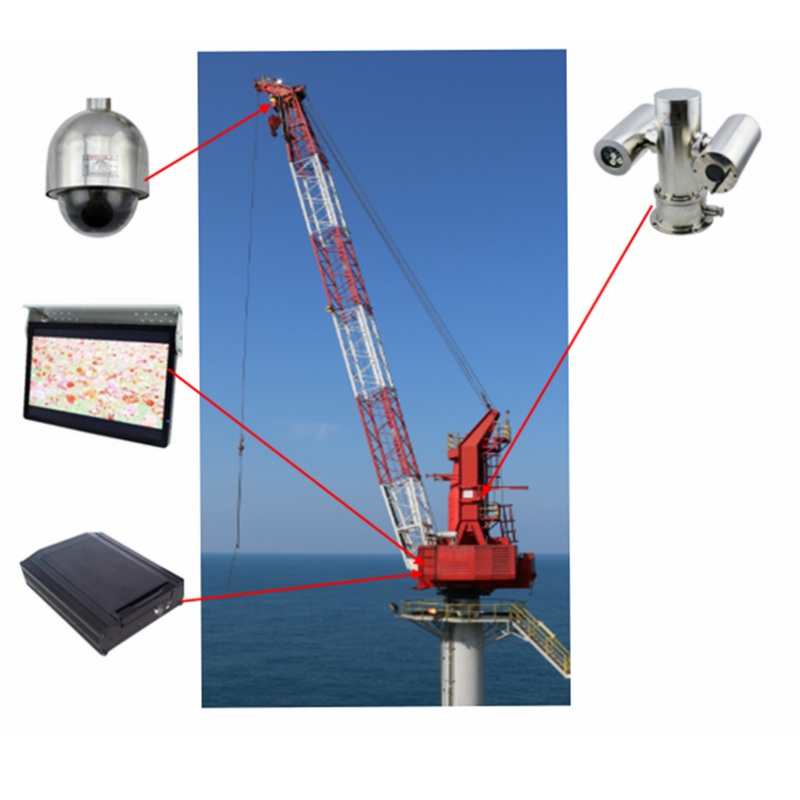

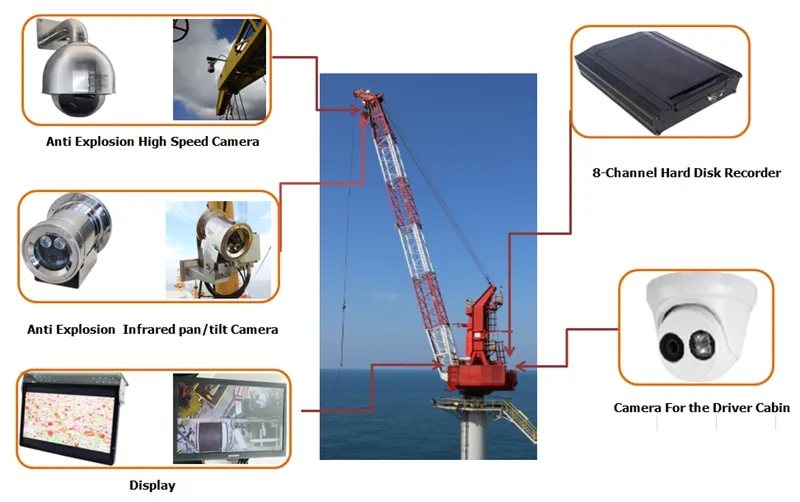

| No. | Component Description |
|---|---|

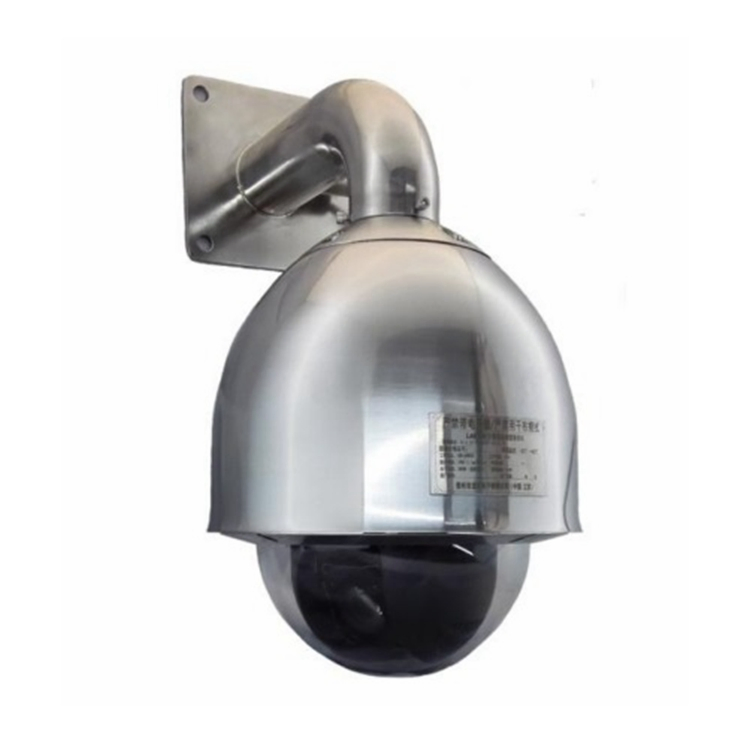

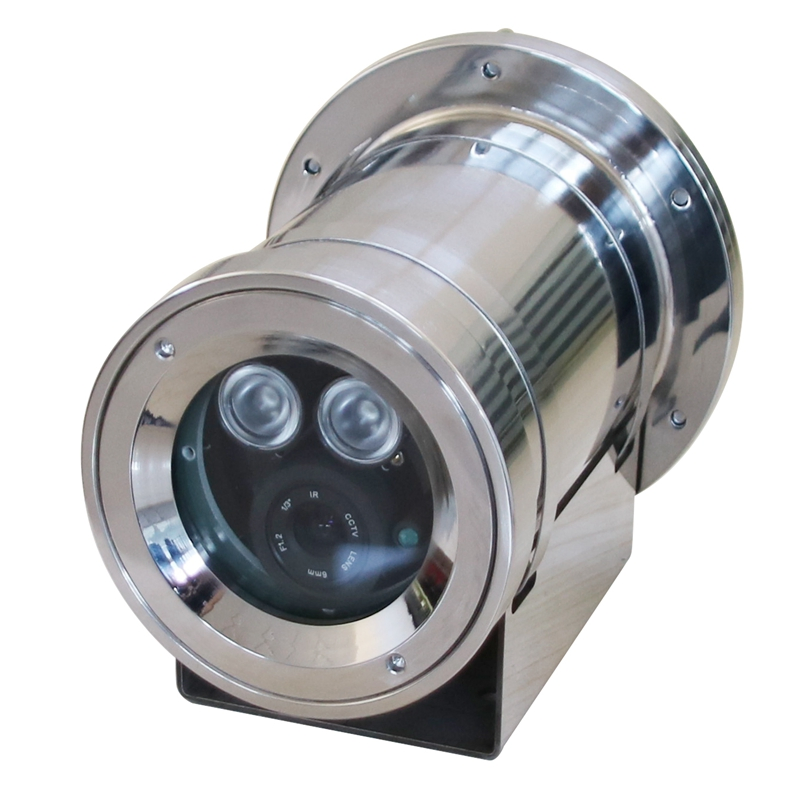

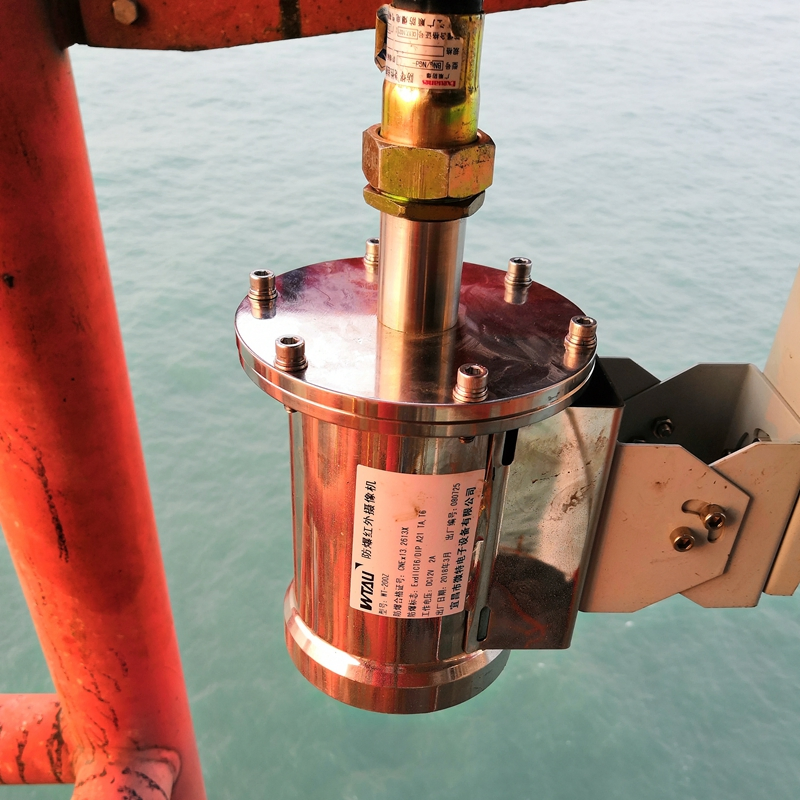

| 1 | Explosion-proof Network HD High-speed Camera |
| 2 | Mounting bracket |
| 3 | Cable drum or cable connection box |
| 4 | Digital Video Recorder |
| 5 | High-definition Monitor (to view the load and surrounding space) |
| 6 | Control box (to zoom and handle camera functions) |
| 7 | Power box (adaptation for signal and power supply) |
| 8 | Connection cables (Cable drum system) |

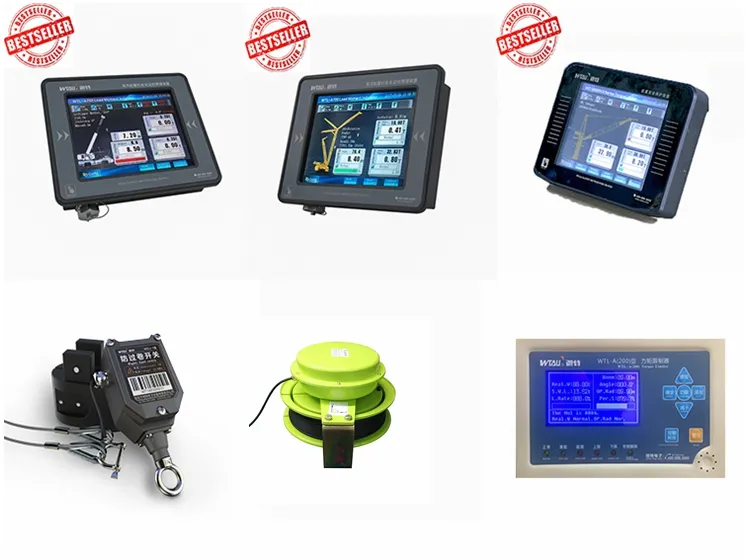

Founded in 2002, this national hi-tech enterprise has been focusing on R&D and manufacturing of lifting safety protection devices such as Load Moment Indicators, Safe monitoring systems, overload limiters, load cells, and anemometers. We continuously concentrate on ensuring lifting equipment runs safely as a long-term pursuing goal.
The products are widely used in marine industry, electrical, chemical, steel, metallurgy, construction, ports and other industries, and have been spread to over 70 countries and regions, serving global top crane owning companies and Fortune 500 corporations.
