Basic Information

Product Overview

Utilizing cognitive radio protocol reverse parsing technology, this system employs radio spectrum sensing technology to extract UAV communication signals (remote control and image transmission) from background noise. Through in-depth reverse parsing, the system identifies drone electronic fingerprints including channel distribution, modulation schemes, and link layer structures.

Based on a comprehensive UAV detection database, the system performs real-time matching in complex radio environments, allowing for feature-fast recognition and precise distinguishing of different UAVs for tactical response.

Technical Features

• Superior detection sensitivity and signal-to-noise ratio compared to traditional spectral methods.
• Physical and link layer demodulation to extract unique identification (Electronic Fingerprint ID).
• Precise interference effects by targeting pilot signals and synchronous reference signals.
• High precision synchronous frame structure for accurate orientation and positioning.
• Advanced protocol support for potential UAV takeover through physical layer frame structures.

Main Functions

Technical Specifications

Command and Control System

Supports assembly of over 3 sets of detection or jammer devices into a unified command system for wide-area coverage.

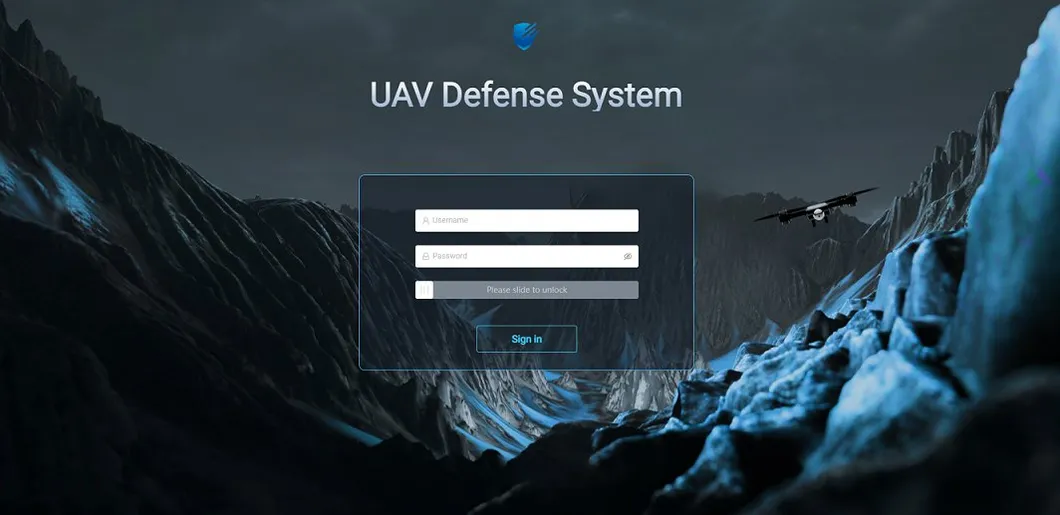

Operation Interface

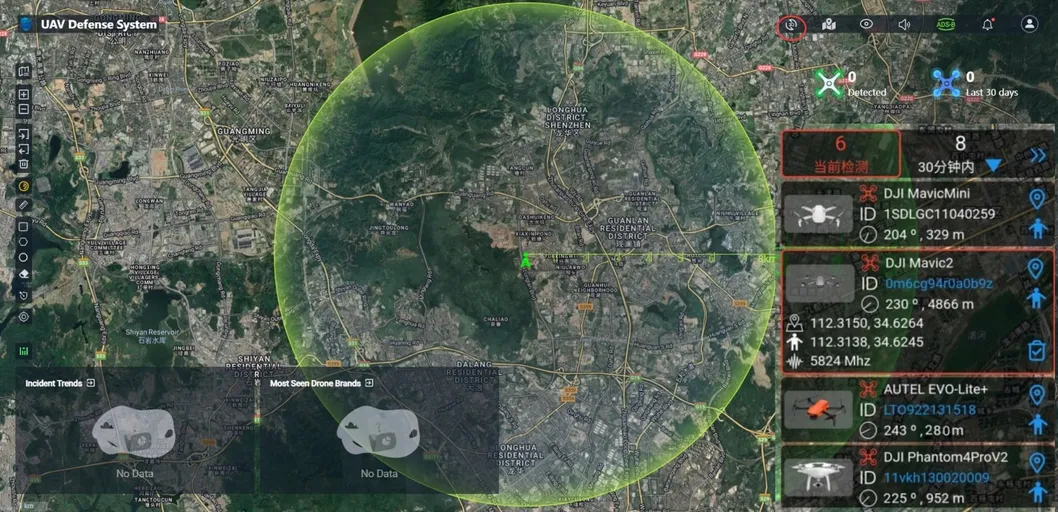

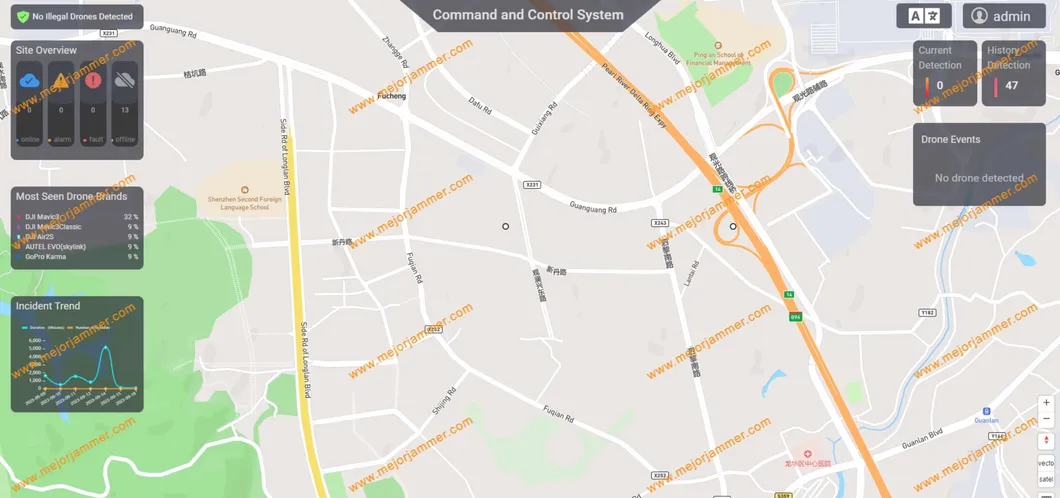

Trajectory Tracking

The system provides real-time recording and visual playback of drone flight trajectories.
