Advanced Sterilization Solutions for Clinics and Research Labs

Customization:	Available
Theory:	Pressure Steam
Type:	Pressure Steam Sterilization Equipments

Send Inquiry

Product Description

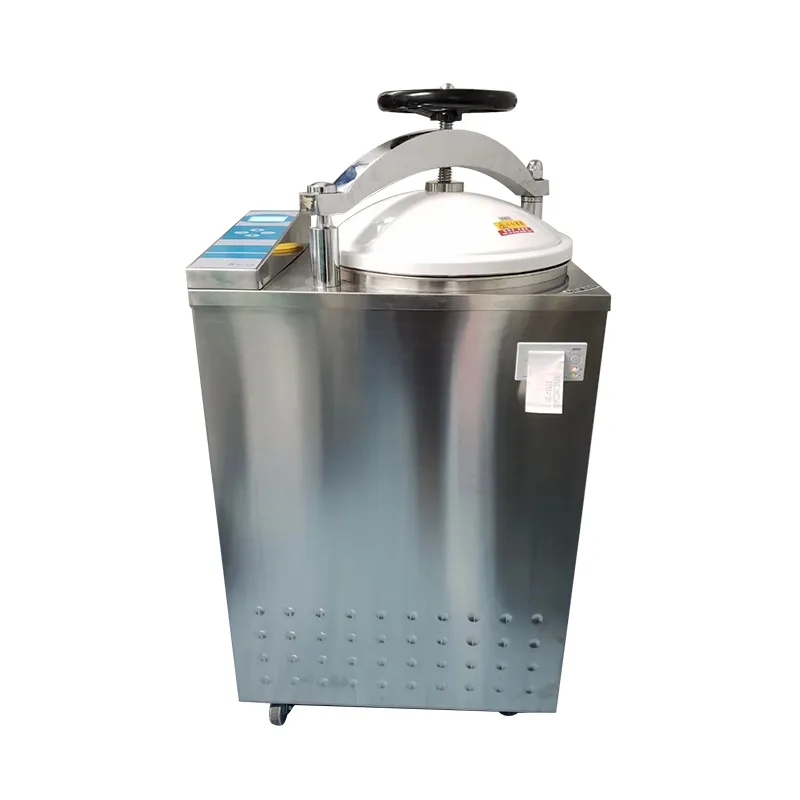

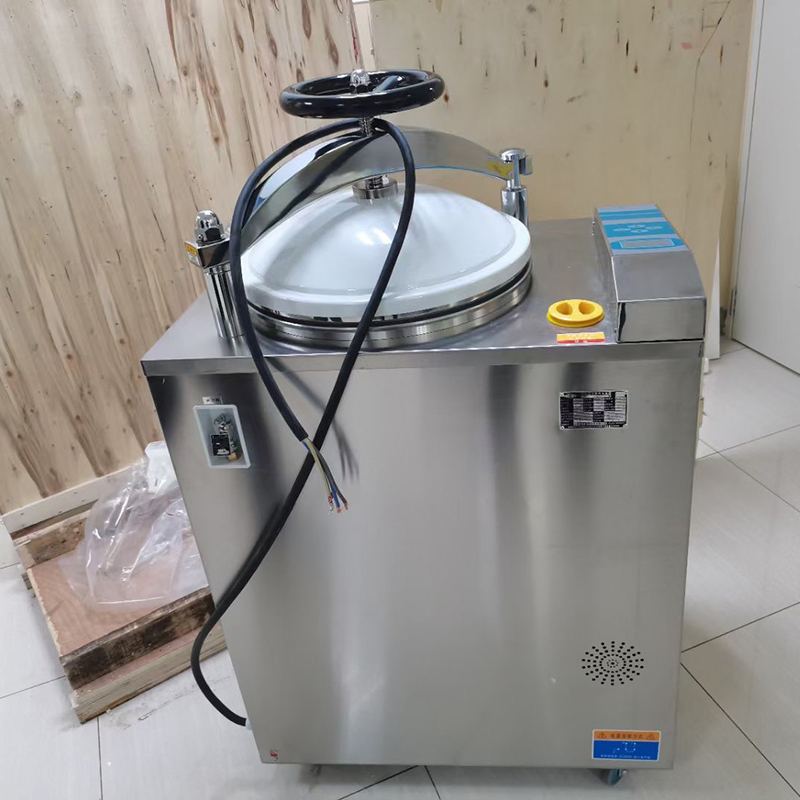

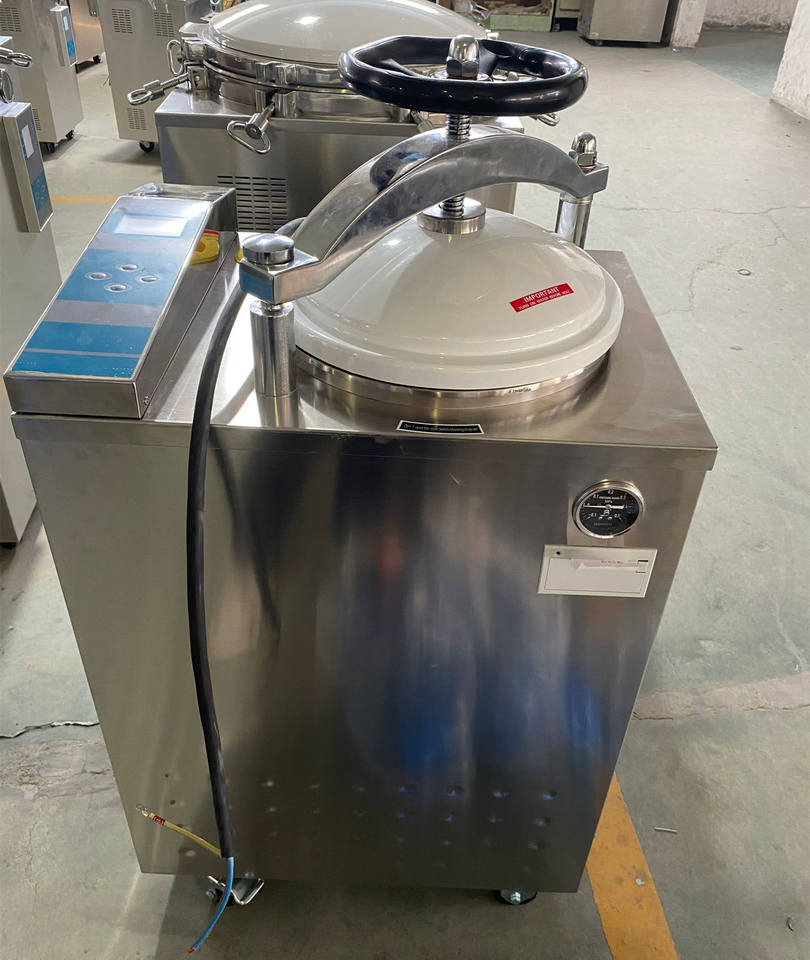

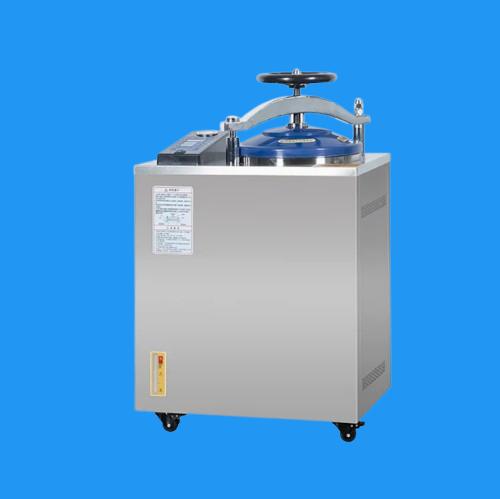

Introducing the VA-FD35L Medical Sterilizer Machine, a state-of-the-art vertical steam sterilizer. This cutting-edge technology is specifically designed to deliver unparalleled sterilization for hospitals and laboratory settings. Its robust construction ensures maximum efficiency and reliability, safeguarding against contaminants with precision and care.

Basic Specifications

Model NO.	VA-SV50L	Certification	CE, FDA, EEC, ISO13485
Electric Tension	220V	LCD Display	With LCD Display
Material	Stainless Steel	Temperature Range	0-134 Degree C
Designed Pressure	0.22MPa	Feature	Pulse Vacuum
Drying	Drying System	Specification	50L, 75L, 100L

Product Description

The vertical steam sterilizer is meticulously engineered with an advanced heating system, a sophisticated micro-computer control system, and robust overheat and overpressure protection features. These units are the perfect choice for clinics, research institutes, and other facilities aiming to sterilize surgical instruments, textiles, glassware, culture media, and more with utmost precision and safety.

MODEL	VA-SV50	VA-SV75	VA-SV100
Chamber volume	50L	75L	100L
Chamber Size	340 x 550mm	400 x 600mm	440 x 650mm
Working pressure	0.22Mpa
Working temperature	134ºC
Timer range	0~99min
Overall dimension(mm)	690 x 470 x 1140	730 x 510 x 1270	750x550x1305
G.W/N.W	120Kg/100Kg	140Kg/118Kg	160Kg/128Kg

Key Features

Advanced Performance

State-of-the-art microcomputer control with intuitive digital display.
Real-time dynamic display of temperature, pressure, timing, and vacuum rate.
Fully automated process: water inlet, heating, sterilization, and vacuum drying.
Triple pulse vacuum system achieving -0.08 MPa for thorough air removal.
Four pre-set programs for appliances, dressings, rubber, and fluids.
Innovative steam-water inner circulation system prevents steam discharge.
Equipped with a 0.22µm bacteria filter to prevent recontamination.

Vertical Pulse Vacuum Steam Sterilizer Features

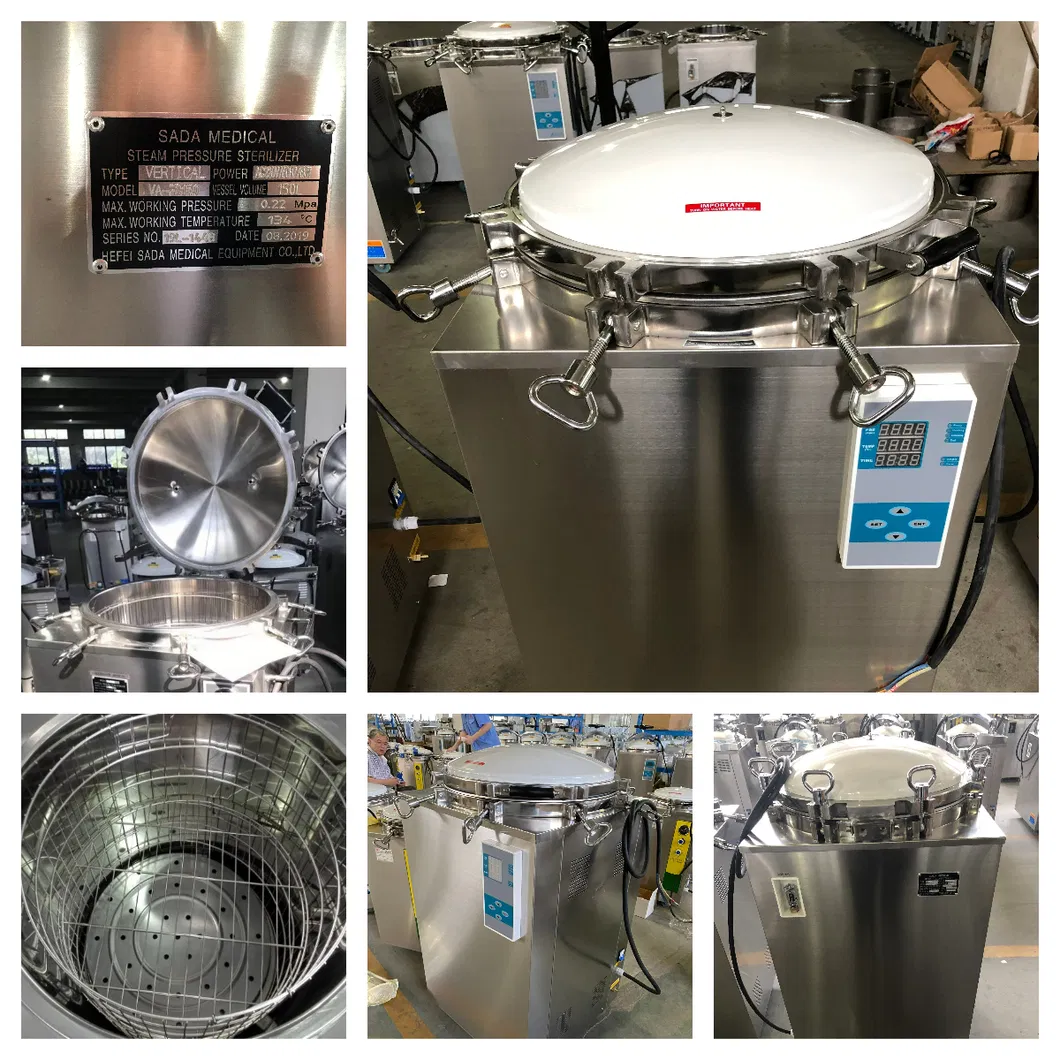

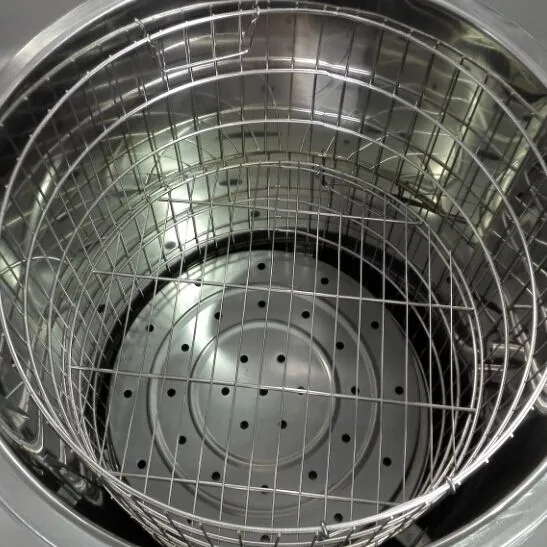

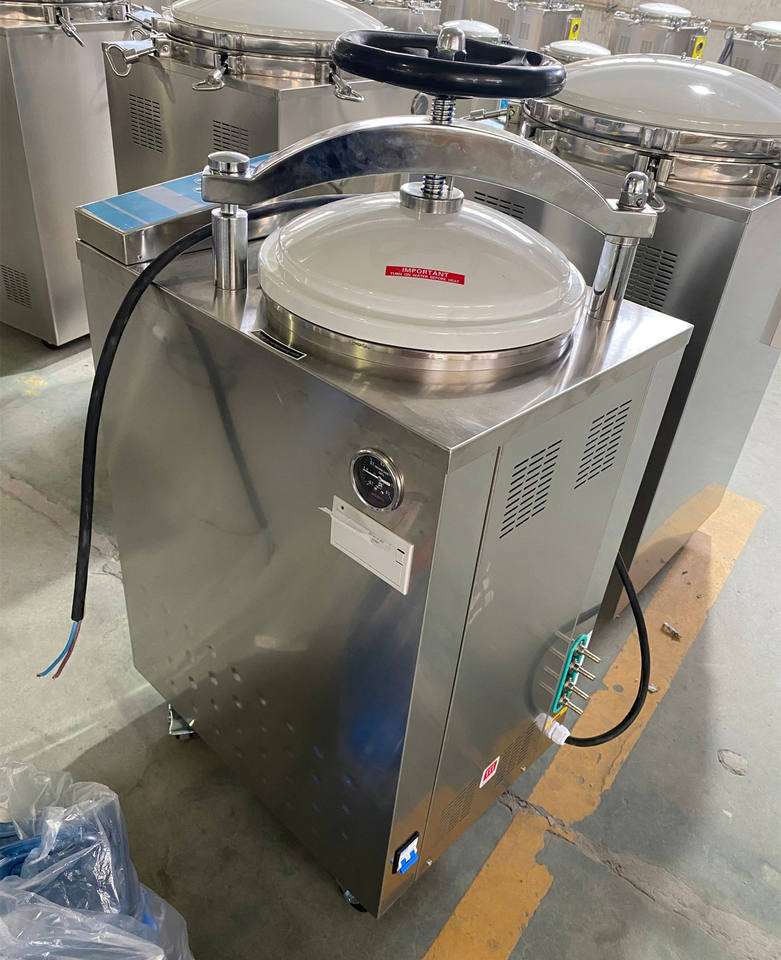

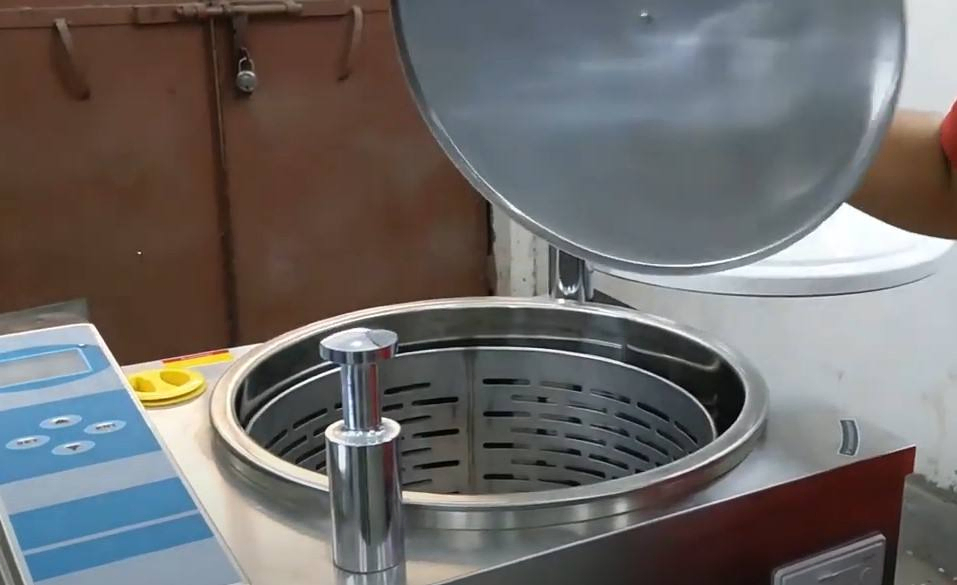

Detailed Photos

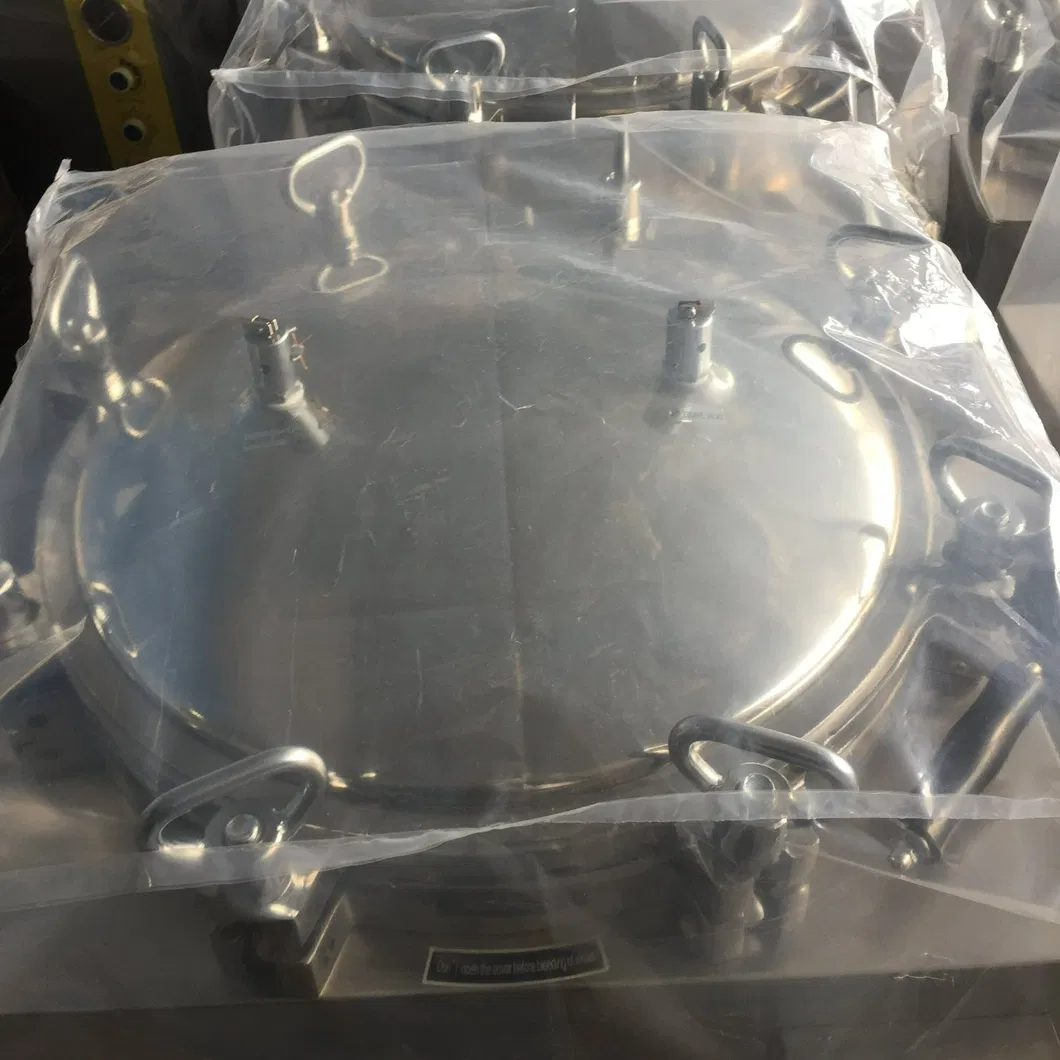

Packaging & Shipping

Certifications

Frequently Asked Questions

1. What is the warranty period for the sterilizer? We provide a comprehensive 2-year warranty along with lifetime technical support for all our products.

2. How do you handle after-sales service? We offer technical support via operating manuals and video tutorials. For hardware issues within the warranty period, we provide free spare parts or repair services.

3. What are the typical delivery times? Portable units usually take 5-10 days, while vertical and tabletop models take 10-25 days. Large scale horizontal equipment may take 30-35 days depending on customization.

4. Can the voltage and control panels be customized? Yes, we offer customization options for control panels and voltage requirements to suit specific regional standards.

5. What payment methods are accepted? Our standard payment terms include Telegraphic Transfer (T/T) in advance, Western Union, MoneyGram, and PayPal.

6. How is the equipment shipped internationally? We can deliver via express couriers (DHL/UPS/TNT), air freight, or sea freight to any major global port, ensuring safe and secure transport.
