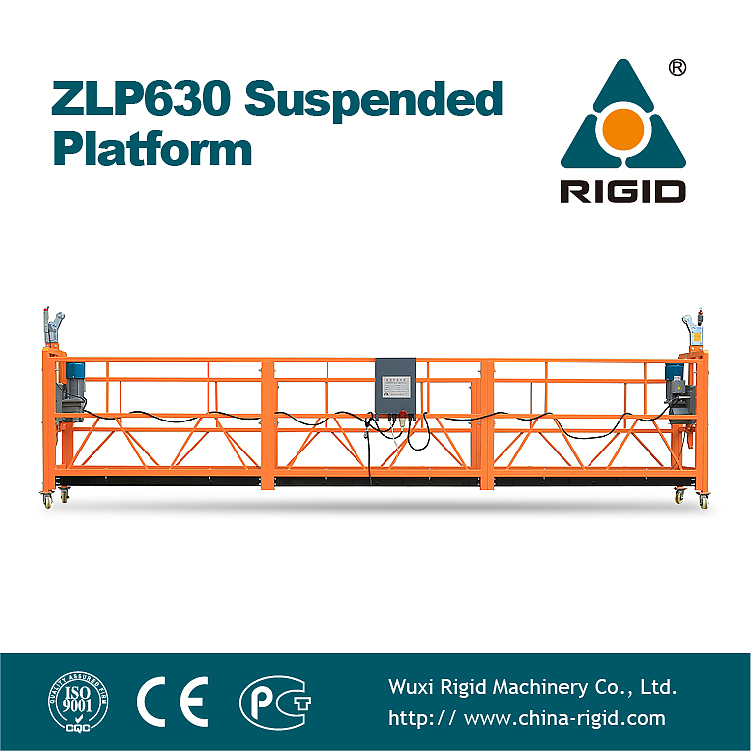

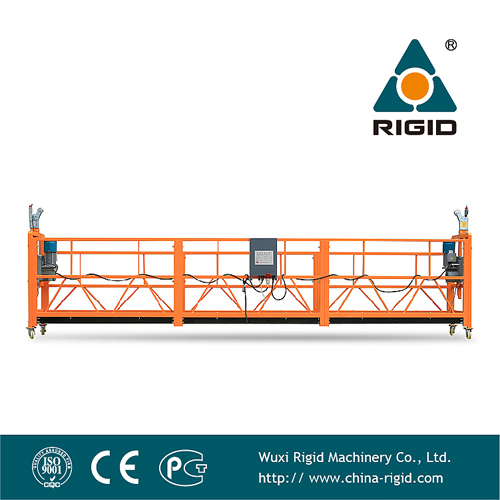

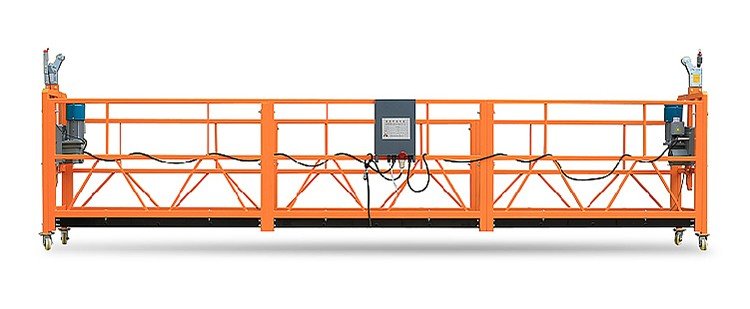

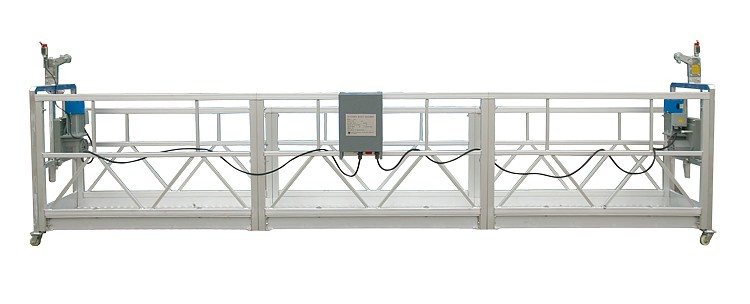

ZLP series are designed for temporary applications for lifting people and their working equipment at unlimited heights.
Perfectly suited for lightweight applications such as painting, decorating, refurbishing, jointing and repairs, windows cleaning, and more. The system consists of a working platform equipped with two electric LTD hoists and support wheels, suspended by steel wire ropes.
| Type | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
|---|---|---|---|---|
| Rated Load | 500kg | 630kg | 800kg | 1000kg |
| Lifting Speed | 9m/min | 9m/min | 9m/min | 8.7m/min |
| Voltage-3Phase | 380V (415V/220V), 50Hz/60Hz | |||
| Power | 1.1×2 kw | 1.5×2 kw | 1.8×2 kw | 2.0×2 kw |
| Hoist Model | LTD50 | LTD63 | LTD80 | LTD100 |
| Safety Lock | LSF308 | LSF308 | LSF309 | LSF310 |
| Wire Rope Dia. | 8.3mm | 8.3mm | 9.1mm | 10.2mm |
| Platform Size (LxWxH) | (2.5×2)x0.76x1.45M | (2×3)x0.76x1.45M | (2.5×3)x0.76x1.45M | |
| Counter Weight | 800kg | 900kg | 1000kg | 1200kg |
*Note: The weight of lifting part includes platform, hoist, safety locks and electric control system.

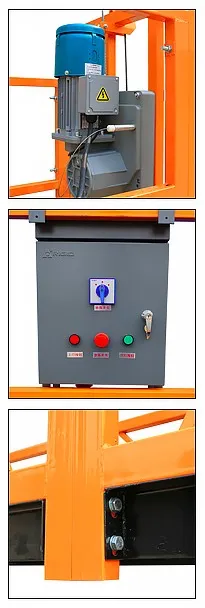

LTD Series Hoist
High quality die-casting aluminum casing.

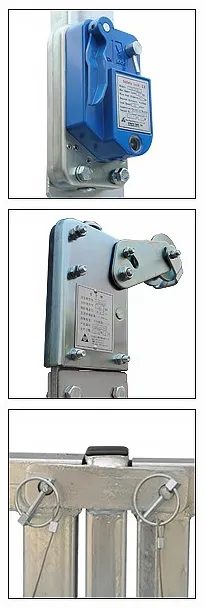

Safety Lock Series
Overspeed and Anti-Tilt protection options.

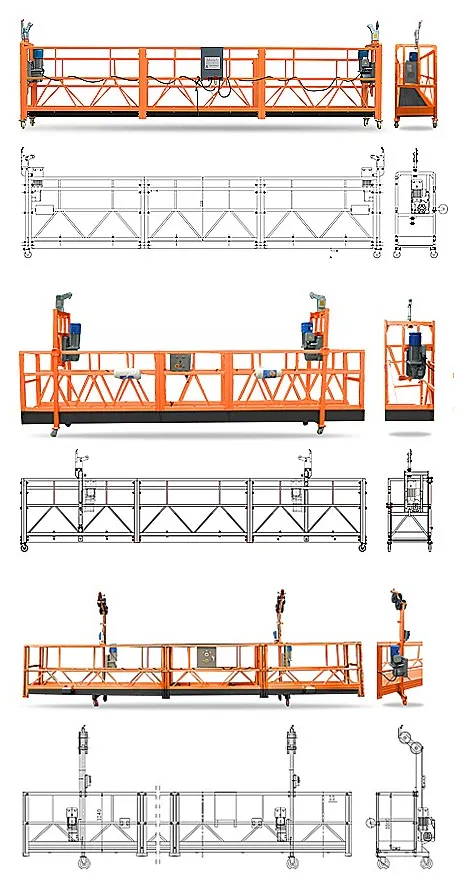

Platform Stirrups
End, Frame, and "L" stirrup types available.

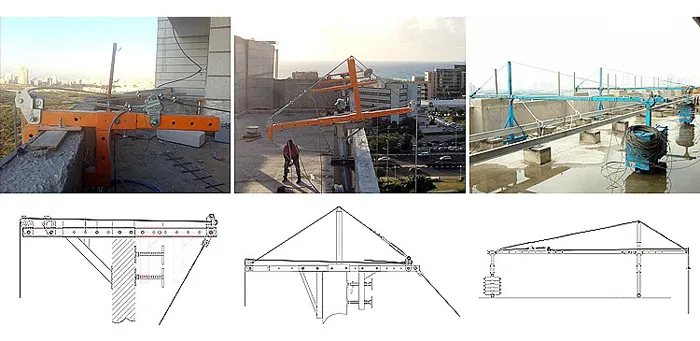

In most applications, a system of mobile suspension jibs can be used on the roof for secure attachment of temporary suspended platforms.
