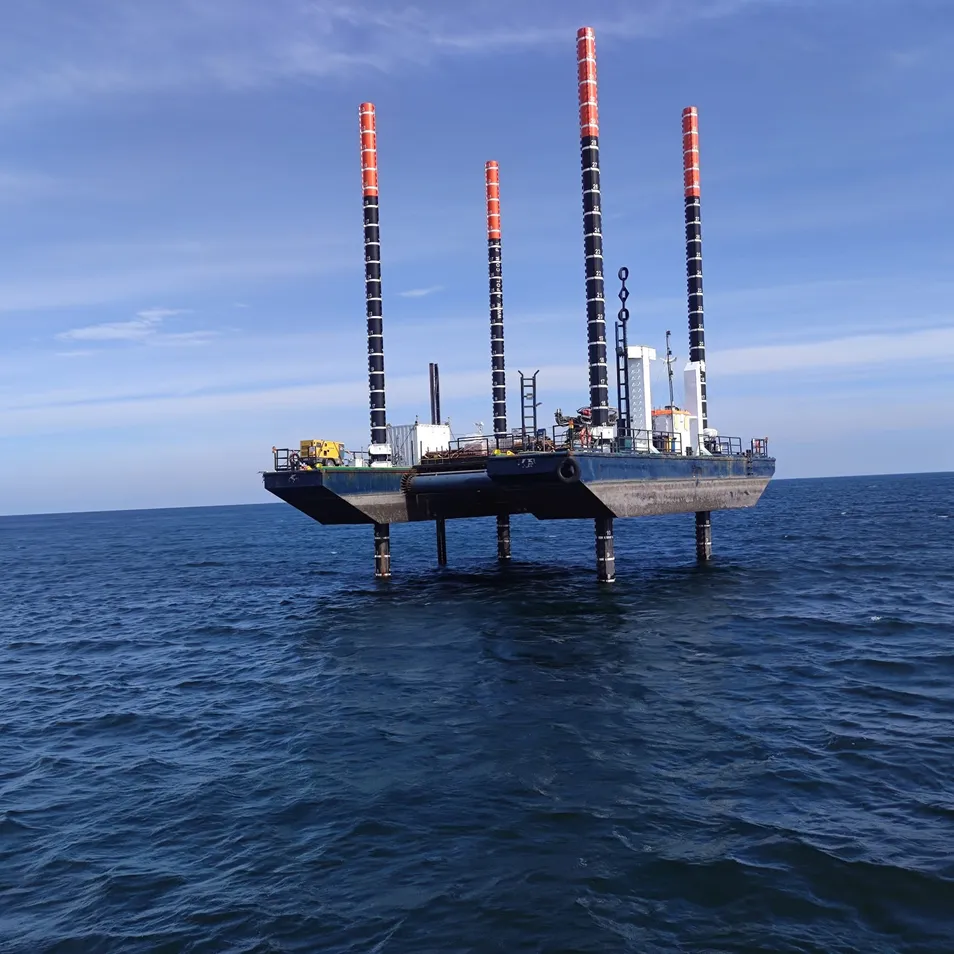

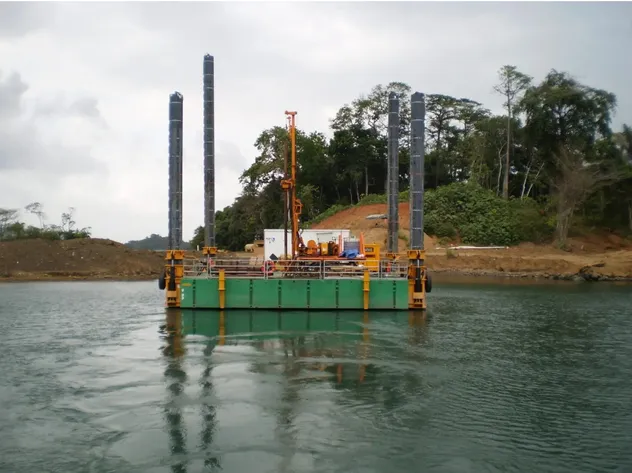

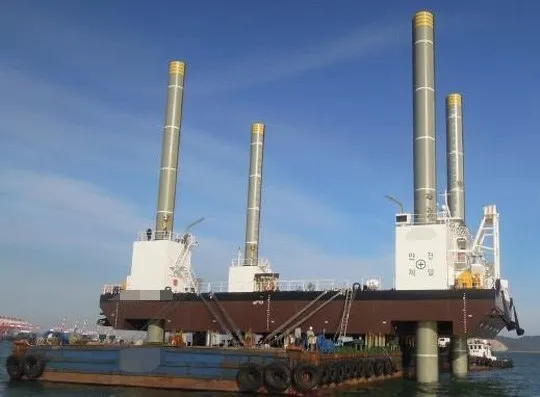

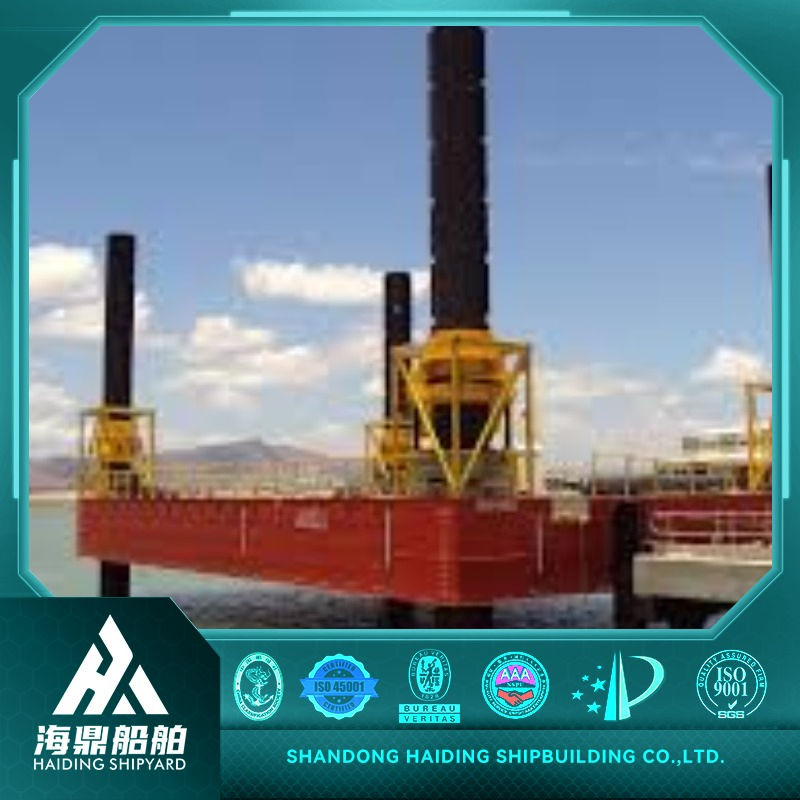

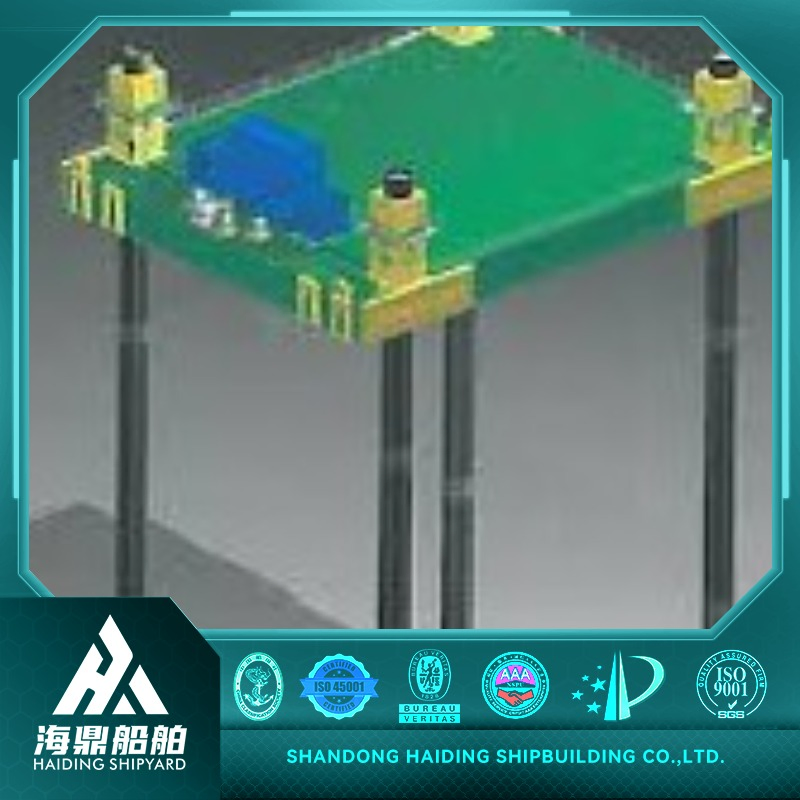

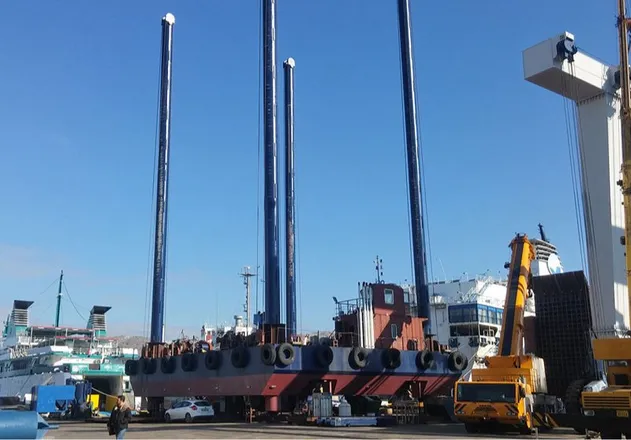

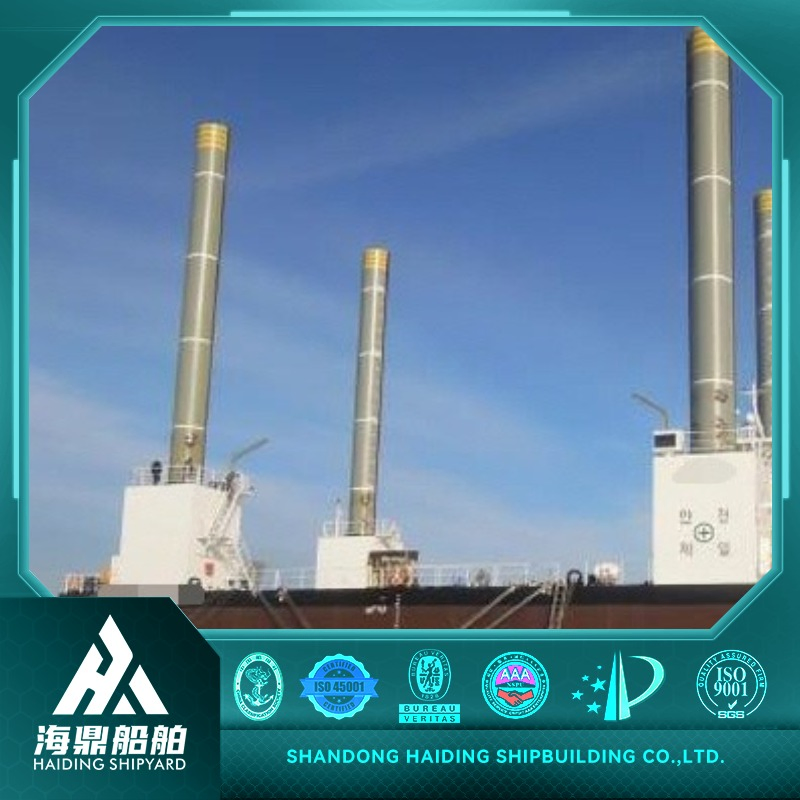

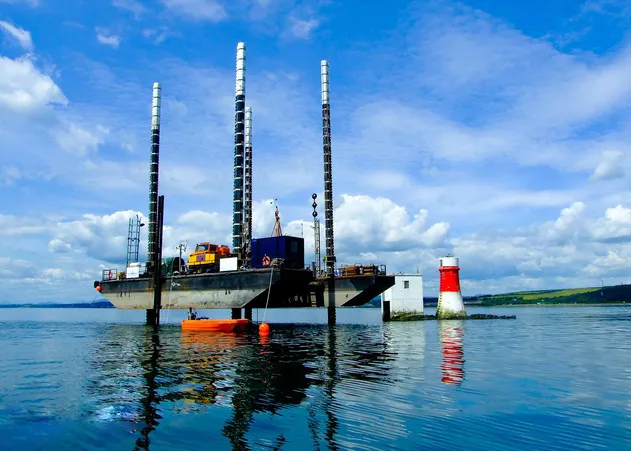

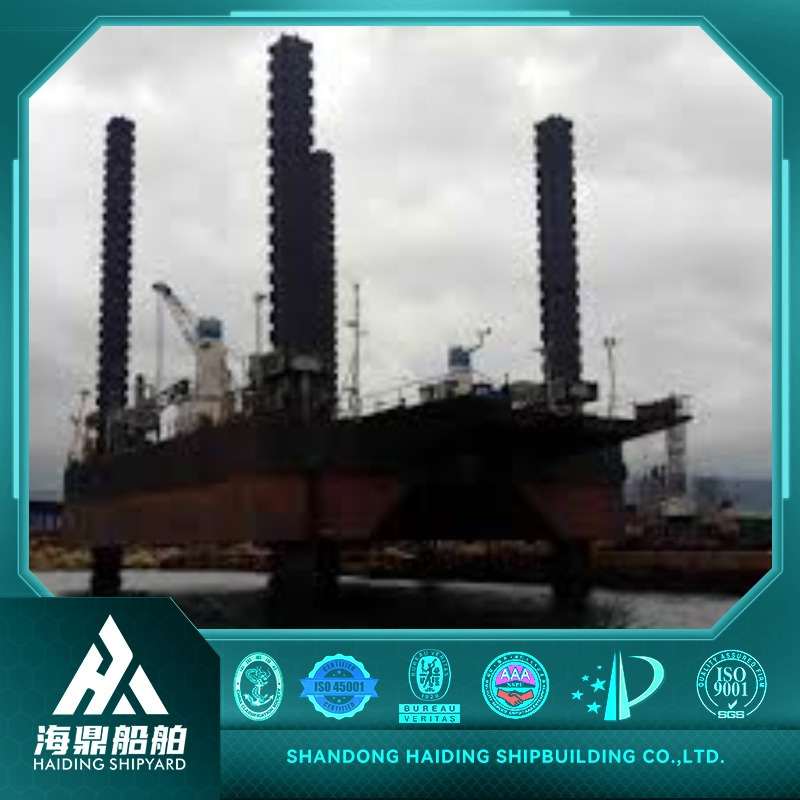

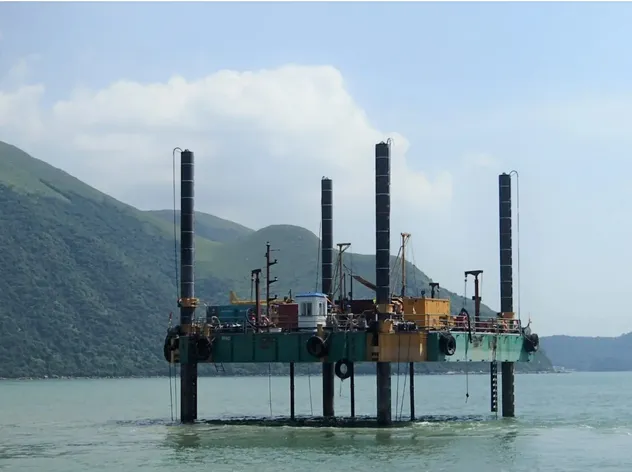

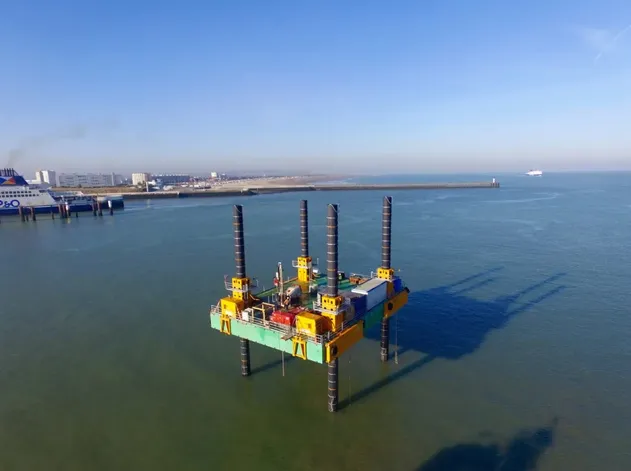

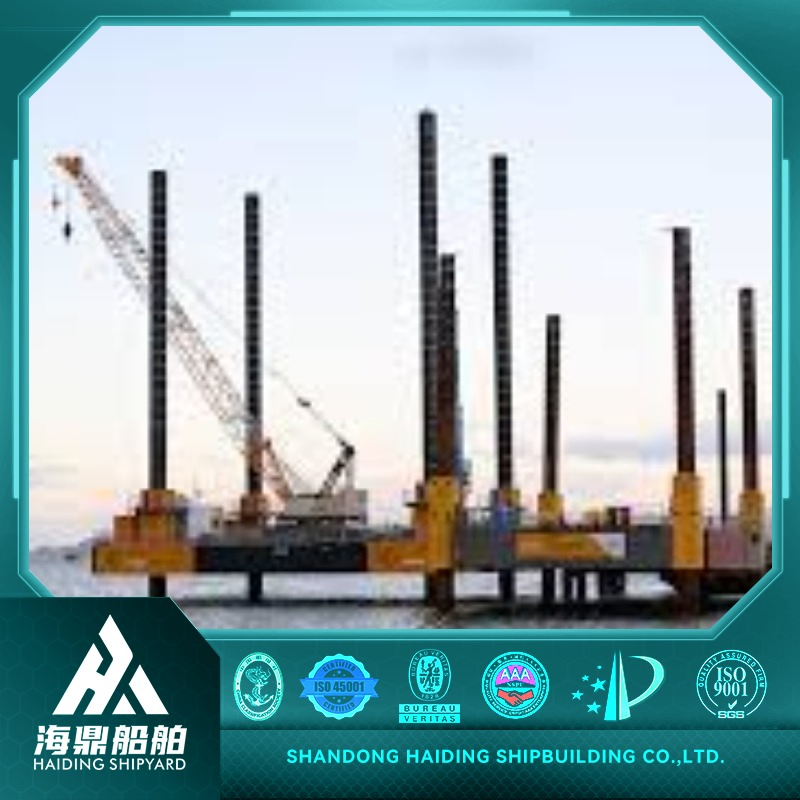

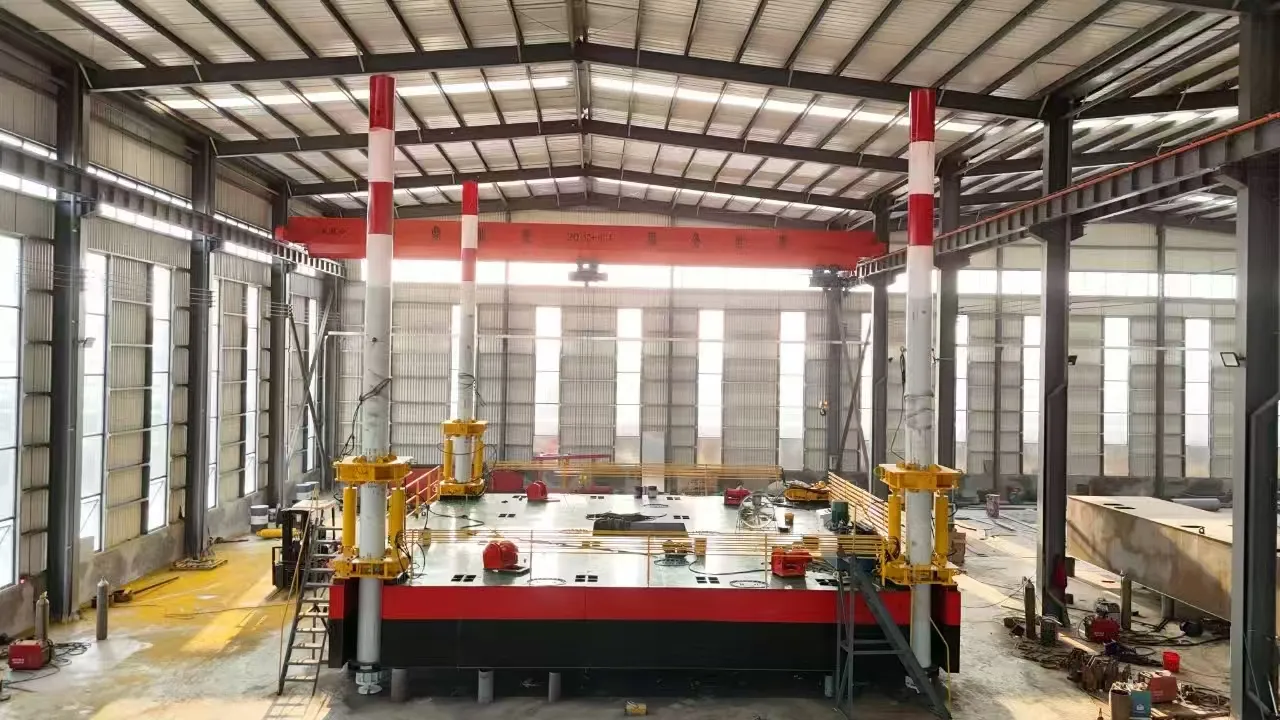

An offshore jack-up platform is a versatile marine engineering platform. It is equipped with movable legs that are lowered to the seabed. The main hull is then jacked up above the water level, creating a stable, fixed operational base unaffected by waves. It is widely used for offshore wind turbine installation, oil and gas exploration, bridge construction, and other marine construction work.
1. Excellent Stability: The platform is jacked up above the water, creating a stable base immune to wave action, which is essential for high-precision tasks.
2. Mobile and Reusable: It can be moved (self-propelled or towed) to different locations, making it a versatile and reusable asset for various projects.
3. High Adaptability: Its legs can be adjusted for various water depths and seabed conditions.
(Custom configurations available upon request.)
| Model | HD-PT30 |
| Length / Width | 30.5m / 18.3m |
| Mold Depth | 2.2m |
| Max Load / Deck Strength | 150 T / 15T/m² |
| Positioning Pile Height | 35.0m (can be extended) |
| Positioning Pile Diameter | 1.22m |
| Lifting Method | Hydraulic / Mechanical locking |
| Jacking Speed | 12m/h |
| Lifting Stroke | 1.22m |
| Lifing Capacity | 300 T per spud |
| Working Wave Height (Max) | 3m (Up to 5m) |
| Working Wind Speed (Max) | 50 km/h (Up to 120 km/h) |
With 33 years of expertise in marine engineering and dredging solutions, we offer:

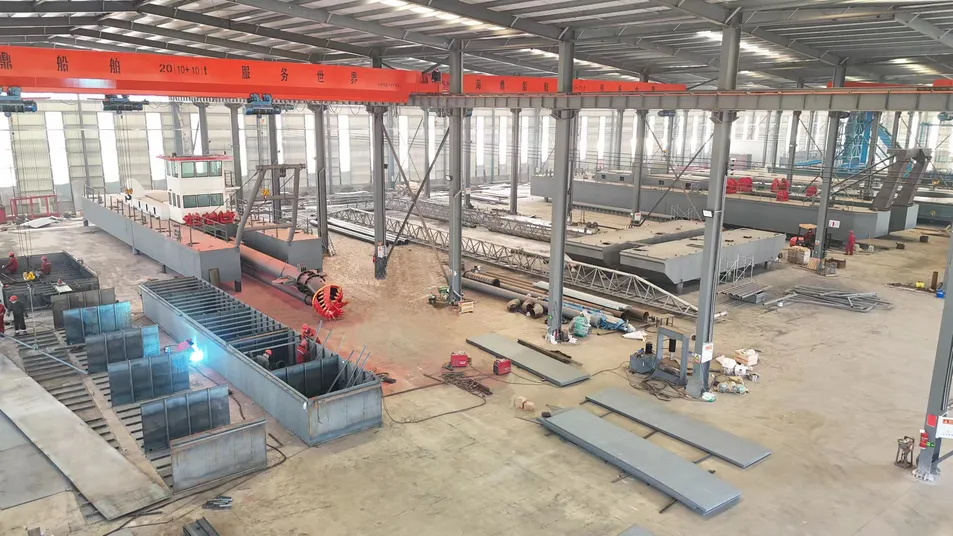

Our shipyard is backed by a dedicated team of:
1. On-site Installation: We dispatch technicians for hands-on guidance and operator training.
2. Warranty: 12-month comprehensive warranty on all new components, engines, and structures.
3. 24/7 Support: Round-the-clock technical service to ensure operational success.
