Heavy Duty 20t Medical Device Manufacturing Platform with Air Bearing Technology
Heavy Duty 20t Medical Device Manufacturing Platform with Air Bearing Technology
Heavy Duty 20t Medical Device Manufacturing Platform with Air Bearing Technology
Heavy Duty 20t Medical Device Manufacturing Platform with Air Bearing Technology
Heavy Duty 20t Medical Device Manufacturing Platform with Air Bearing Technology
1 / 5
Heavy Duty 20t Medical Device Manufacturing Platform with Air Bearing Technology
Heavy Duty 20t Medical Device Manufacturing Platform with Air Bearing Technology
Heavy Duty 20t Medical Device Manufacturing Platform with Air Bearing Technology
Heavy Duty 20t Medical Device Manufacturing Platform with Air Bearing Technology
Heavy Duty 20t Medical Device Manufacturing Platform with Air Bearing Technology

Heavy Duty 20t Medical Device Manufacturing Platform with Air Bearing Technology

Customization: Available
After-sales Service: 24 Hours on Line, Video/Site Guidance
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
LR-AF
Application
Workshop, Warehouse Crane
Load Capacity
1-1500t, Customizable
Air Pressure
0.4-0.8MPa
Floating Height
0.5-1 mm
Air Consumption
5-8 M³/Min
Control Method
Wired or Wireless Remote
Movement
Forward / Backward / Sideways / Rotating

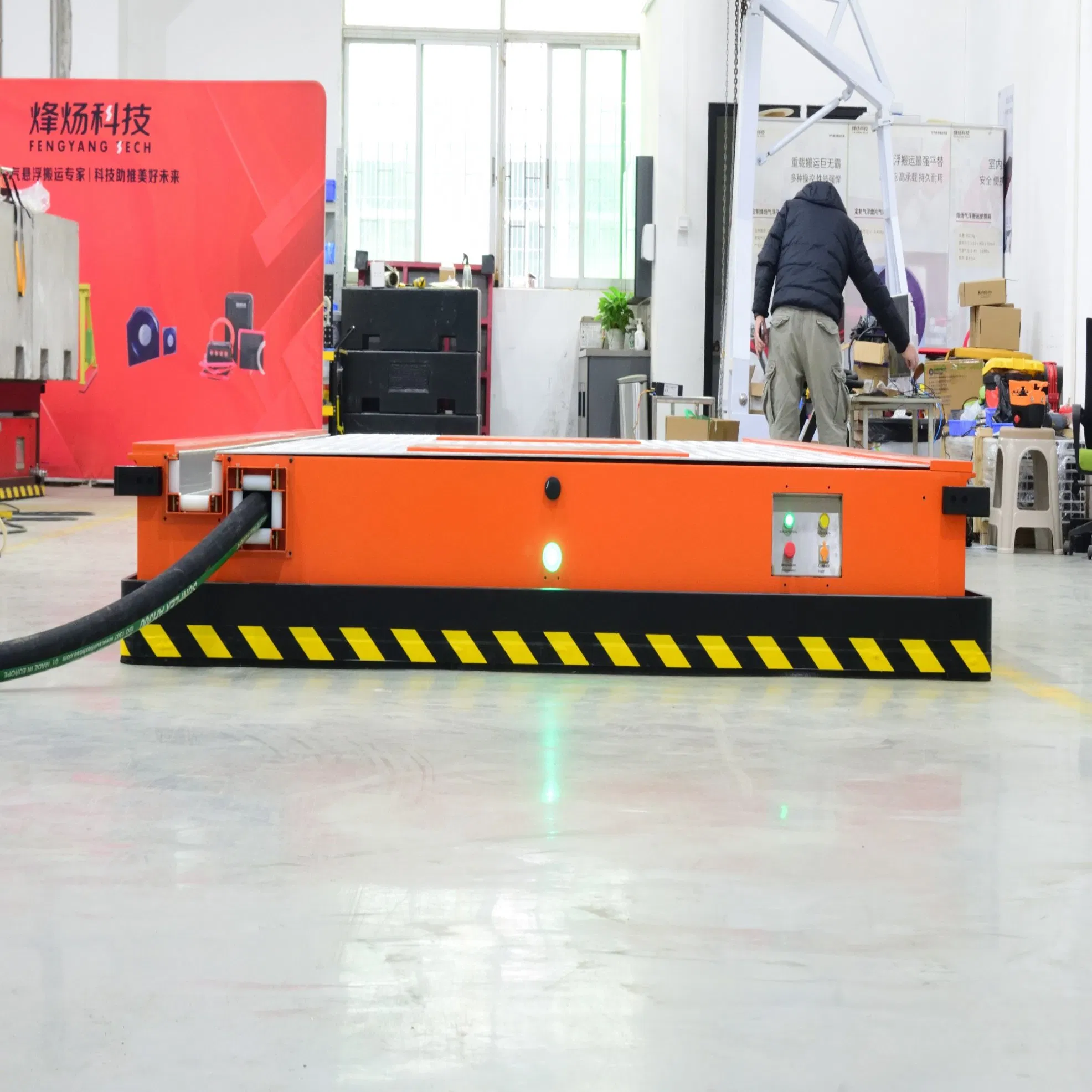

Air Bearing Transfer Cart

This remarkable air-floating flat transfer cart is engineered for heavy-duty, precision handling. Through the use of compressed air, it generates a frictionless cushion, facilitating the effortless movement of ultra-heavy loads with millimeter accuracy. Perfectly suited for environments such as cleanrooms, aerospace, semiconductors, and precision manufacturing.

Air Bearing Transfer Cart
Key Applications
  • Aerospace Manufacturing: Seamlessly transport aircraft engines, fuselage sections, and precision components within assembly lines.
  • Semiconductor & Electronics: Ideal for cleanroom handling of large equipment and sensitive instruments.
  • Nuclear & Energy Industry: Precisely move reactors, shielding blocks, and other ultra-heavy equipment.
  • Medical Equipment: Effortlessly transport large-scale imaging devices such as MRI and CT machines.
  • Shipbuilding: Achieve precise alignment while moving large modules and heavy assemblies.
Product Operation Demonstration
Key Configurations
Air Supply
Stable input supporting 0.4–0.8 MPa.
Floatation
Integrated modules for contact-free movement.

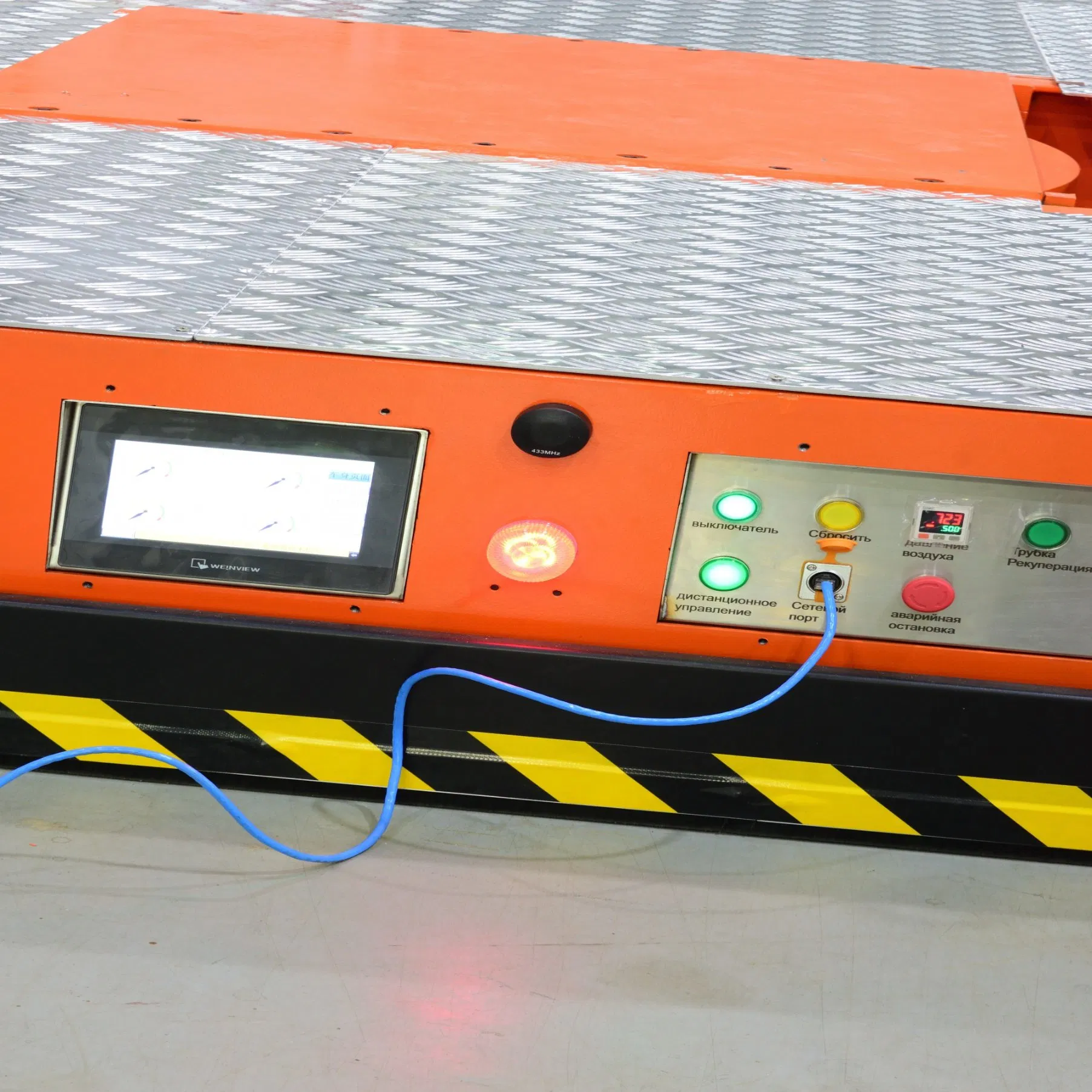

Safety System
Built-in pressure monitoring & overload protection.
Mobility
Omnidirectional movement on smooth floors.
Technical Specifications
Item Specification Range Remarks
Load Capacity1 ton ~ 1500 tonsCommon: 5t, 10t, 20t, 50t, 100t
Platform SizeCustomizableDesigned based on material size
Ground ClearanceTypically 5mm ~ 10mmSuspended after air film formation
Air Pressure0.4 ~ 0.6 MPaMatches factory compressed air
Power Supply220V / 380V / BatteryOptional configurations
Control MethodWired / Wireless / RemoteSelected by application
Product Gallery

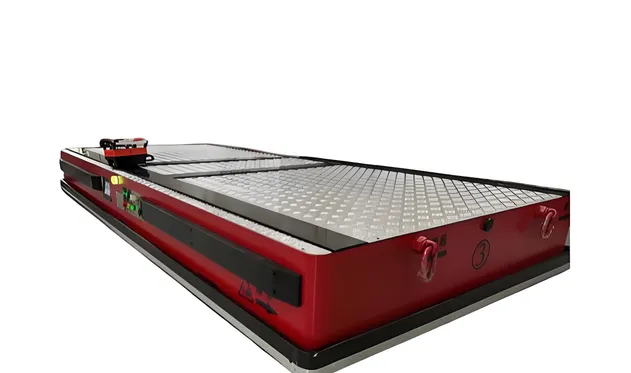

Detail 1
Detail 2

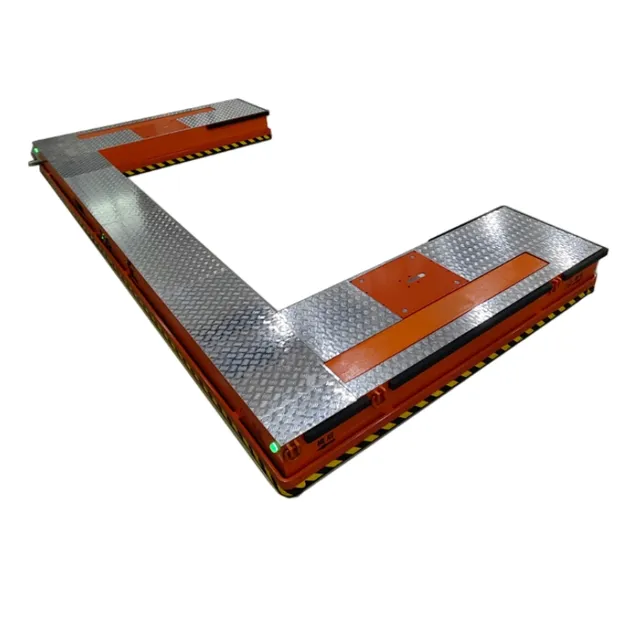

Detail 3
Detail 4

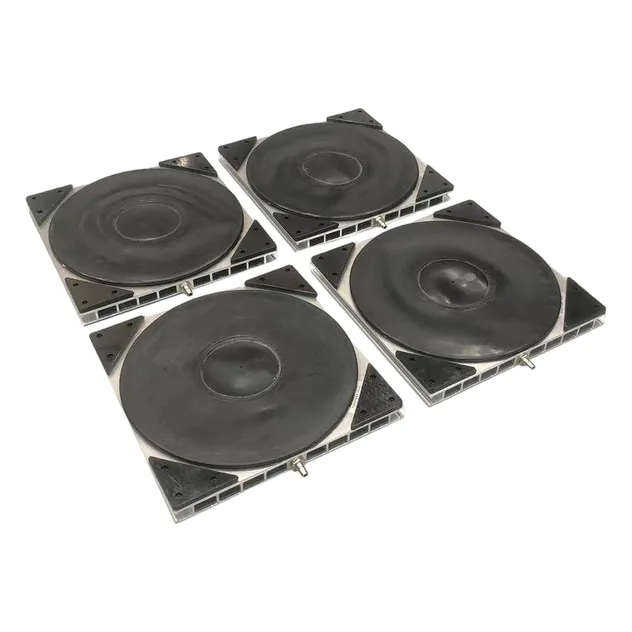

Detail 5
Detail 6
Platform View

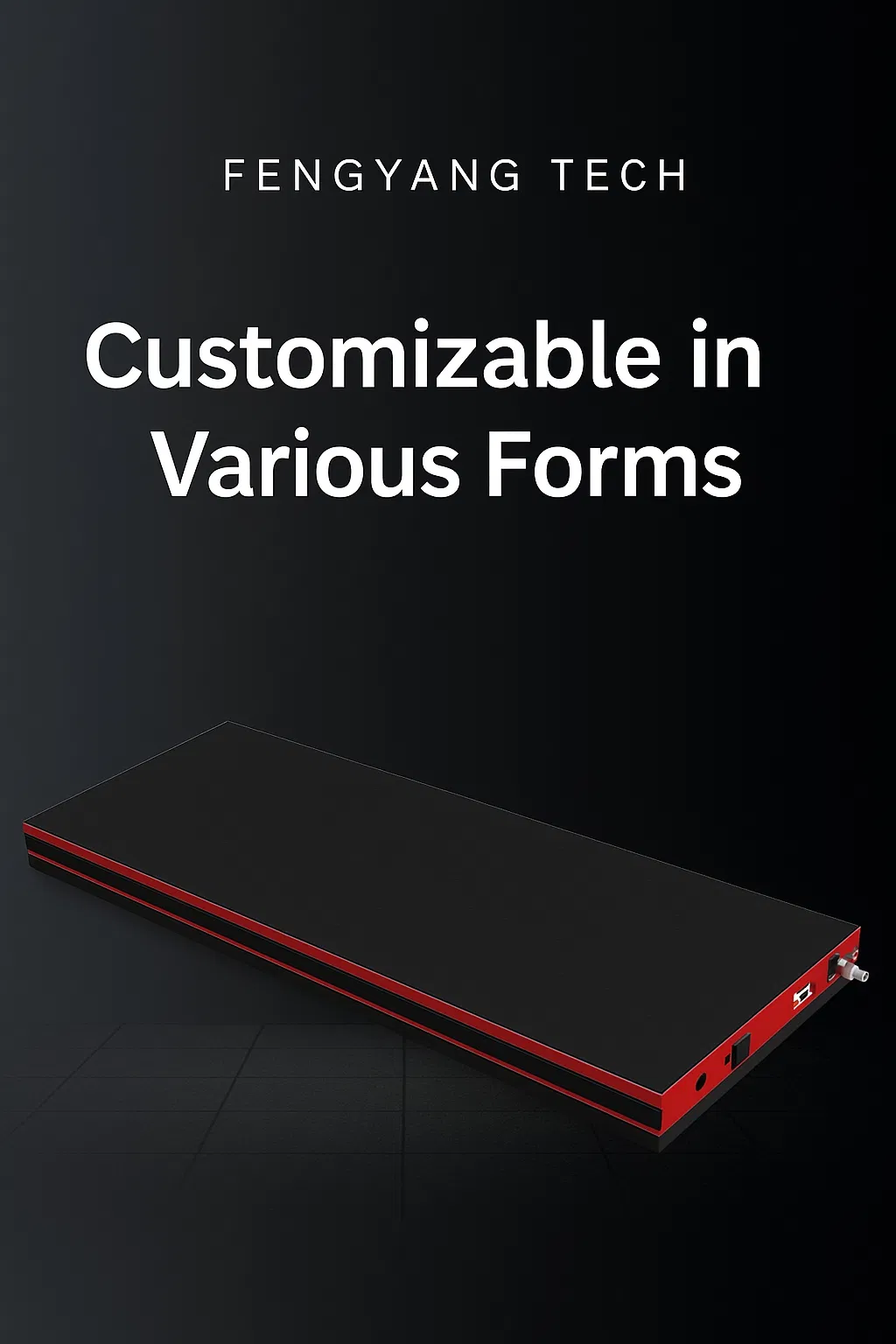

Structure View
Professional Service & Capability
After-Sales
12-month standard warranty; 24/7 technical assistance; Global spare parts support.
Customization
Full OEM/ODM services for unique specifications and branding.
Workshop
Lifting Solution
Frequently Asked Questions
How does the air cushion platform work?
The platform creates a thin air film between itself and the floor using compressed air, allowing for frictionless, smooth, and effortless transport.
What kind of floor is required?
A flat, smooth, non-porous hard surface like epoxy, polished concrete, or steel plates is required for optimal performance.
What is the load capacity range?
We offer a wide customizable range, supporting loads from 1 ton up to 1,500 tons based on project requirements.
Will it damage the floor during movement?
No. Since the platform floats on a cushion of air, there is no direct contact with the floor, eliminating potential wear or damage.
Is it suitable for cleanroom environments?
Yes, it is ideal for cleanrooms as it provides frictionless and dust-free operation, maintaining sterile conditions.
What is the typical delivery time?
Standard models are usually ready in 7–15 days, while highly customized models take approximately 15–30 days.
