| Model | Max Height (m) | Load (kg) | Table Size (mm) | External Dimensions (m) | Max Ext. Dim (m) | Weight (kg) |
|---|---|---|---|---|---|---|
| SJYZQ0.23-8 | 8 | 230 | 1600*800 | 5.2*1.65*2.35 | 5.3 | 4900 |
| SJYZQ0.23-10 | 10 | 230 | 1600*800 | 5.5*1.65*2.35 | 5.8 | 5800 |
| SJYZQ0.23-12 | 12 | 230 | 1600*800 | 6.3*1.78*2.35 | 6.9 | 6596 |
| SJYZQ0.23-14 | 14 | 230 | 1600*800 | 7.0*1.93*2.35 | 8 | 6900 |
| SJYZQ0.23-16 | 16 | 230 | 1800*800 | 7.18*2.18*2.2 | 8.9 | 8550 |
| SJYZQ0.23-18 | 18 | 230 | 1800*800 | 8.35*2.2*2.63 | 10.6 | 9200 |
| SJYZQ0.23-20 | 20 | 230 | 1800*800 | 8.86*2.25*2.53 | 11.7 | 11000 |
| SJYZQ0.23-22 | 22 | 230 | 1800*800 | 11.2*2.4*3.2 | 12.2 | 13200 |
| SJYZQ0.23-24 | 24 | 230 | 1800*800 | 11.2*2.6*3.2 | 12.5 | 14200 |
| SJYZQ0.23-26 | 26 | 230 | 1800*800 | 11.5*2.8*3.1 | 12.8 | 16200 |
| SJYZQ0.23-28 | 28 | 230 | 1800*800 | 12.3*2.8*3.2 | 13.2 | 18200 |
| SJYZQ0.23-30 | 30 | 230 | 1800*800 | 12.8*2.8*3.3 | 13.6 | 21000 |

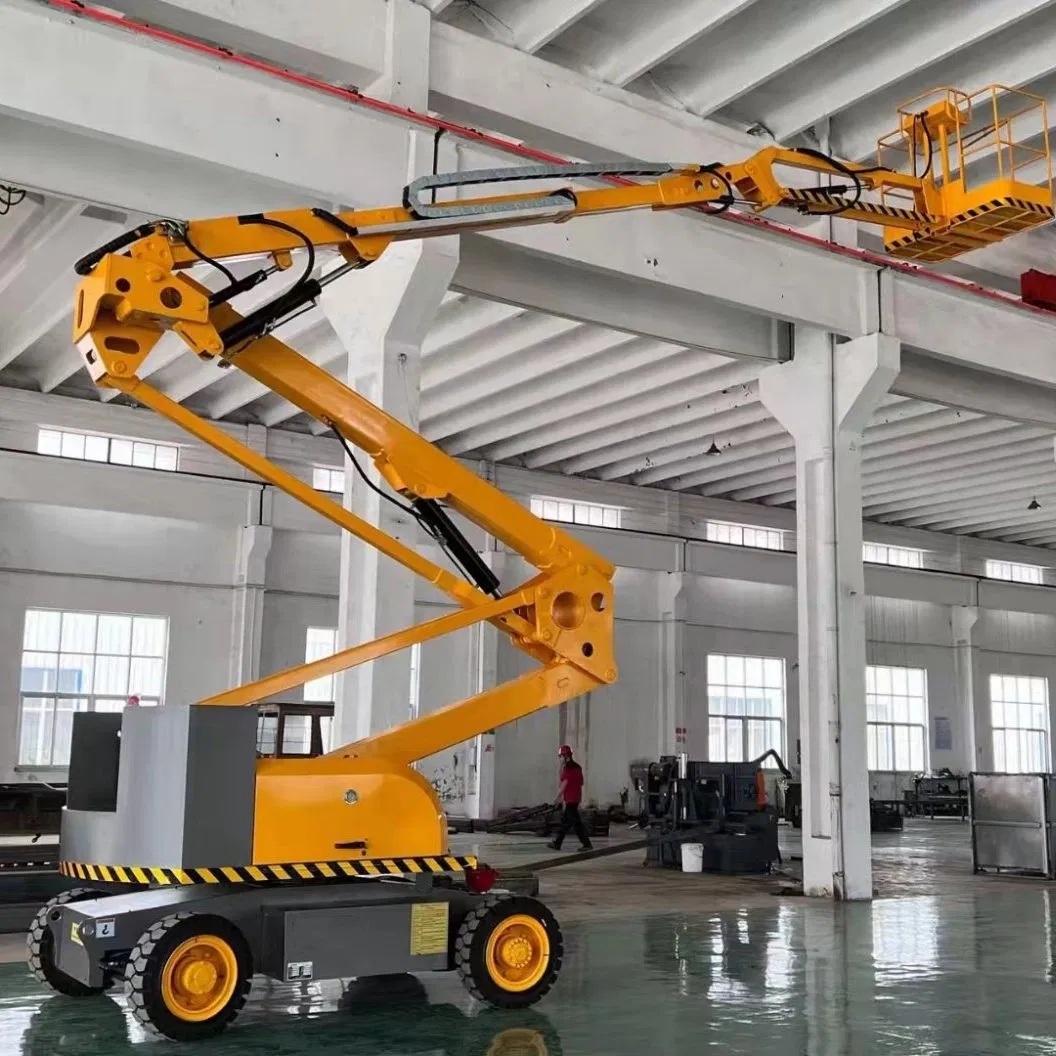

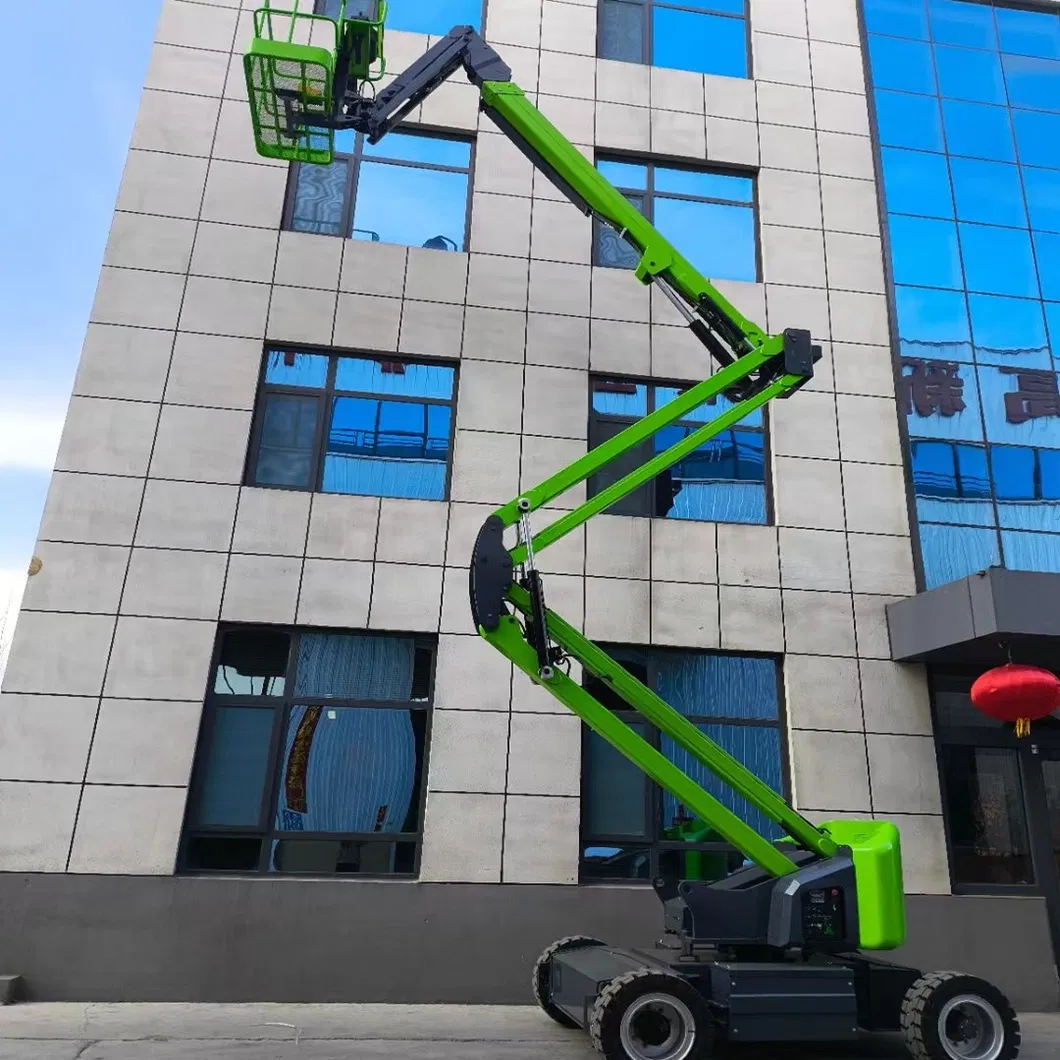

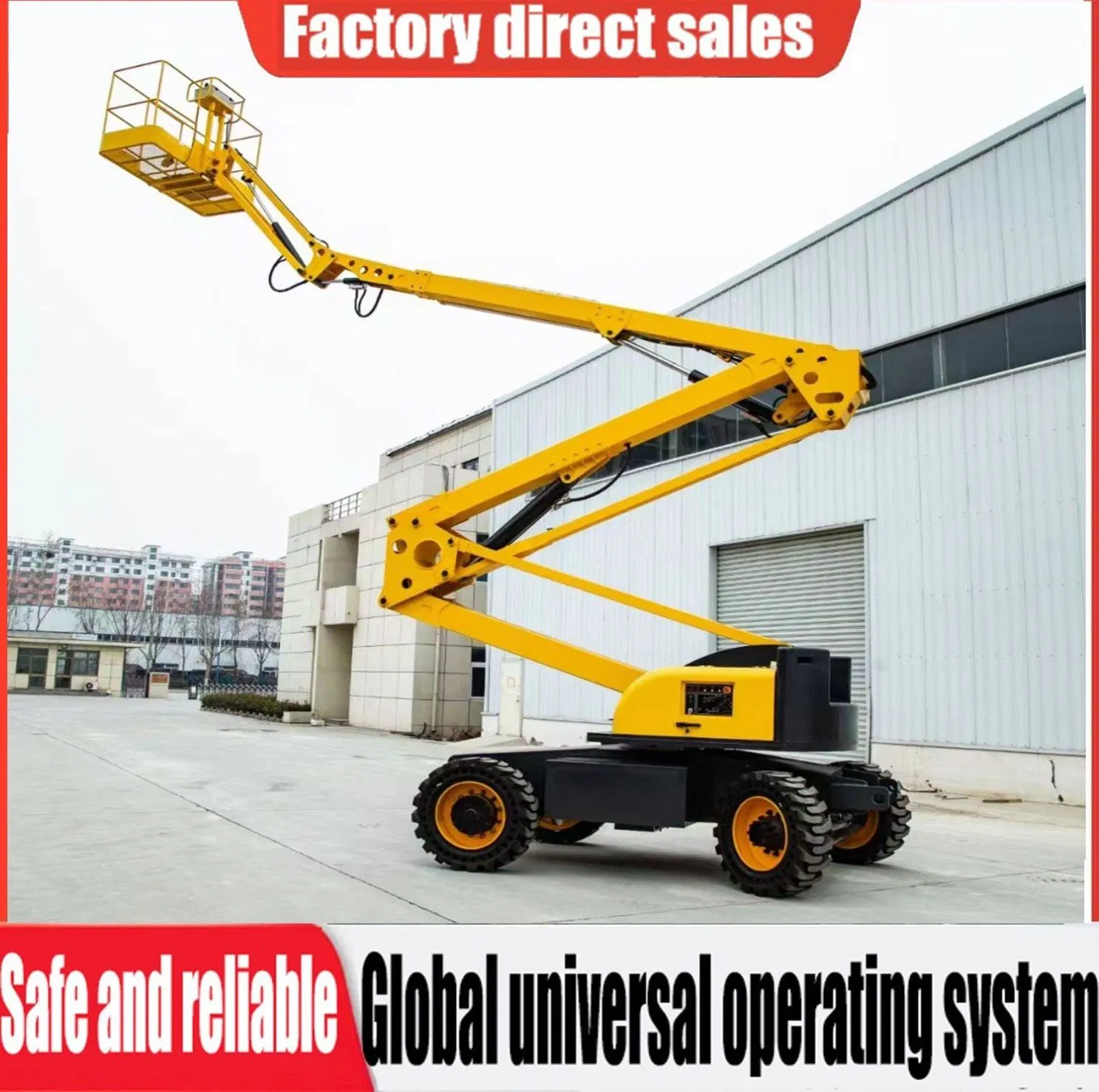

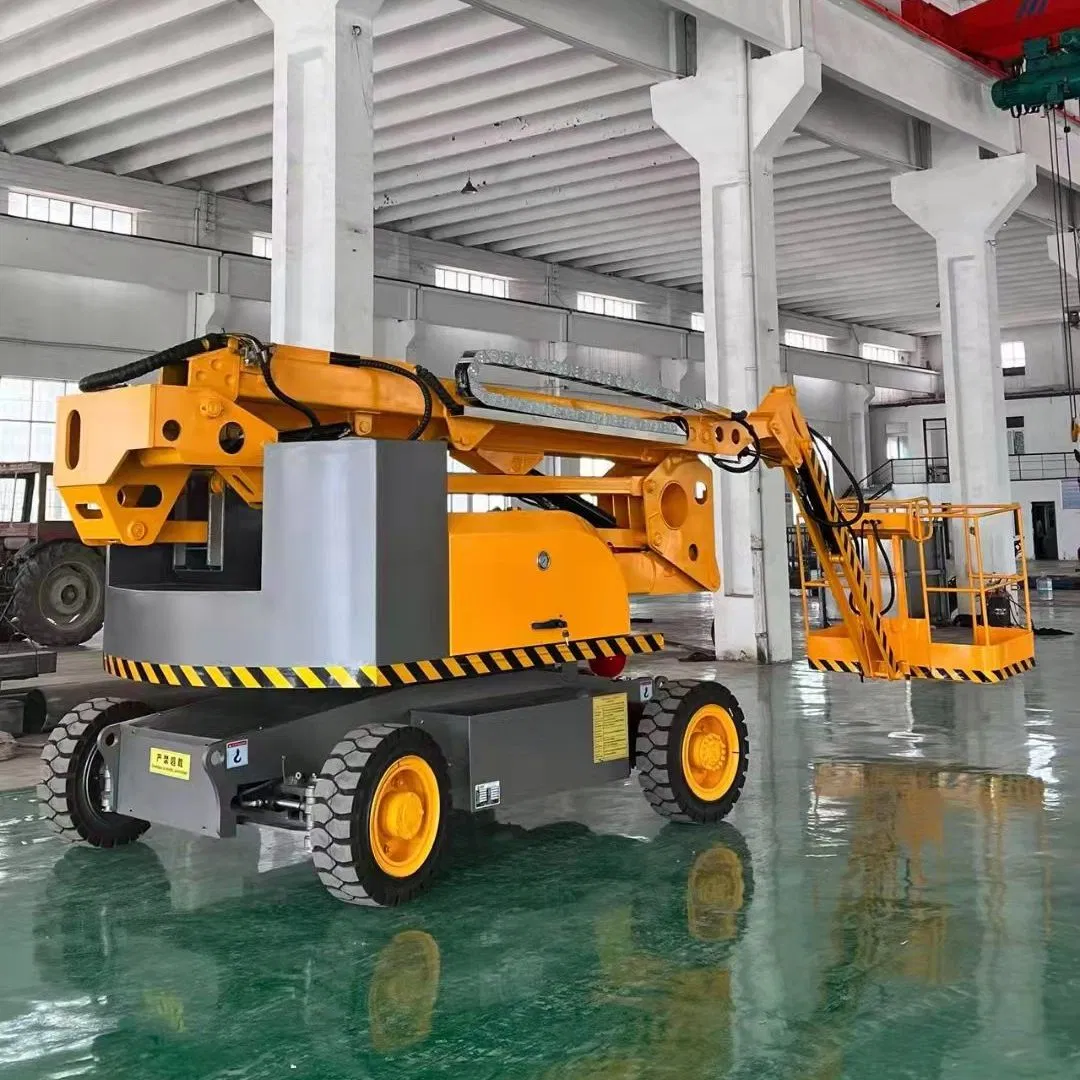

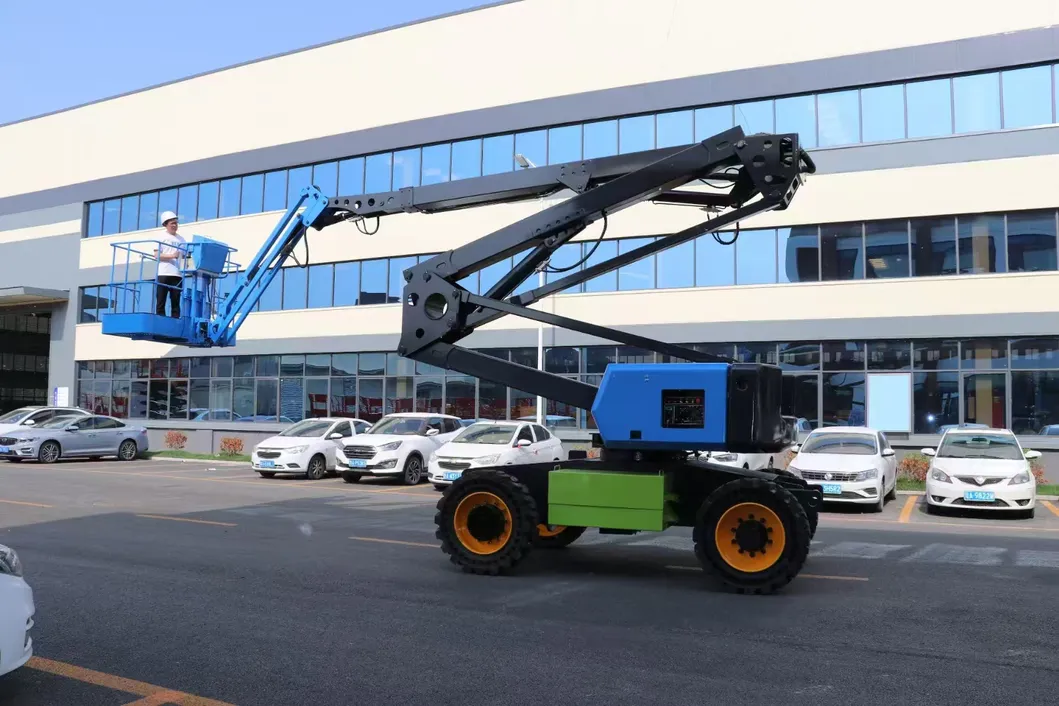

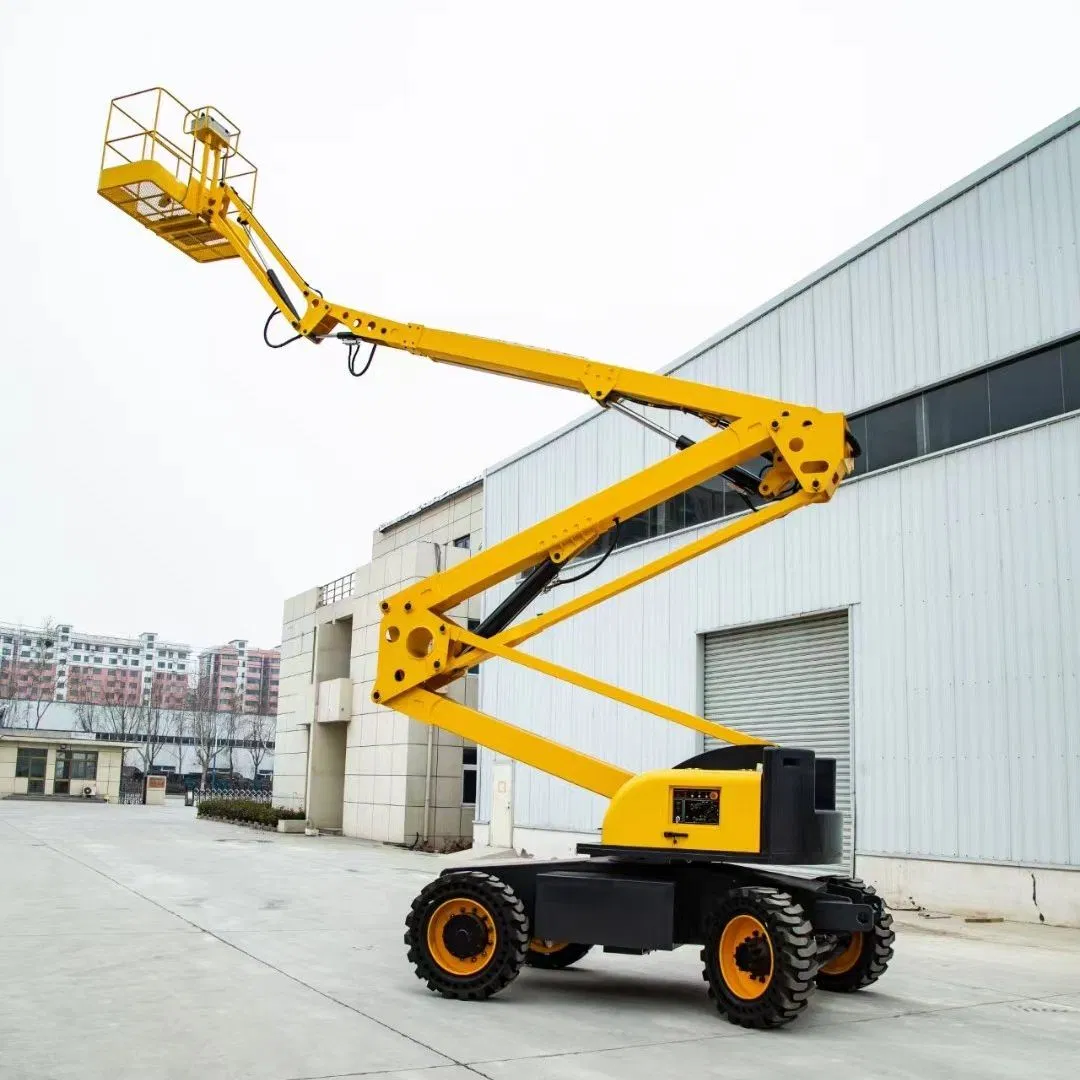

Articulated Boom Lift Hydraulic Aerial Work Platform Details
