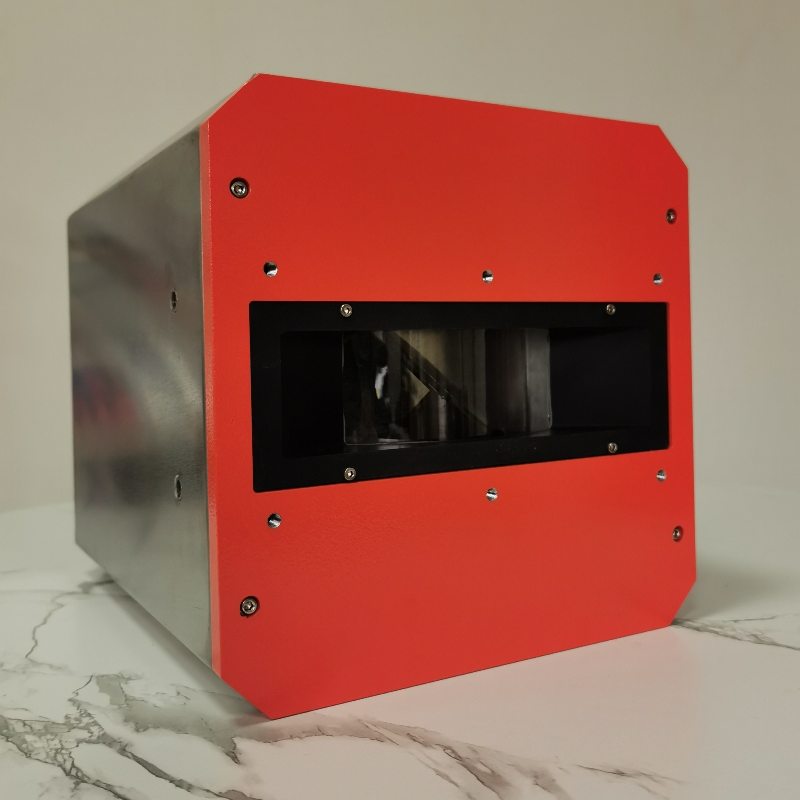

The kiln wall infrared scanning thermometer (kiln wall scanner) is a high-speed optical-mechanical scanning thermometer. The instrument can scan and measure temperature at a high speed of 20-50 lines per second within a 45°-110° field of view. After the kiln rotates one circle, the thermal image of the 3D simulated kiln wall temperature is output.
The equipment can continuously monitor the surface temperature of the kiln wall in real time for a long time, and indirectly master the situation of brick drop and ring formation in the kiln, so that effective measures can be taken in time to prevent damage to the kiln lining, improve operation rates, and ensure economical operation.

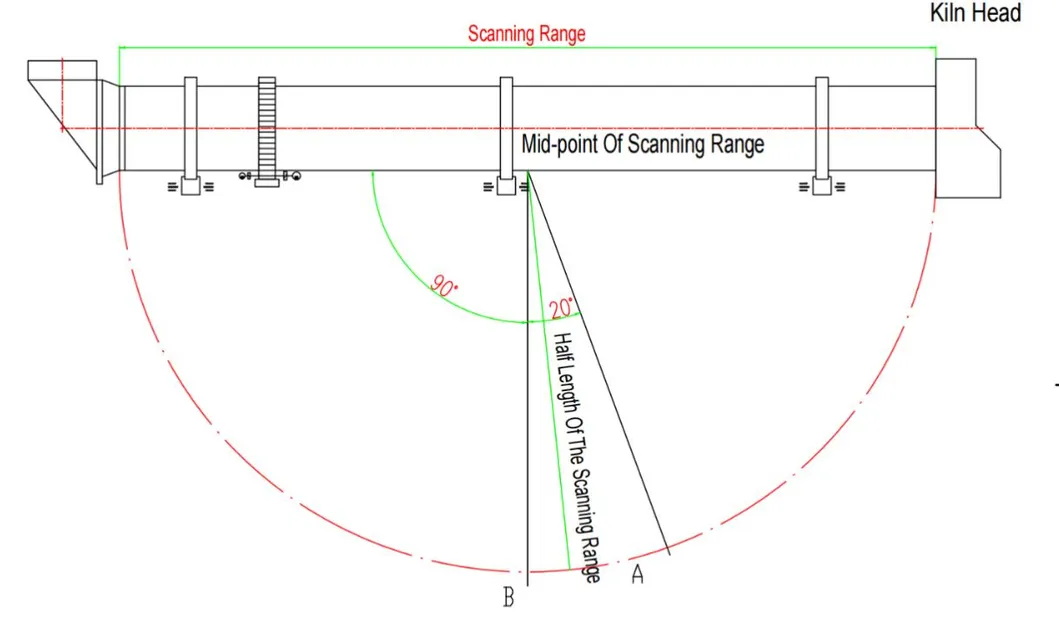

Scanning Diagram

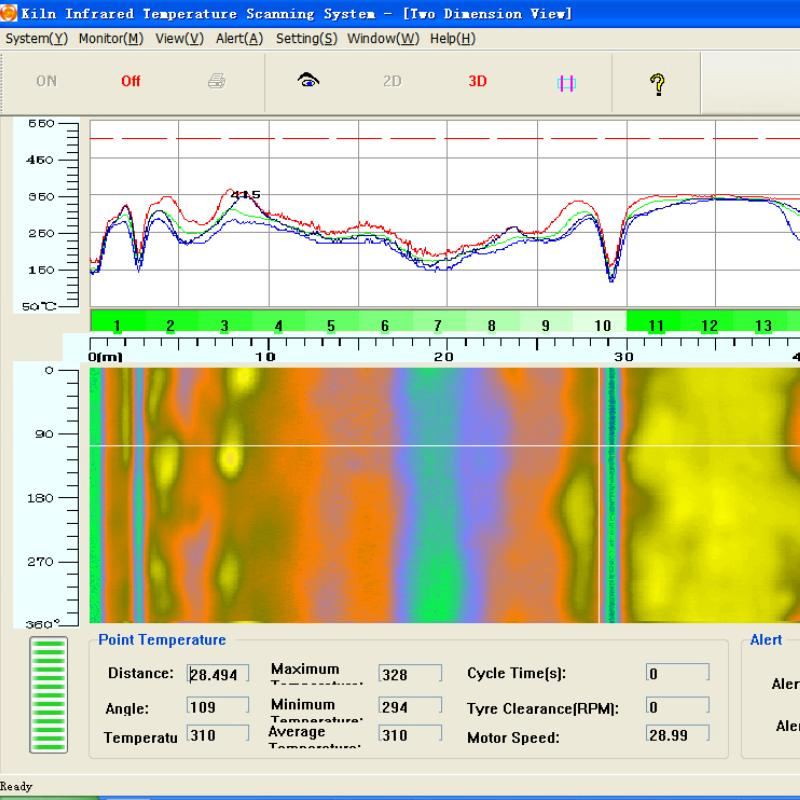

The kiln temperature measurement system is equipped with specified software, which receives and analyses the data. If anything abnormal happens, the alarm will display on the screen.
| Category | Software Functions |
|---|---|

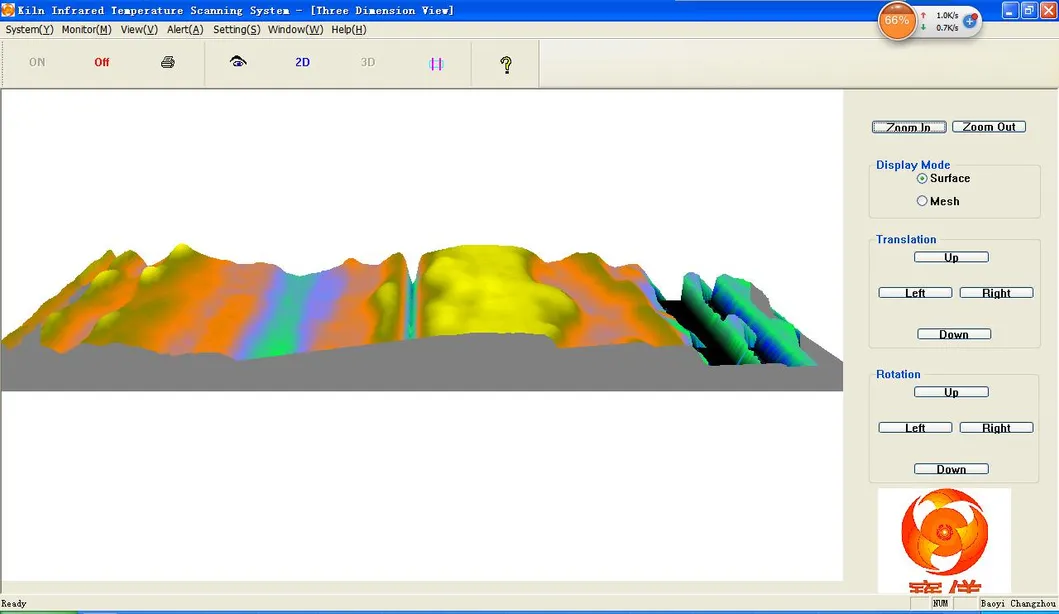

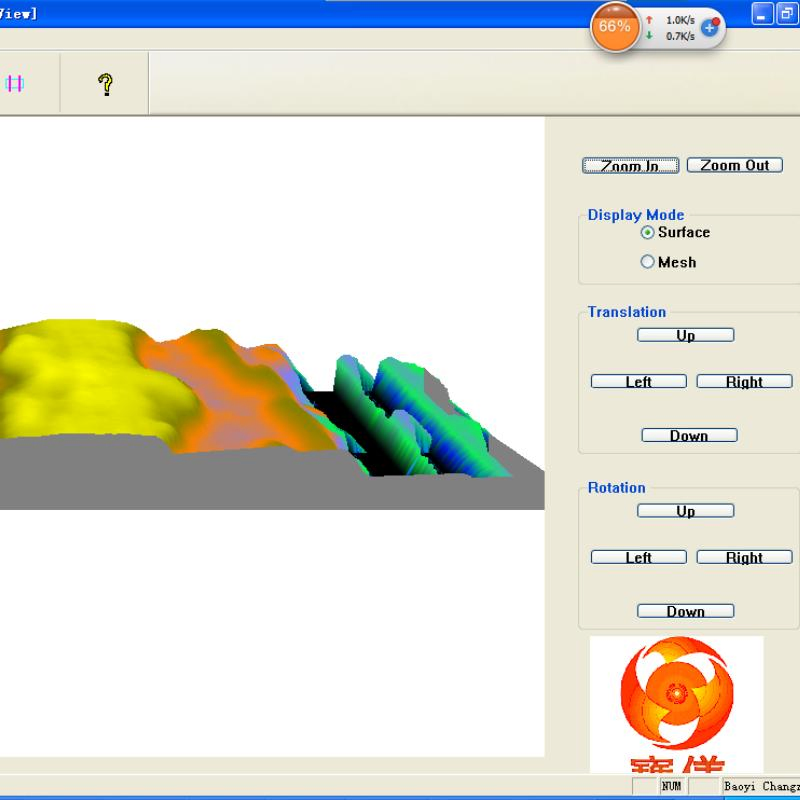

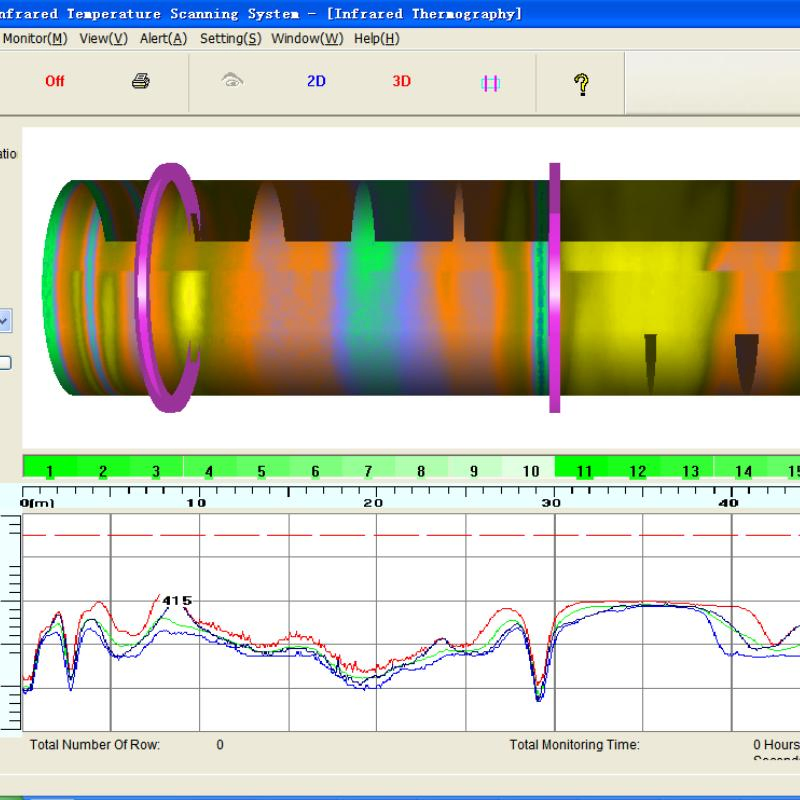

| Monitoring & Analysis | 3D simulation kiln surface temperature, kiln lining thickness distribution, cross-section surface analysis |
| Real-time high temperature follow-up display, curve analysis of whole kiln temperature, high temperature alarm | |
| Record and analysis of kiln historical temperature; comparison of new and previous temperature data | |
| Wheel belt displacement monitoring |
