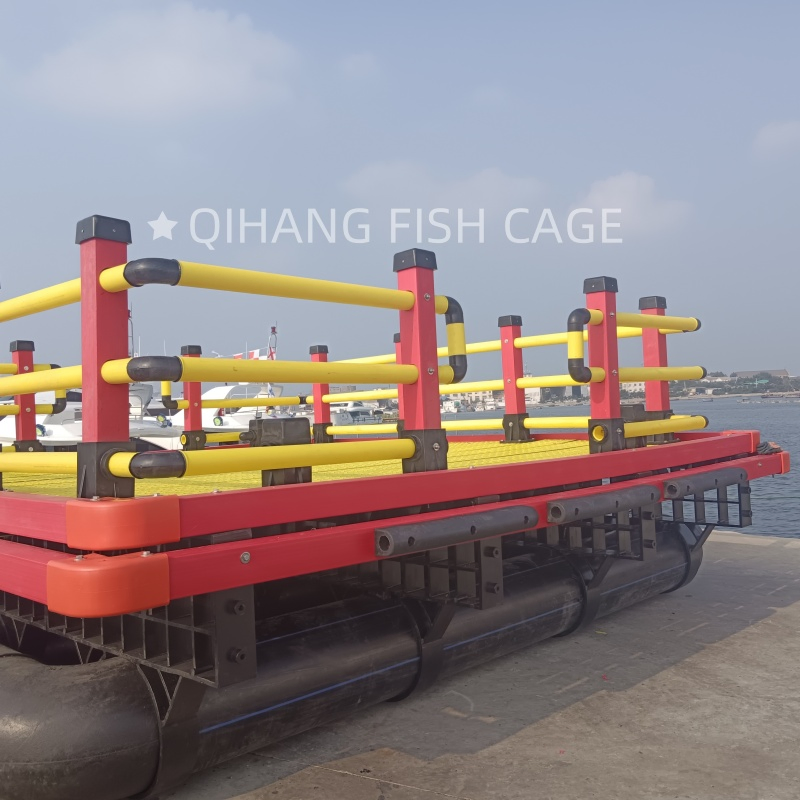

Qh-Fish Cage HDPE Floating Platform with Anti Wave Technology

1 / 5

Qh-Fish Cage HDPE Floating Platform with Anti Wave Technology

Customization:	Available
After-sales Service:	Long Service
Type:	Fisheries Auxiliary Machinery

Send Inquiry

Product Description

Basic Specifications

Model NO.

QHCJ-002

Working Method

Breed Aquatics

Frame Material

HDPE 100

Net Material

Pure PE / Nylon

Service Life

Over 15 Years

Certification

CE, ISO9001:2008

Floating Pipe

200mm - 400mm

Wind Resistance

Up to 12 Grades

Product Description

Advantages of Cage Culture: Experience the unmatched cost-effectiveness and brilliance of cage culture - a revolutionary approach reshaping the aquaculture industry. This innovative method radically reduces the high costs of traditional systems like pumping or aeration by harnessing the natural capabilities of existing water bodies. It not only dramatically slashes operational expenses but also seamlessly integrates with the ecosystem.

✓ Versatile adaptability for water depths from 6m to 50m.

✓ Exceptional resistance to typhoons (up to 12 grades) and 7m waves.

✓ Current resistance up to 1.5m/s ensuring steadfast stability.

✓ Expansive growth space promoting healthy fish development.

✓ High-grade marine HDPE pipes with anti-aging properties.

Technical Specifications

Specifications for HDPE Square Floating Cage Frame:

Size L*W (M)	Floating Pipe (MM)	Handrail Pipe (MM)	Stand Pipe (MM)
3m * 3m	200mm	90mm	110mm
5m * 5m	200mm	90mm	110mm
8m * 8m	250mm/315mm	110mm	125mm
10m * 10m	315mm	110mm	125mm
15m * 15m	315mm/350mm	110mm/125mm	125mm/--
30m * 30m	350mm/400mm	125mm	--

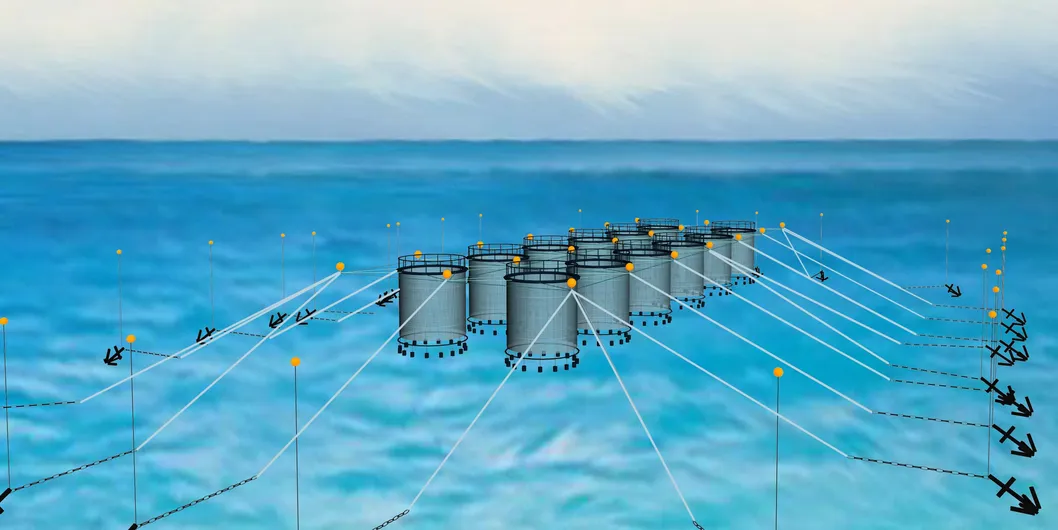

Aquaculture Net Cage System Components

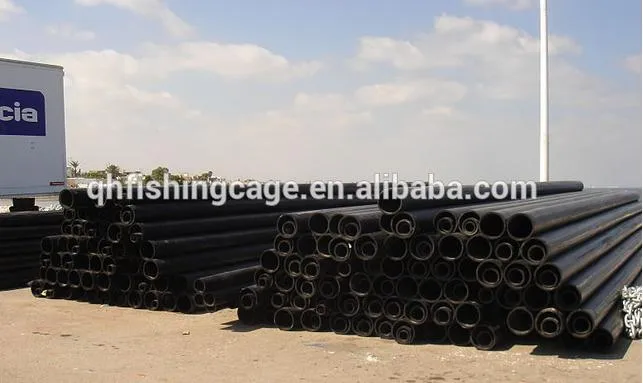

1. Cage Frame

Expertly crafted from robust HDPE 100 MATERIAL for unmatched strength.

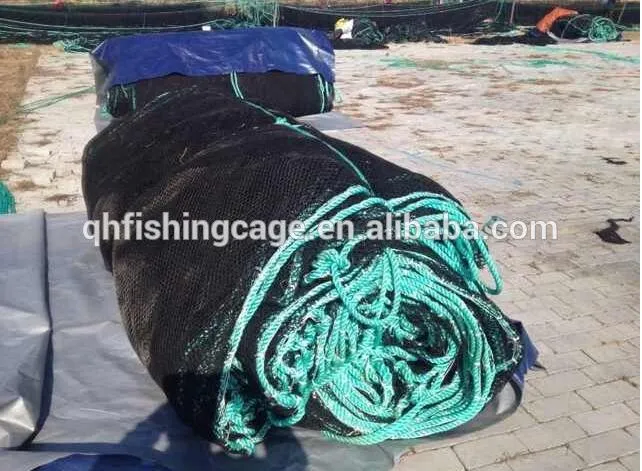

2. Fishing Net

Meticulously crafted using PURE PE and NYLON for outstanding durability.

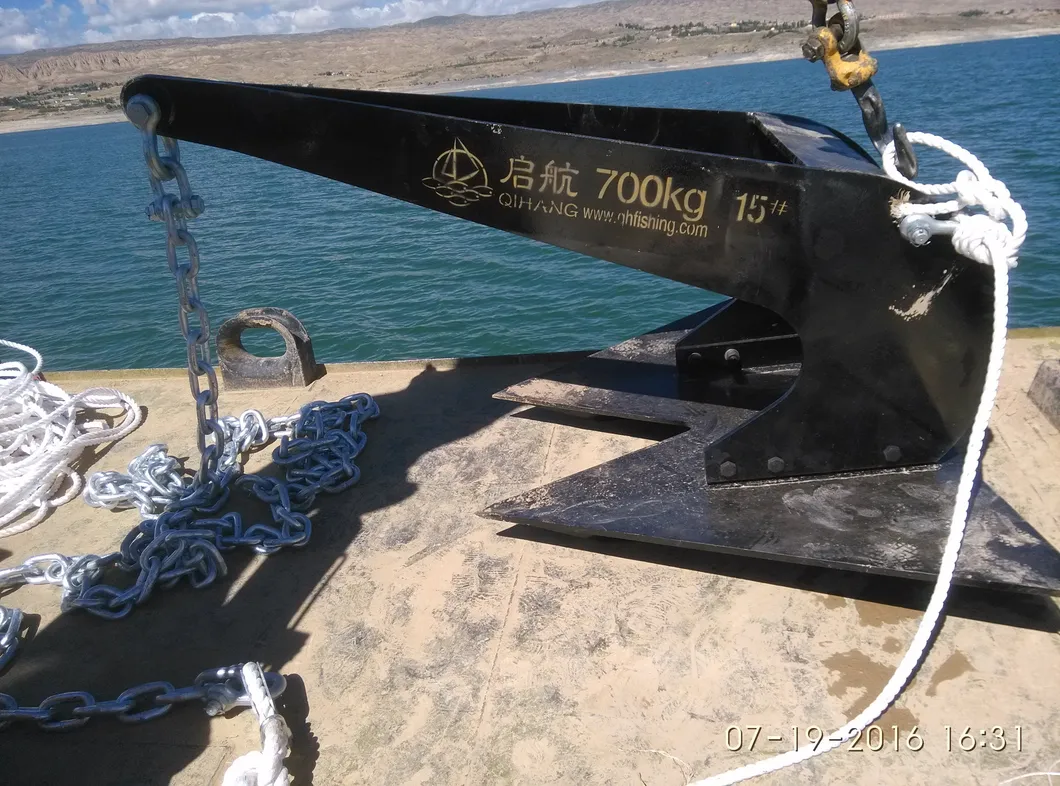

3. Mooring System

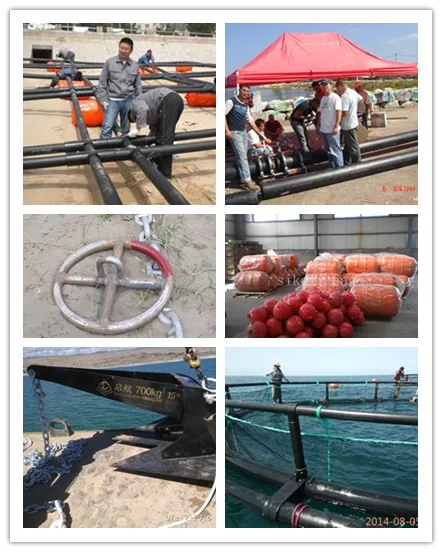

ON-SITE INSTALLATION SERVICE AVAILABLE / 100% QUALITY GUARANTEE

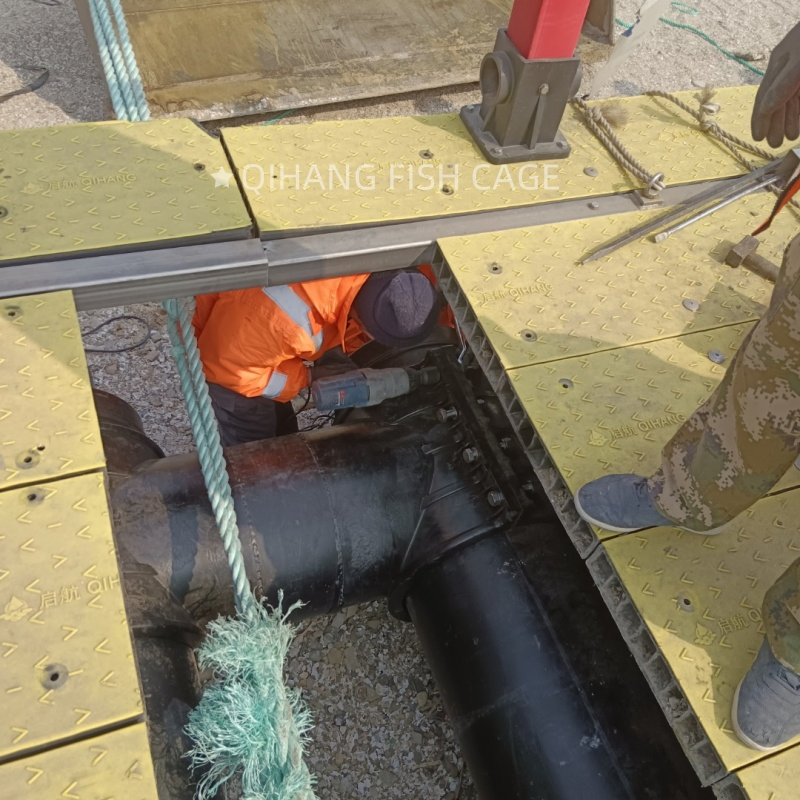

Our dedicated team provides comprehensive installation for the fishing cage system, ensuring a seamless and efficient setup process.

Frequently Asked Questions

What materials are used for the cage frame?

The frames are constructed using high-grade marine HDPE 100 material, known for its exceptional strength, toughness, and anti-aging properties.

How long is the expected service life of the cage?

The HDPE cage frame is designed for extreme durability and provides over 15 years of reliable service in marine environments.

Can the system withstand extreme weather like typhoons?

Yes, our systems are engineered to endure typhoons up to 12 grades, waves up to 7 meters, and water currents up to 1.5m/s.

What water depths are suitable for these cages?

The system is highly adaptable and can be installed in water depths ranging from 6 meters to 50 meters.

Are the fishing nets easy to maintain?

Absolutely. The nets are designed for easy replacement and cleaning, ensuring consistent performance and simplified maintenance.

Do you offer on-site installation support?

Yes, we have a team of highly skilled engineers available to provide comprehensive on-site installation services worldwide.
