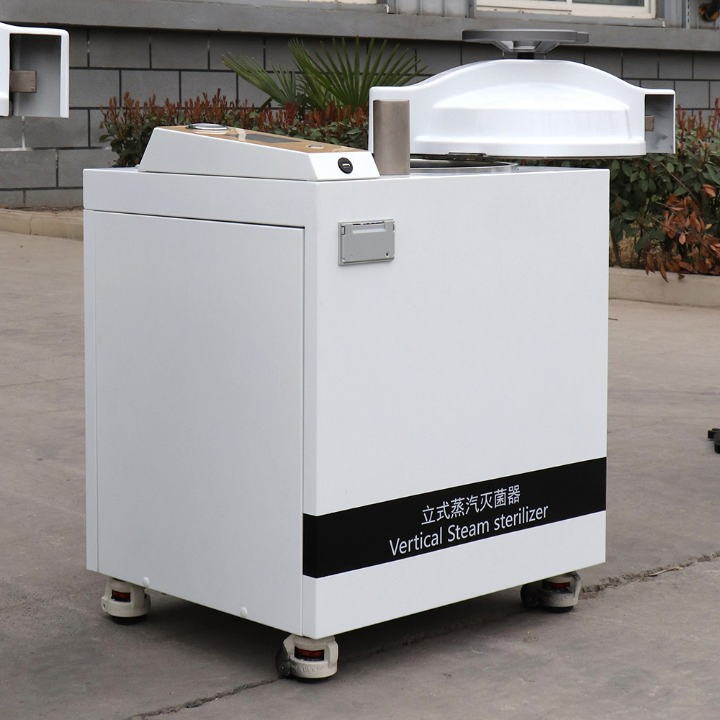

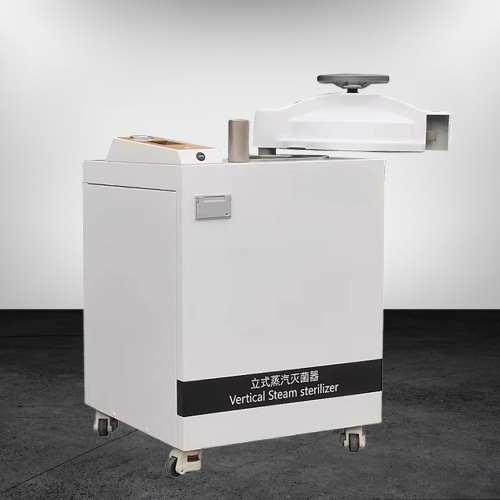

Introducing the awe-inspiring Vertical Autoclave Steam Sterilizer-Model SD-ZL, a true masterpiece of modern technology and unparalleled efficiency. This state-of-the-art sterilizer boasts a sleek LED touch screen interface, complemented by an integrated printer, delivering not only effortless operation but also meticulous documentation at your fingertips.
Basic Information
Certification
CE, FDA, ISO13485
LCD Display
With LCD Display
Application
Hospital Steam Sterilizer
Sterilization Objects
Liquid, Dressings, Surgical Instruments, Food
Specification
50/80/100/120L
Product Description

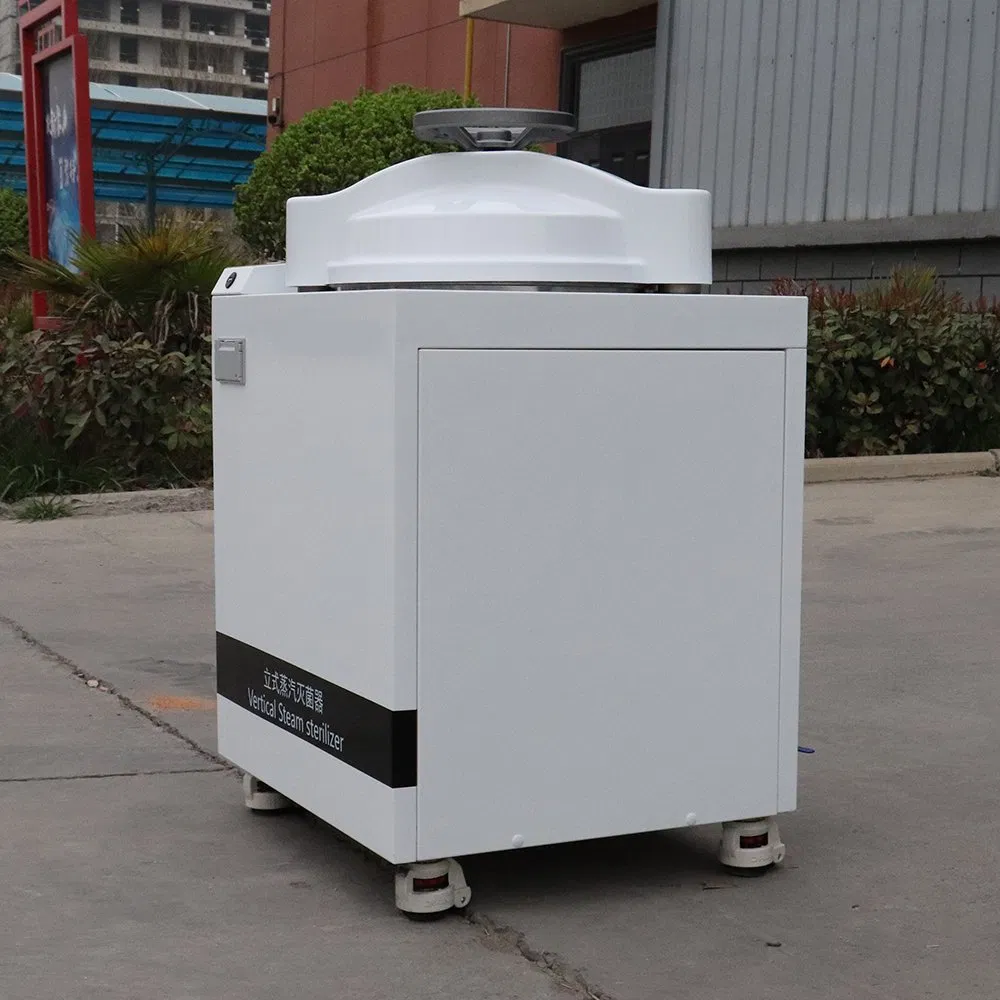

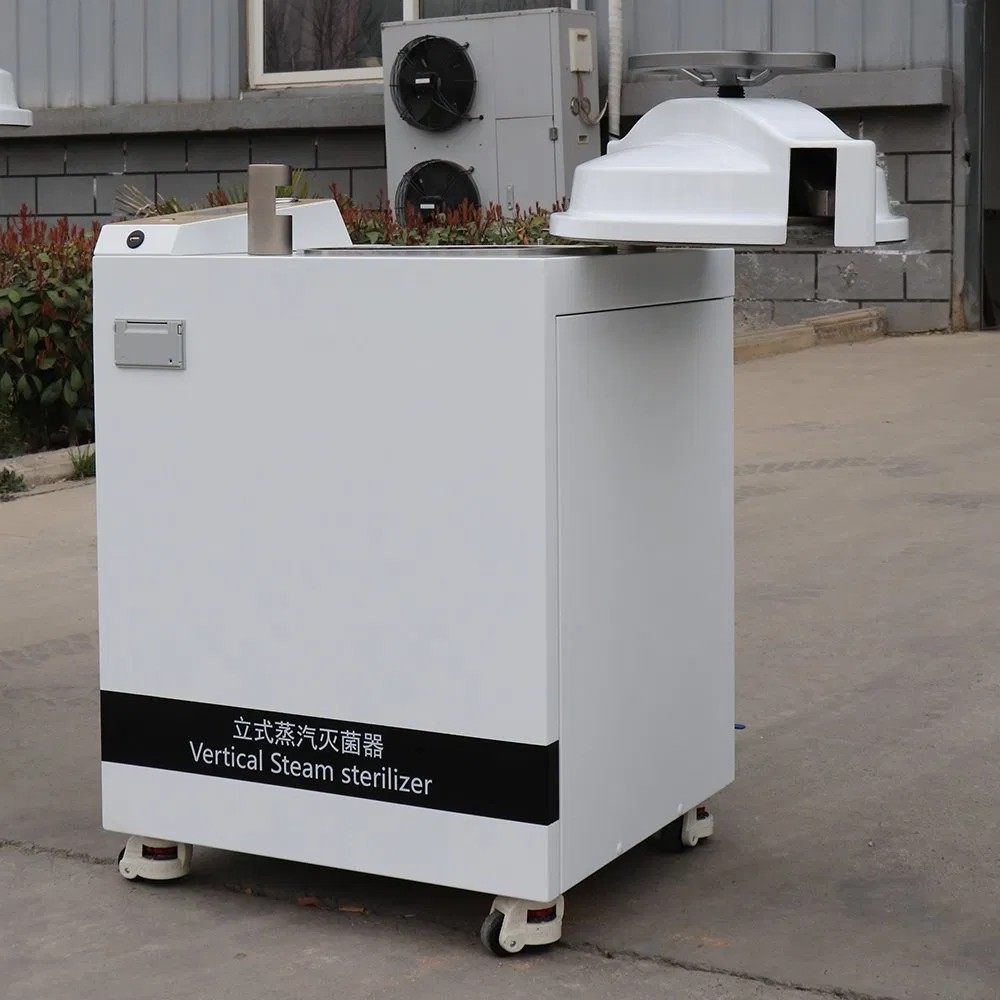

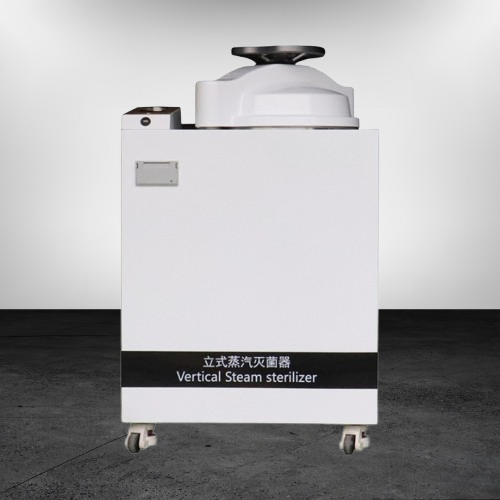

The Vertical High Pressure Steam Sterilizer is designed to revolutionize sterilization processes. This meticulously crafted device uses electric heating to generate high temperature and pressure saturated steam, ensuring a comprehensive and effective sterilization process. Through state-of-the-art cold air expulsion techniques like gravity displacement exhaust, the chamber is transformed into an environment rich in saturated steam.
Scope of Application: Essential for disinfection centers, operating rooms, and endoscope facilities. It also plays a crucial role in laboratories, testing rooms, universities, research institutes, and biological labs. Its broad application range makes it a vital instrument across a wide spectrum of medical environments.
Core Features
- High Operating Pressure: Delivering 0.25 MPa for robust and reliable performance.
- Temperature Range: Dynamic range from 0 to 138°C to meet various sterilization needs.
- Precision Control: Precision of 0.5ºC for safe and consistent operations.
- Integrated Stylus Printer: Effortlessly document each step for easy tracking and compliance.
- 5-Inch Color Touch Screen: User-friendly interface designed for intuitive operation.
- USB Port: Fast and secure data transmission for archiving critical data.
- Advanced Safety: Dual protection for dry heating and pressure safety interlock devices.
- Internal Circulation: Automatic indoor hydration and drainage system.

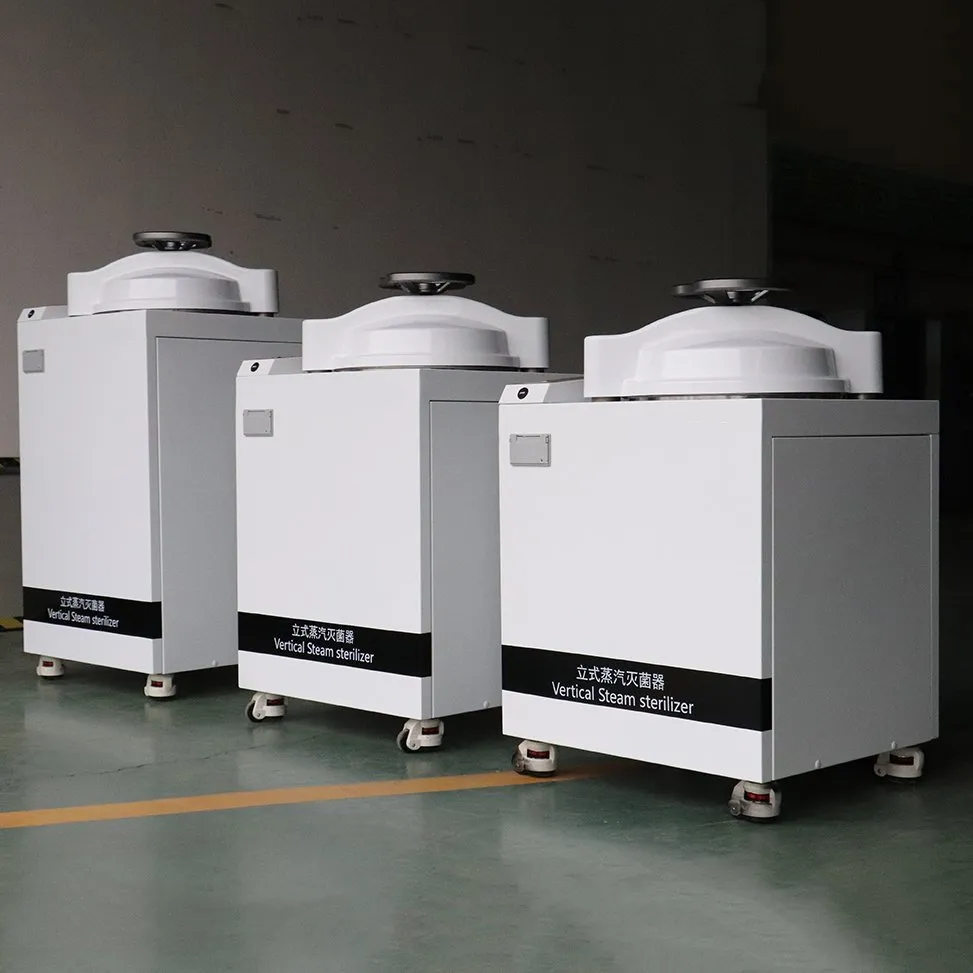

Product Specification
| Technical Data |
SD-ZL50 |
SD-ZL80 |
SD-ZL100 |
SD-ZL120 |
| Volume | 50L | 80L | 100L | 120L |
| Chamber Size | 365*667mm | 365*695mm | 365*860mm | 386*1054mm |
| Working Pressure | 0.22Mpa |
| Temperature | 121-134ºC |
| Timer Range | 0~99min |
| Power | 220V, 50Hz |
| G.W/N.W | 70kg/90kg | 90kg/118kg | 95kg/135kg | 135Kg/150Kg |
Packaging & Certifications
Manufacturer Profile
With more than ten years of unparalleled expertise since 2012, we shine as a leading manufacturer in the realm of sterilization equipment. Our commitment has been to provide a holistic service in medical sterilizers, merging competitive pricing with exceptional quality. Our global reach extends to markets in Southeast Asia, South America, Africa, Western Europe, and America.
OEM/ODM
Services Accepted
500,000+
Units in Use
Competitive
Global Pricing
TUV/SGS
Quality Certified

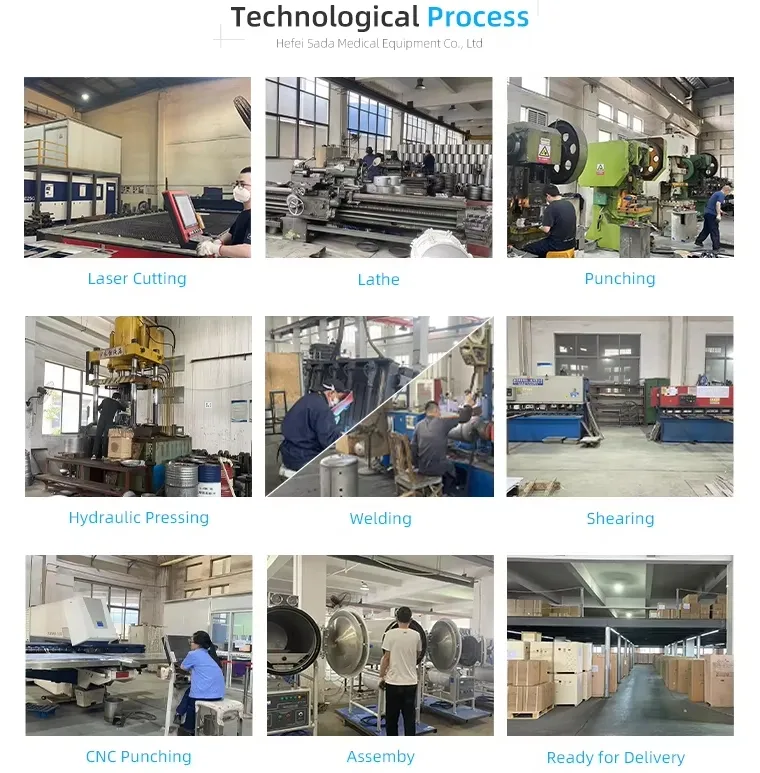

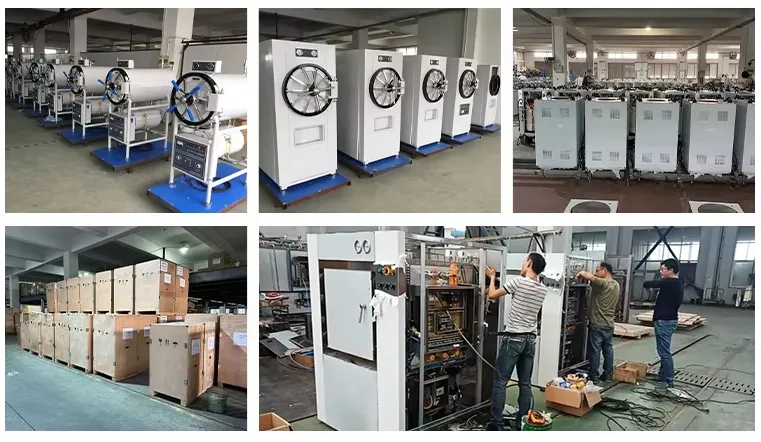

Workshop View
Frequently Asked Questions
1. What is the warranty for the products?
We offer a 2-year warranty and lifetime service support for all our sterilization equipment.
2. How is the after-sales service handled?
We provide technical support via manuals and videos. Our engineers respond promptly via email or phone. Free spare parts are provided within the warranty period for hardware issues.
3. What is the typical delivery time?
Portable types take 5-10 days, while vertical types typically require 10-25 days depending on the specific model and destination.
4. Can the equipment be customized?
Yes, we offer customization options for the control panel interface and specific voltage requirements to suit local standards.
5. What are the available payment terms?
We accept Telegraphic Transfer (T/T) in advance, Western Union, MoneyGram, and PayPal.
6. How can I place an order?
A Proforma Invoice is sent for confirmation, and production begins immediately after the payment is arranged.
