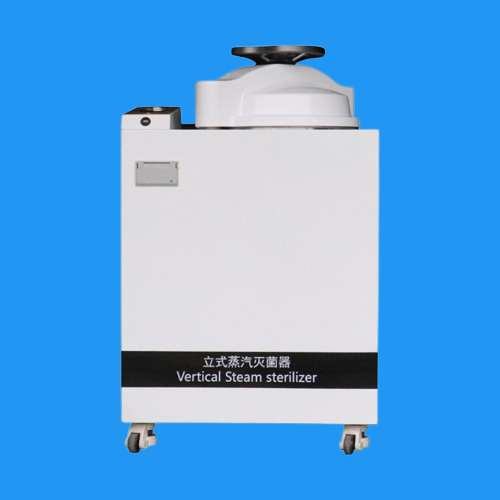

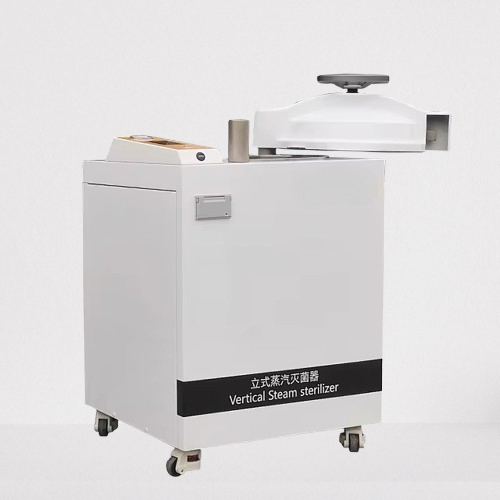

Advanced Vertical High Pressure Autoclave for Medical Instruments

Customization: Available
Theory: Autoclave
Type: Pressure Steam Sterilization Equipments

Product Description

Basic Information
Model NO.
SD-ZL
Certification
CE, FDA, ISO13485
Electric Tension
220V
LCD Display
With LED Touch Screen
Material
Stainless Steel
Classification
Class II
Application
Hospital Steam Sterilizer
Capacity
50/80/100/120L
Product Description

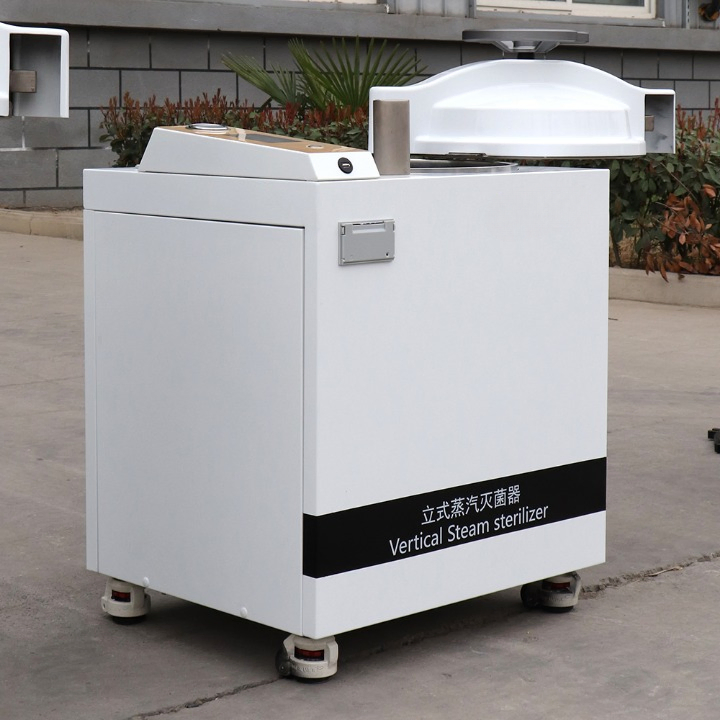

Introducing the Vertical Autoclave Steam Sterilizer-Model SD-ZL, a true epitome of innovation and efficiency in sterilization technology. Adorned with a sophisticated LED touch screen interface, it offers an intuitive experience, while the built-in printer ensures hassle-free documentation.

The Vertical High Pressure Steam Sterilizer utilizes cutting-edge electric heating technology to generate high temperature and high pressure saturated steam. Through gravity displacement exhaust, cold air is expelled, transforming the chamber into a sanctuary of sterilization. The potent saturated steam induces protein denaturation and efficiently eradicates microorganisms with precise temperature and time controls.

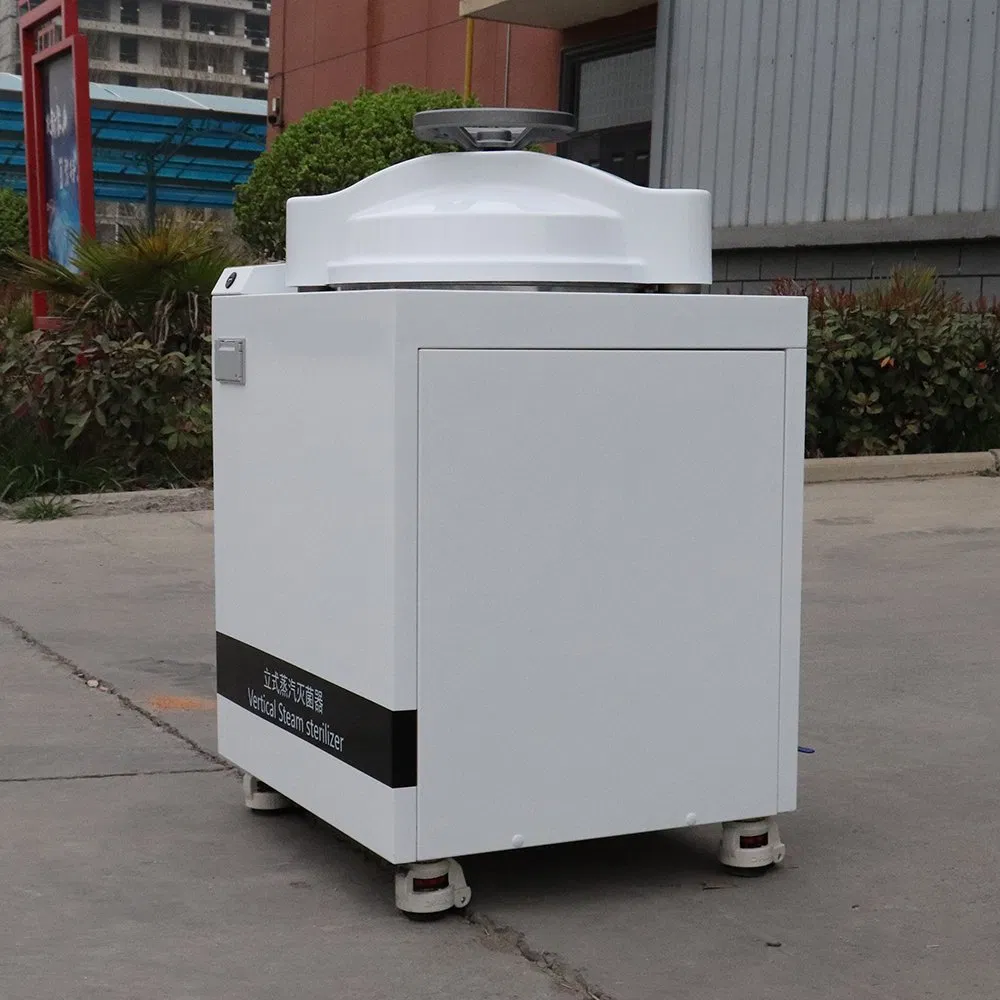

Vertical High Pressure Autoclave

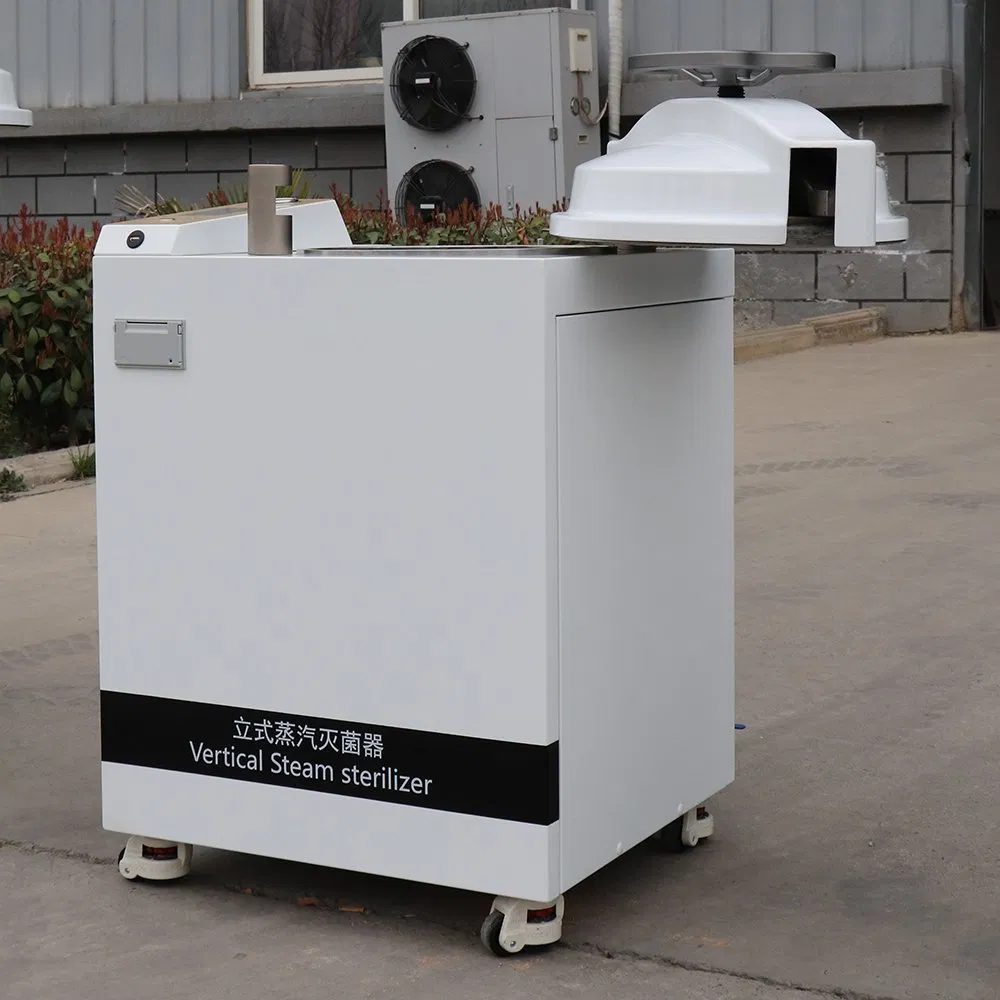

Medical Autoclave Sterilizer

Scope of application: Essential for sterilization management centers, operating rooms, endoscope facilities, laboratories, and testing rooms. Widely used in universities, research institutes, community hospitals, clinics, and various medical health departments.

Key Features
1. Max Operating Pressure: 0.25 MPa for robust hospital performance.
2. Temp Range: 0 to 138°C, tailored for diverse sterilization needs.
3. Precision: Accuracy of 0.5ºC for safe and reliable operations.
4. Stylus Printer: Easy documentation of every sterilization cycle.
5. Internal Circulation: Automatic hydration and drainage systems.
6. USB Port: Fast data transmission for sterilization records.
7. Touch Screen: 5-Inch colorful panel for intuitive control.
8. Safety: Pressure interlock and over-pressure leak protection.
9. Alarms: Acoustooptics alarming for quick troubleshooting.
10. Maintenance: Quick-open distribution window for easy repairs.
Product Specifications

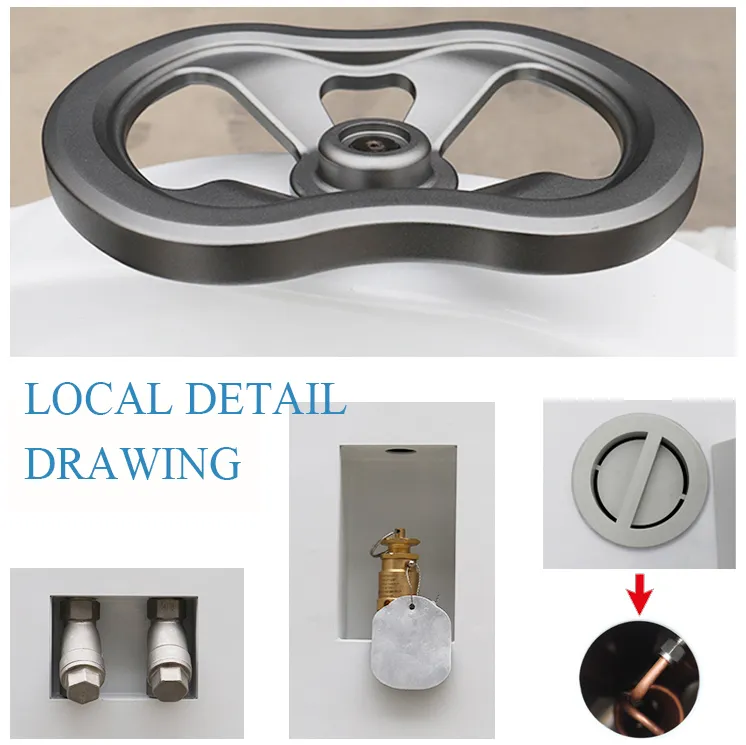

Autoclave Technical Image

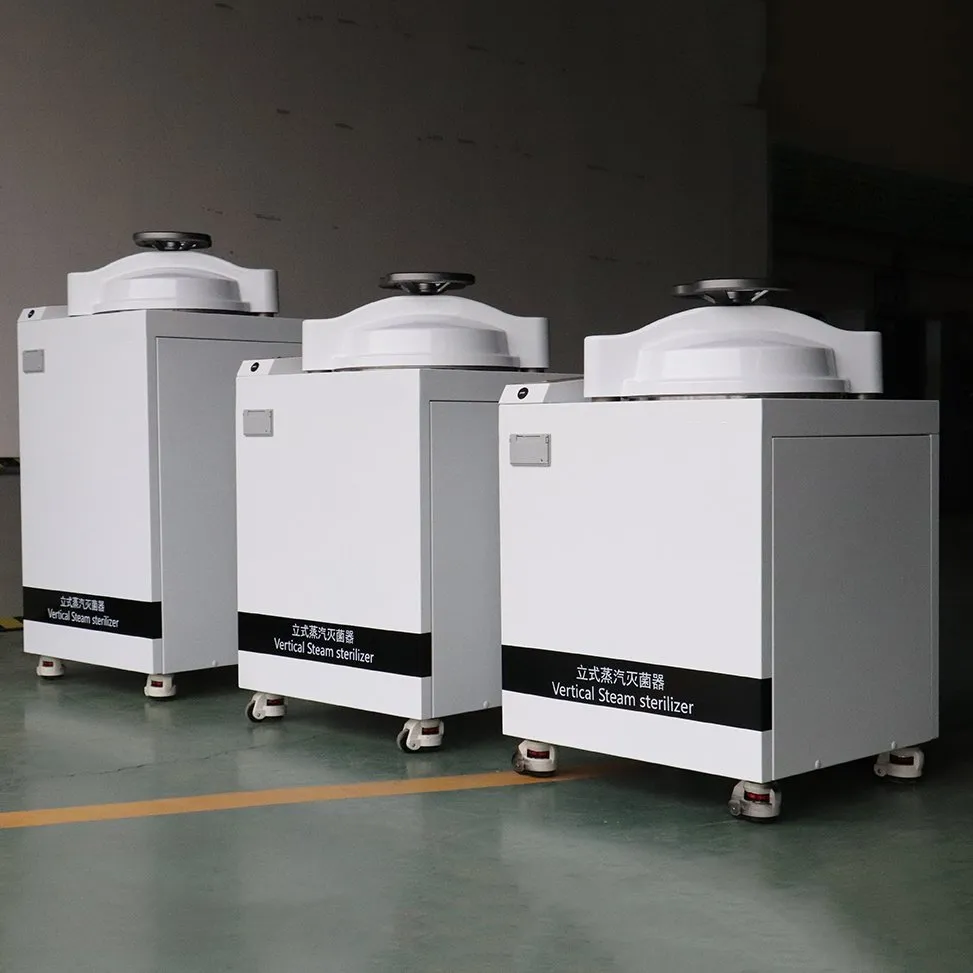

Autoclave Detail View
Technical Data SD-ZL50 SD-ZL80 SD-ZL100 SD-ZL120
Capacity50L80L100L120L
Chamber Volume365*667mm365*695mm365*860mm386*1054mm
Working Pressure0.22Mpa
Working Temp121-134ºC
Timer Range0~99min
Power220V, 50Hz
Net Weight70kg90kg95kg135kg
Packaging & Certifications
Packaging Process
Shipping Details
Product Certifications
Workshop View

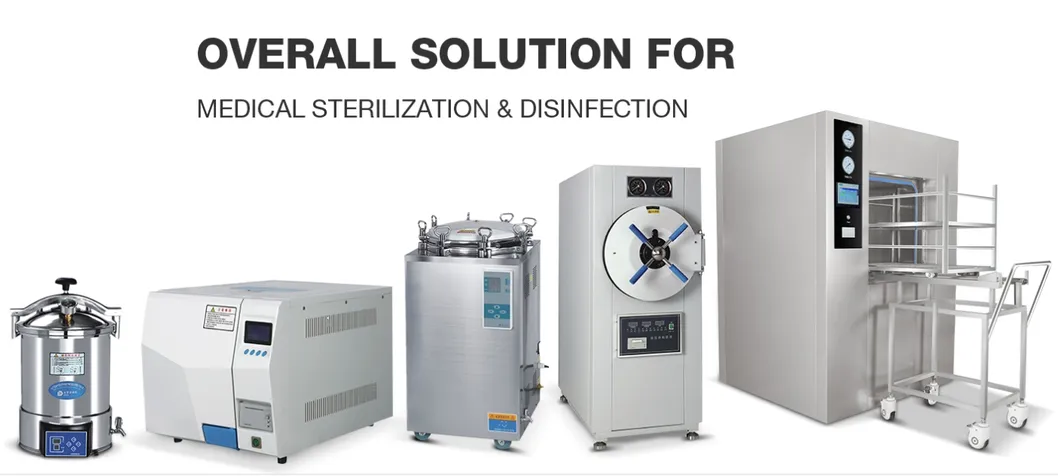

Factory Overview

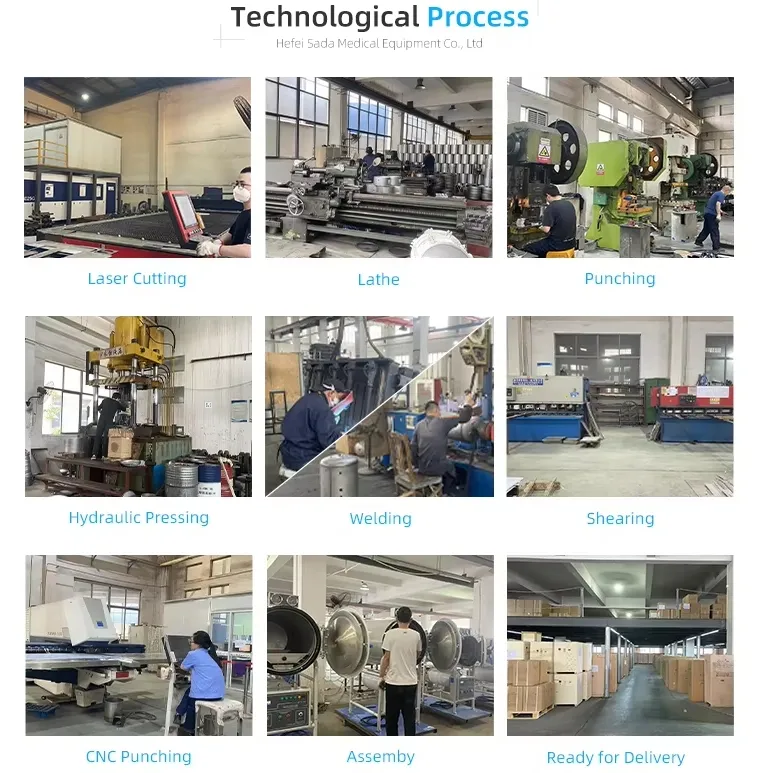

Production Line

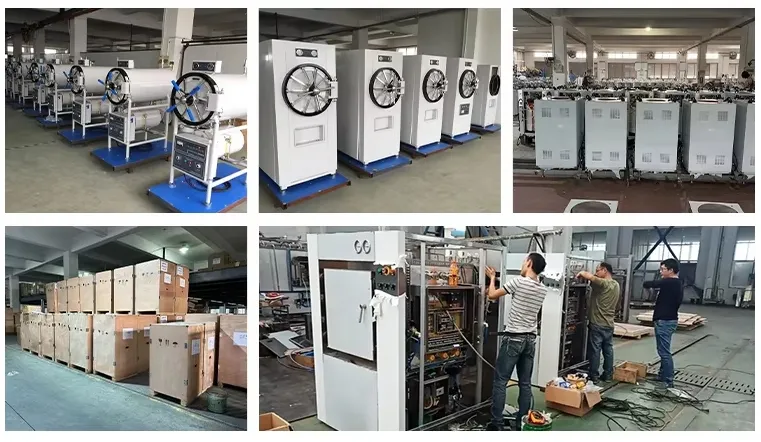

Quality Inspection

With over a decade of experience, our manufacturing facility is a premier provider of top-tier sterilization equipment. We cater to over 1000 hospitals, research institutions, and laboratories worldwide, including Southeast Asia, South America, Africa, and Western Europe.

Frequently Asked Questions
What is the warranty for the products?
We offer a 2-year warranty and lifetime technical service for all our sterilization equipment.
How is after-sales service handled?
We provide support via operating manuals and videos. Technical engineers are available for prompt responses via email or phone. Free spare parts are provided during the warranty period for hardware issues.
What are the delivery times?
Express shipping takes 7-10 days. Air freight takes 3-10 days, while sea freight varies by destination (e.g., 10-45 days depending on the port).
Can the equipment be customized?
Yes, we provide customization options for the control panel, voltage, and offer OEM/ODM services to meet specific requirements.
What are the available payment terms?
We accept Telegraphic Transfer (T/T) in advance, Western Union, MoneyGram, and PayPal.
What is the lead time for different models?
Portable models take 5-10 days; Tabletop and Vertical types take 10-25 days; Large-scale industrial types take 30-35 days.
