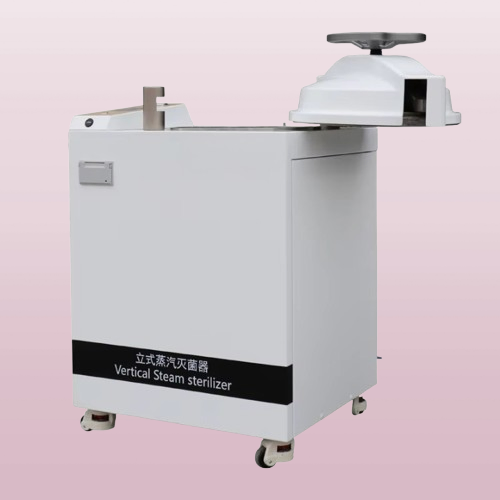

Advanced Touch Screen Sterilizer with Built-in Printer for Healthcare

Customization: Available
Theory: Autoclave
Type: Pressure Steam Sterilization Equipments

Product Description

Basic Information
Model NO.:SD-ZL
Certification:CE, FDA, ISO13485
Electric Tension:220V
LCD Display:With LCD Display
Material:Stainless Steel
Classification:Class II
Application:Hospital Steam Sterilizer
Sterilization Objects:Liquid, Dressings, Surgical Instruments, Food
Specification:50/80/100/120L
Production Capacity:20,000-85,000 PCS/Year

Unveiling the future of sterilization technology with the advanced and high-performance Vertical Autoclave Steam Sterilizer. Enhanced with a state-of-the-art LED touch screen and integrated printer for seamless operation and precise documentation.

Product Description

This revolutionary device employs electric heating mechanisms to generate high temperature and pressure with saturated steam within a confined chamber. Using cutting-edge gravity displacement exhaust, it expels cold air to fill the chamber with potent heat, leading to the denaturation of proteins and eradication of microbes.

Scope of Application: Essential for hospital disinfection centers, operating rooms, endoscope facilities, laboratories, research institutes, and community clinics.

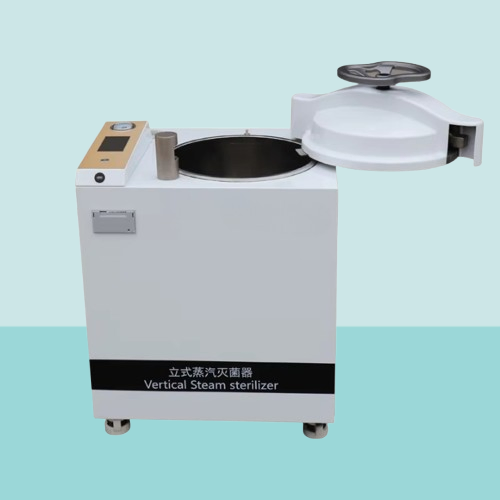

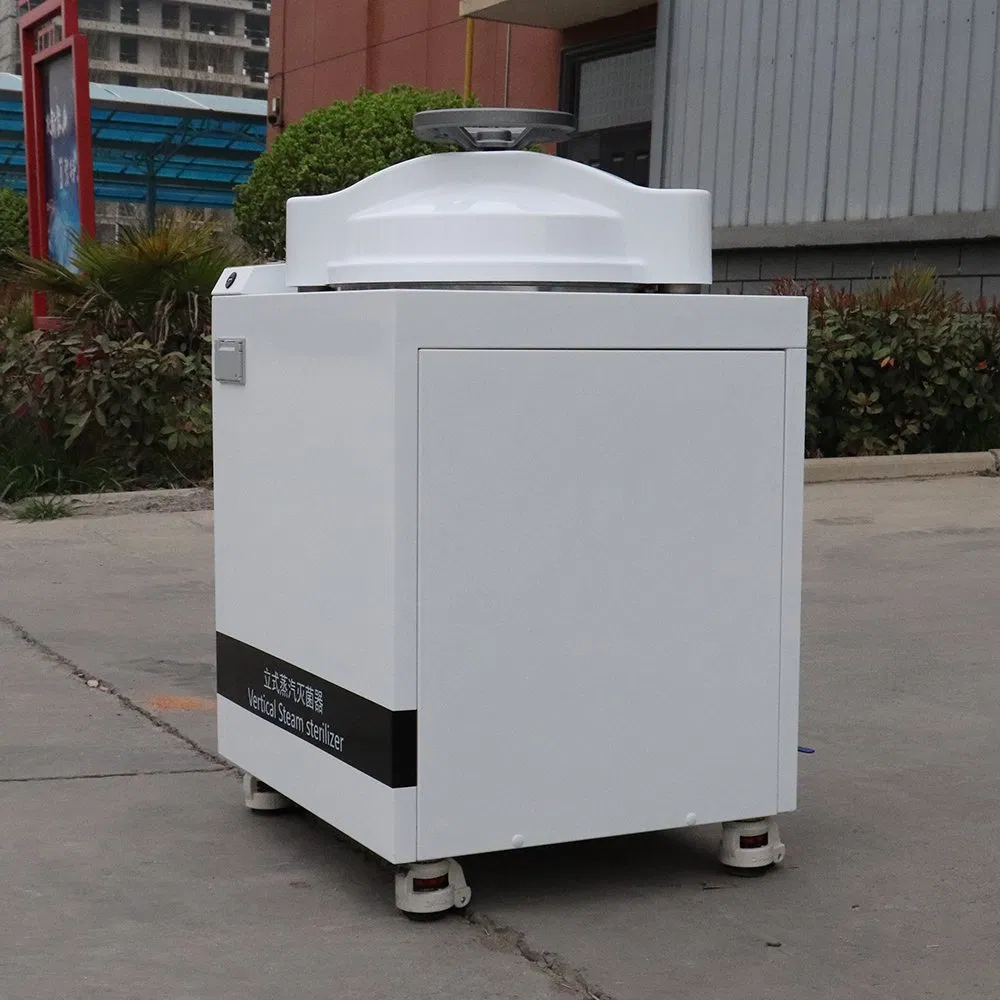

Vertical Autoclave View 1

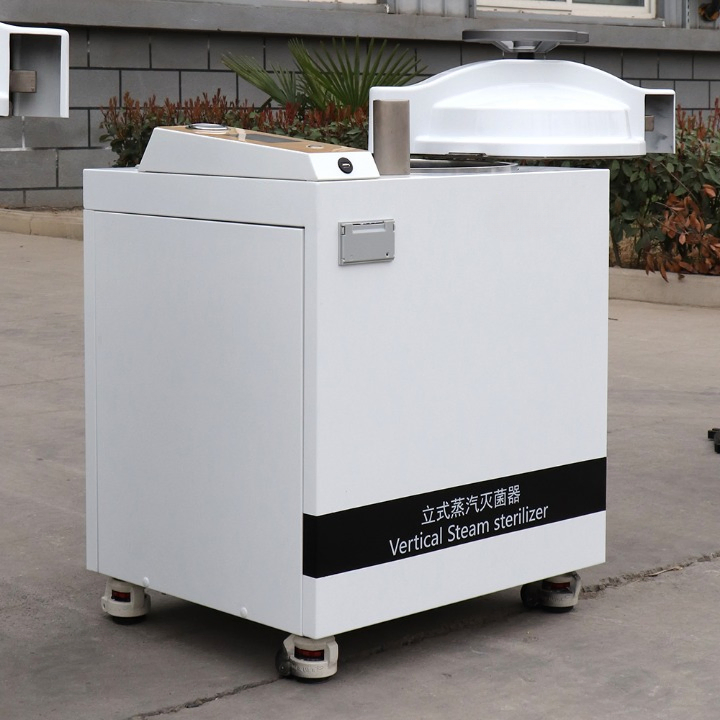

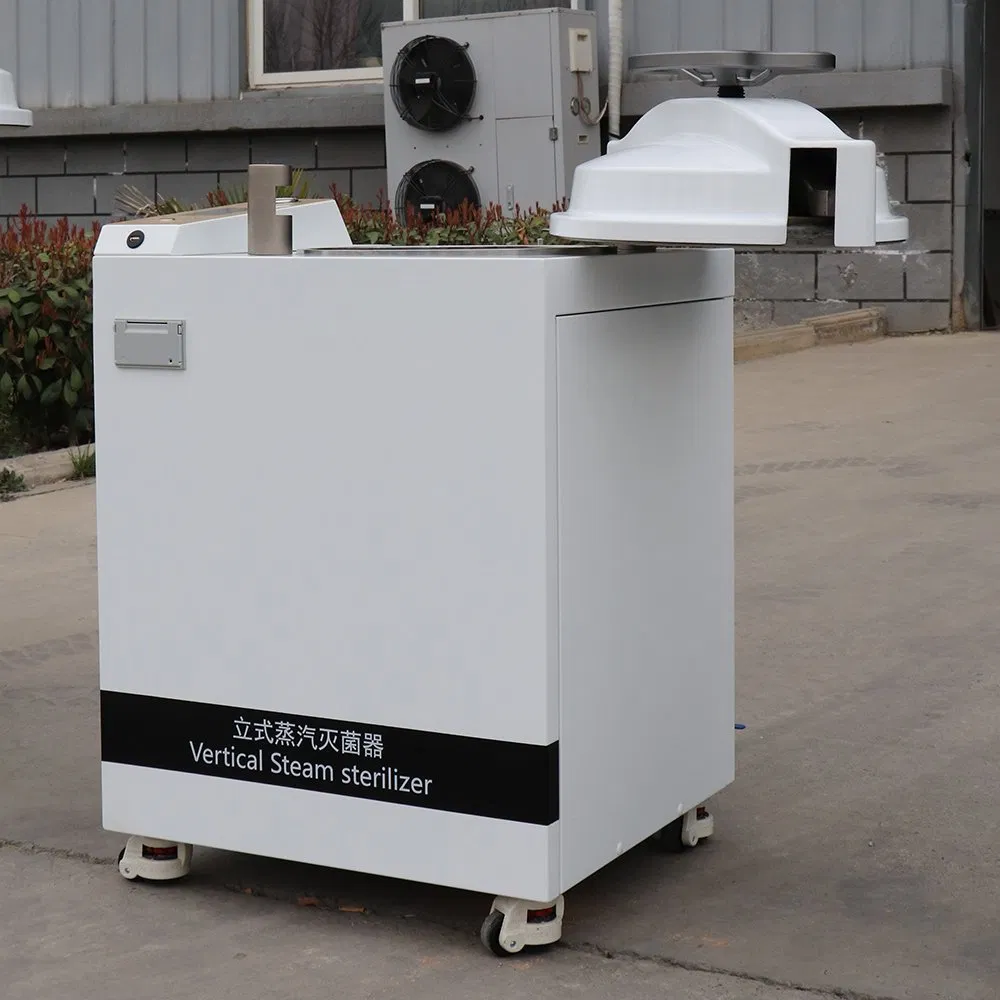

Vertical Autoclave View 2
Core Features
  • Maximum Operating Pressure: 0.25 MPa for high-efficiency safety.
  • Operating Temperature: 0-138°C for diverse sterilization requirements.
  • Control Precision: 0.5ºC for consistent results.
  • Stylus Printer: Integrated high-performance printing for records.
  • Automatic Internal Circulation: Automatic hydration and drainage.
  • USB Port: Fast data transmission and management.
  • 5-Inch Colorful Touch Screen: User-friendly navigation interface.
  • Dual Protection: Safeguards against dry heating and over-pressure.
  • Metallic Handwheel: Ergonomically crafted for smooth operation.
  • Quick-Open Window: Easy access for power distribution maintenance.
Technical Specifications

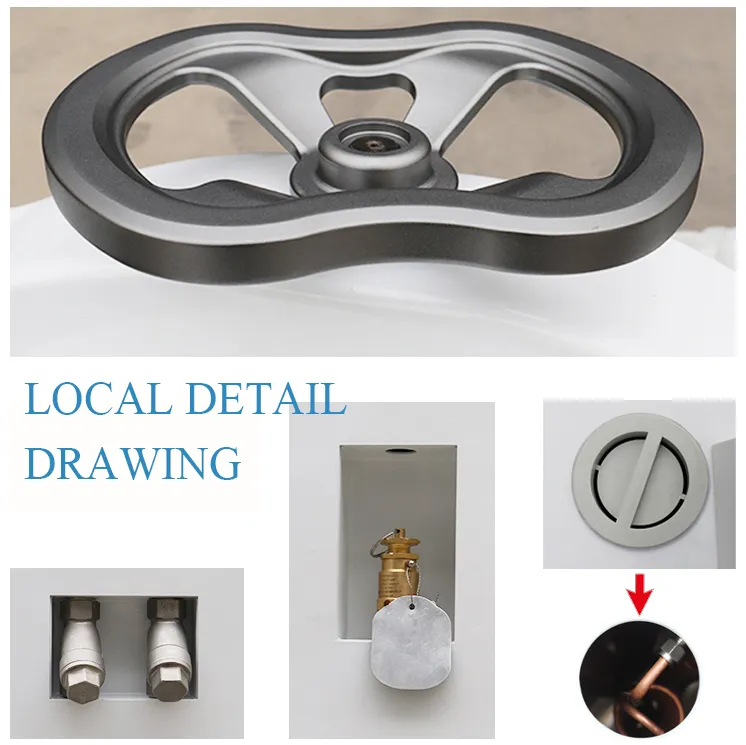

Technical Drawing 1

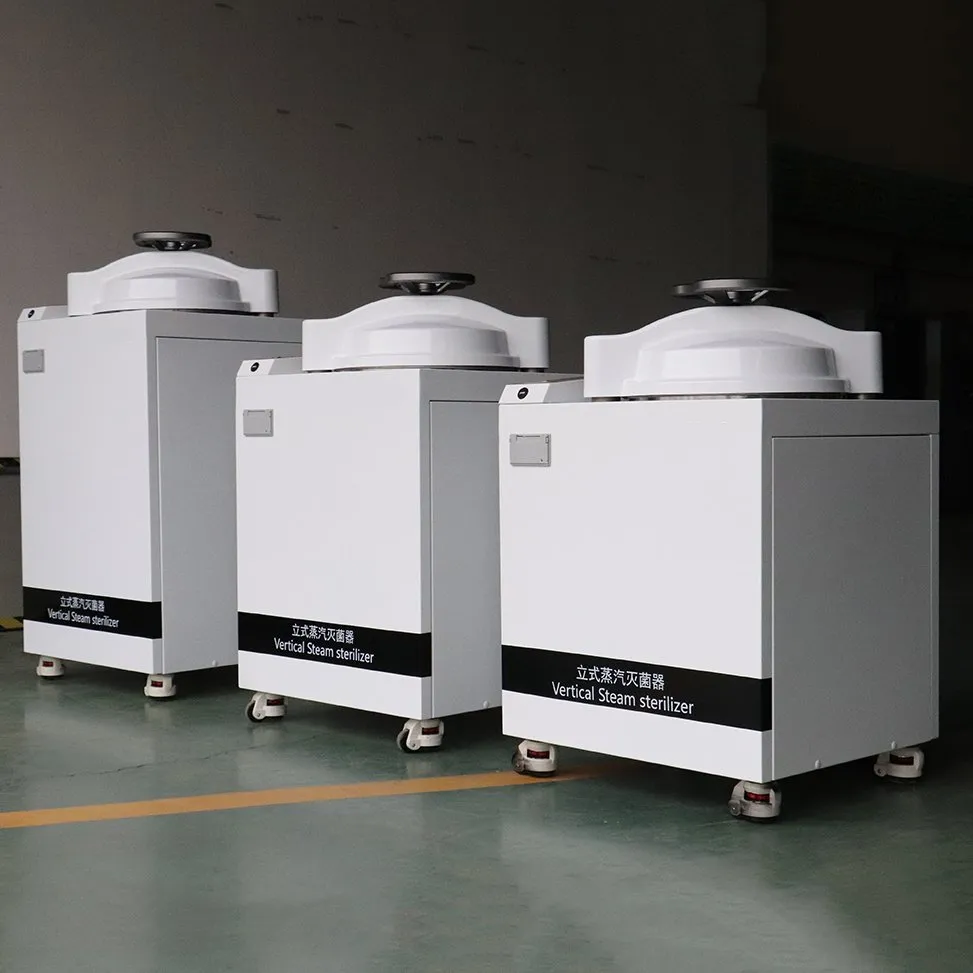

Technical Drawing 2
Technical Data SD-ZL50 SD-ZL80 SD-ZL100 SD-ZL120
Chamber Volume 50L (365*667mm) 80L (365*695mm) 100L (365*860mm) 120L (386x1054mm)
Working Pressure 0.22Mpa
Working Temp. 121-134ºC
Heat Average ≤±1ºC
Timer Range 0~99min
Power Supply 220V, 50Hz
Dimensions (mm) 570*546*990 610*546*1030 610*546*1200 560x640x1437
G.W/N.W 70kg/90kg 90kg/118kg 95kg/135kg 135Kg/150Kg
Packaging & Certifications
Packaging Process
Wooden Box Packing
Certificates
Manufacturing Excellence
Factory Overview

With a legacy of over a decade in the industry, we take pride in being a premier manufacturer of professional sterilization equipment. Our commitment has been unwavering in delivering seamless, one-stop solutions for medical sterilizers, serving over 1,000 hospitals, clinics, and research institutions globally.

Our Advantages: Competitive pricing, rigorous quality control by TUV and SGS, rapid delivery, and tailored OEM/ODM solutions.

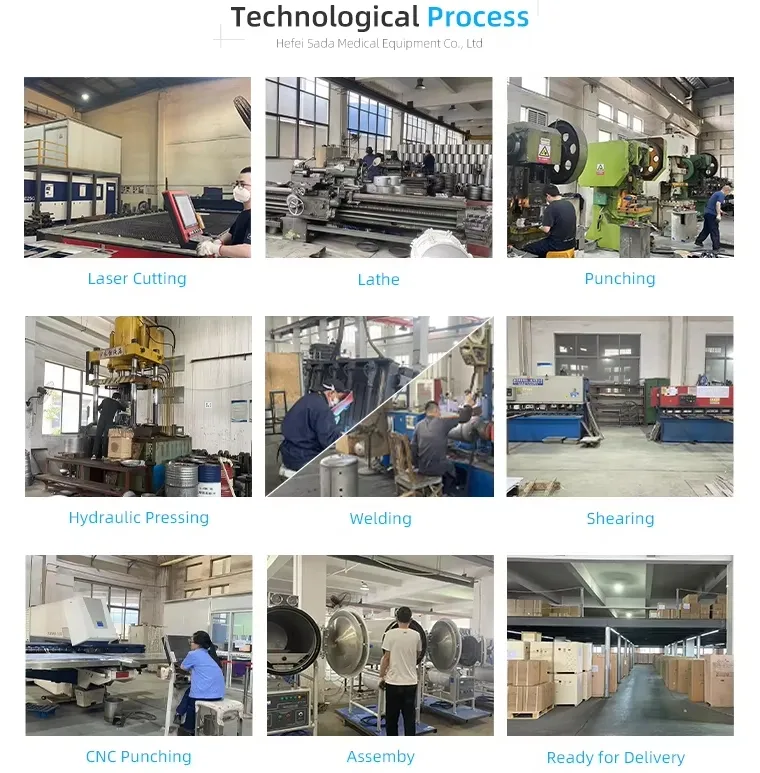

Workshop View 1

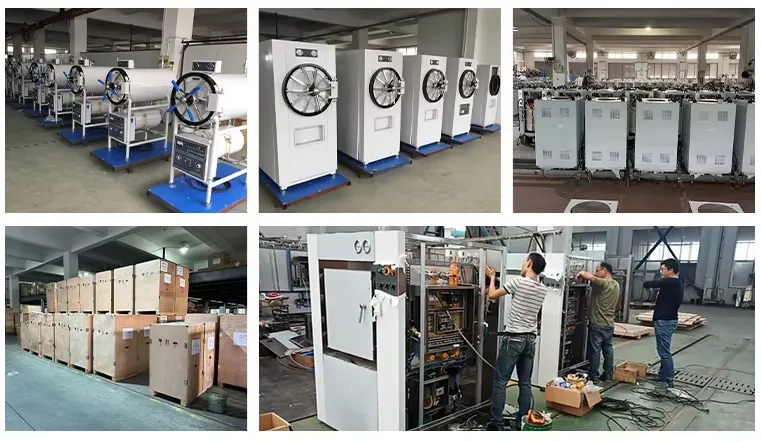

Workshop View 2
Frequently Asked Questions
What is the warranty for your sterilization products?
We offer a comprehensive 2-year warranty along with lifetime technical service to ensure your equipment performs optimally.
How do you provide after-sales support?
We provide technical support through operating manuals and instructional videos. For hardware issues within the warranty period, we provide free spare parts or factory repair services.
What are the available delivery methods and times?
We ship via Express (7-10 days), Air Freight (3-10 days), and Sea Freight (10-45 days depending on the destination port).
Can the equipment be customized for specific requirements?
Yes, we provide customization options for control panels, voltage settings, and offer full OEM/ODM collaborative solutions.
What is the typical lead time for an order?
Lead times vary by model: Portable types take 5-10 days, Vertical and Table-top models take 10-25 days, and large-scale horizontal units take 30-35 days.
What payment terms do you accept?
We accept various payment methods including Telegraphic Transfer (T/T) in advance, Western Union, MoneyGram, and PayPal.
