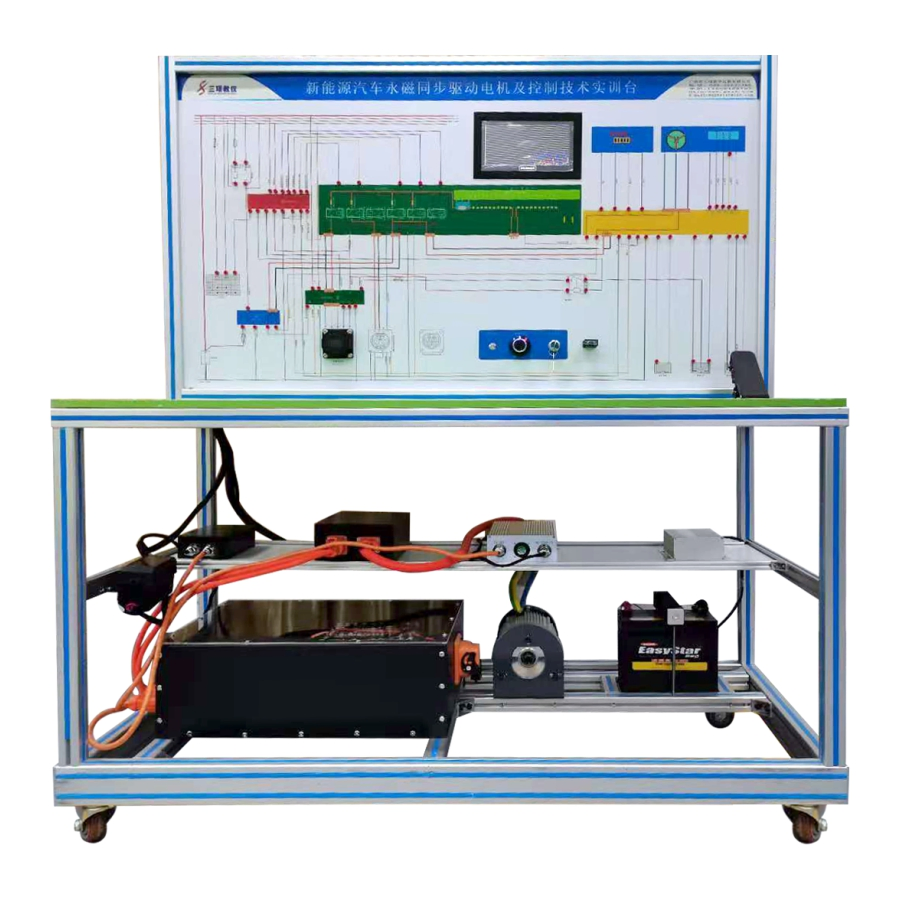

Select pure electric vehicle drive motor and control system (60V, 2.2KW permanent magnet synchronous motor) real device production, show the structure and working principle of new energy vehicle drive motor and control system, suitable for colleges and universities to drive point solution and control system theory and maintenance training disassembly and maintenance, structure and principle cognition, system operation, functional dynamic demonstration, Fault detection and diagnosis teaching needs.

• Detection control panel (equipped with various detection terminals, color circuit diagram working principle schematic diagram)
• Combined instrument, ignition switch, motor controller
• Vehicle charger and charging interface, DC-DC converter
• Lithium power battery pack, electric vehicle motor (permanent magnet synchronous motor)
• Brake switch, gear switch, throttle control device
• High current relay, main power switch, emergency stop switch
• Auxiliary battery (12V 45AH), mobile bench built by all-aluminum alloy profile

• Real components of pure electric vehicle drive motor and control system for structure and principle demonstration.
• Experience the relationship between the driver's intention and motor operation.
• Panel adopts ≥4mm thick aluminum-plastic plate with detection terminals for electrical signal measurement.
• Multifunction instrument real-time display speed, voltage, gear, and battery parameters.
• Diagnostic interface for reading data flow and fault content via upper computer software.
• Fault simulation system with not less than 12 fault points for diagnosis and elimination training.
• Durable equipment frame built with integrated aluminum alloy profiles, oil and corrosion resistant.
• Equipped with safety protection devices, emergency stop, and rotating parts protective covers.

• Overall size: 1500*700*1700mm
• Working temperature: -40°C to +50°C
• Drive motor: DC60V, 2.2KW, 3000rpm (Permanent Magnet Synchronous)
• Battery: Lithium iron phosphate power battery pack 60V 20AH
