Basic Information
Lift Mechanism
Scissor Lift
Certification
CE, ISO 9001
Application
Warehouse, Building Maintenance

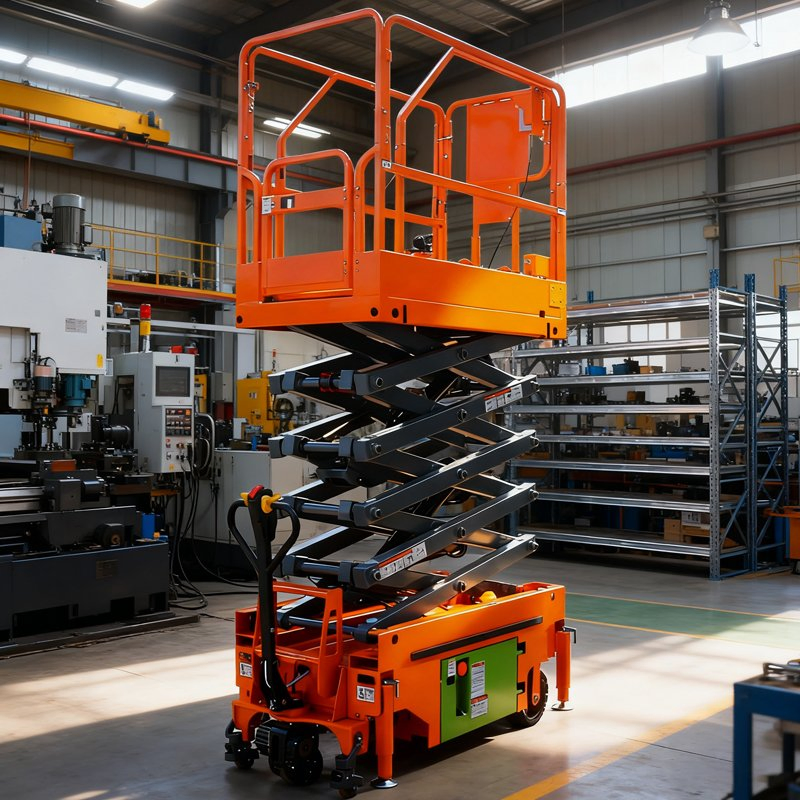

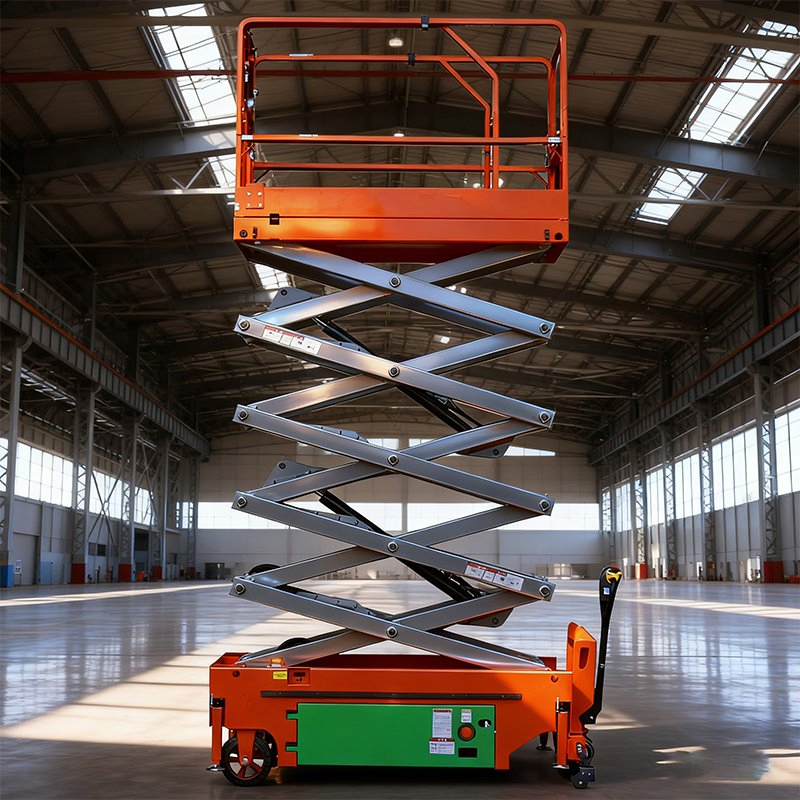

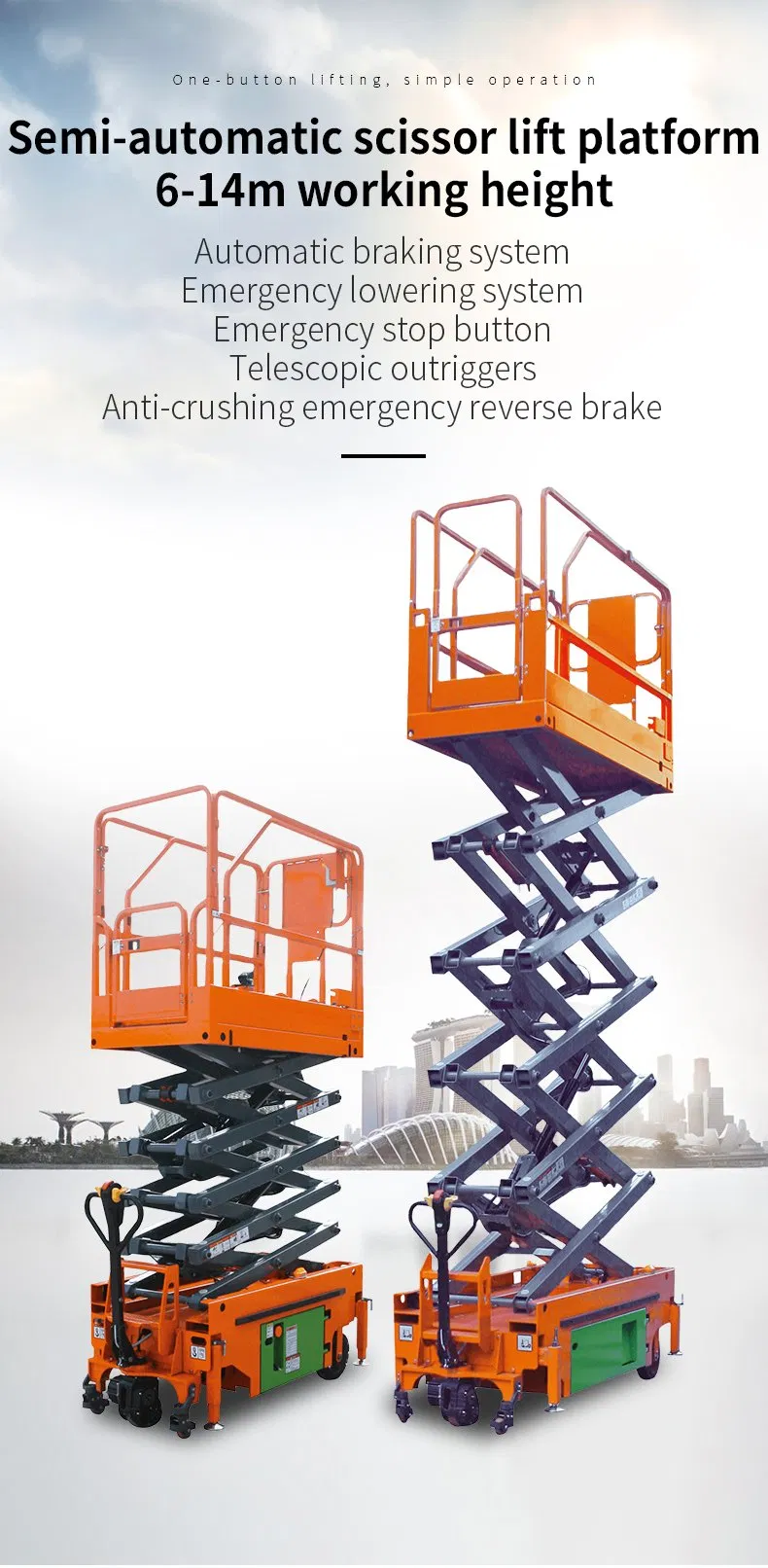

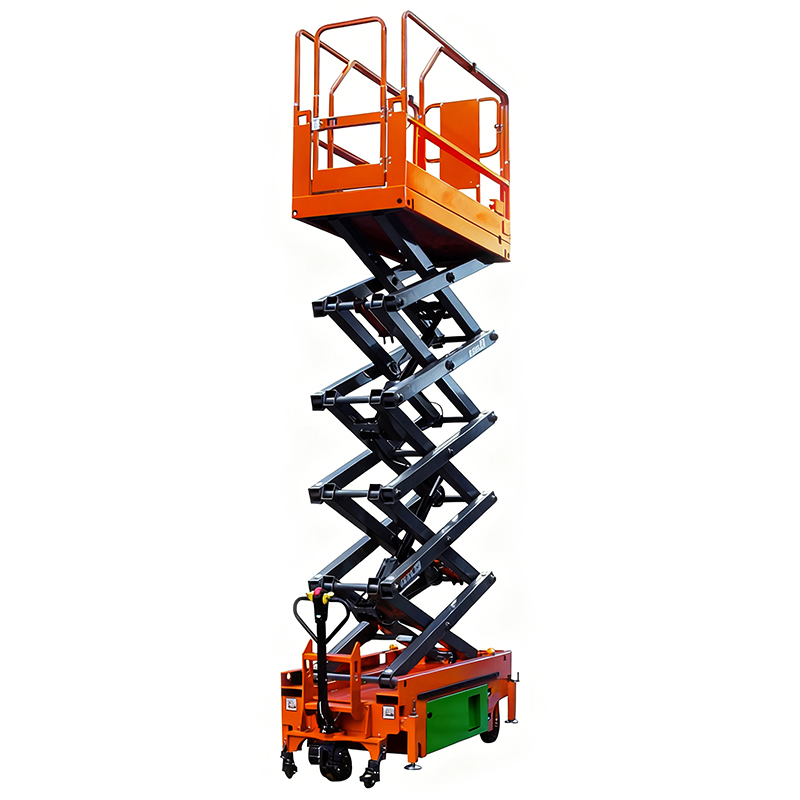

Semi Automatic Electric Mobile Aerial Work Platform
6–14m Working Height | Easy Operation | High Safety
- Automatic braking system
- Emergency lowering system & Emergency stop button
- Telescopic outriggers for enhanced stability
- Anti-crushing emergency reverse brake
The semi-auto electric scissor lift offers efficient lifting, stable structure, and comprehensive safety protections for both indoor and outdoor aerial work.
Technical Specifications
| Model |
SJPT0407B |
SJPT0607B |
SJPT0608B |
SJPT0808B |
SJPT1012B |
SJPT1212B |
| Max. Working Height |
6m |
7.8m |
8.3m |
10.3m |
11.8m |
13.8m |
| Rated Load Capacity |
230kg |
230kg |
300kg |
300kg |
450kg |
450kg |
| Platform Size |
1400x780mm |
1400x780mm |
1800x800mm |
1800x800mm |
2270x1130mm |
2270x1130mm |
| Platform Extension |
600mm |
600mm |
900mm |
900mm |
900mm |
900mm |
| Travel Speed |
2Km/h |
2Km/h |
2Km/h |
2Km/h |
3.5Km/h |
3.5Km/h |
| Battery |
4×12V32Ah |
4×12V32Ah |
4×12V45Ah |
4×12V45Ah |
4×12V45Ah |
4×12V45Ah |
| Machine Weight |
820kg |
900kg |
1150kg |
1260kg |
2240kg |
2470kg |
Key Product Features
Efficiency & Mobility
- User-friendly Operation: Simple control handles and one-click lifting.

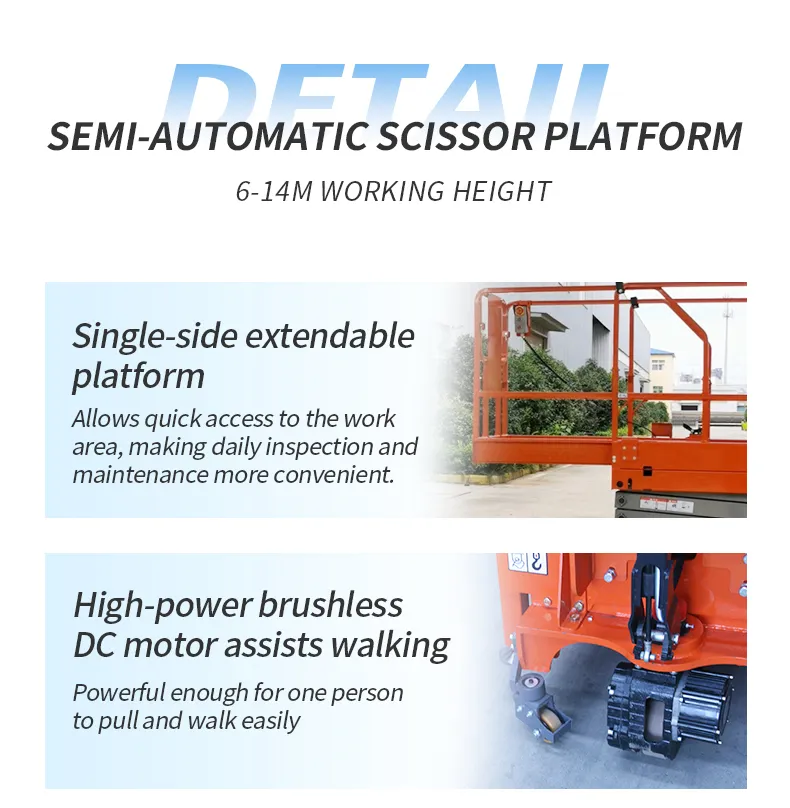

- Extendable Platform: Single-side extension for quick access to maintenance points.
- Eco-friendly Power: Efficient 48V DC motor system with zero emissions.
- Powerful Traction: Motorized drive allows easy handling by a single operator.

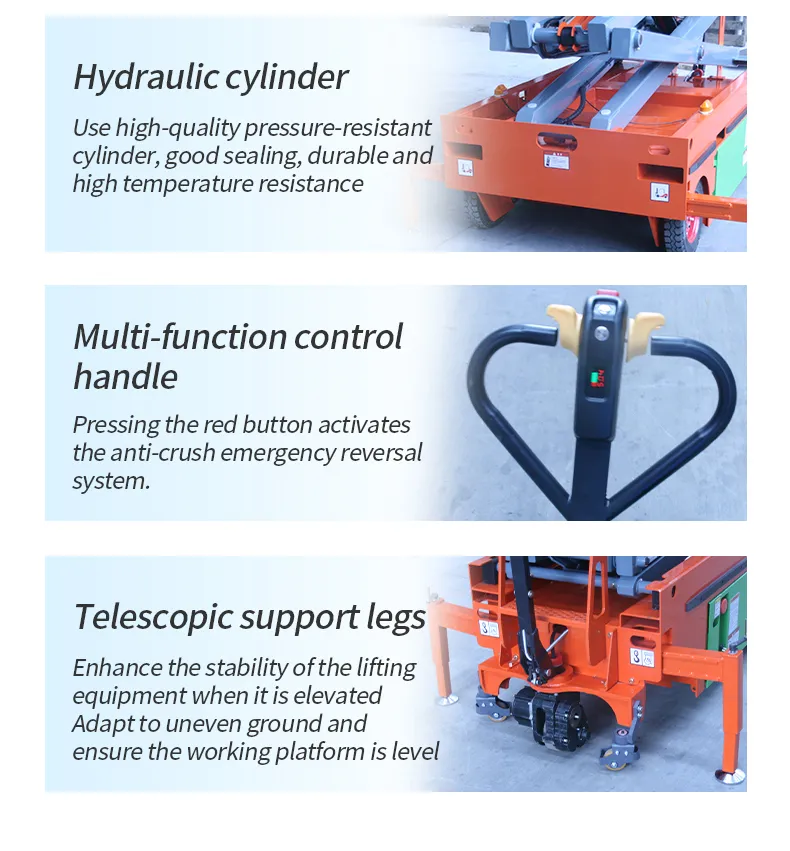

Comprehensive Safety Systems
- Explosion-proof hydraulic cylinder
- Overload protection system & Safety guardrails
- Level limit switch for ground stability
- Emergency lowering valve for power failure scenarios
Application Scenarios
Ideal for construction, factories, warehouses, airports, malls, and utilities:
- High-rise building maintenance
- Equipment repair and service
- Billboard installation

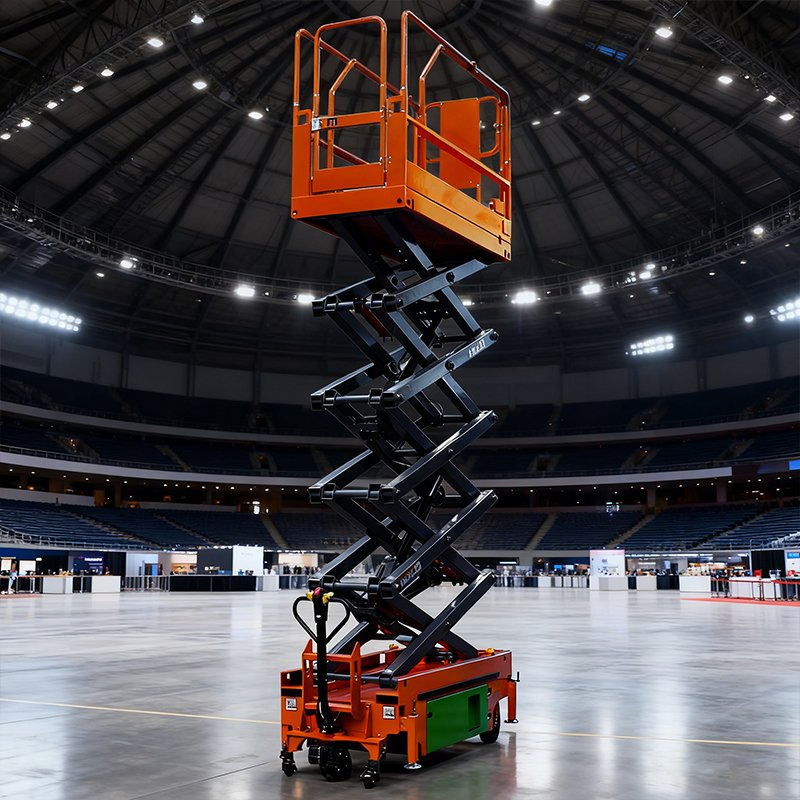

- Indoor operations in venues
- Property inspection

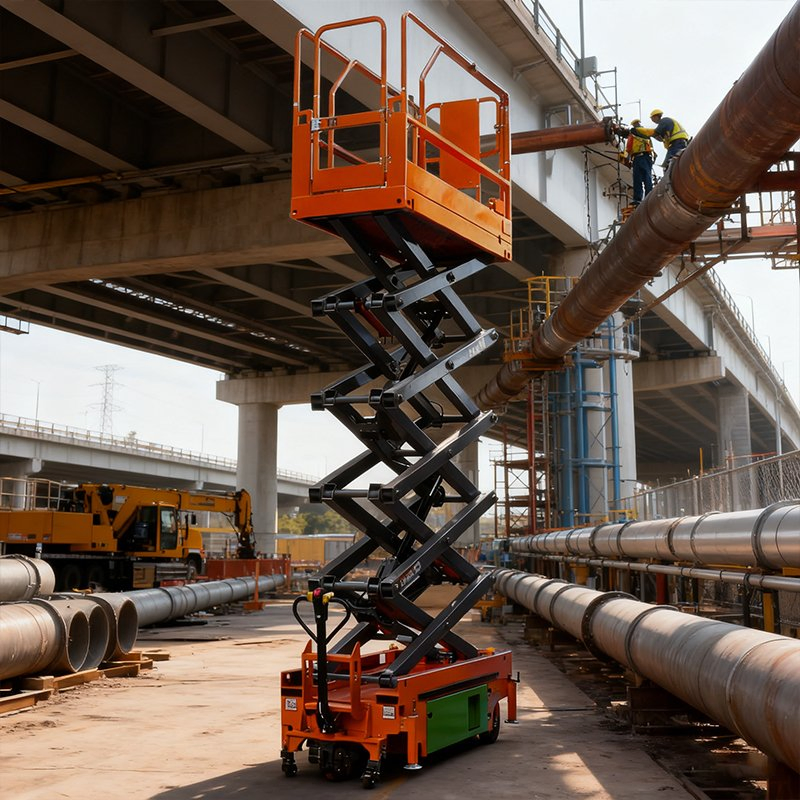

- Pipeline construction

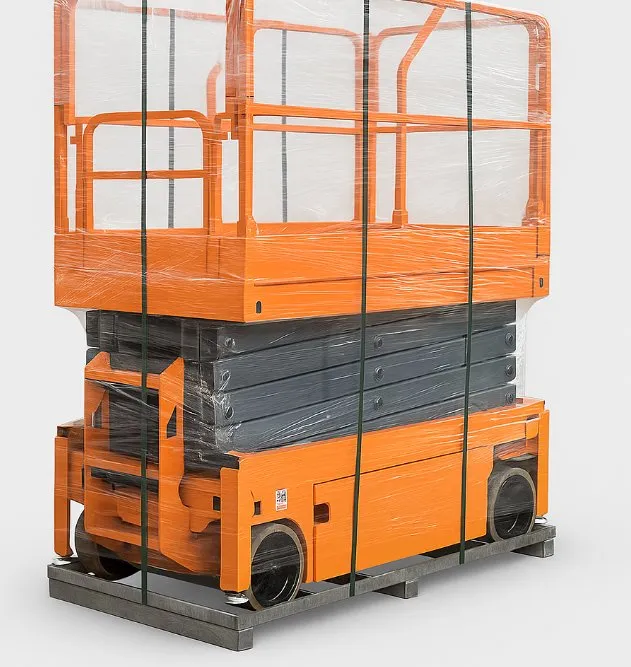

Packing & Delivery
Export Standards
- Reinforced export pallets
- Waterproof protective plastic film
- Edge guards and anti-rust treatment
- Secured with high-strength steel straps
- Optimized for 20GP and 40HQ container loading

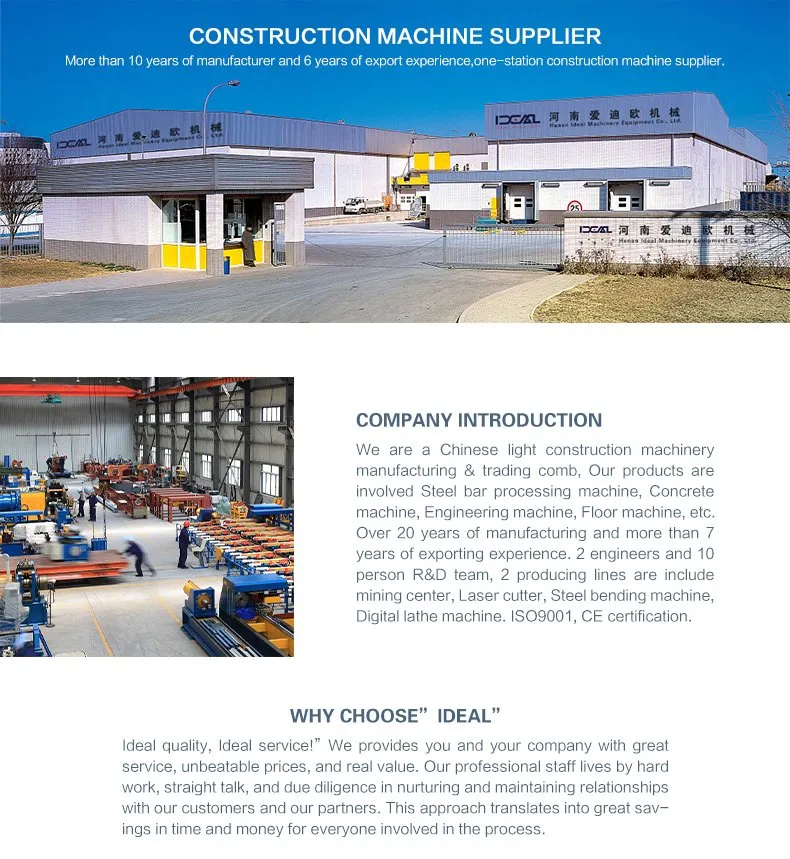

Quality & Manufacturing
Frequently Asked Questions (FAQ)
What is the power source for this scissor lift?
The lift is powered by a high-capacity 48V battery system paired with an efficient brushless DC motor, ensuring low noise and zero emissions for indoor and outdoor use.
Can the platform be extended for better reach?
Yes, it features a manual single-side extendable platform. The extension range varies between 0.6m and 0.9m depending on the specific model chosen.
Is the machine easy to transport to different job sites?
Absolutely. The compact design and motorized drive system allow a single operator to maneuver the machine easily. It is designed to fit through standard doorways (depending on model) and is forklift-ready.
What safety certifications does this product hold?
Our scissor lifts are manufactured under strict quality controls and hold CE and ISO 9001 certifications, ensuring they meet international safety and performance standards.
How is the equipment protected during international shipping?
We use standard export packaging including reinforced pallets, waterproof protective film, and steel strapping. Plywood cases are also available upon request for added protection.
Are custom lifting solutions or OEM services available?
Yes, we provide specialized engineering support for custom lifting heights, capacities, or specific platform requirements to suit unique aerial work scenarios.
