Product Overview

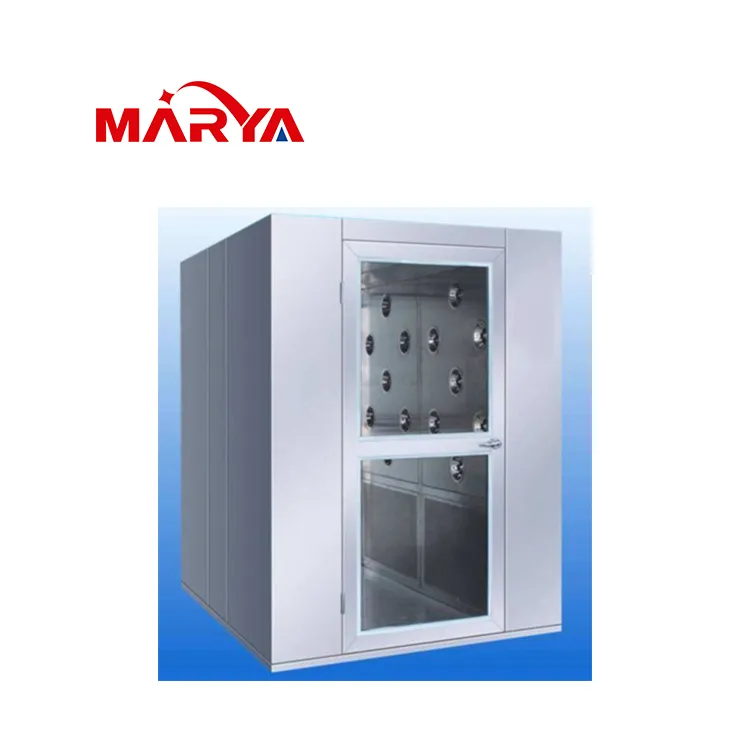

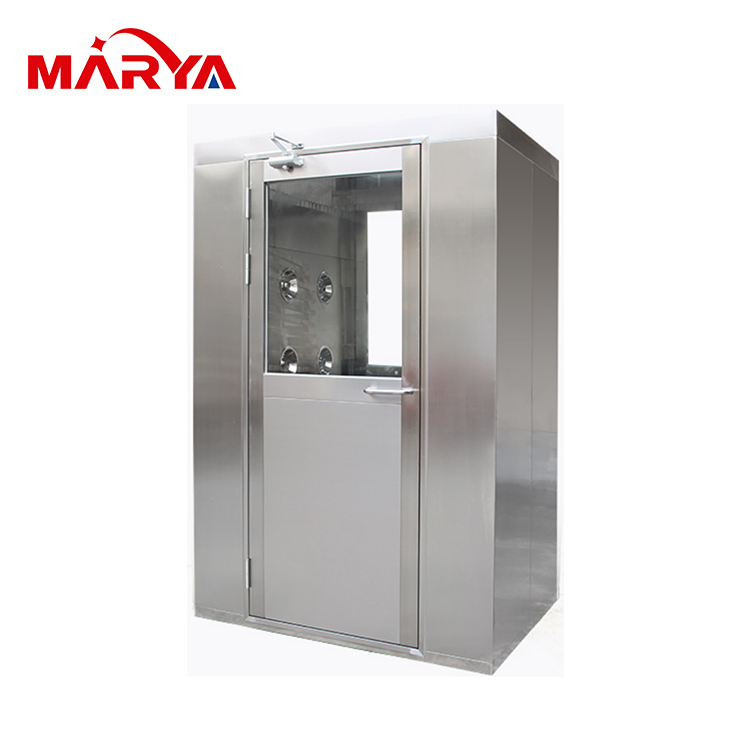

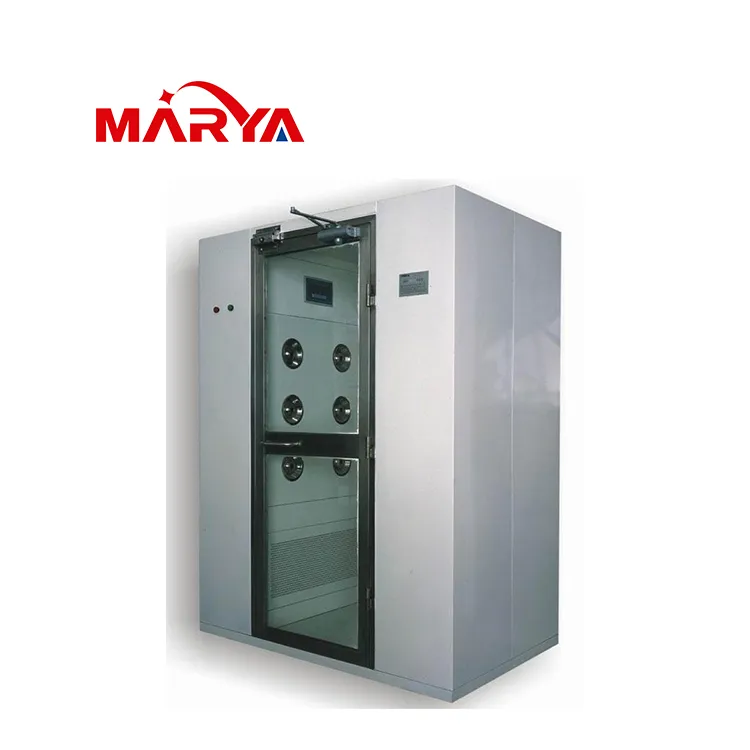

Medical-Grade Clean Room Air Shower
Stainless Steel and Efficient Filtration | 60 Seconds Fast Purification

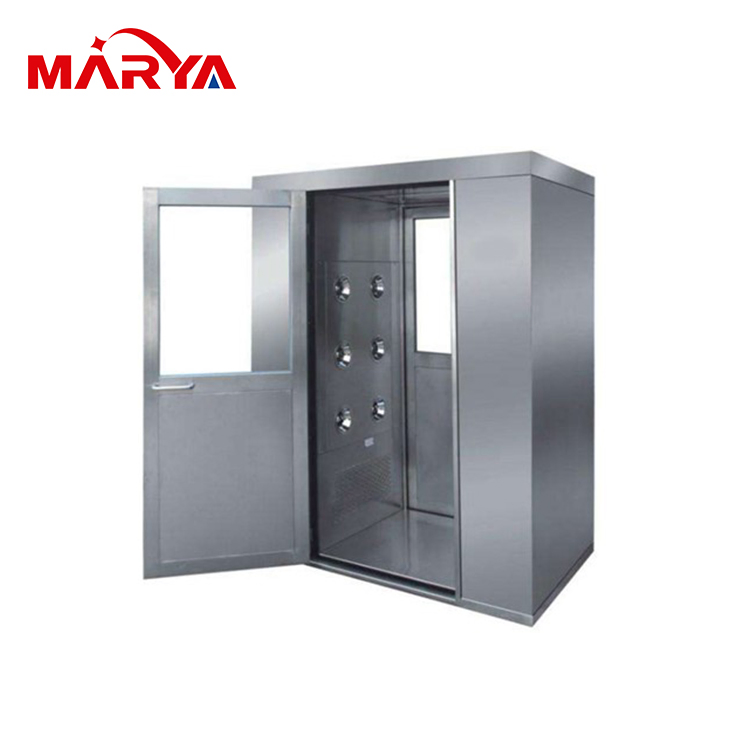

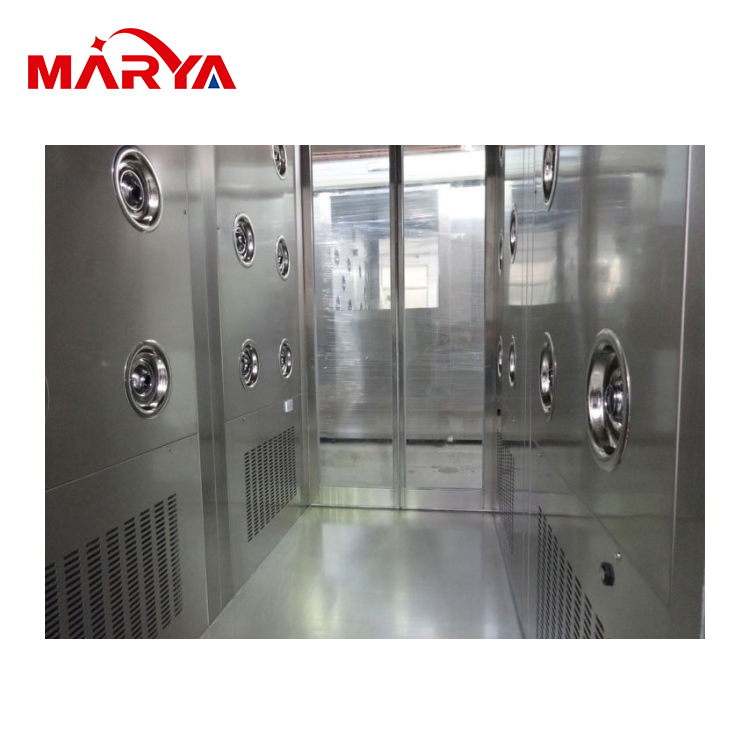

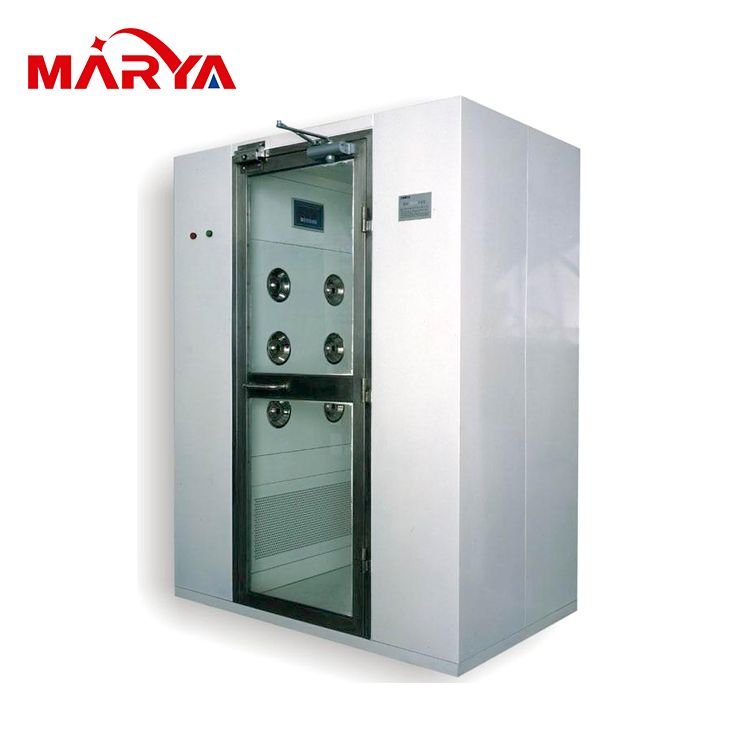

Automatic control, electronic interlocking, and infrared induction automatic blowing ensure maximum hygiene. Features include stainless steel semi-glass doors with automatic closers, transparent windows, and a software-driven LED display to adjust blowing time (0-99s). The internal round involute duct design provides high wind speed with minimal noise.
✨
Main Features
- Premium Construction: High-grade Stainless Steel SUS304 for durability and hygiene.
- Advanced Interlocking: Electronic double-door interlock prevents both doors from opening simultaneously during the blowing process.
- Emergency Safety: Includes an emergency off button that immediately releases both door locks.
- High Efficiency: Two-stage filtration (99.99% efficiency) with high-speed air flow up to 25 m/s at the nozzle.
- Intelligent Control: Color LCD touch-screen to manage blowing intervals and filter replacement alerts.
- Modular Design: Flexible assembly allows for various lengths and configurations based on site requirements.
- Precision Sensing: Infrared sensors for fully automated hands-free operation.
❓
Frequently Asked Questions
What materials is the air shower made of?
The primary structure is built using high-quality SUS304 stainless steel or specialized steel plates, ensuring durability and compliance with clean room hygiene standards.
How does the electronic interlocking system function?
The system uses an electronic interlock where Door B remains locked when Door A is open. During the blowing cycle, both doors are locked to prevent cross-contamination.
Is the blowing time adjustable?
Yes, the blowing time is controlled via an LED display and software, allowing users to adjust the duration from 0 to 99 seconds (default is set to 10s).
What is the air filtration efficiency?
The system utilizes a two-stage filtration process with a high-efficiency filter that reaches a purification level of 99.99%.
Can the air shower be customized for specific site needs?

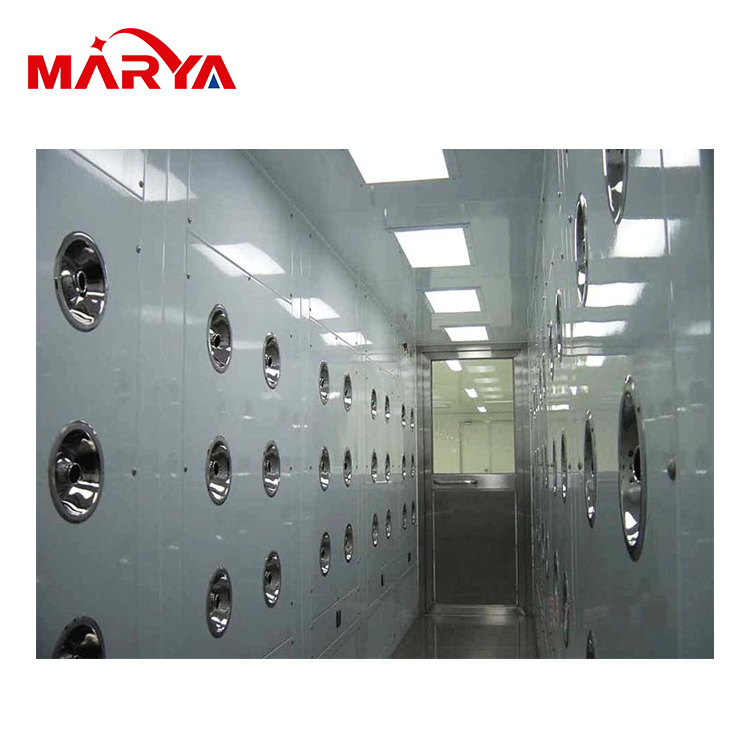

Absolutely. The equipment features a modular design, meaning it can be assembled into various lengths and configurations (Straight-through or L-type) to fit your specific facility layout.
What happens in the event of an emergency?
Every unit is equipped with an emergency stop button. When pressed, the electronic locks are released immediately, allowing both doors to open for safe exit.
