Innovative HMI and PLC Solutions for Automated Wfi Management

Customization: Available
Application: Biotechnology Industry, Chemical industry, Clinical Diagnosis, Food & Beverage Factory, Food Safety, Forensic Science, Pharmaceutical Industry, Pharmaceuticals, Medical Care, Industry
Capacity: 300L

Product Description

i

Basic Specifications

Certification
CE, FDA, GMP, ISO
Material
Stainless Steel 304/316L
Control System
PLC Automated Control
Processing Type
Reverse Osmosis / Distillation
Electrical
Siemens (Germany)
Warranty
Up to 3 Years
P

Product Description

WFI Management System

Our company has remained committed to the core industry of pharmaceutical health for over 67 years. Consistently at the forefront of the pharmaceutical water equipment industry, we provide leading solutions as a premier service provider for domestic and international pharmaceutical projects.

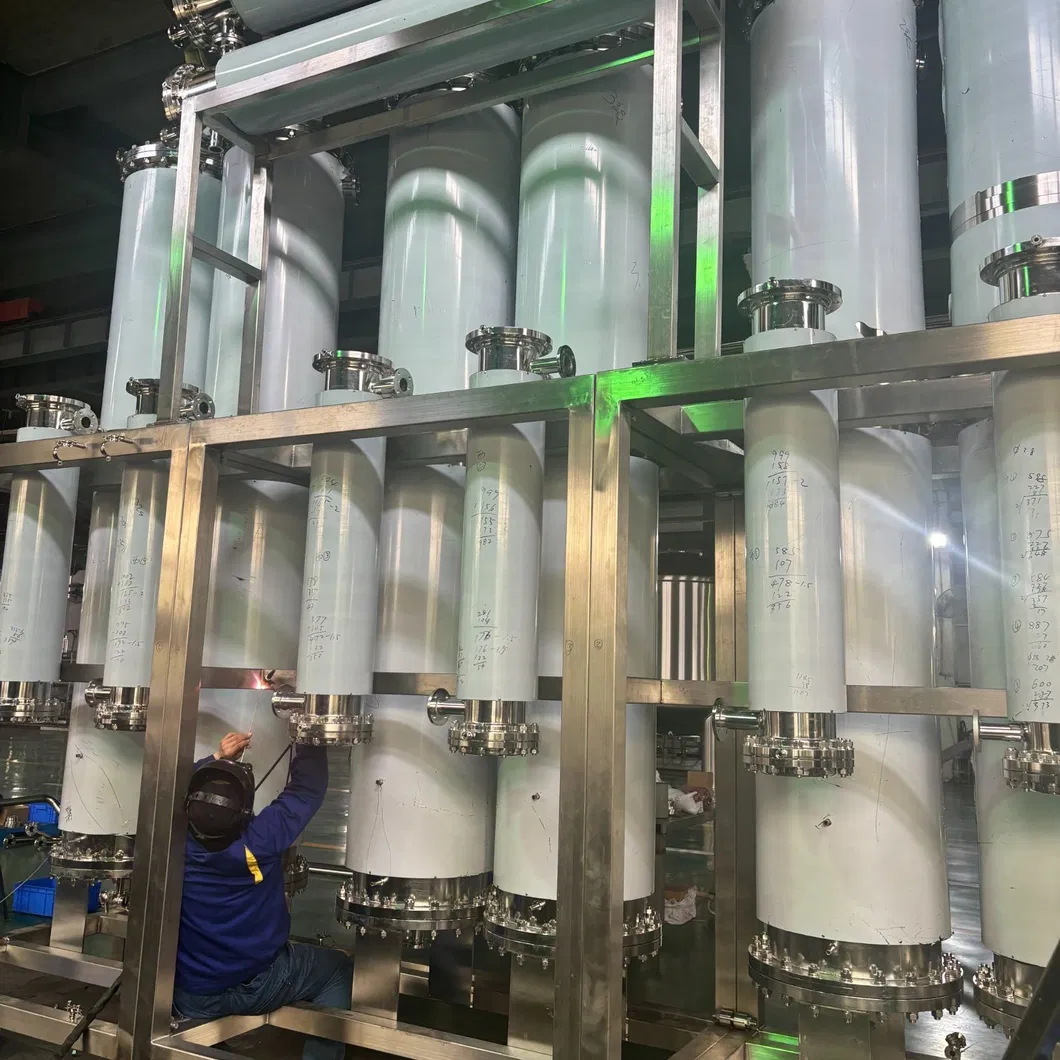

Equipment Detail

Leading the Future of Water Treatment Equipment with high-precision engineering and compliance with global standards.

D

Design Basis: Water Quality

TDS (Raw water conductivity) Residual Chlorine
Hardness Metal Ions (Iron, Manganese)
Microorganism Turbidity (or SDI)
Free CO2 Nitrite

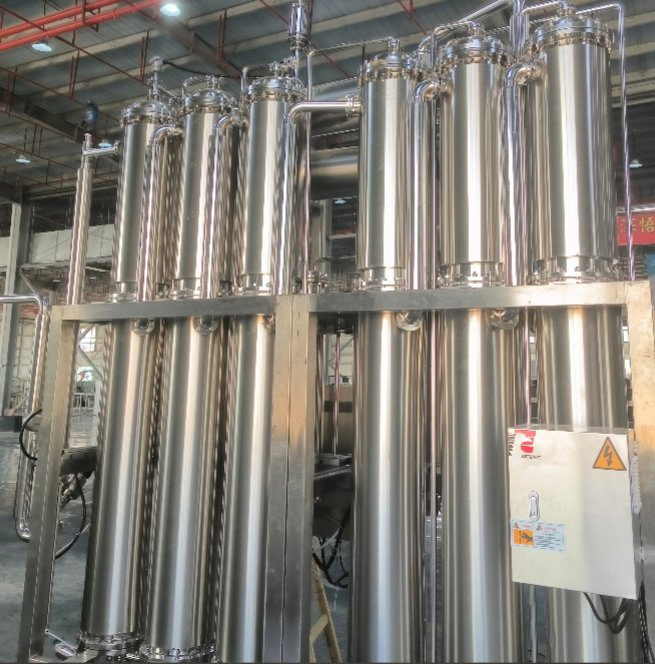

Multi-effect Distilled Water Machine Principle: Raw material water is pressurized by a multi-stage pump, heated via condensers and preheaters, and then enters the evaporator. Through falling film flow and industrial steam vaporization, secondary steam is produced. Pure steam moves through subsequent effects for cascade heating, ensuring energy efficiency and high-purity output for injection.

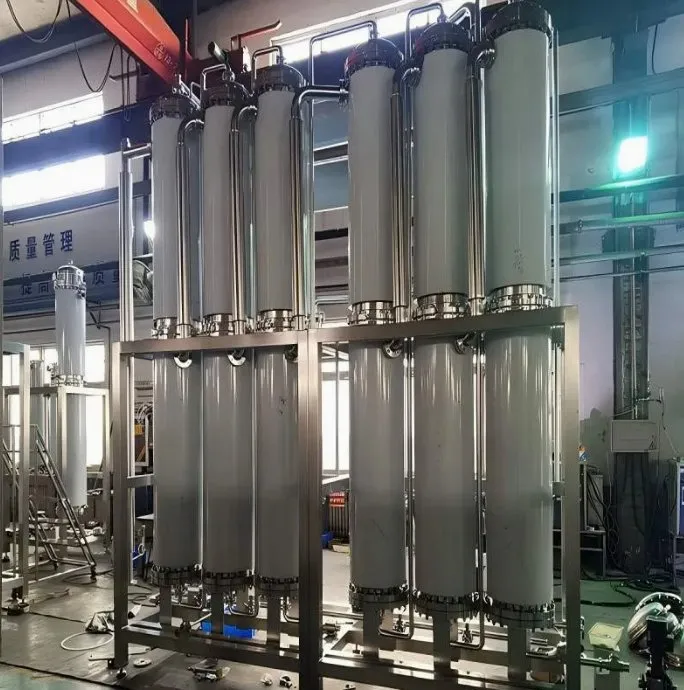

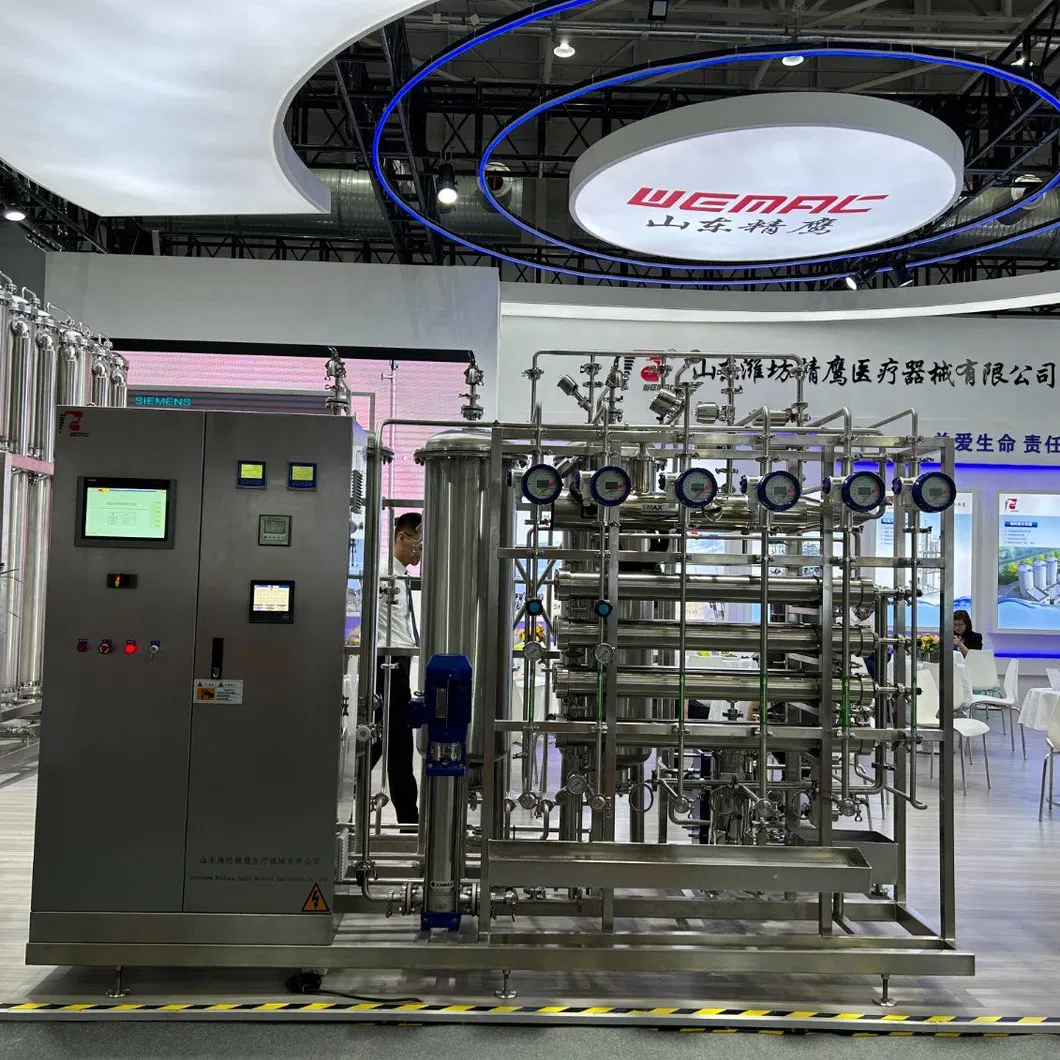

System Chart Unit Display
01. Separation TechIntegrated falling film evaporation with gravity and spiral flow three-stage separation.
02. Energy SavingMulti-effect distillation utilizes steam cascades, significantly reducing water consumption.
03. VerificationFull documentation provided: welding diagrams, pressure tests, and acid washing records.
04. Smart ControlHMI+PLC system with three-level permission management and GAMP 5 compliance.
V

Detailed Visuals

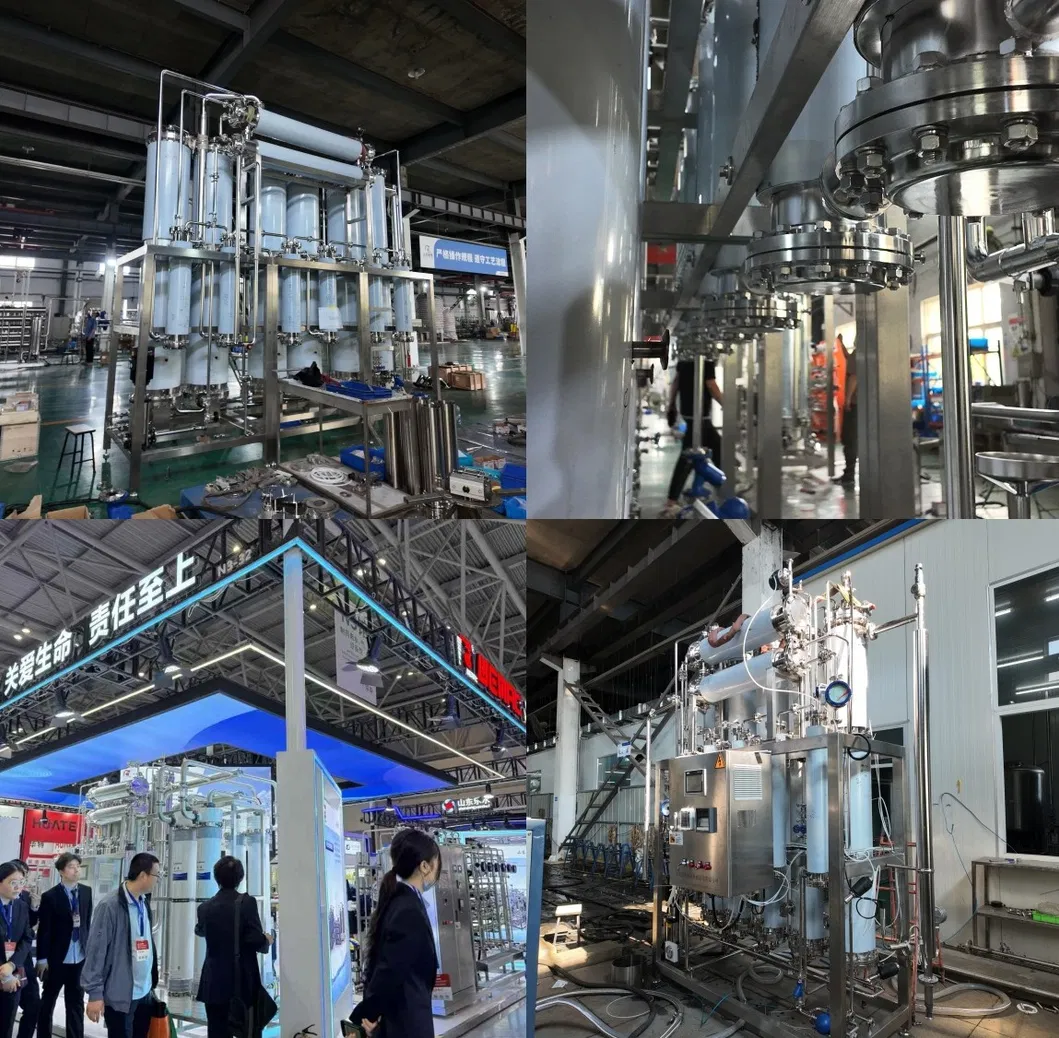

Product Display

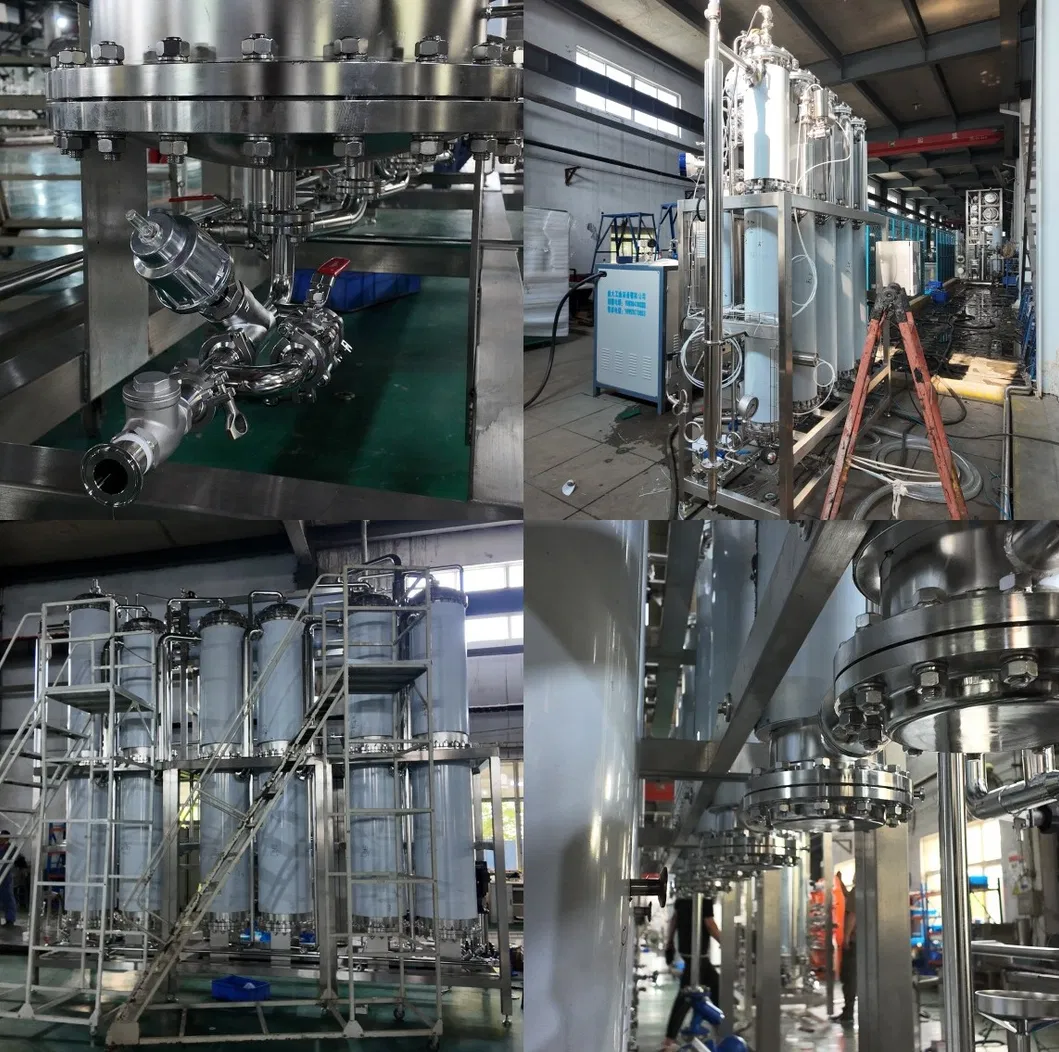

Our professional process piping design team undertakes clean engineering projects in biopharmaceutical and medical testing industries, adhering to GPM, EU, and FDA guidelines.

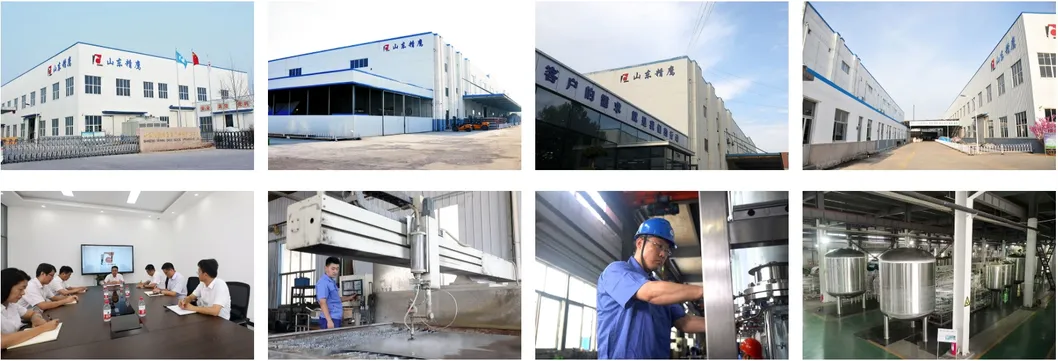

Piping Design Factory Base
L

Packaging & Shipping

Shipping Header

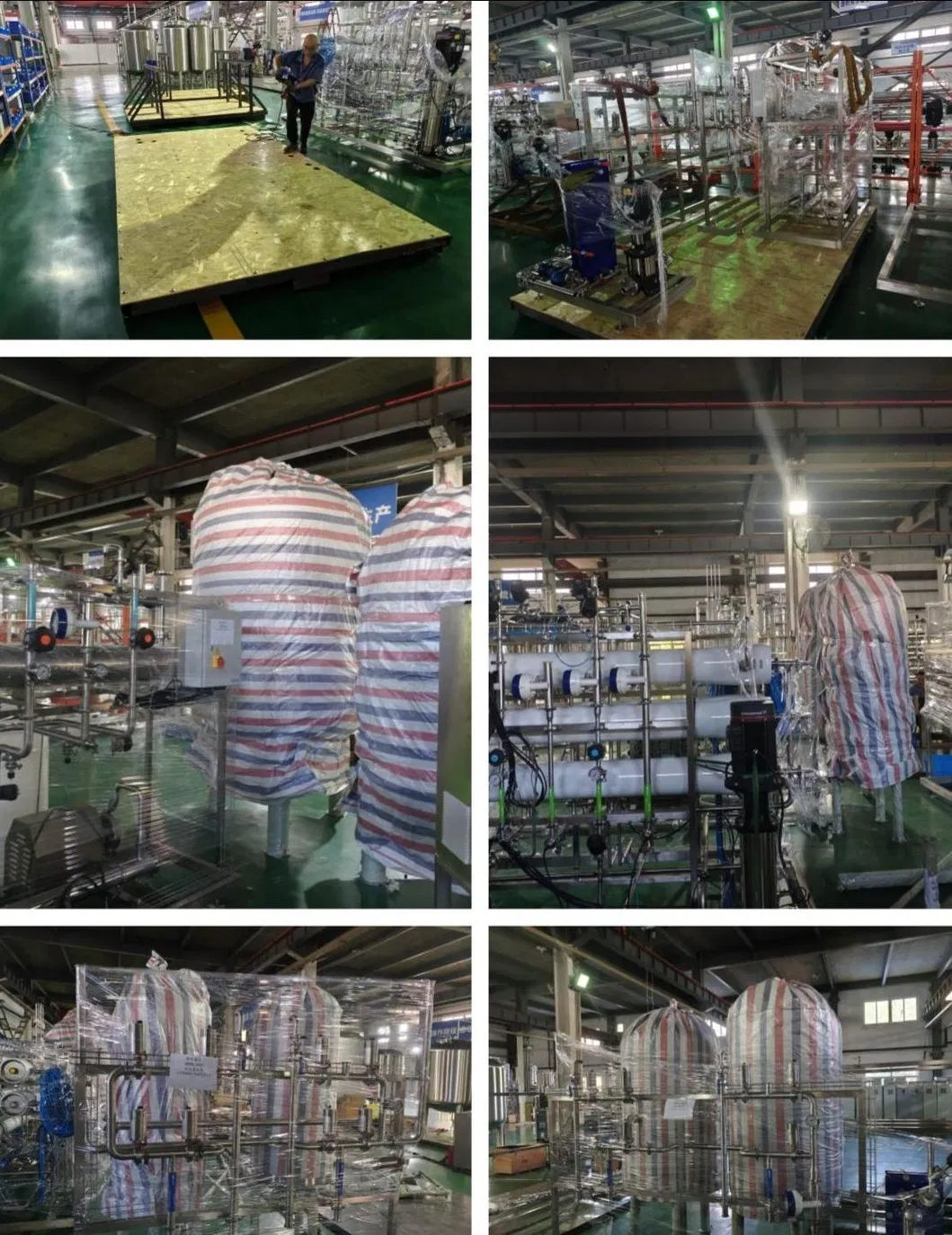

Wooden Case Loading
Partners
?

Frequently Asked Questions

What is the typical delivery time?
The typical delivery period is 30-45 business days depending on the customization requirements.
What does your after-sales service include?
We provide operation guide videos, online support, and machine commissioning assistance. If necessary, technical personnel can be dispatched for on-site support.
How are products confirmed before production?
We provide comprehensive engineering drawings for your final confirmation prior to the start of manufacturing.
What is the warranty period for the machinery?
The warranty period for the entire machine, major components, and auxiliary equipment is 3 years.
How do you handle equipment installation?
Options include dispatching engineers for on-site commissioning or utilizing our comprehensive online service and technical guide support.
How is machine operation verified before delivery?
All machines undergo rigorous testing and commissioning before delivery, with video records provided for customer inspection.
