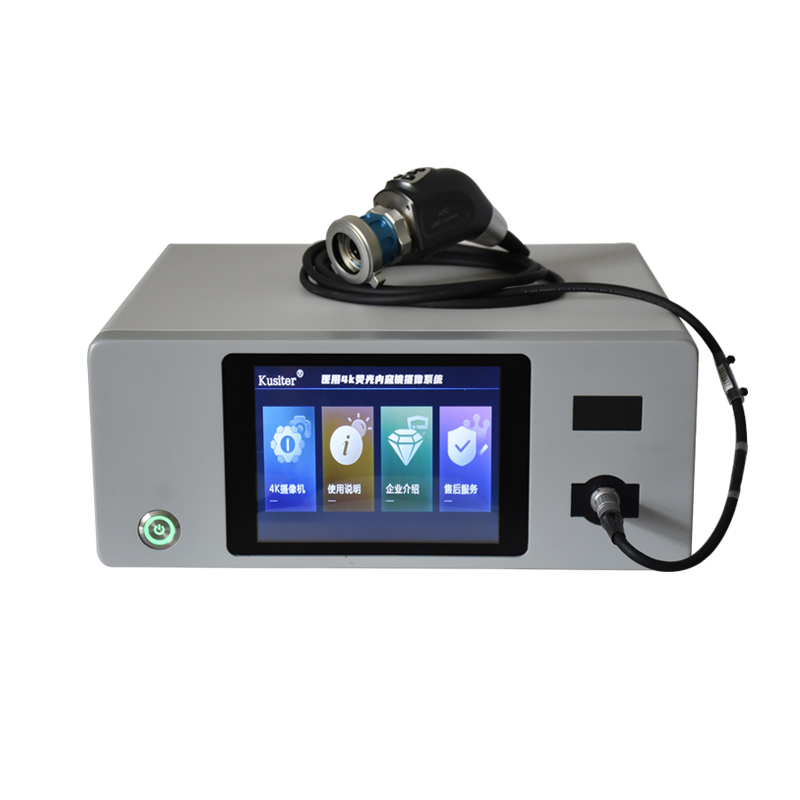

The 4K imaging system offers four times the resolution of 1080p and nine times the resolution of HD imaging systems. This high resolution provides exceptional image clarity and detail, allowing surgeons to see fine structures and subtle changes during the surgical procedure.

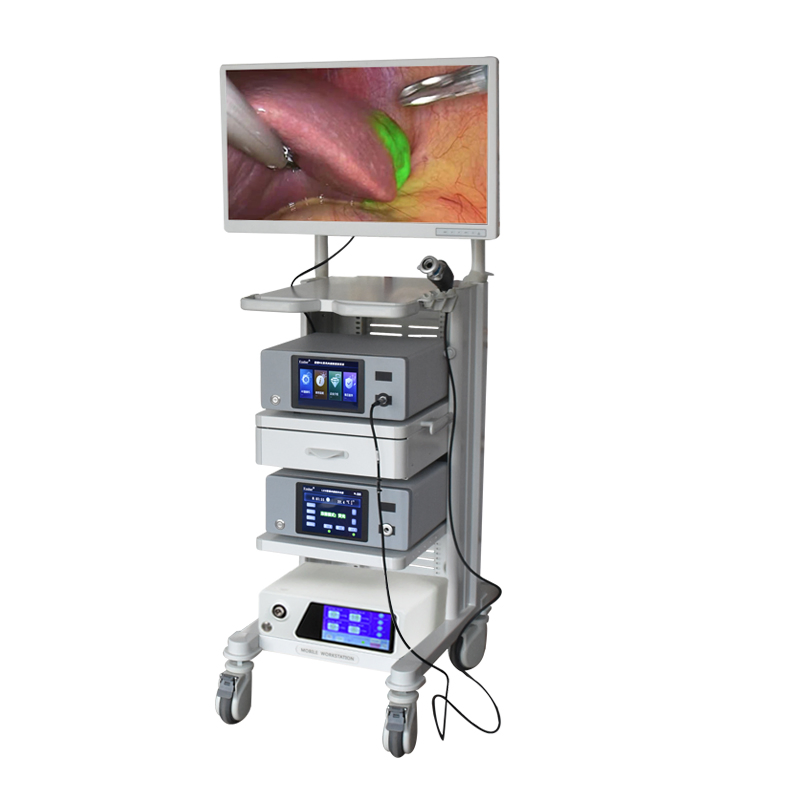

4K fluorescence laparoscopy systems utilize advanced image processing technology and optical design to reproduce accurate and vivid colors within the surgical field. This enables surgeons to observe patterns, structures, and abnormalities in high precision.
The addition of fluorescence technology in 4K laparoscopy allows the use of contrast agents, such as indocyanine green (ICG), which can highlight specific tissues or structures. It emits a fluorescent signal, enabling surgeons to clearly identify lymphatic vessels, lymph nodes, blood vessels, and tumors.
4K fluorescence laparoscopy provides real-time imaging and visualization, allowing surgeons to observe the surgical field in high definition during the procedure. This can aid in making more accurate decisions and performing precise surgical interventions.
Applications in various surgical procedures, including gastrointestinal surgery, urology surgery, gynecology, and hepatobiliary surgeries. It assists in surgeries involving the liver, pancreas, bile ducts, blood vessels, and lymphatic system.

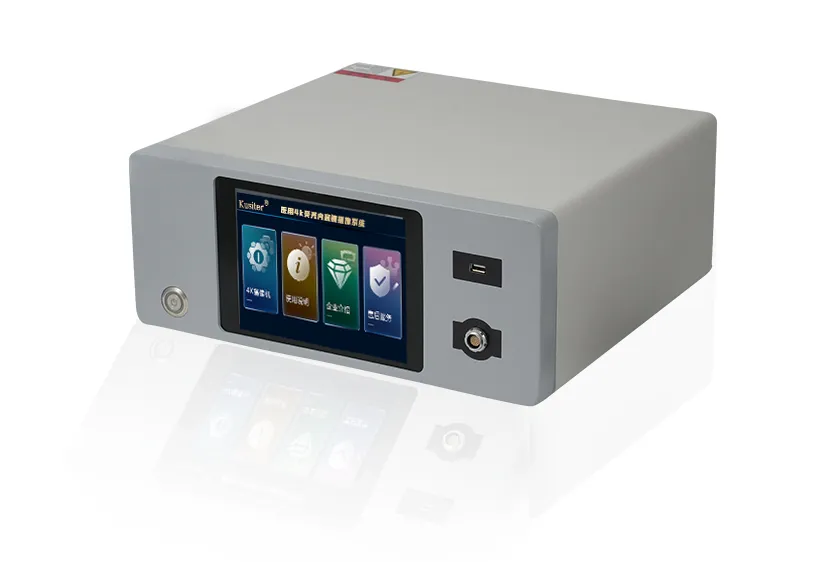

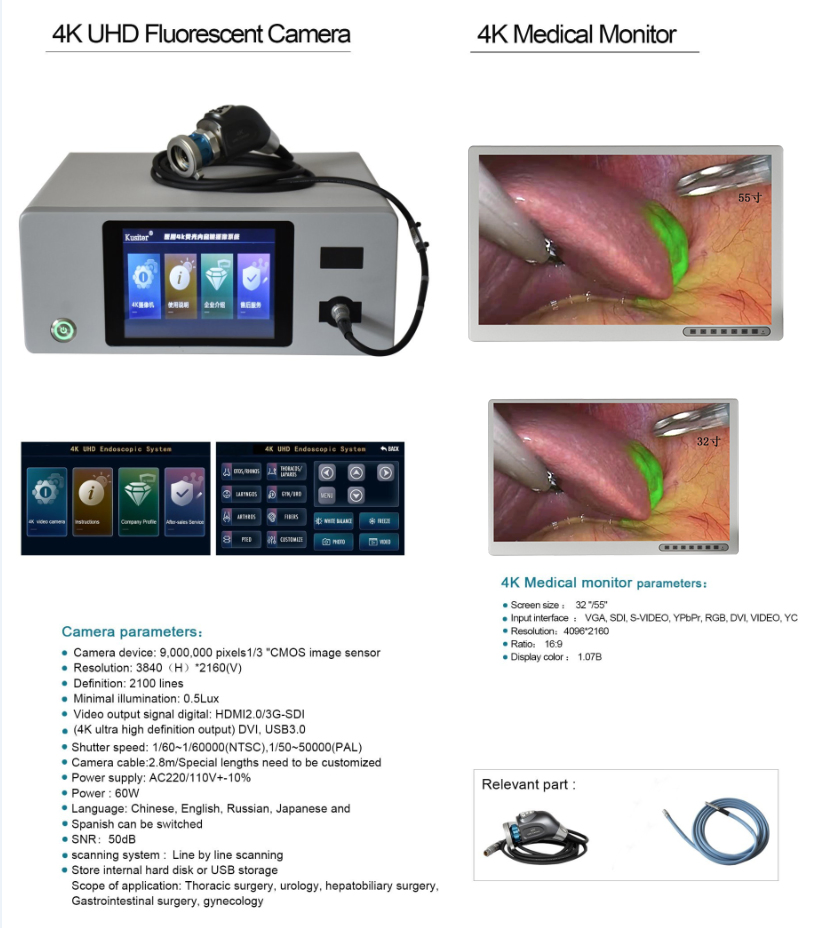

| Component | Specifications |
|---|---|

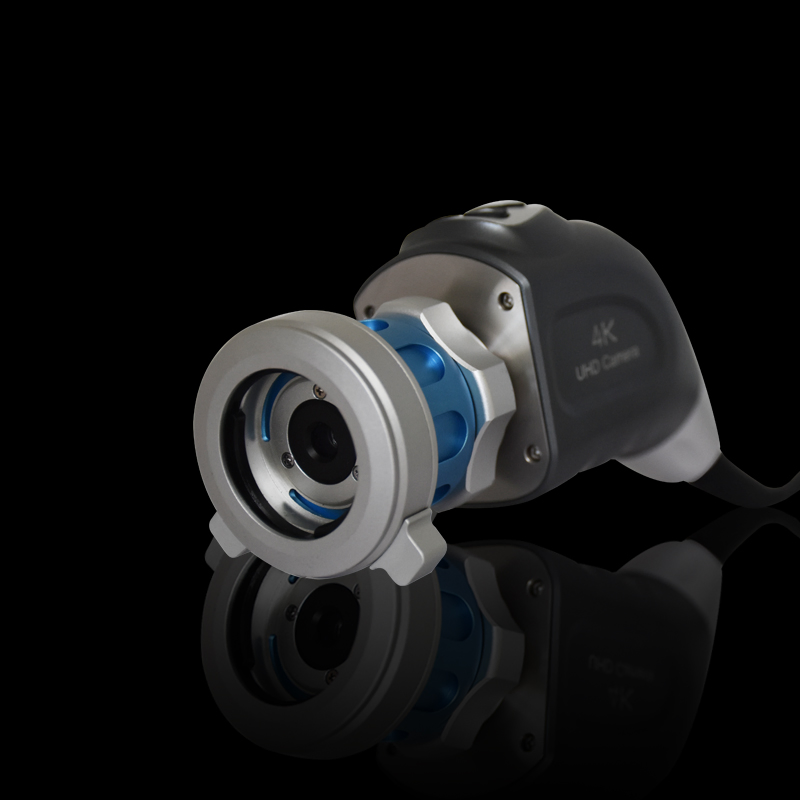

| Camera | 9,000,000 pixels 1/3" CMOS image sensor |
| Resolution | 3840(H)*2160(V) |
| Definition | 2100 Lines |
| Minimal illumination | 0.5 Lux |

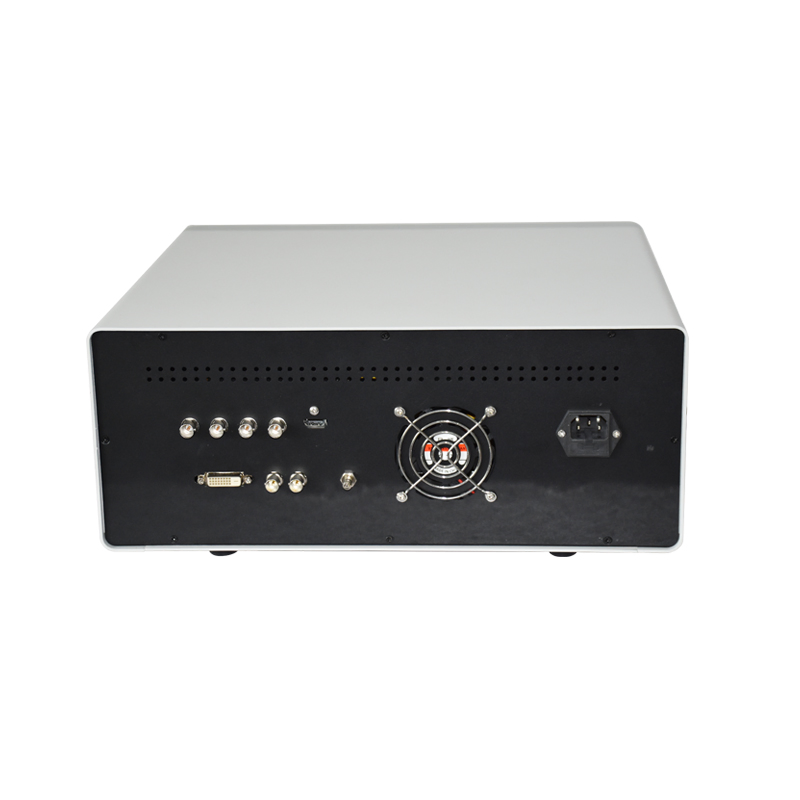

| Video output | HDMI2.0/3G-SDI (4K Ultra HD output) DVI, USB3.0 |
| Shutter speed | 1/60~1/60000(NTSC), 1/50~50000(PAL) |
| Handle cable | 2.8m (Special lengths can be customized) |
| Power supply | AC220/110V+-10% |
| SNR | More than 50db |
| Language | Chinese, English, Russian, Japanese and Spanish |
| Scanning system | Line by line scanning |
| Application | Thoracic, Urology, Hepatobiliary, Gastrointestinal, Gynecology |
Systems offer multiple imaging modes, including high-definition white light imaging, black and white fluorescence imaging, and green fluorescence imaging. These modes provide valuable information about tissue perfusion and lymphatic drainage.
| Model | 3210/5510 |
| Screen size | 32" / 55" |
| Input interface | VGA, SDI, S-VIDEO, YPbPr, RGB, DVI, VIDEO, YC |
| Resolution | 4096*2160 |
| Ratio | 16:9 |
| Display color | 1.07B |

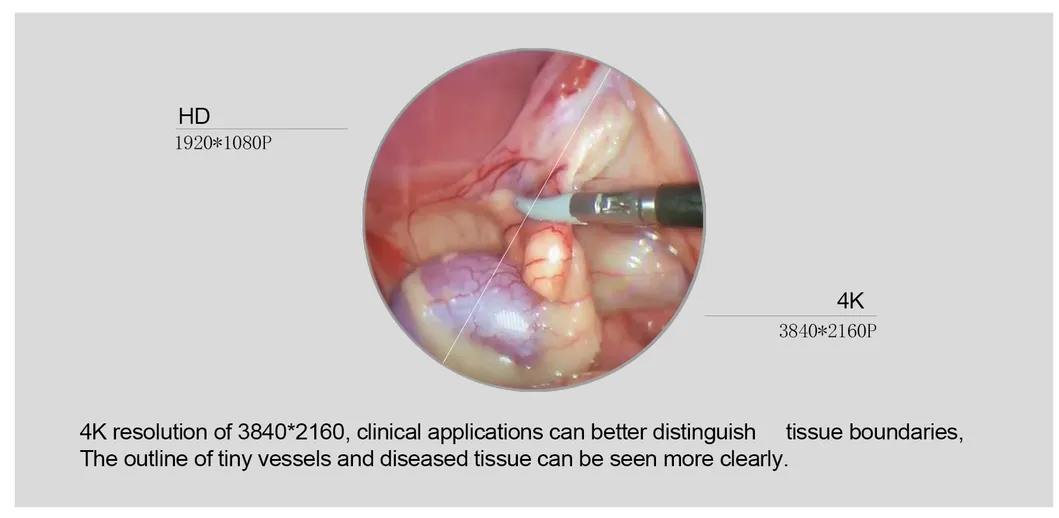

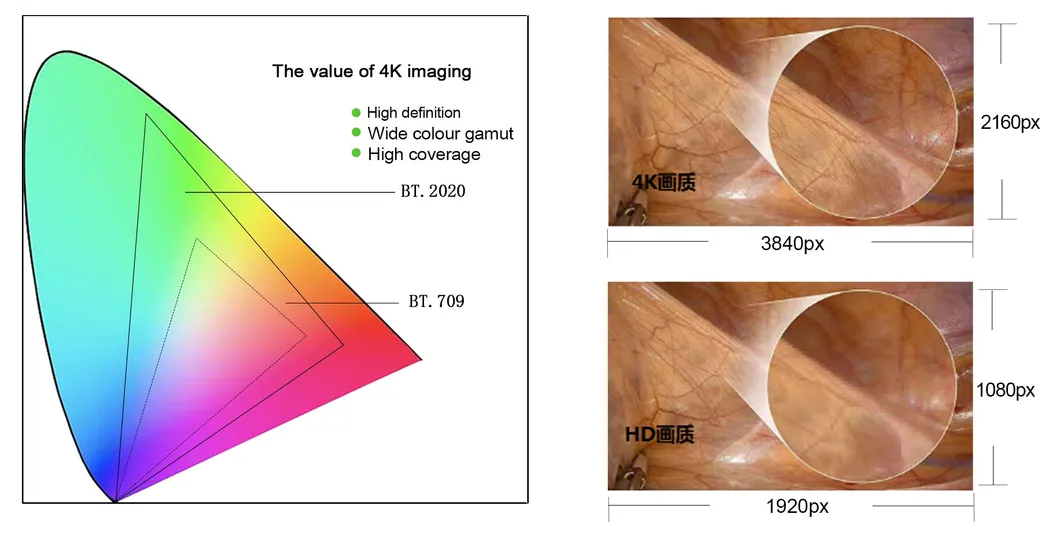

Ultra High Definition (UHD): Physical resolution of 3840x2160 (4Kx2K) and above. 4K resolution is four times that of 1080p.
BT.2020 Standard: The largest color space available for better discrimination of fat, nerve, and vascular junctions.

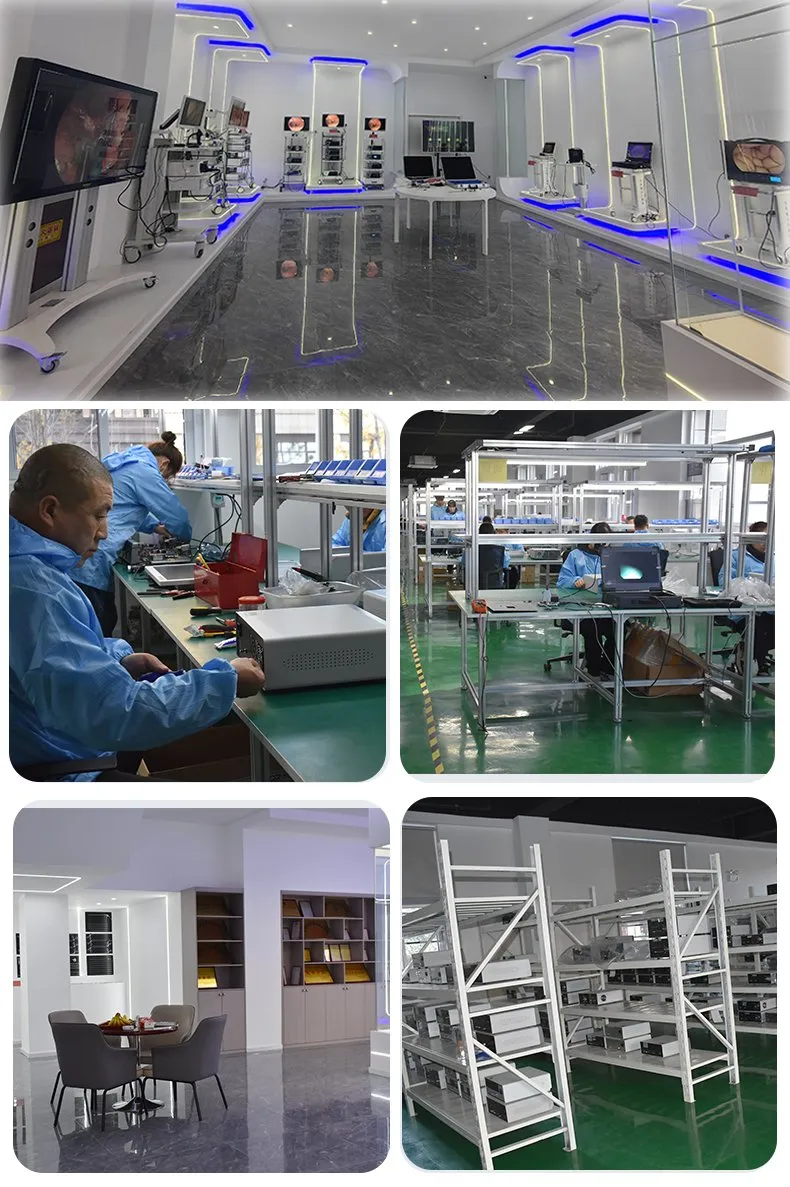

Our enterprise is a comprehensive joint-stock company engaged in the production, management, development, and sales of medical devices. We strive for excellence with high-performance, high-tech, and high-quality products, focusing on modern clinical applications and patient needs.
Main Products: Endoscope Image Processing Systems, High-Definition Endoscope Cameras, LED cold light sources, medical monitors, pneumoperitoneum machines, flushing pumps, perfusion pumps, power systems, and various laparoscopic simulators.
We insist on customer satisfaction and product quality excellence through integration and innovation.
Wooden or carton packages available. Standard delivery time is approximately 7 days for 1-5 units.
