| Model NO. | YZ-120 PRO |
|---|---|
| Certification | CE, ISO |
| Alarm Form | Sound and Light Alarm ( > 120db) |
| Power Supply | Rechargeable Lithium-Ion Battery (7.4V) |
| Display Screen | 4-inch OLED (800*480 Resolution) |
| Measuring Range | ≥100 Meters |
| Measurement Accuracy | 1mm |
| Operating Temperature | -20°C ~ 60°C |
| Operating Time | ≥8h |
| Total Weight | ≤ 28kg (Complete Set) |

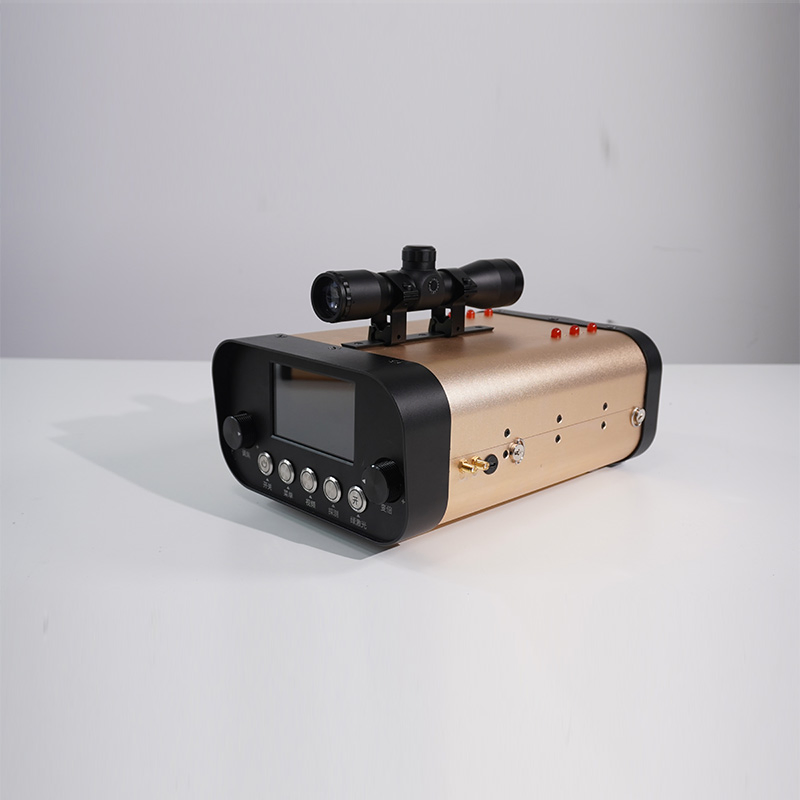

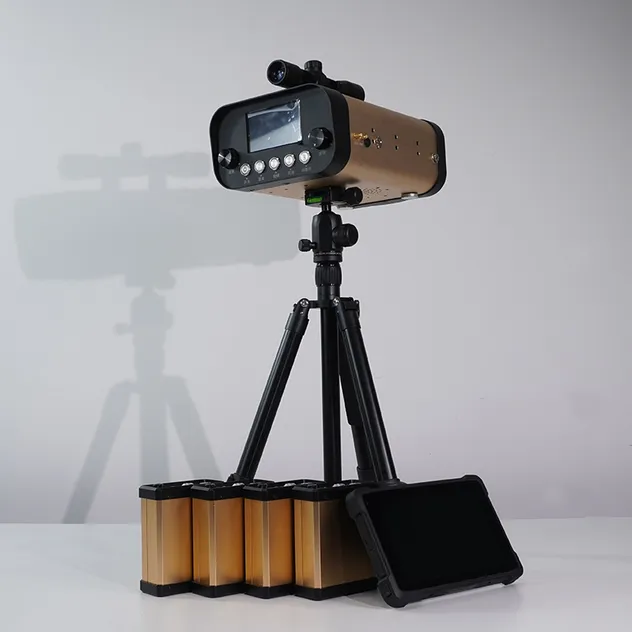

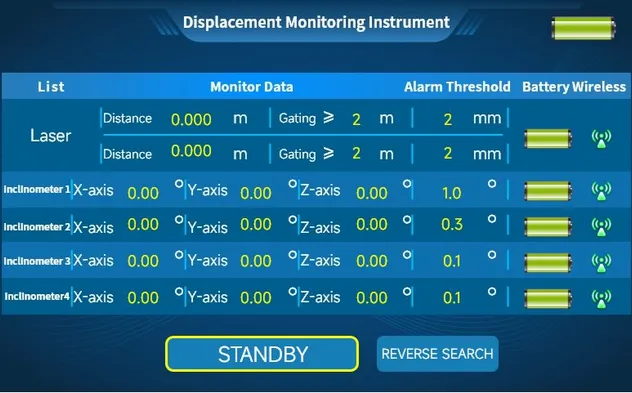

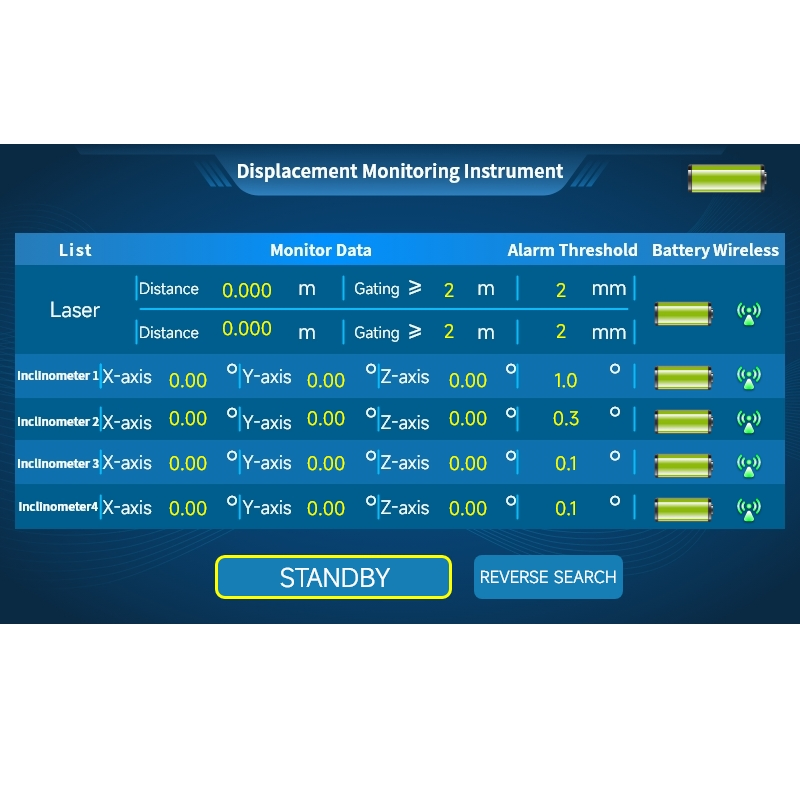

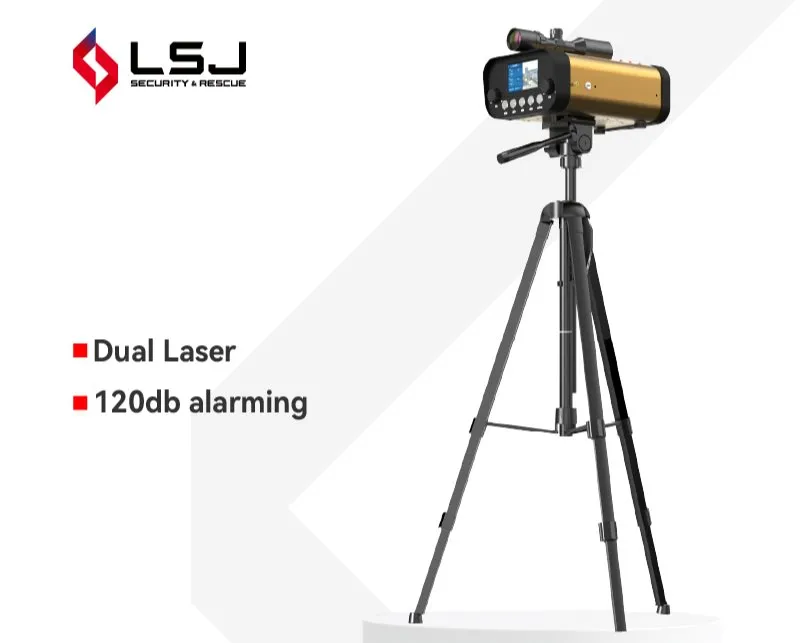

A high-performance device using eye-safe lasers for continuous monitoring of building stability. It features laser mm-level deformation monitoring accuracy, acousto-optic and voice alarms, and multi-point real-time monitoring.
Designed for detecting slight movement in dangerous structures during emergencies like fires, earthquakes, explosions, or landslides.

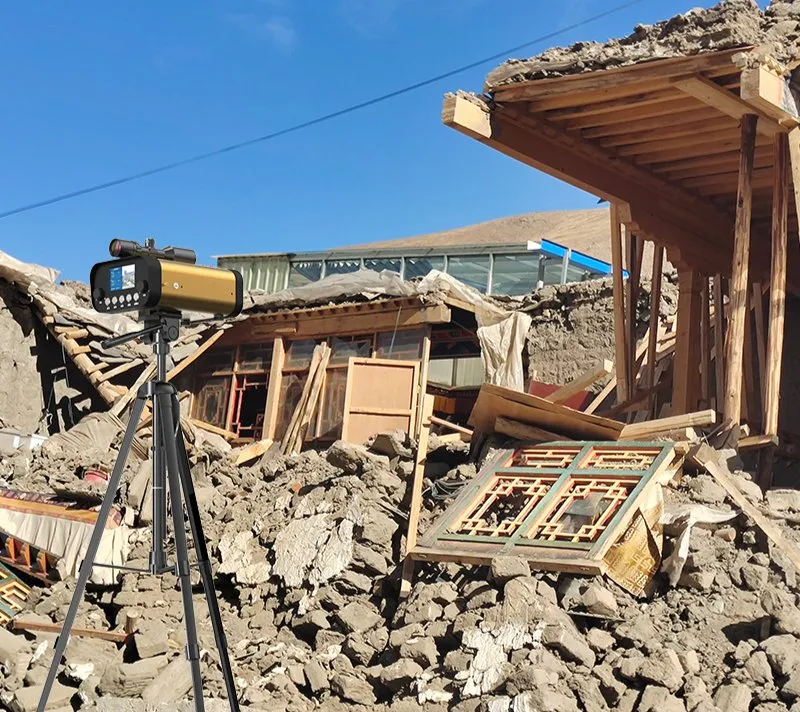

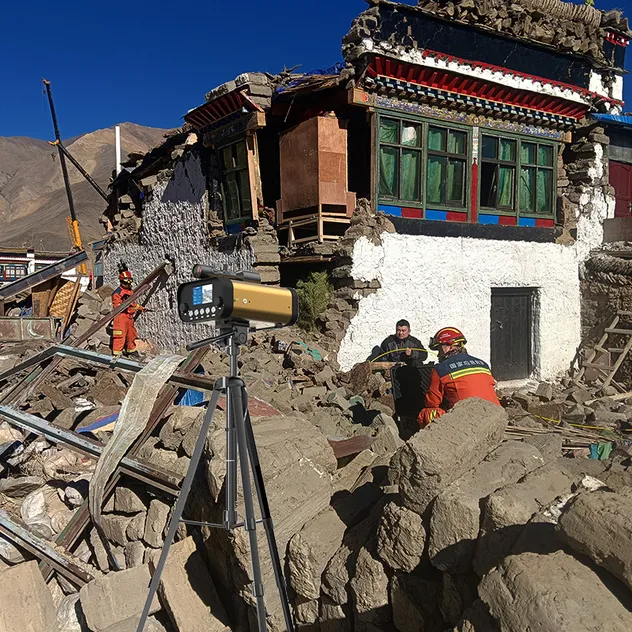

Post-earthquake structures are often unstable. The Dual Laser Structural Movement Telemeter can be quickly deployed to monitor key points in real-time. Rescue teams use this data to judge stability, ensuring operations are safe and efficient while avoiding casualties from sudden collapses.
| Laser Main Unit | |
|---|---|
| Charging Interface | TYPE - C interface |
| Laser Beams | 2 Red lights, 1 Green light |
| Threshold Adjustment | 1 - 999mm |
| Visible-Light Camera | Optical zoom (4.5 - 50mm), 10x Zoom, Auto-focus |
| Weight | 3000g (±10%) |

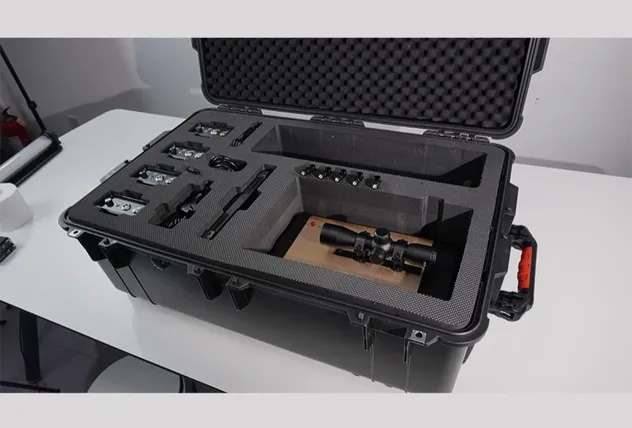

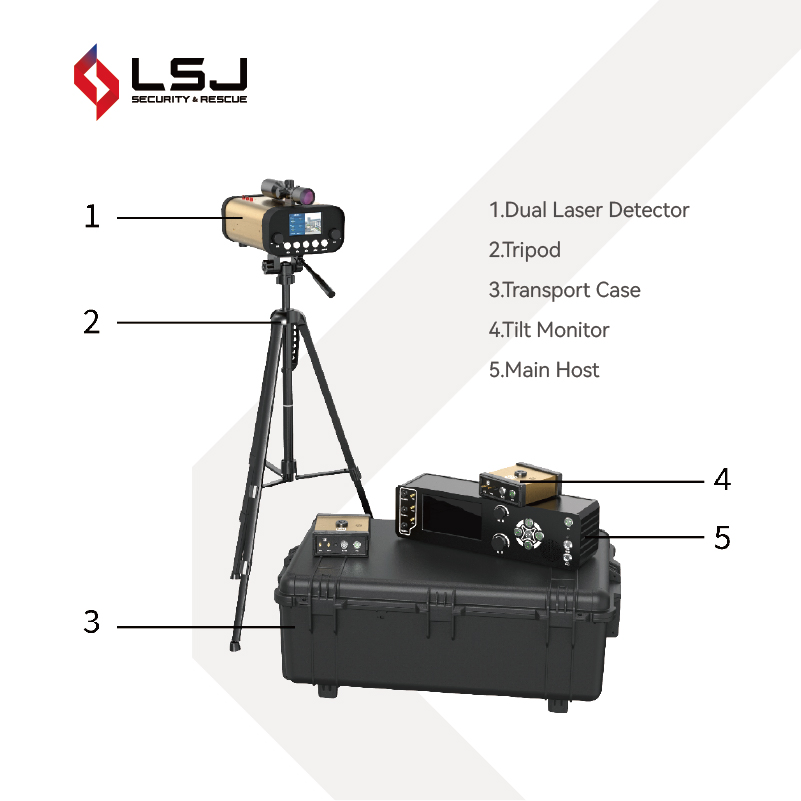

| System Configuration | Display terminal, Main unit, Antenna, Charger, Manual, Case |
We provide comprehensive after-sales service including on-site training for setup and rescue applications. Our team supports joint drills with local rescue teams to enhance operational efficiency.
Available services include regular inspections, performance evaluations, and technical updates. We offer 24/7 online technical assistance to ensure your systems are always mission-ready.
