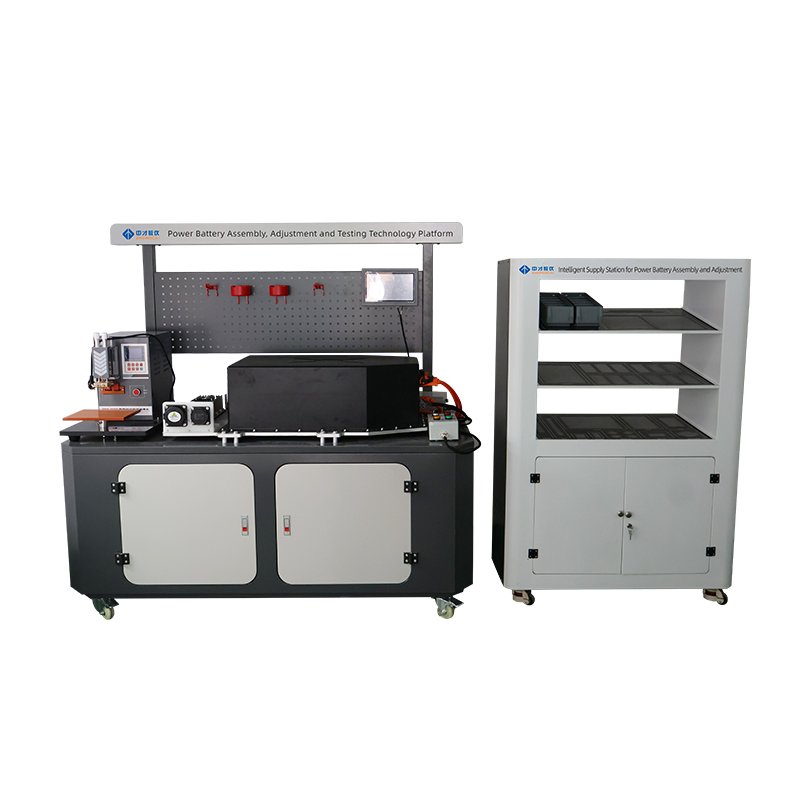

This product is primarily developed to enhance students' battery assembly and debugging skills. It enables the assembly and debugging of power batteries, the assembly and measurement of individual cells, the disassembly and measurement of battery modules, the assembly and measurement of DC charging interfaces, and the assembly and measurement of AC charging interfaces.

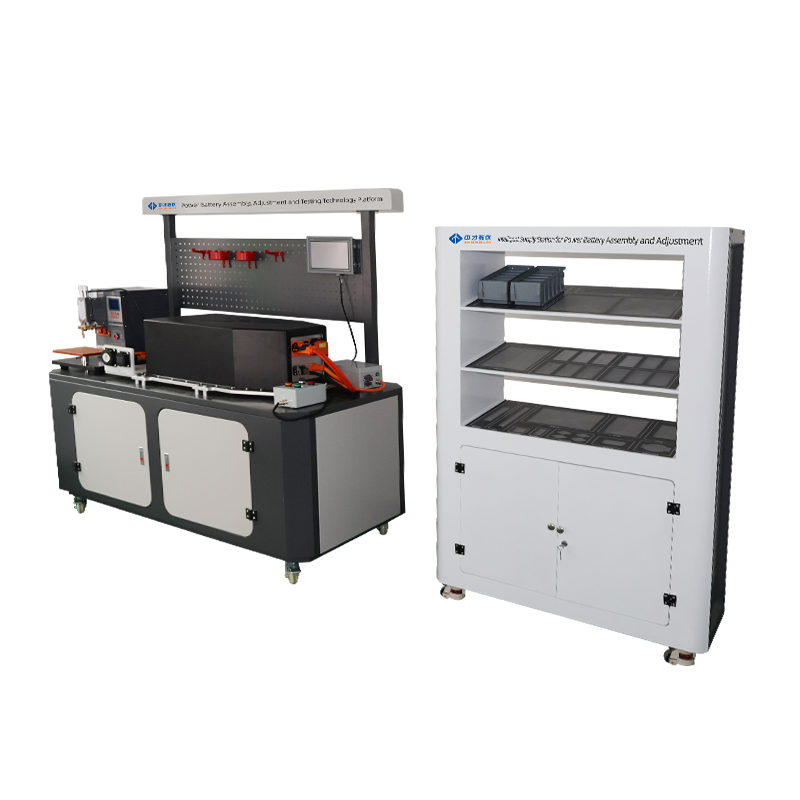

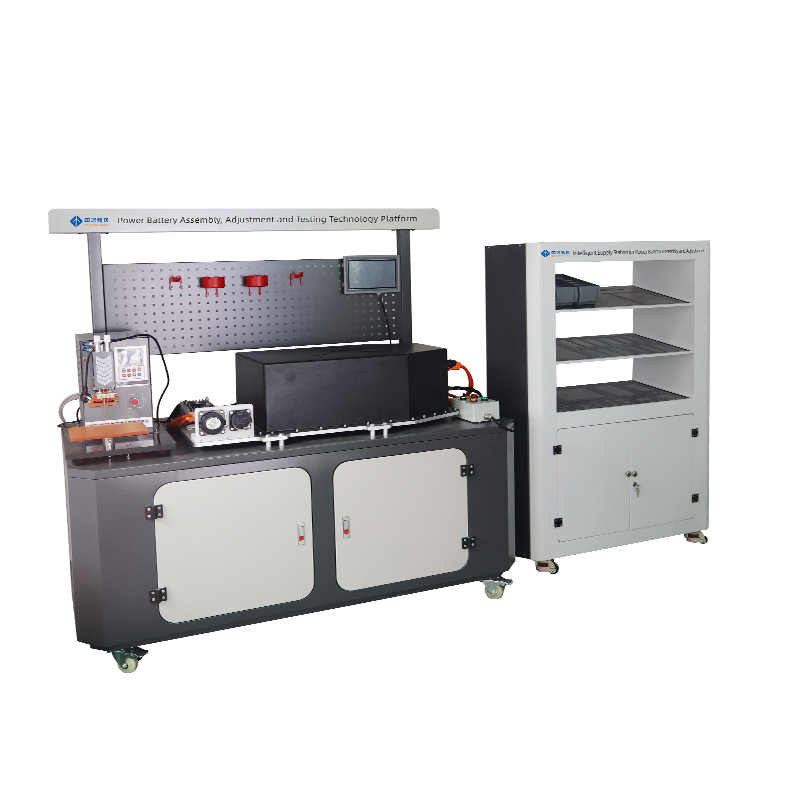

Appearance and Structure:
The main body adopts an integrated structural design using ≥1.5mm thick cold-rolled steel plate. It follows professional sheet metal techniques including pickling and anti-static powder coating. Equipped with locking, omnidirectional silent casters for mobility.
Functional Design:
Includes dedicated areas for battery welding, power battery disassembly, and power-on debugging. Features tool rack hooks for organized storage of specialized components.
Power Battery System Components:

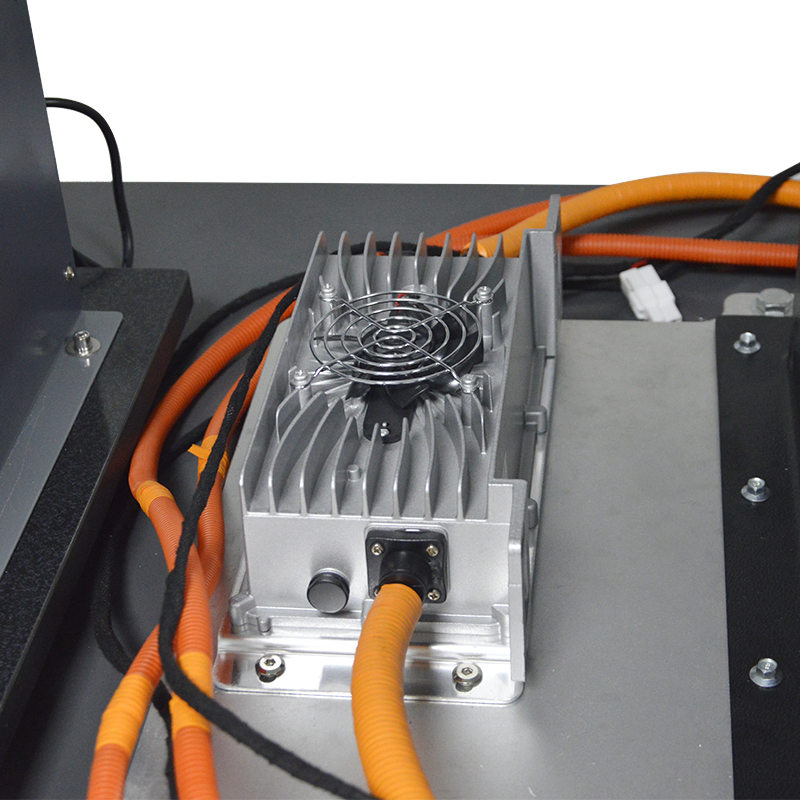

Includes individual cells, modules, current/temperature sensors, main positive/negative relays, pre-charge relay/resistor, high-voltage maintenance switch, fast/slow charging connectors, on-board charger drive detection, and cooling system interfaces.
Frequently Asked Questions
What is the primary purpose of this platform?
It is designed as an educational tool to help students master the skills required for power battery assembly, debugging, measurement, and disassembly in a controlled environment.
What materials are used for the workstation's frame?
The frame is built with high-quality cold-rolled steel (≥1.5mm thick) and finished with an anti-static powder coating for durability and safety.
Is the platform mobile for classroom use?
Yes, it is equipped with silent, omnidirectional casters that feature locking mechanisms to ensure stability when in use and ease of movement when needed.
What power requirements does the equipment have?
The system operates on an input supply of AC 220V±10% at 50Hz, with an internal working power of DC 12V.
Does the workstation include specialized testing interfaces?

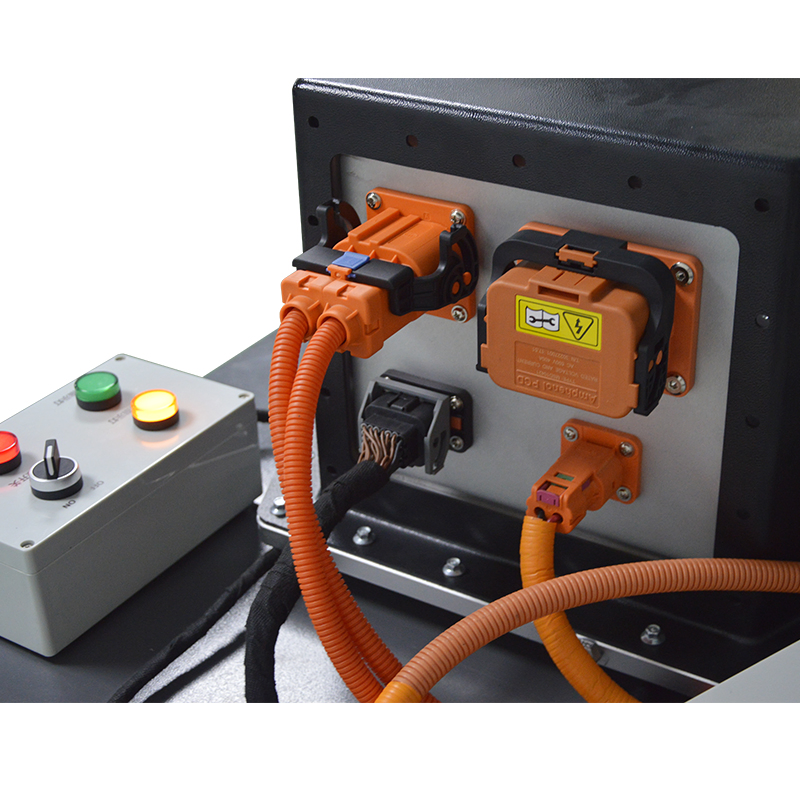

Yes, it includes both DC and AC charging interfaces, as well as cooling system interfaces and drive detection for on-board chargers.
What certifications does this teaching equipment hold?
The platform is certified under ISO9001, ISO14001, and CE international standards.
