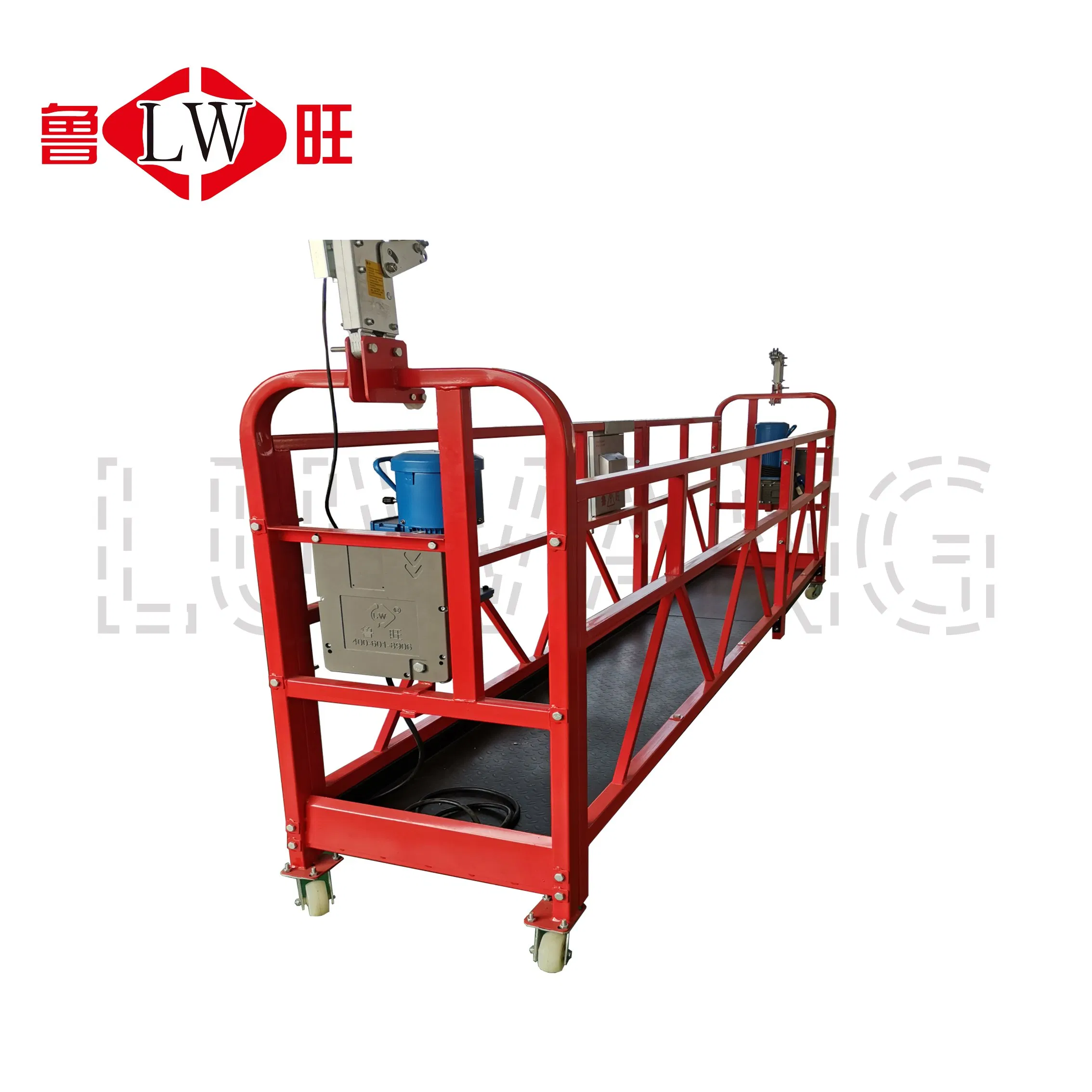

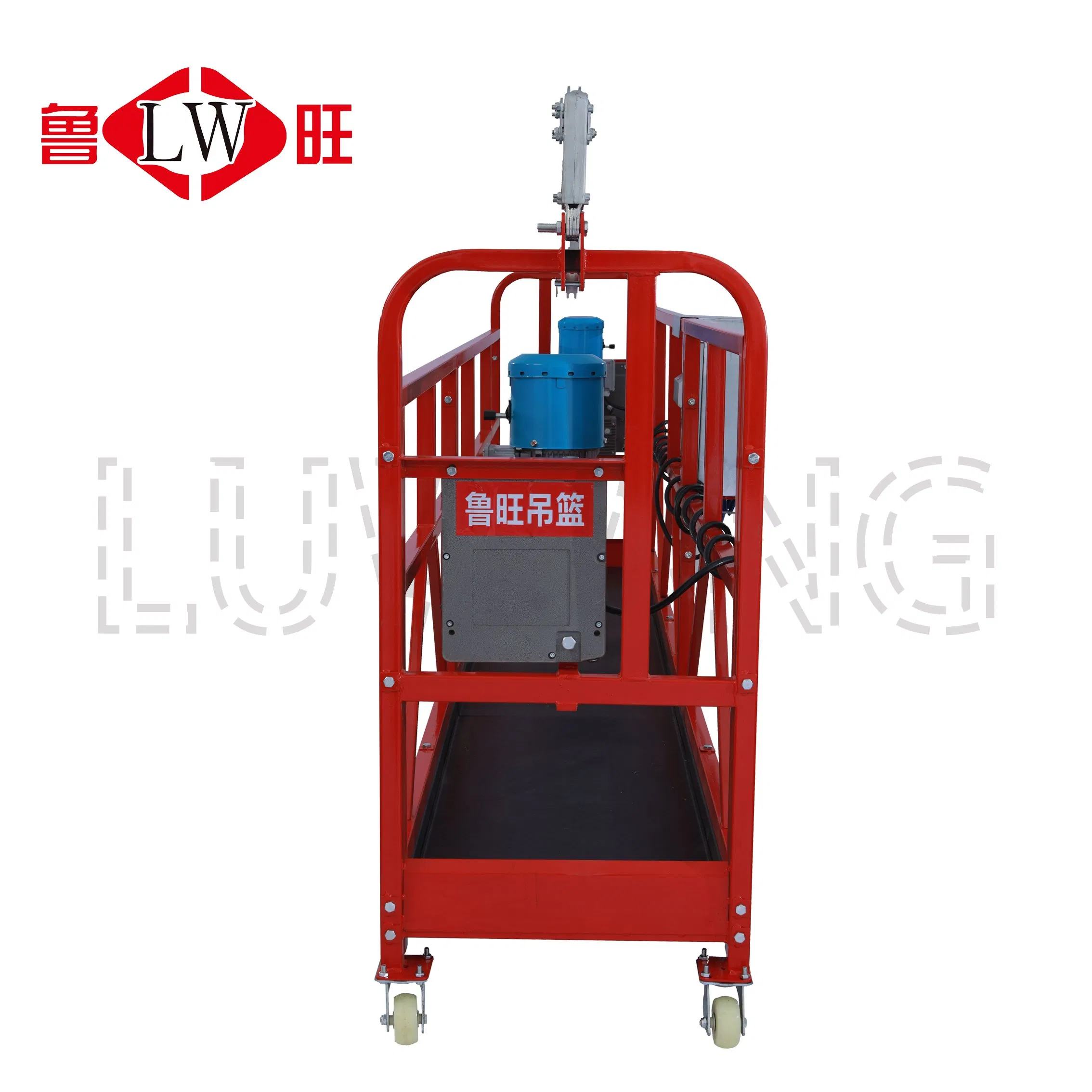

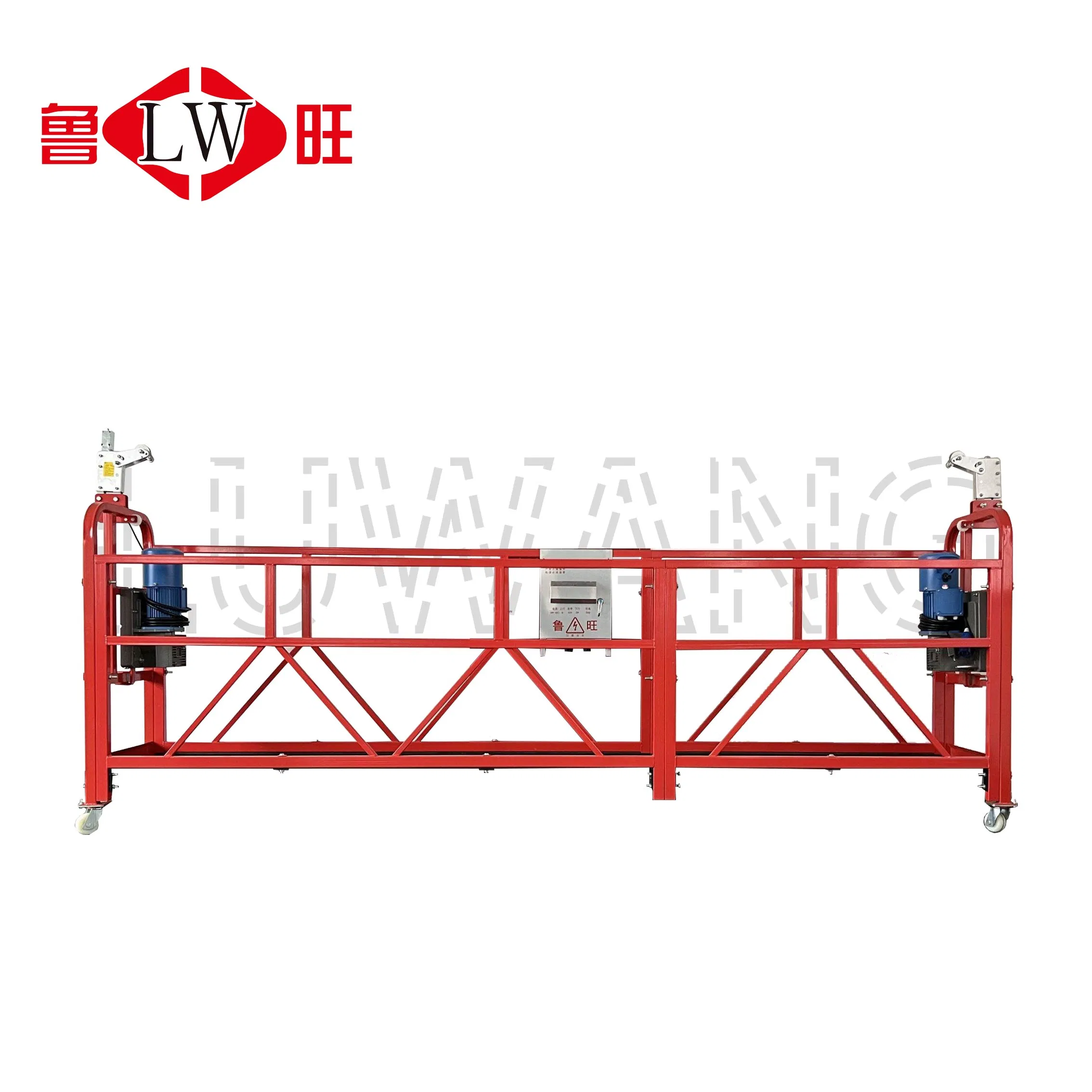

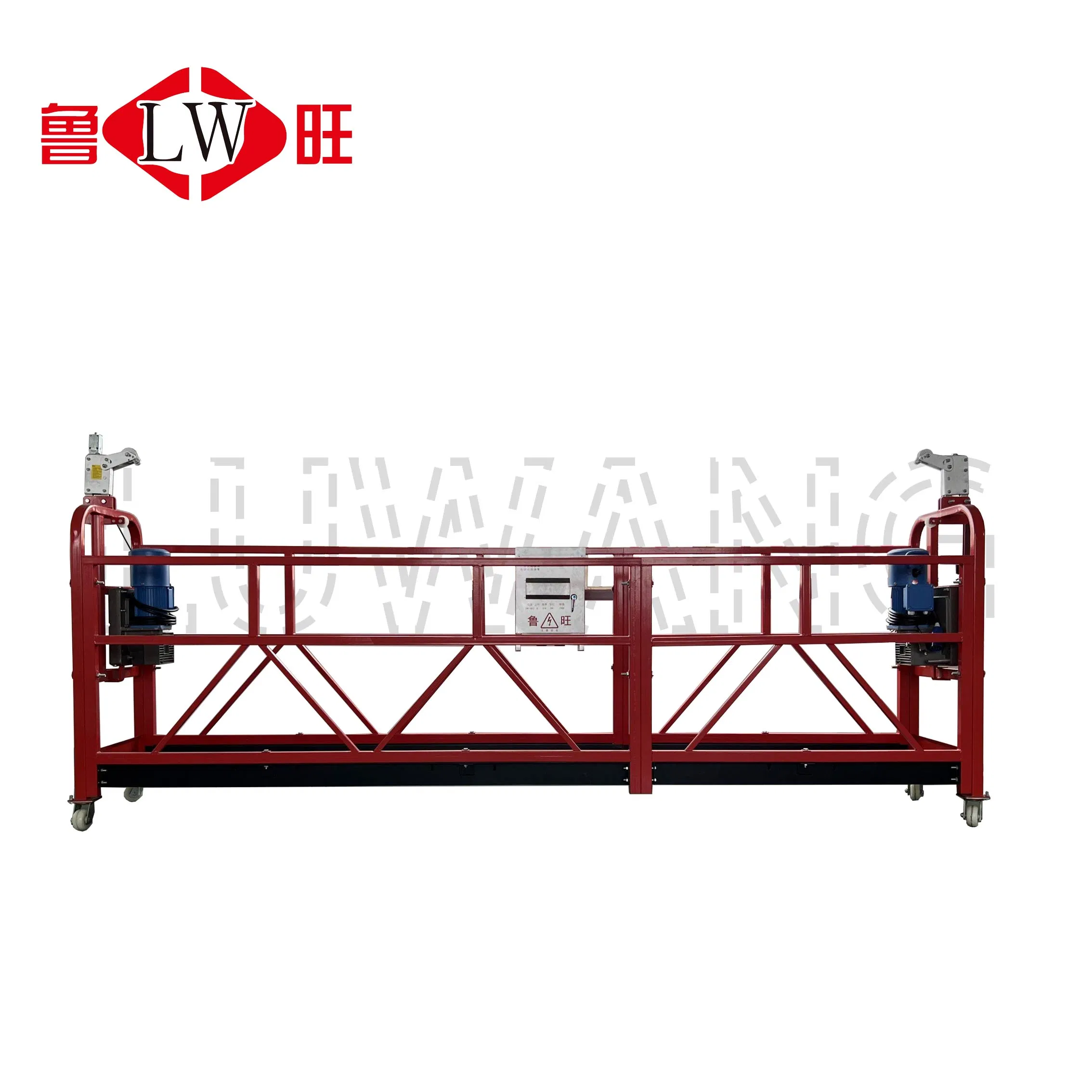

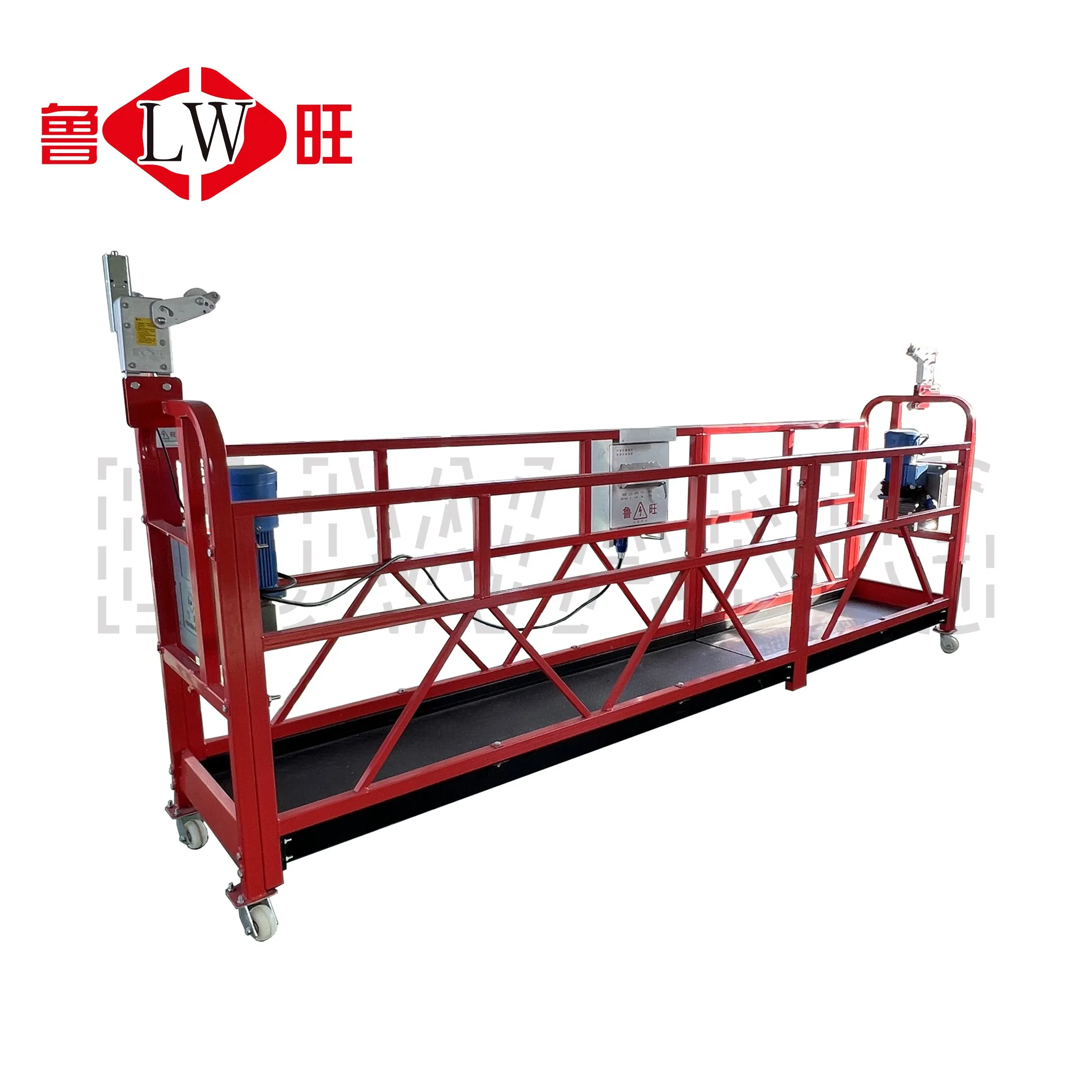

Attractive Paint Type Electric Working Platform for Lifting Operations with Advanced Technology
Attractive Paint Type Electric Working Platform for Lifting Operations with Advanced Technology
Attractive Paint Type Electric Working Platform for Lifting Operations with Advanced Technology
Attractive Paint Type Electric Working Platform for Lifting Operations with Advanced Technology
Attractive Paint Type Electric Working Platform for Lifting Operations with Advanced Technology
1 / 5
Attractive Paint Type Electric Working Platform for Lifting Operations with Advanced Technology
Attractive Paint Type Electric Working Platform for Lifting Operations with Advanced Technology
Attractive Paint Type Electric Working Platform for Lifting Operations with Advanced Technology
Attractive Paint Type Electric Working Platform for Lifting Operations with Advanced Technology
Attractive Paint Type Electric Working Platform for Lifting Operations with Advanced Technology

Attractive Paint Type Electric Working Platform for Lifting Operations with Advanced Technology

Customization: Available
After-sales Service: 24hours Online Service
Warranty: 1 Years
Send Inquiry

Product Description

Specifications Overview
Model
ZLP500
Rated Load
500KG
Material
Steel / Aluminum
Power Source
Electric
Certification
CE
Condition
New
Platform Size
5000*690*1180mm
Origin
China
Product Description
Electric Working Platform
Successful Case: Extended Aluminum Alloy Platform

Customization Details: Size customized per client requirements.

Process: Inquiry → Parameter Confirmation → Drawing Submission → Production.

Technical Parameters
Model ZLP500 ZLP630 ZLP800 ZLP1000
Material Steel / Aluminum
Rated Lifting Speed 9-11 m/min 9-11 m/min 8-10 m/min 8-10 m/min
Platform Dimension (L*W*H) 5000*690*1180 6000*690*1180 7500*690*1180 7500*690*1180
Hoist System
Type LTD6.3 LTD6.3 LTD8 LTD10
Motor Power (KW) 1.5 1.5 1.8 2.2
Safety & Rope
Safety Lock Type LDF30 LDF30 LDF30 LDF30
Wire Rope Diameter 8.3mm 8.3mm 8.6mm 9.1mm
Components & Details

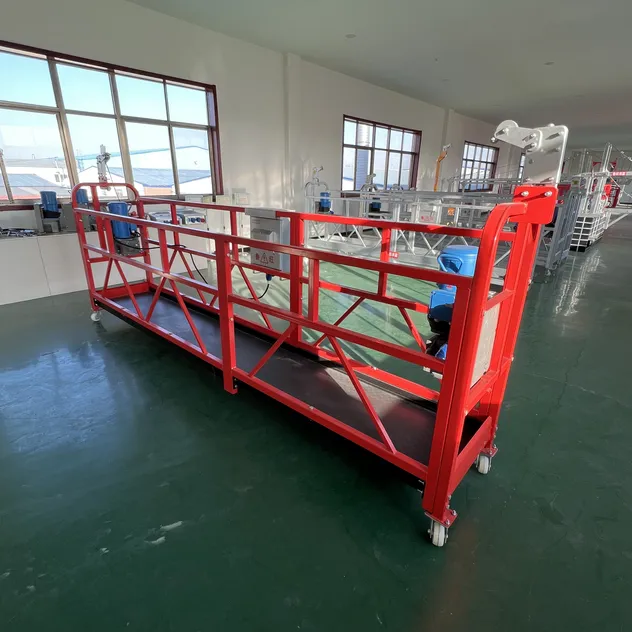

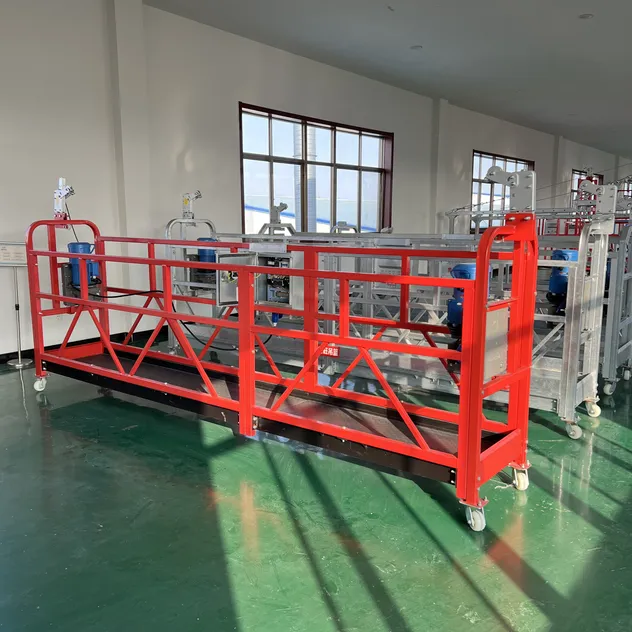

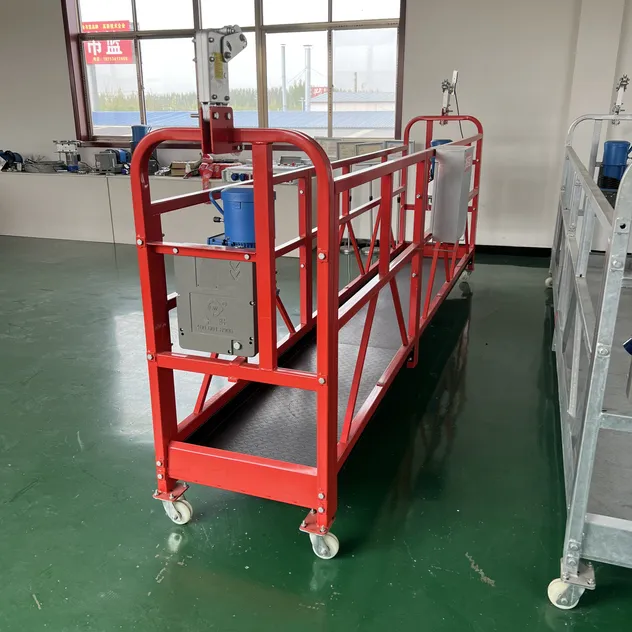

Part 1 Part 2 Part 3

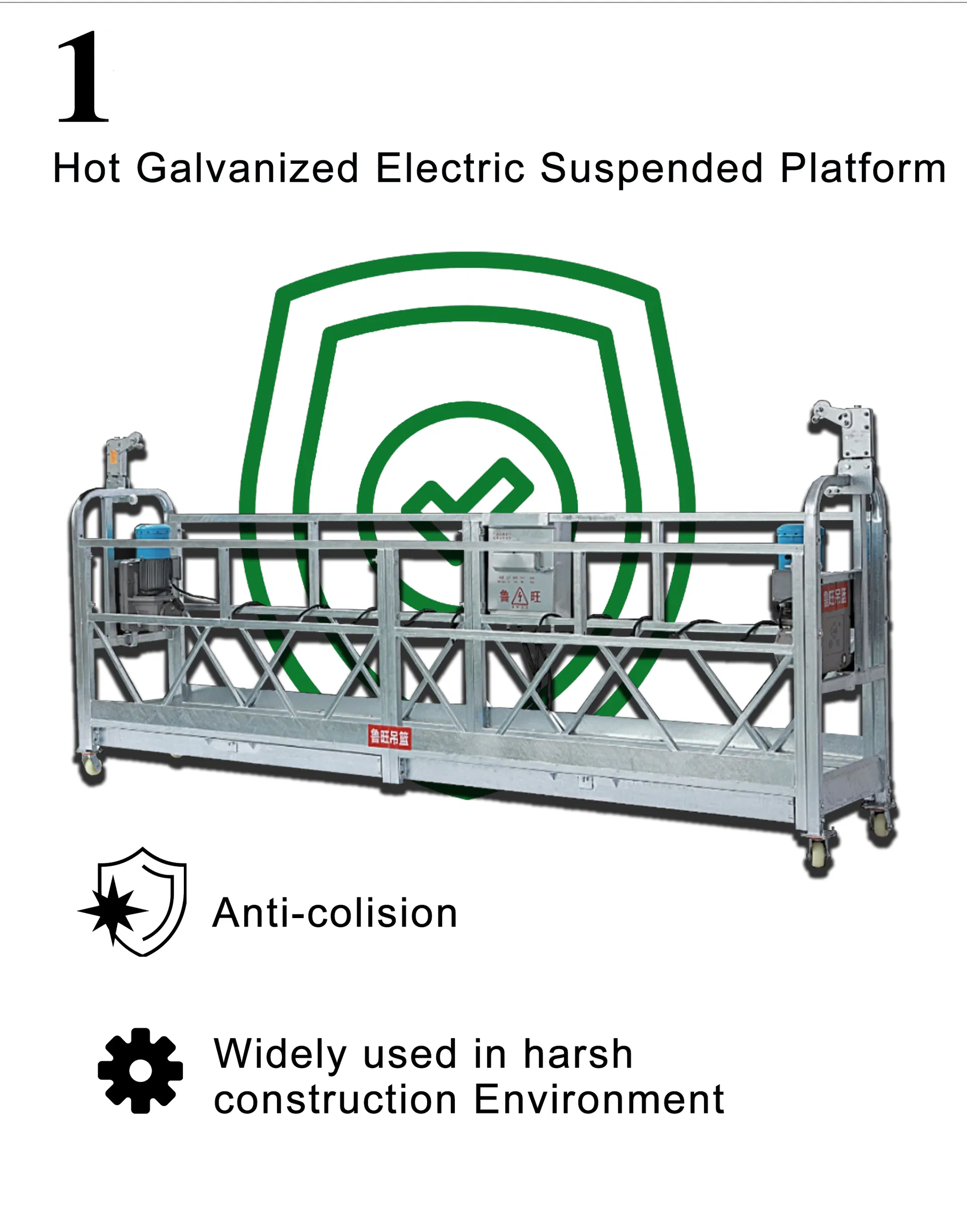

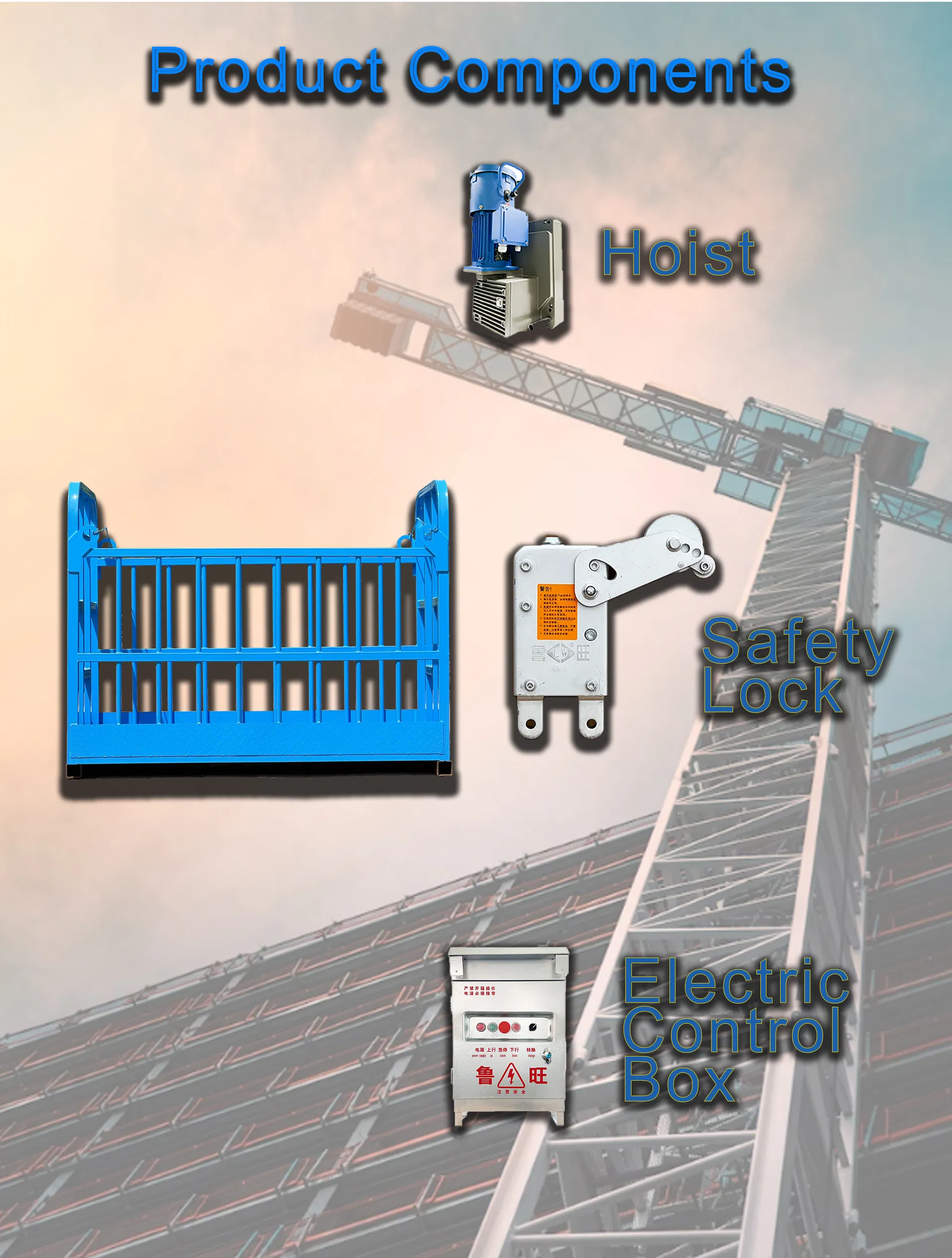

Specification Chart Component Detail Safety Mechanism Installation Guide
Production Capability

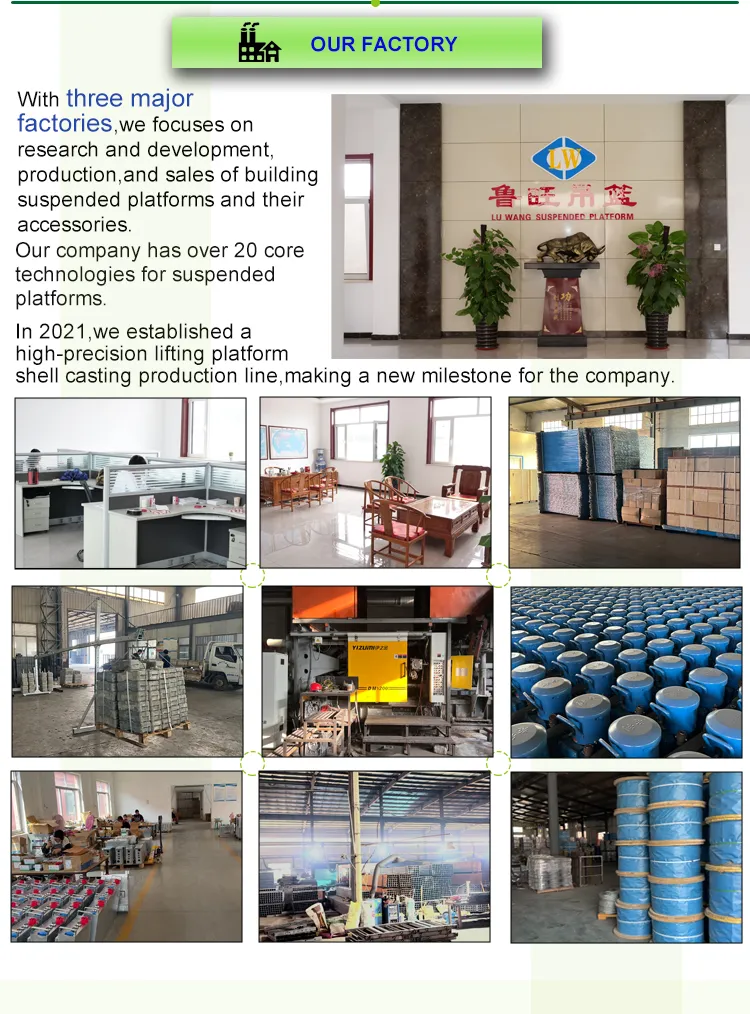

Production Line Factory Overview Quality Control
Frequently Asked Questions
What materials are available for the ZLP series platforms?
We offer both high-strength Steel with painted or galvanized finishes and lightweight Aluminum alloy options to suit different environment requirements.
Can the voltage of the electric platform be customized?
Yes, the electrical control system and motor voltage can be customized according to your local power supply standards (e.g., 220V, 380V, 415V, etc.).
What is the safety mechanism of the ZLP500?
The platform is equipped with LDF series safety locks, an emergency stop button, and centrifugal speed limiters to ensure maximum operator safety during lifting operations.
What is the standard length of the platform?
The standard ZLP500 length is 5 meters, but the modular design allows for combinations or custom extensions based on specific project needs.
What are the main applications for this equipment?
Ideal for high-rise building exterior construction, decoration, cleaning, maintenance, and installation of curtain walls.
How is the product packaged for international shipping?
The components are typically packed in plastic film or reinforced wooden cases to prevent damage during sea or land transport.
