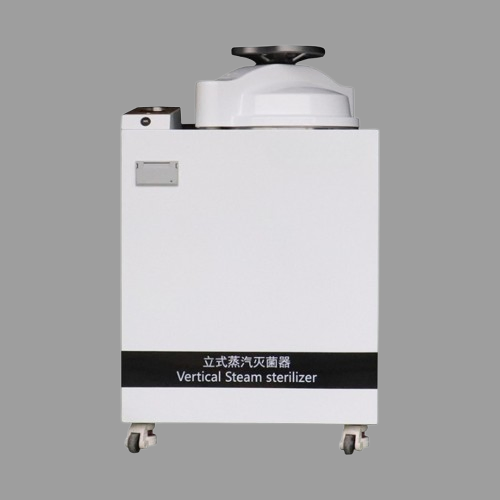

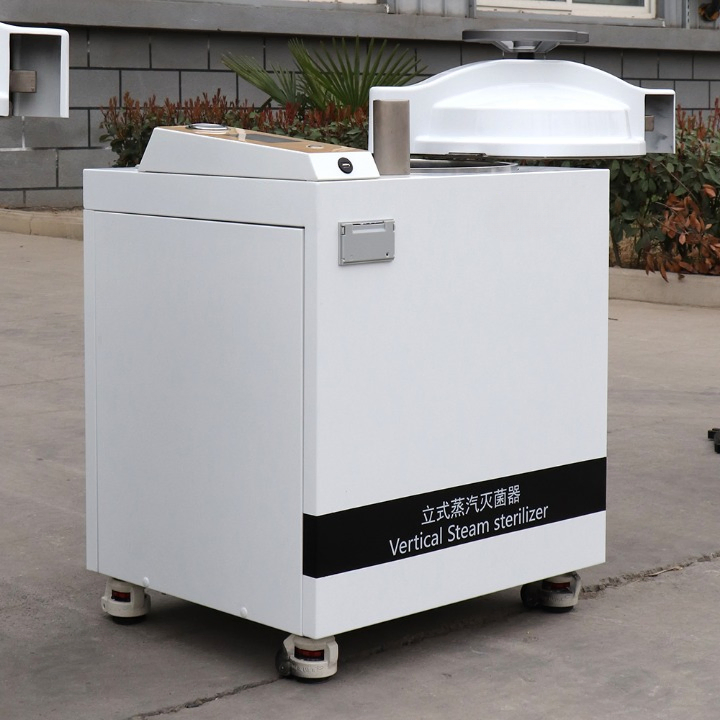

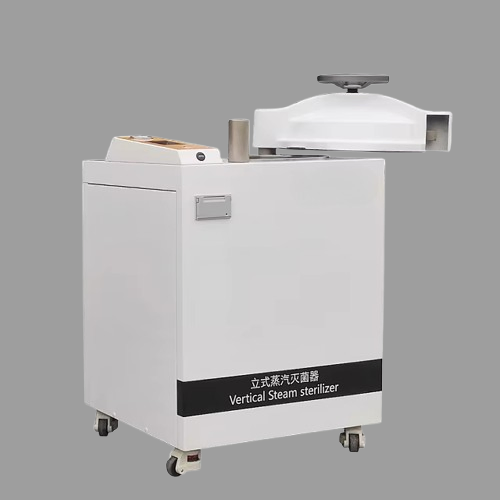

Advanced Sterilization Unit for Healthcare Facilities with Large Capacity

Customization: Available
Theory: Autoclave
Type: Pressure Steam Sterilization Equipments

Product Description

Introducing the Vertical Autoclave Steam Sterilizer-Model SD-ZL, a remarkable fusion of innovation and unmatched efficiency. Featuring a sleek LED touch screen interface and built-in printer for meticulous documentation.
Basic Info.
Model NO.
SD-ZL
Certification
CE, FDA, ISO13485
Electric Tension
220V
LCD Display
With LCD Display
Material
Stainless Steel
Application
Hospital Steam Sterilizer
Capacity
50/80/100/120L
Sterilization Objects
Liquid, Dressings, Instruments, Food
Product Description

The Vertical High Pressure Steam Sterilizer stands as a pinnacle of engineering innovation, utilizing cutting-edge electric heating technology to generate an intense environment of high temperature and high pressure saturated steam. This process induces protein denaturation, annihilating microorganisms with supreme precision.

Scope of Application: Essential for disinfection management centers in hospitals, operating rooms, endoscopy facilities, laboratories, research institutes, and clinical departments.

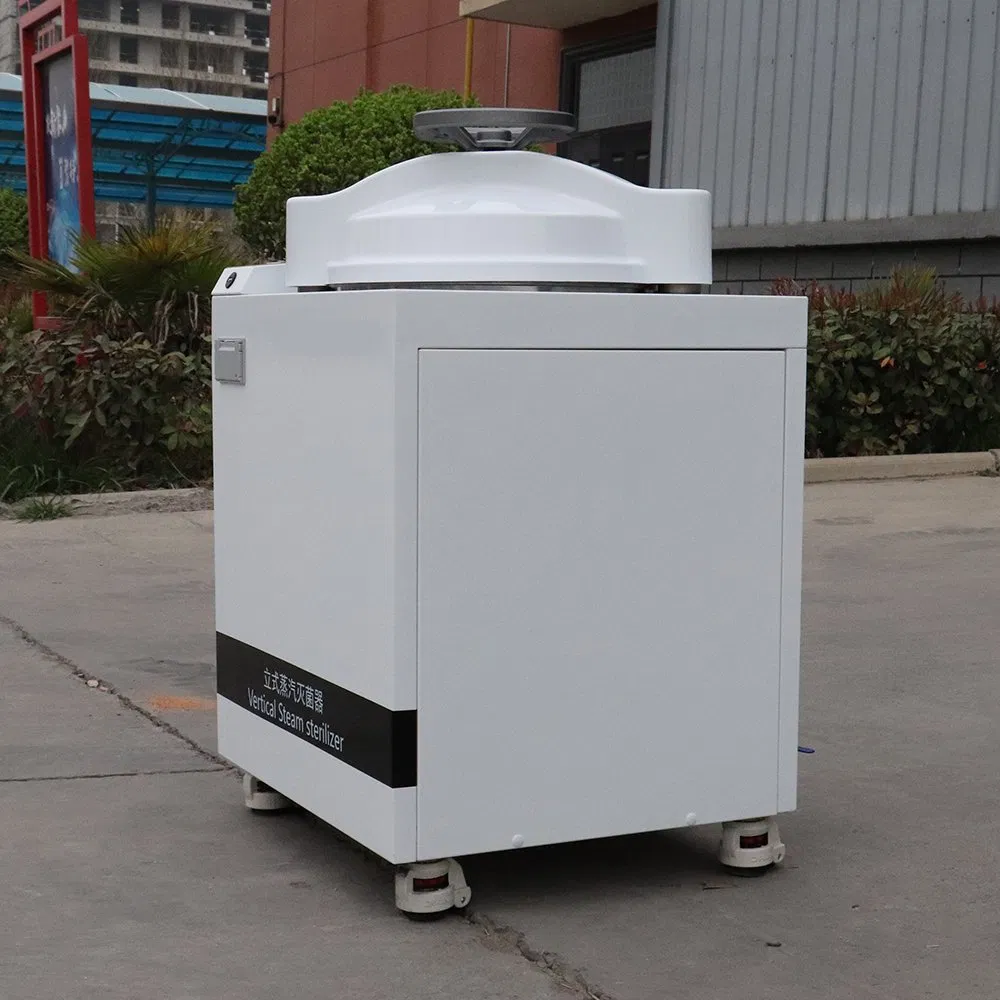

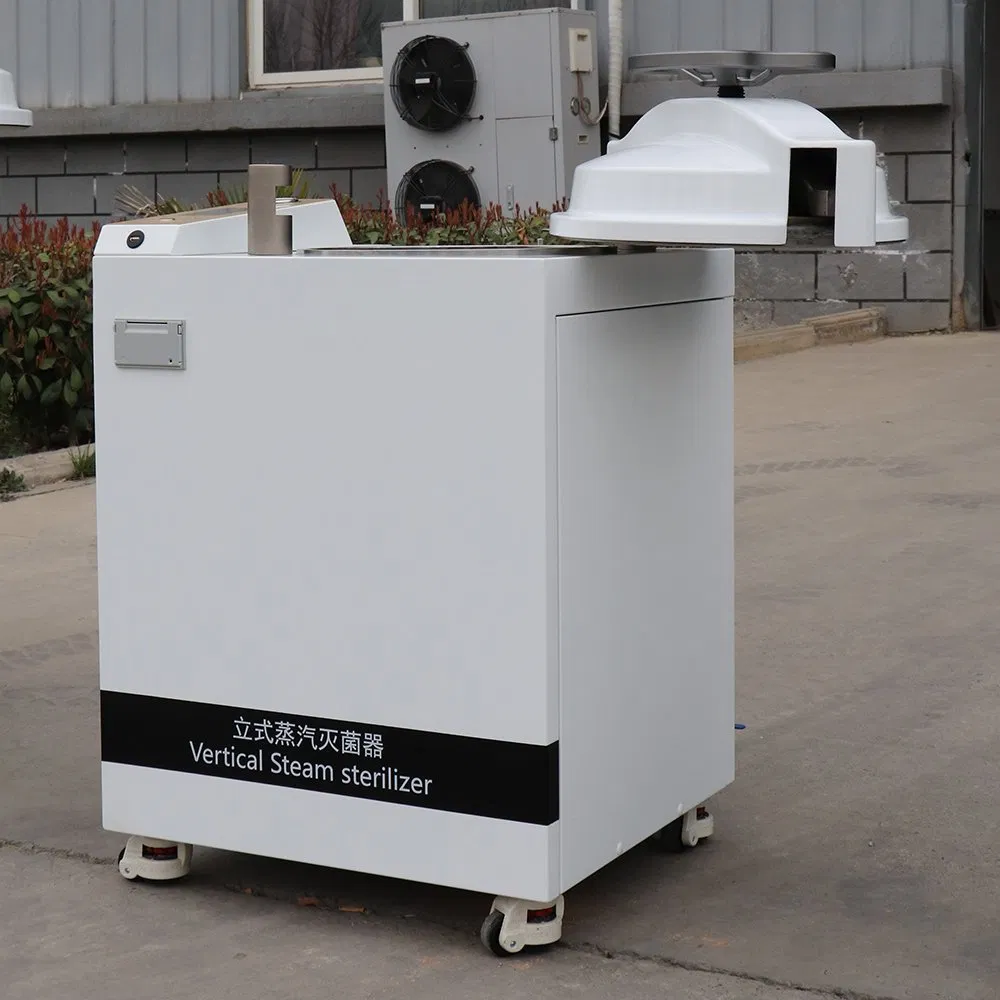

Vertical Autoclave View 1 Vertical Autoclave View 2
Core Features
Max Operating Pressure: 0.25 MPa
Operating Temperature: 0 to 138°C
Control Precision: 0.5ºC
Integrated Stylus Printer
Automatic Internal Circulation
USB Port for Data Transmission
Dual Protection for Dry Heating
Acoustooptics Alarming System
5-Inch Colorful Touch Screen
Pressure Safety Interlock Device
Quick-Open Maintenance Window
Steam/Water Cooling Unit
Product Specification

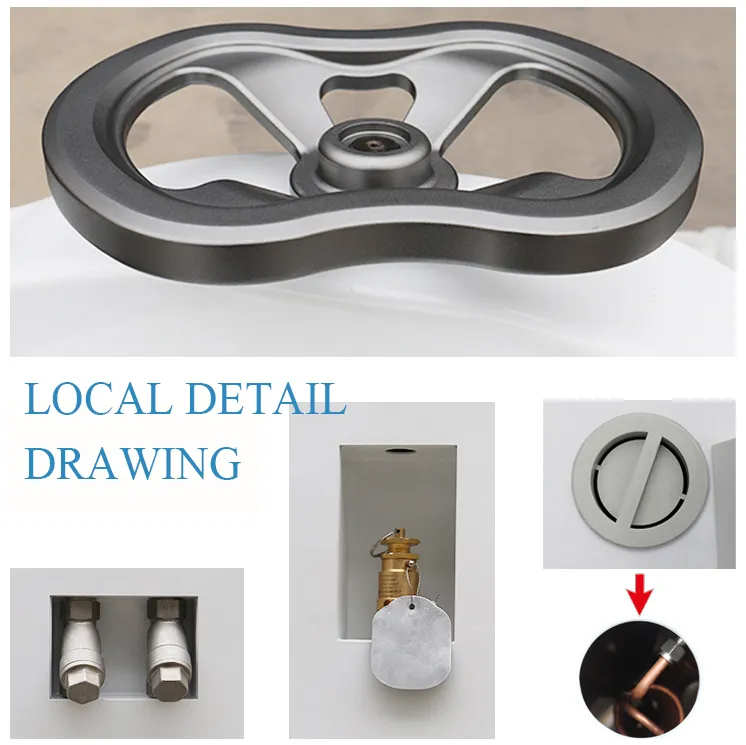

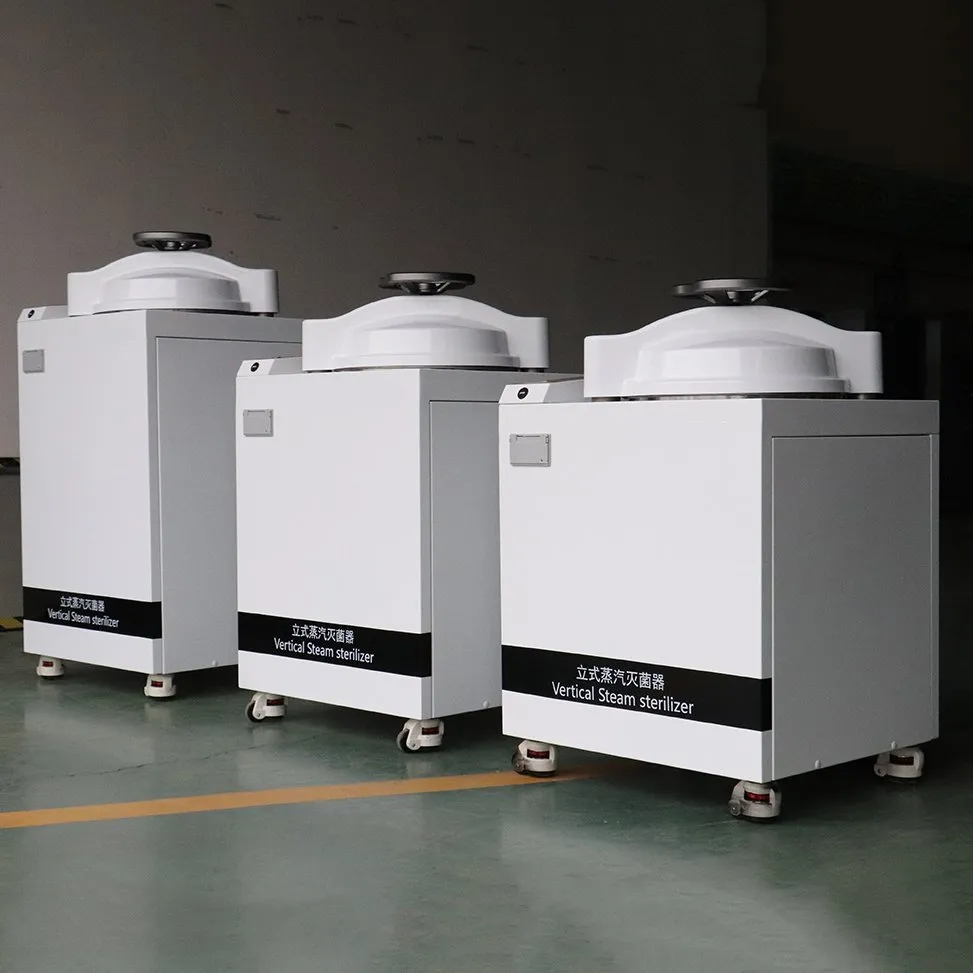

Spec Image 1 Spec Image 2
Technical Data SD-ZL50 SD-ZL80 SD-ZL100 SD-ZL120
Chamber Volume50L80L100L120L
Working Pressure0.22Mpa
Working Temperature121-134ºC
Timer Range0~99min
Power220V, 50Hz
Overall Dim. (mm)570*546*990610*546*1030610*546*1200560*640*1437
G.W (kg)90kg118kg135kg150kg
Packaging & Shipping
Packaging Shipping
Certifications
Certificates
Profile & Workshop
Factory Banner

Boasting over a decade of rich experience since 2012, we proudly stand as a premier manufacturer of state-of-the-art sterilization equipment. We have been dedicated to delivering a seamless service in medical sterilizers, offering competitive pricing and outstanding quality products to over 1000 hospitals, clinics, and research institutions.

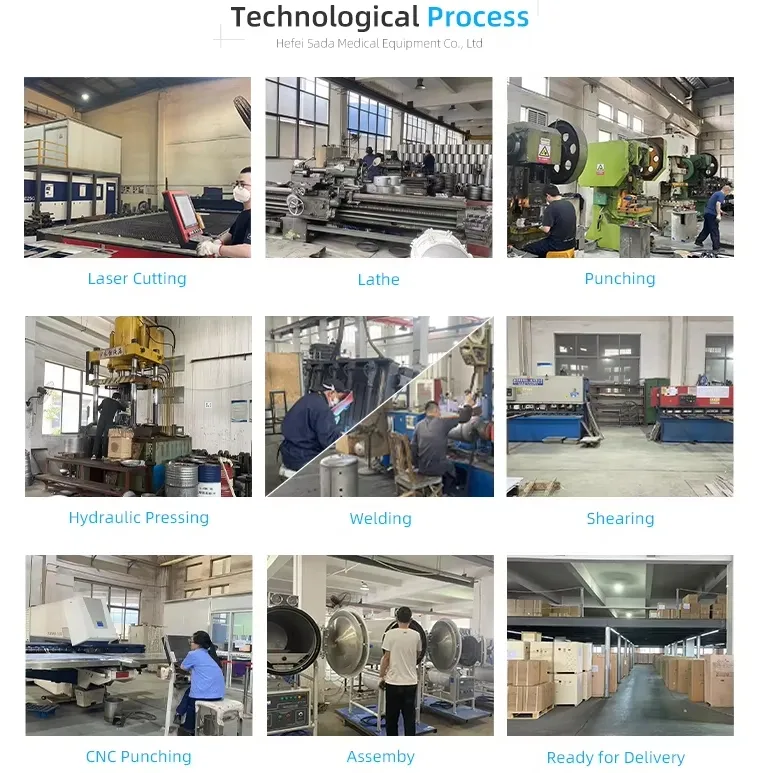

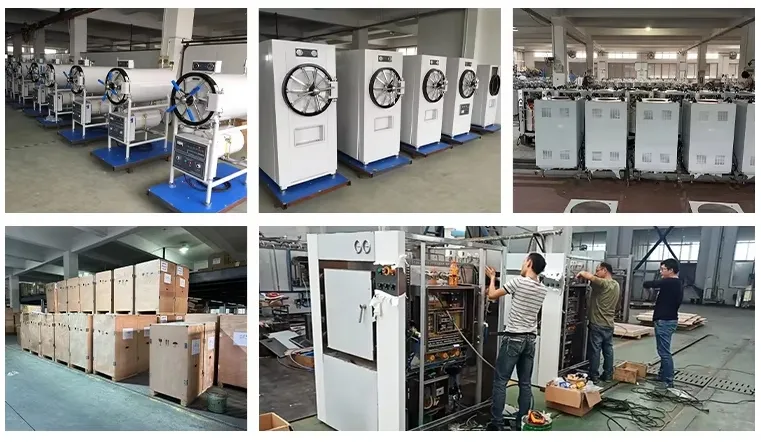

Workshop 1 Workshop 2
Frequently Asked Questions
1. What is the warranty for the products?
We offer a 2-year warranty and lifetime technical service for all our sterilization equipment!
2. How do you handle after-sales service?
We provide technical support through operating manuals and videos. Our engineers offer prompt responses via email or phone. Within the warranty period, hardware spare parts are provided free of charge.
3. What are the available delivery options and times?
We ship via Express (7-10 days), Air Freight (3-10 days), and Sea Freight (10-45 days depending on the port). We can also deliver to your specified forwarder in China.
4. Can the equipment be customized?
Yes, we offer customization services for the control panel interface and specific voltage requirements to match your local standards.
5. What is the typical lead time for production?
Portable types take 5-10 days; Table-top and Vertical types take 10-25 days; Large-scale industrial types may take 30-35 days.
6. What payment terms do you accept?
We accept Telegraphic Transfer (T/T) in advance, Western Union, MoneyGram, and PayPal for your convenience.
