Advanced Hospital Sterilization Solution for Clinics and Medical Facilities

Send Inquiry

Product Description

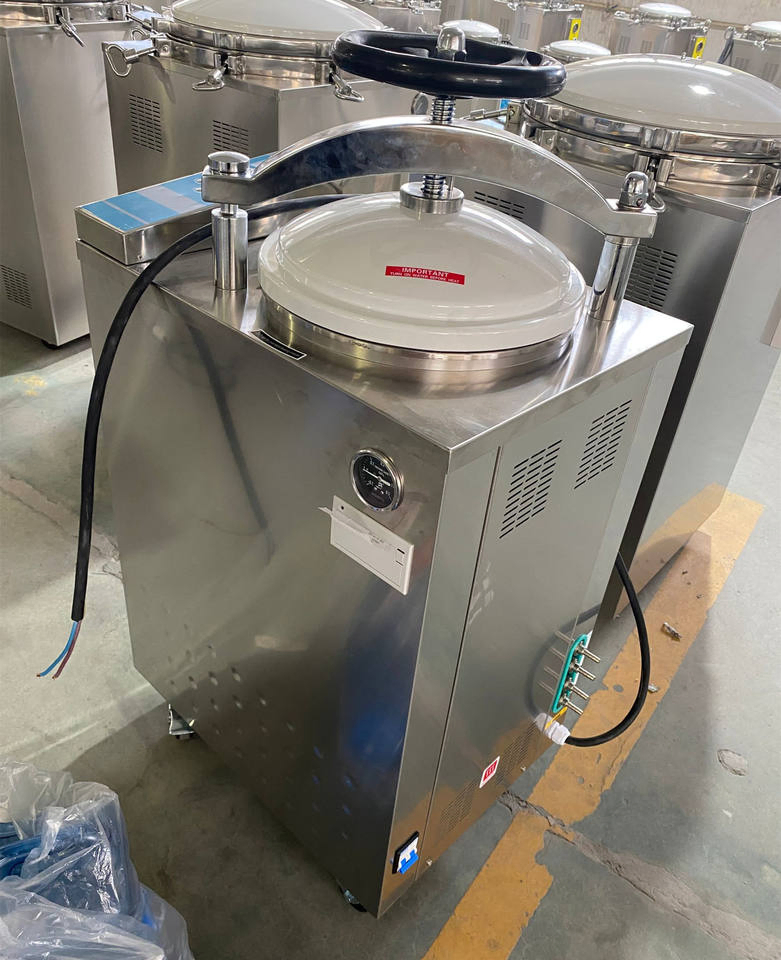

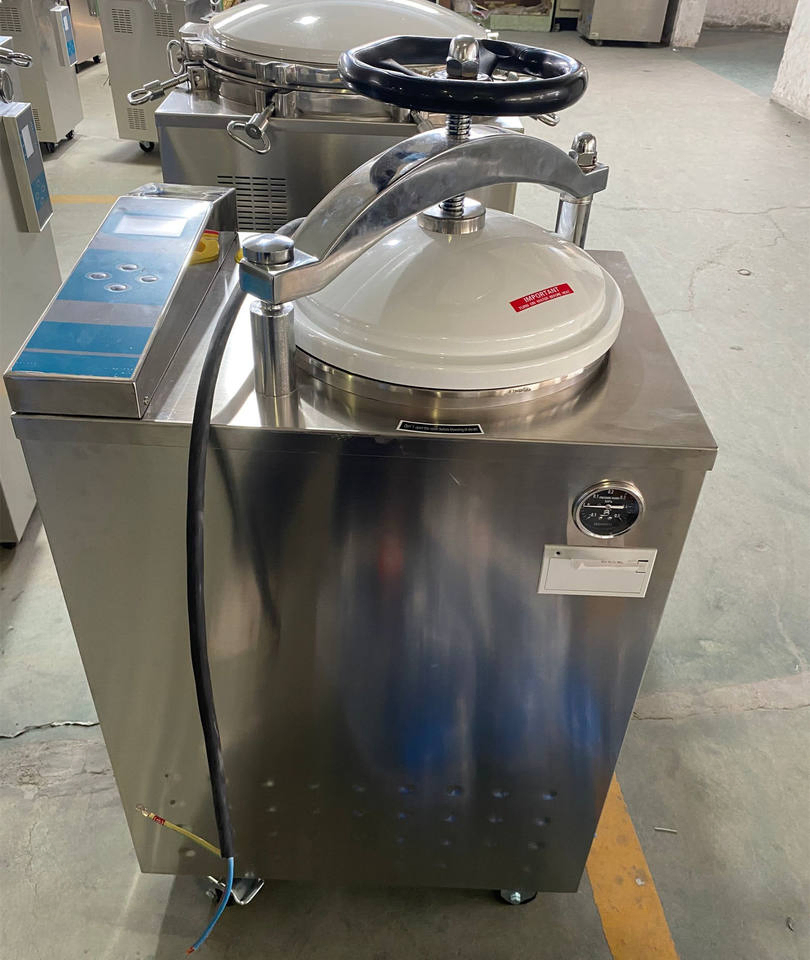

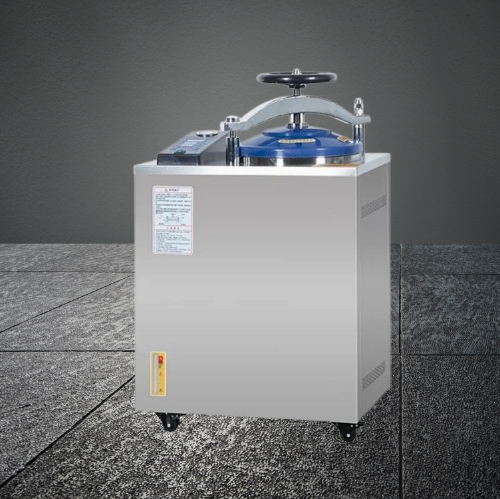

Discover the VA-FD35L Medical Sterilizer Machine, a top-tier vertical steam sterilizer designed to deliver efficient, reliable, and rapid sterilization. Perfectly tailored for laboratories and clinics, this cutting-edge device ensures unparalleled sterilization performance.

Product Overview

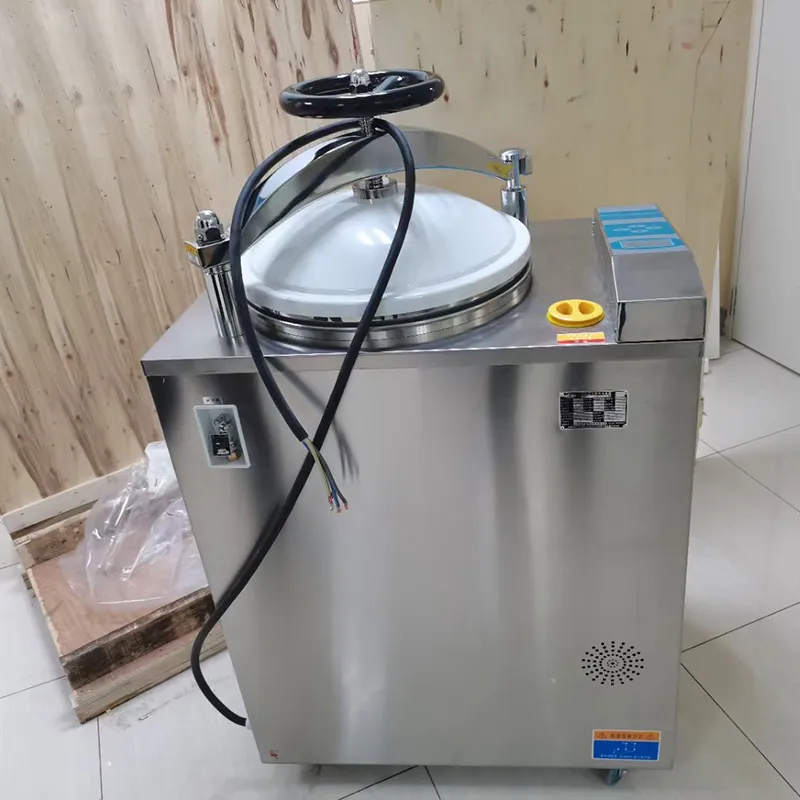

Introducing the next generation in sterilization technology, the vertical steam sterilizer boasts a sophisticated assembly of advanced components including a cutting-edge heating system, intuitive micro-computer controls, and robust overheat and overpressure protection. This ensures impeccable sterilization results, effortless operation, and exceptional energy efficiency. It is indispensable for the sterilization of surgical instruments, fabrics, glassware, and culture media in research institutes and clinics.

Technical Specifications

MODEL	VA-SV50	VA-SV75	VA-SV100
Chamber volume	50L	75L	100L
Chamber Dimensions	340 x 550mm	400 x 600mm	440 x 650mm
Working pressure	0.22Mpa
Working temperature	134ºC
Timer range	0~99min
Power	(3.2+1.6)KW/AC220V 50Hz	(3.2+1.8)KW/AC220V 50Hz	(3.2+1.9)KW/AC220V 50Hz
Overall Dimension (mm)	690 x 470 x 1140	730 x 510 x 1270	750 x 550 x 1305
G.W/N.W	120Kg/100Kg	140Kg/118Kg	160Kg/128Kg

Advanced Features

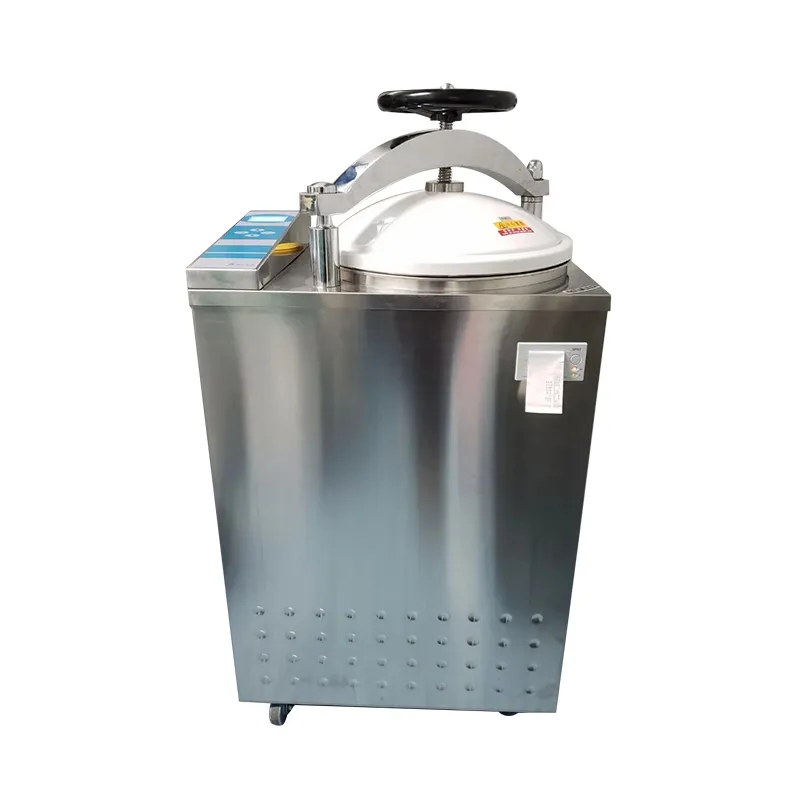

✔ Microcomputer controlled with a vibrant digital display for real-time operational status.
✔ Real-time monitoring of temperature, pressure, time, vacuum rate, and cycle status.
✔ Fully automated process: water inlet, pulse vacuum, heating, sterilizing, and drying.
✔ Triple pulse vacuum reaches -0.08 MPa for complete air removal from complex instruments.
✔ Four preset programs for appliances, dressings, rubber, and fluids, plus customizable modes.
✔ Integrated 0.22µm bacteria filter prevents secondary contamination.
✔ Hand-wheel design with self-inflating seal for safety and ease of use.
✔ Immersed heating tube ensures rapid and high-efficiency sterilization.

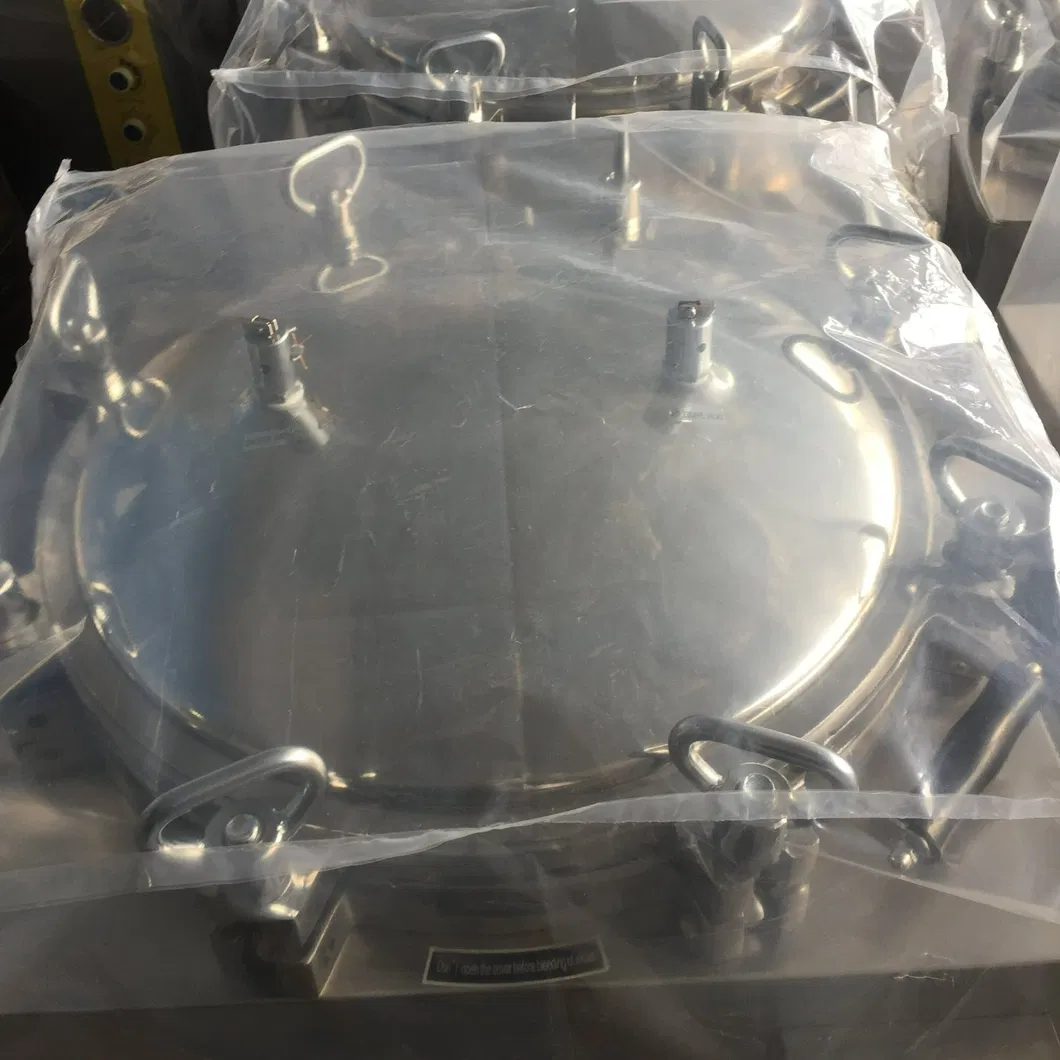

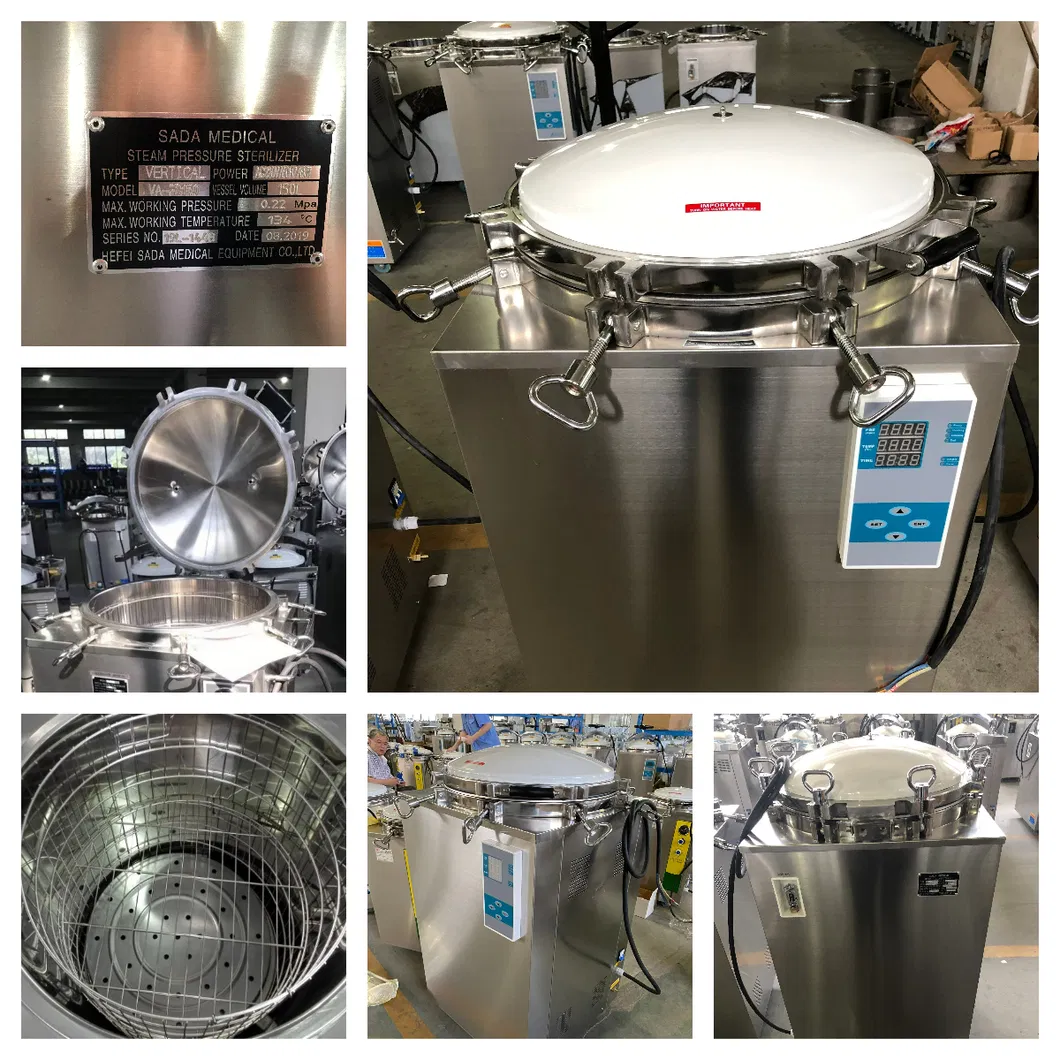

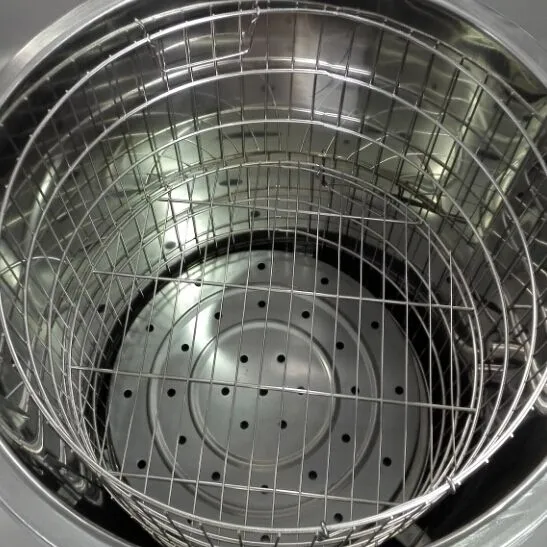

Detailed Product Gallery

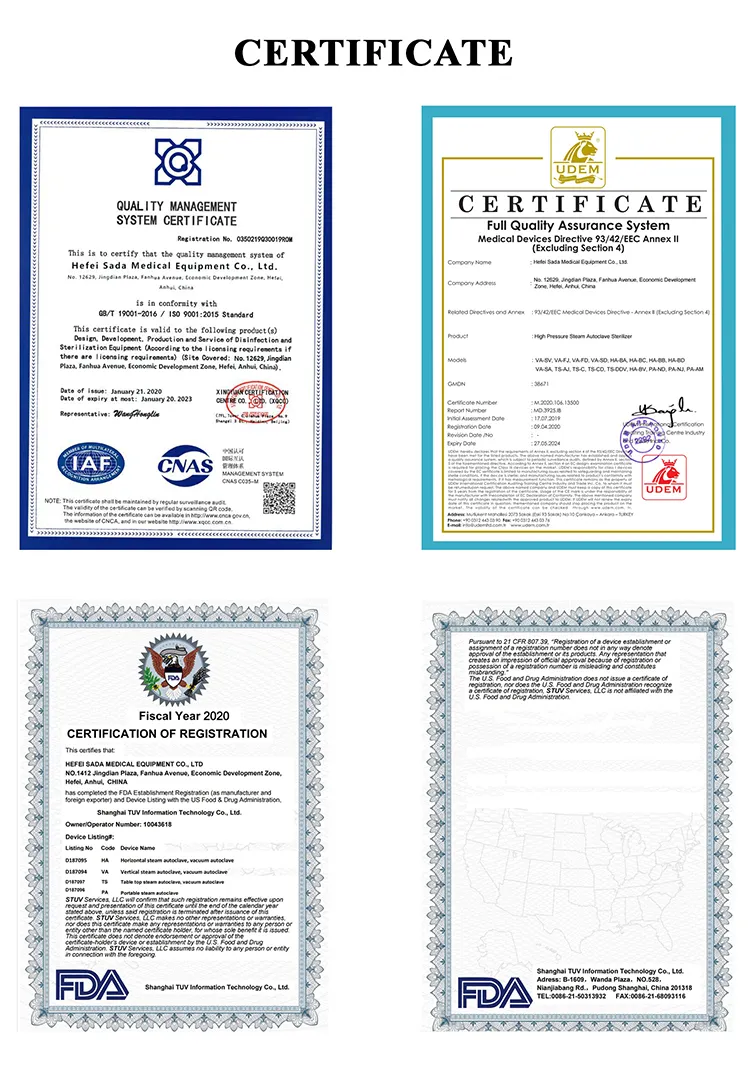

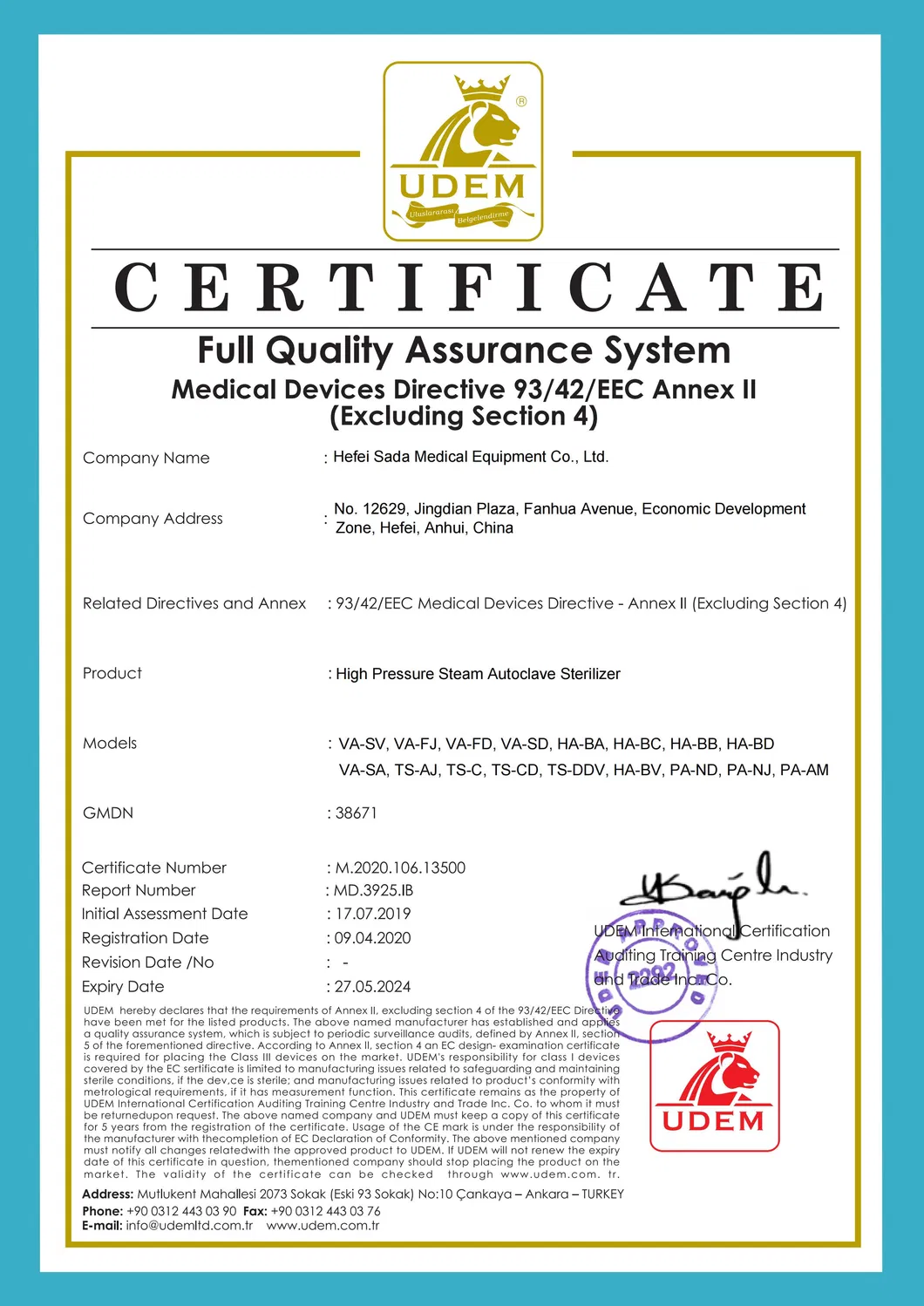

Certifications & Packaging

Frequently Asked Questions

What is the warranty period for this sterilizer?

We provide a comprehensive 2-year warranty along with lifetime technical service support for all our vertical pulse vacuum steam sterilizers.

What are the preset sterilization programs?

The machine comes with four optimized preset programs specifically designed for medical instruments, dressings, rubber materials, and liquid fluids. Users can also customize programs for specific needs.

How does the vacuum drying system work?

The sterilizer utilizes a triple pulse vacuum system to reach -0.08 MPa, ensuring air is completely removed before sterilization. Post-sterilization, multiple pulse vacuum drying ensures the items are pristine and ready for use.

What safety protections are integrated into the device?

It includes robust overheat and overpressure protection, a self-inflating safety seal, and an automatic audible alert that signals the completion of the cycle.

What is the lead time for delivery?

Lead times vary by type: portable units take 5-10 days, while vertical and table-top models typically range from 10-25 days depending on the specific configuration and volume.

Can the voltage and control panel be customized?

Yes, we offer specialized customization for both the control panel interface and voltage requirements to meet specific regional standards.
