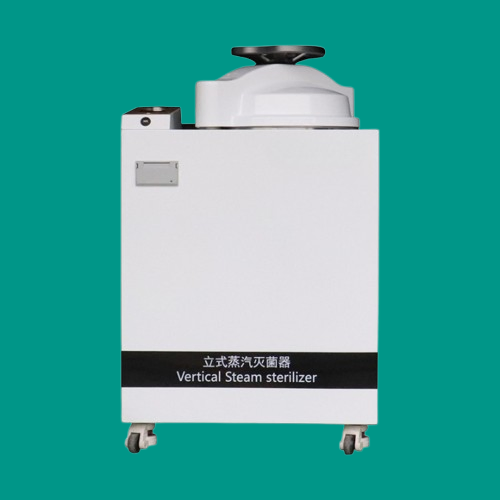

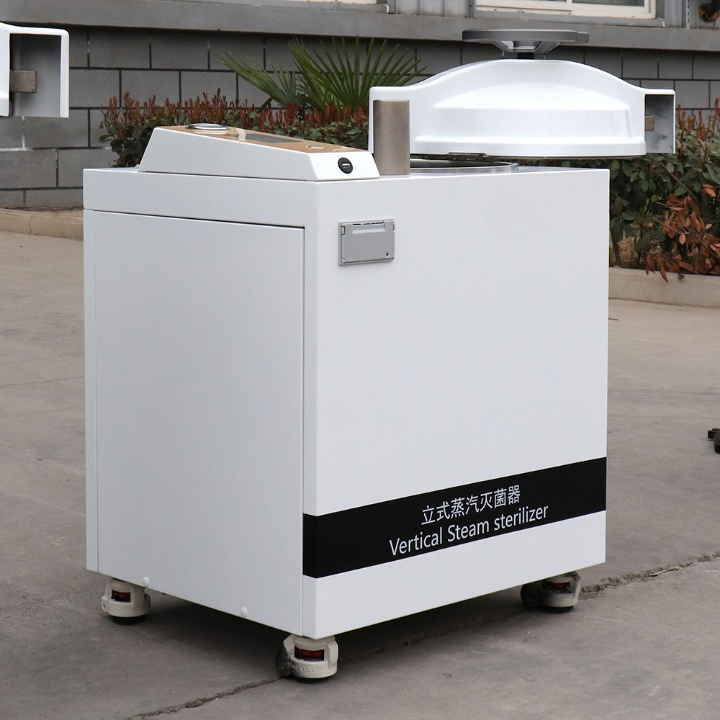

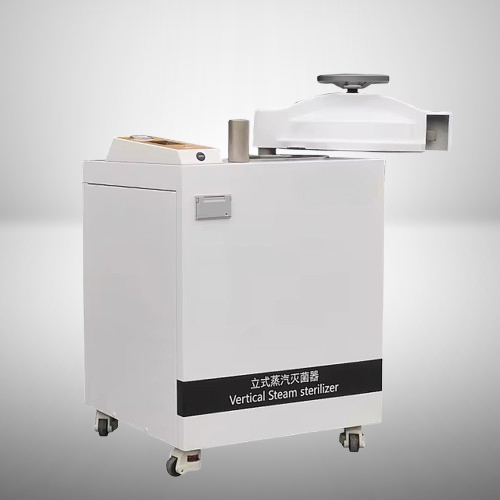

Advanced Medical Tool Sterilizer for Optimal Safety and Efficiency

Customization: Available
Theory: Autoclave
Type: Pressure Steam Sterilization Equipments

Product Description

ℹ️ Basic Information
ModelSD-ZL
CertificationCE, FDA, ISO13485
Electric Tension220V
LCD DisplayWith LED Touch Screen Display
Safety AlarmsUltra High Temperature & Pressure Alarm
RecordingInformation Recording and Printing
MaterialHigh-Quality Stainless Steel
ApplicationHospital, Laboratory, Food Industry
Specifications50L / 80L / 100L / 120L
Introducing the Vertical Autoclave Steam Sterilizer - Model SD-ZL, a beacon of medical innovation. Boasting a sleek LED touch screen interface and integrated printer for effortless operation and meticulous documentation.
📝 Product Description

The Vertical High Pressure Steam Sterilizer utilizes cutting-edge electric heating technology to produce high temperature and pressure saturated steam. This mechanism employs gravity displacement exhaust to remove cold air, ensuring optimal sterilization conditions. The process facilitates protein denaturation and eradicates microorganisms with precision, delivering extraordinary levels of disinfection.

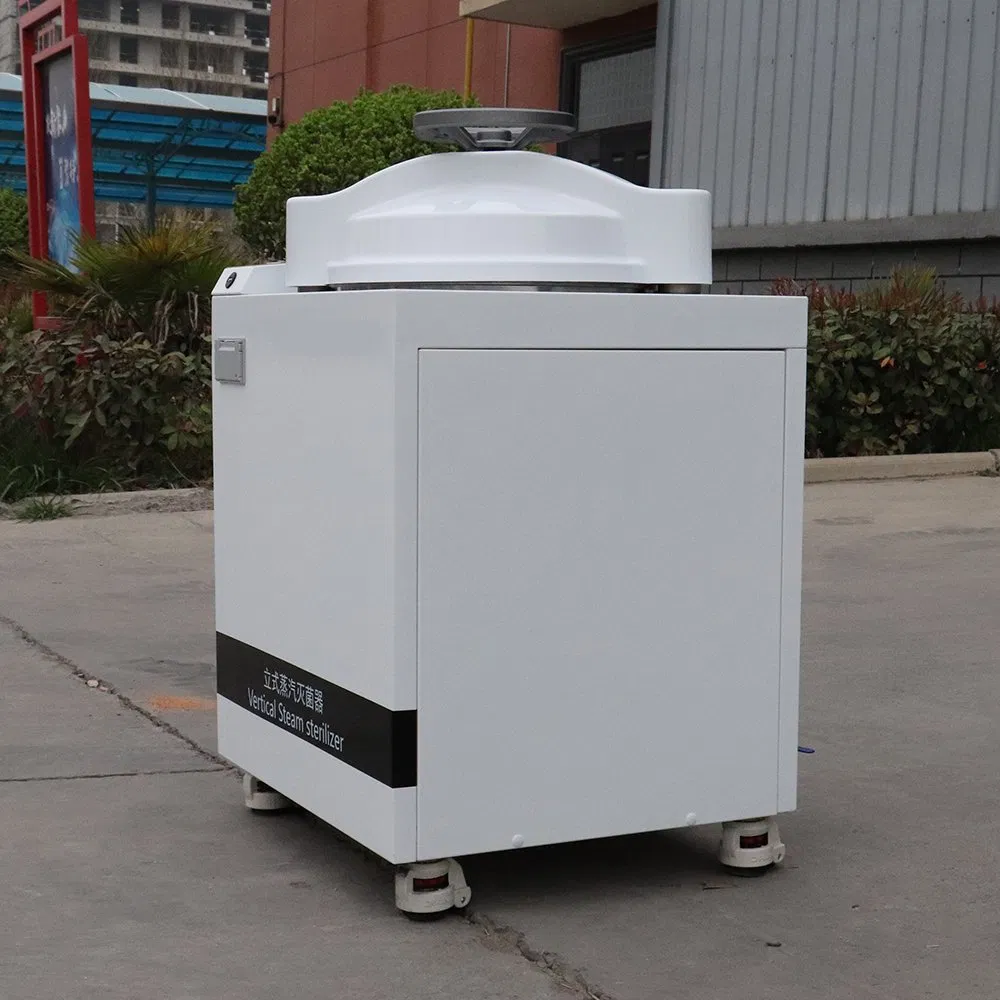

Vertical Autoclave

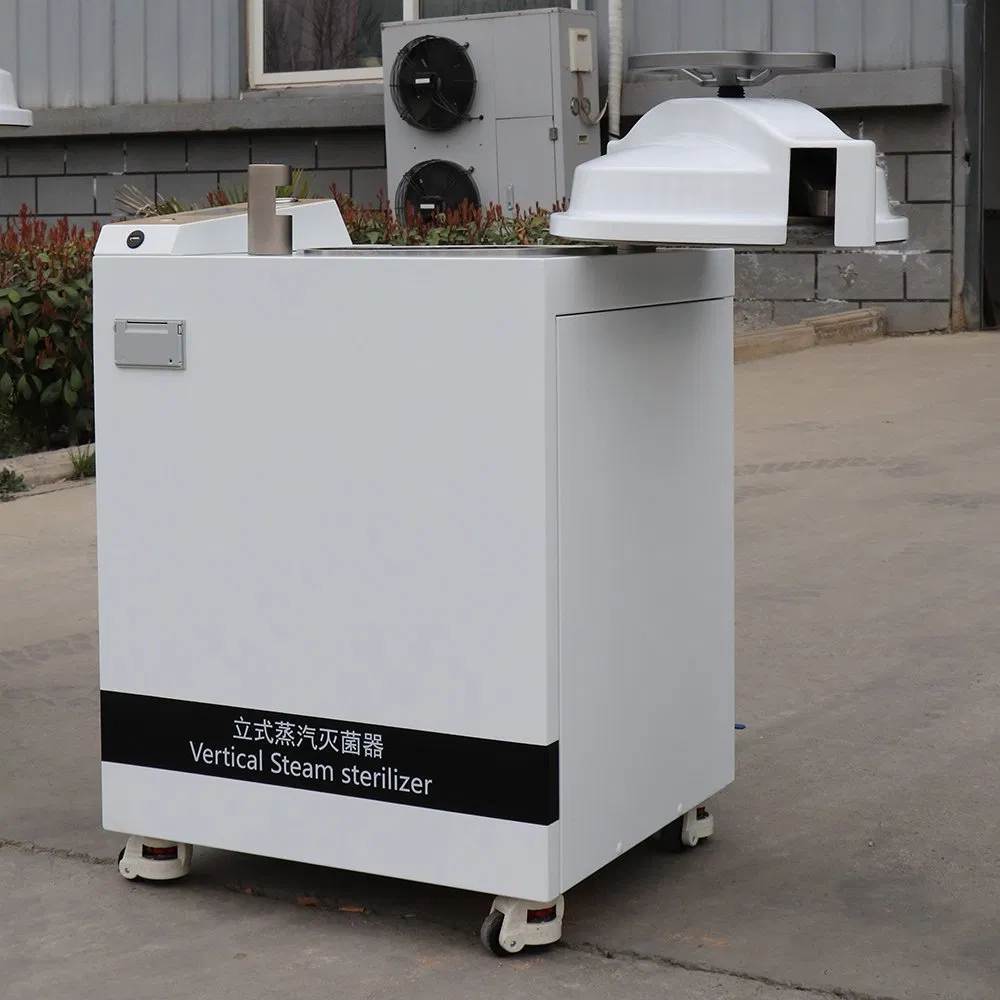

Steam Sterilizer Detail
🏥 Scope of Application

Essential for hygiene management in hospital sterilization centers, operating rooms, and endoscope facilities. Widely adopted by university laboratories, research institutes, community clinics, and family planning stations, ensuring thorough and reliable sterilization across various medical environments.

Key Features
Max Operating Pressure: 0.25 MPa for robust performance.
Temperature Range: 0 to 138°C for versatile requirements.
Precision Control: Accuracy of 0.5ºC for safe operations.
Stylus Printer: Immediate documentation of sterilization records.
Automatic Circulation: Indoor hydration and drainage efficiency.
USB Port: Swift and dependable data transmission.
Dry Heating Protection: Enhanced safety for dry scenarios.
Acoustooptics Alarming: Rapid fault troubleshooting.
5-Inch Touch Screen: User-friendly colorful control panel.
Safety Interlock: Prevents accidental exposure.
Metallic Handwheel: Precise and comfortable operation.
Cooling Unit: Efficient steam/water cooling system.
📊 Technical Specifications

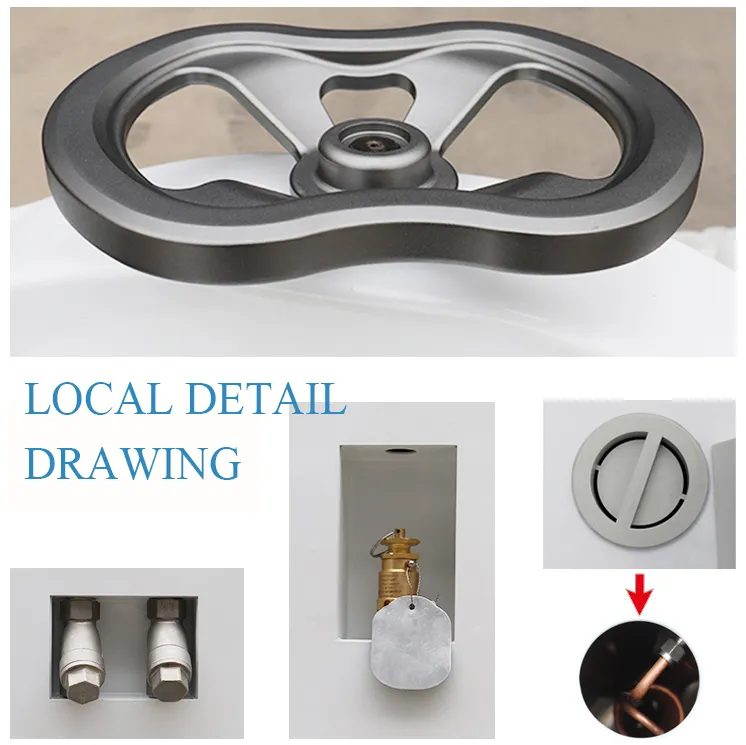

Specification Part 1

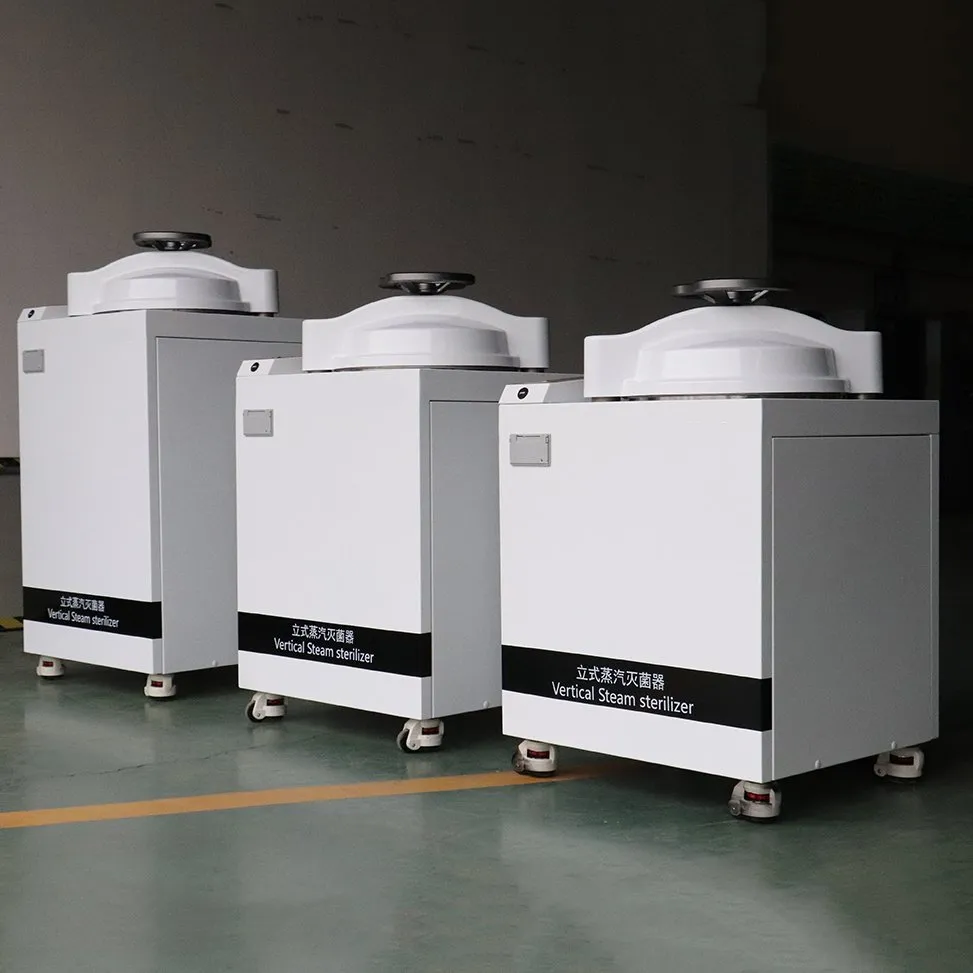

Specification Part 2
Technical Data SD-ZL50 SD-ZL80 SD-ZL100 SD-ZL120
Chamber volume50L80L100L120L
Working Pressure0.22Mpa
Working Temp.121-134ºC
Timer Range0~99min
Power220V, 50Hz
G.W/N.W70kg/90kg90kg/118kg95kg/135kg135Kg/150Kg
📦 Packaging & Shipping
Packaging
Shipping
📜 Certifications
Certificates
🏢 Professional Manufacturing
Profile Banner

With over a decade of experience since 2012, we are a leader in the design and manufacture of cutting-edge sterilization equipment. Our competitive pricing and unparalleled quality have served over 1000 hospitals, clinics, and research establishments globally. We offer bespoke OEM/ODM services tailored to unique client needs, backed by a dedicated technical R&D team.

OUR ADVANTAGES:
1. OEM/ODM customization services.
2. Global operational footprint with 500,000+ units.
3. Competitive pricing and expedited delivery.
4. Quality control by TUV and SGS.
5. Professional after-sales support.

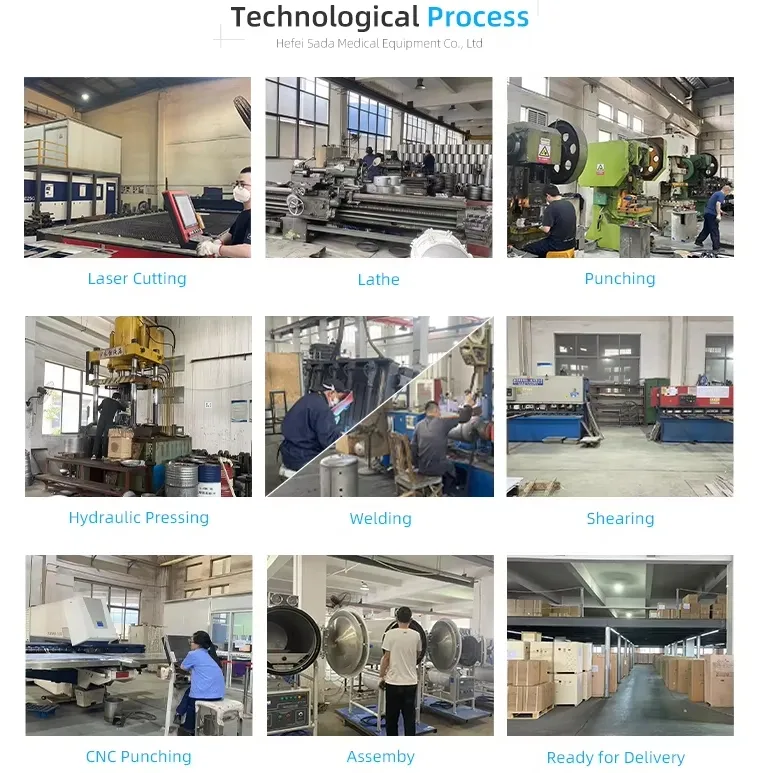

Workshop 1

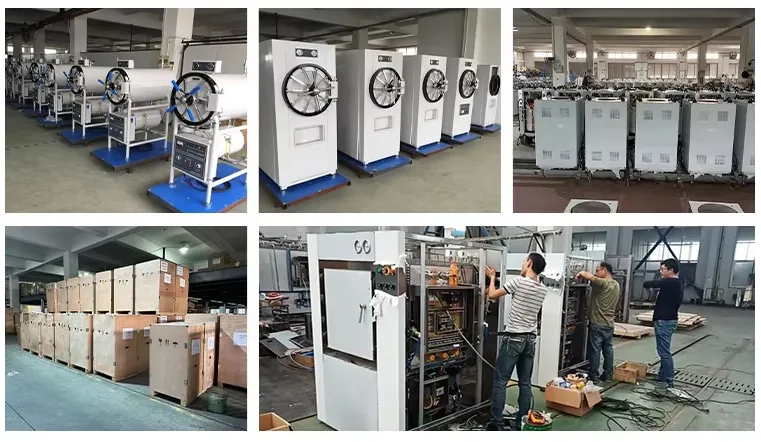

Workshop 2
Frequently Asked Questions
1. What is the warranty period for the sterilizer?
We offer a 2-year warranty along with lifetime technical service support for all our sterilization products.
2. How do you provide after-sales technical support?
We provide comprehensive support through operating manuals and videos. For complex issues, our engineers provide prompt responses via email or video calls. Hardware parts under warranty are replaced free of charge.
3. What are the available shipping options and delivery times?
We ship via Express (UPS/DHL/TNT, 7-10 days), Air Freight (3-10 days), and Sea Freight (10-45 days depending on the port). We can also deliver to your specified forwarder in China.
4. Can the autoclave be customized?
Yes, we provide customization options for the control panel interface, local voltage requirements, and other specific functional needs through our OEM/ODM services.
5. What is the typical lead time for production?
Portable units take 5-10 days, while Vertical and Table-top types generally require 10-25 days. Large-scale equipment may take up to 30-35 days.
6. What payment terms do you accept?
We accept Telegraphic Transfer (T/T) in advance, Western Union, MoneyGram, and PayPal for your convenience.
