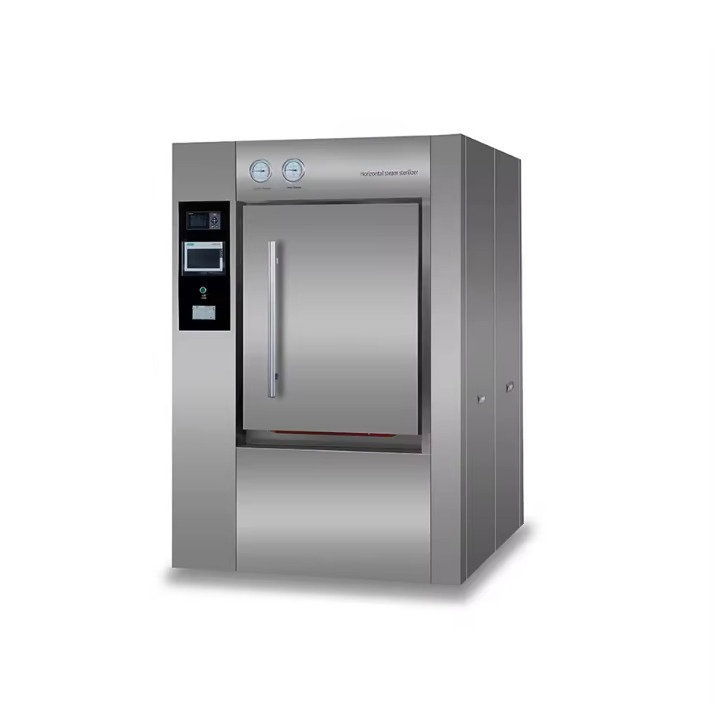

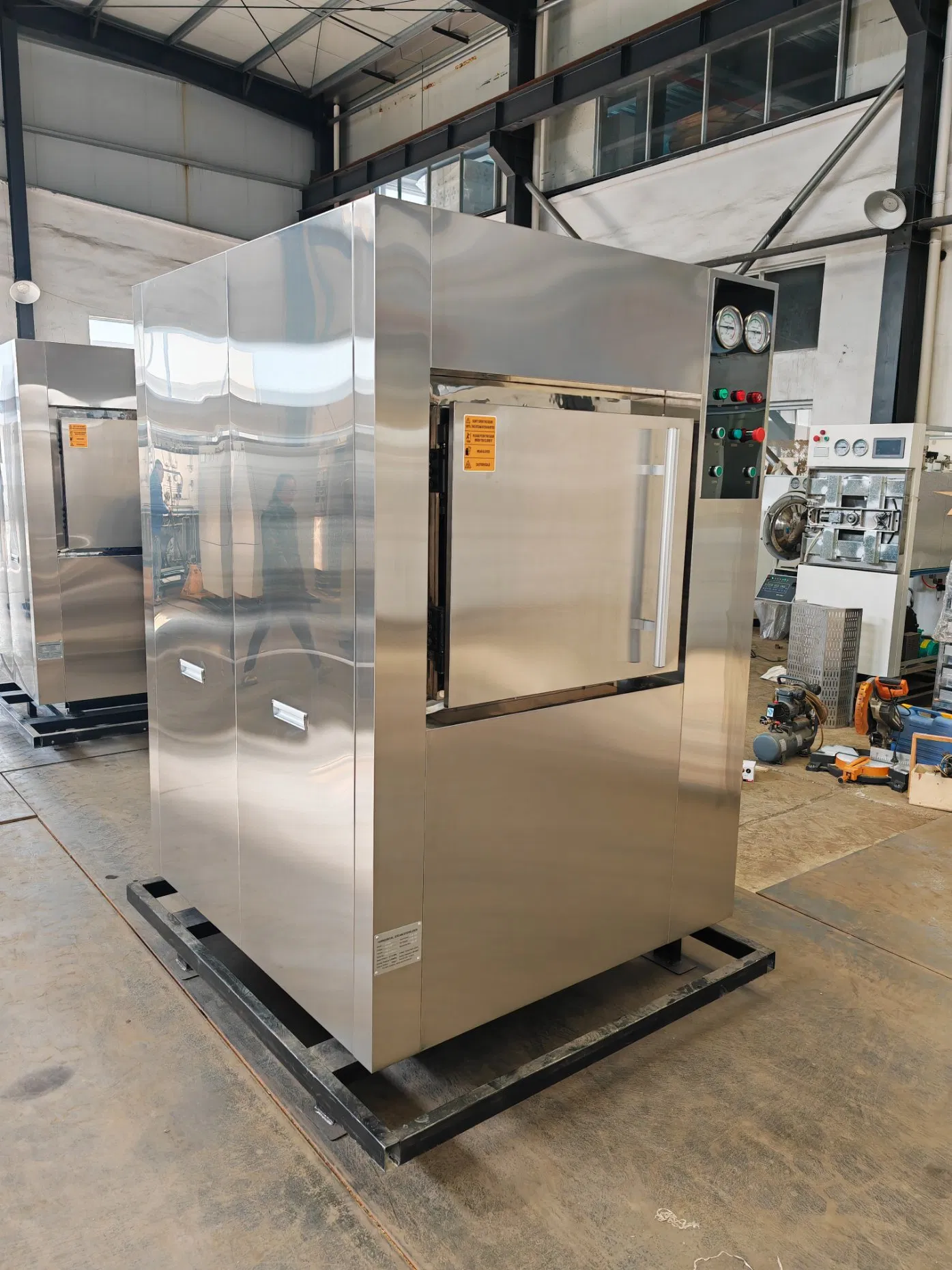

Pulse Vacuum Autoclave Horizontal Steam Sterilizer
Unleash unparalleled precision and reliability in sterilization. This horizontal steam sterilizer integrates advanced technology to ensure comprehensive decontamination of medical equipment, providing a meticulous solution for healthcare facilities demanding the highest standards of hygiene and performance.
This horizontal steam sterilizer is a high-efficiency autoclave machine meticulously engineered to impeccably sterilize a diverse range of medical instruments, laboratory equipment, surgical tools, glassware, dressings, and heat-resistant materials. It operates using saturated steam as the core sterilization medium, guaranteeing the thorough and effective extermination of bacteria, viruses, and various pathogens.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Design Pressure | Inner Chamber: -0.1~0.3 MPa | Jacket Pressure | 0~0.3 MPa |
| Design Temperature | 144ºC | Working Pressure | 0 - 0.25 MPa |
| Working Temperature | 115 - 139ºC | Thermal Uniformity | ≤±2ºC |
| Ultimate Vacuum | -0.09 MPa | Steam Pressure | 0.3 - 0.5 MPa |
| Model No. | Inner Chamber (L×W×H) | Overall Dimensions (L×W×H) | Net Weight |
|---|---|---|---|
| SD-WF-150D(S)M | 700 * 450 * 480 mm | 950 * 1130 * 1760 mm | 750Kg |
| SD-WF-200D(S)M | 925 * 450 * 480 mm | 1175 * 1130 * 1760 mm | 880Kg |
| SD-WF-360D(S)M | 1000 * 600 * 600 mm | 1250 * 1320 * 1900 mm | 1150Kg |
| SD-WF-600D(S)M | 1190 * 610 * 910 mm | 1440 * 1320 * 1900 mm | 1300Kg |
| SD-WF-1200D(S)M | 1450 * 680 * 1180 mm | 1700 * 1440 * 1950 mm | 1750Kg |
