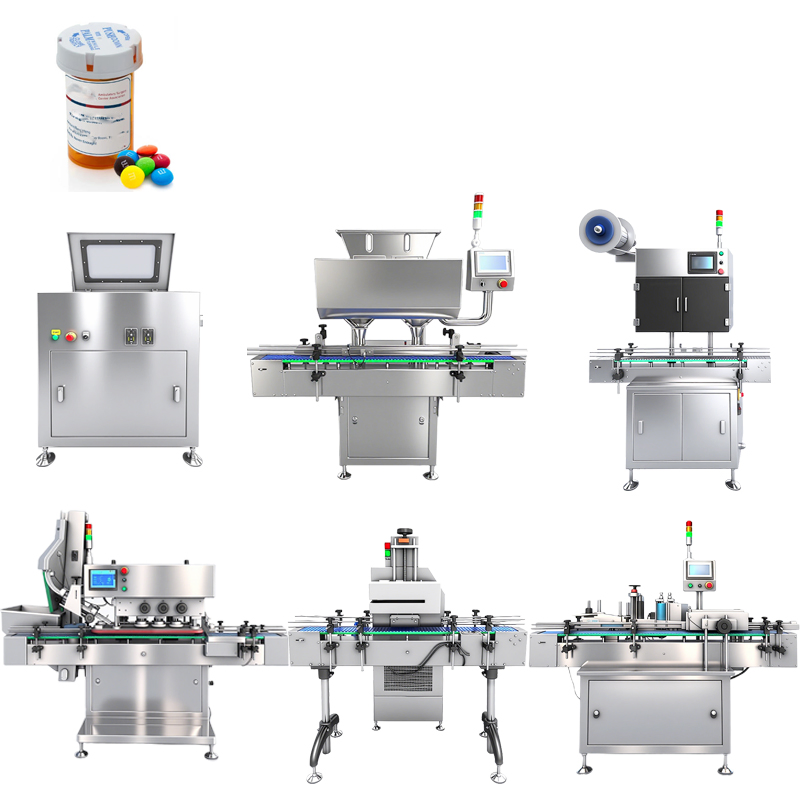

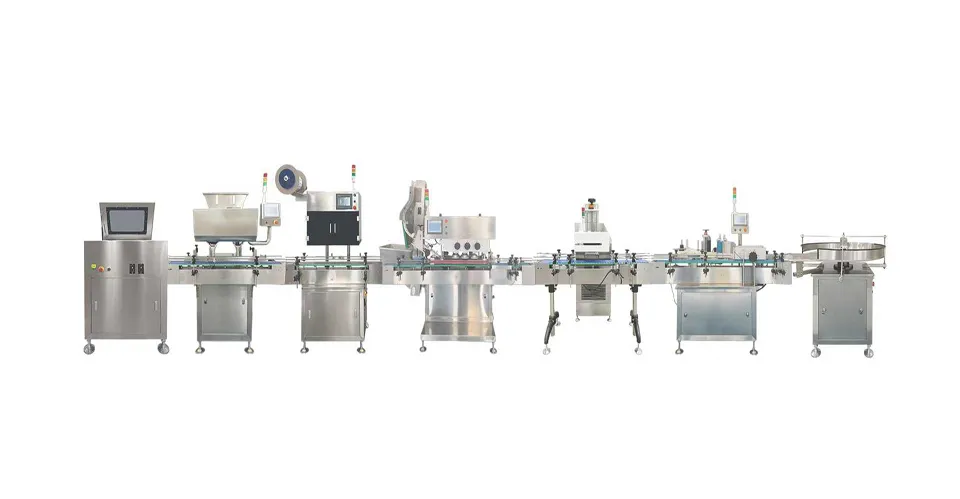

An integrated pharmaceutical packaging system that automates filling counted solid oral dosage forms into containers. It ensures accuracy, speed, and regulatory compliance in pharmaceutical and nutraceutical manufacturing.
1. Unscrambler: Orients empty bottles correctly onto the conveyor.
2. Air Cleaner: Removes dust and static using filtered air.

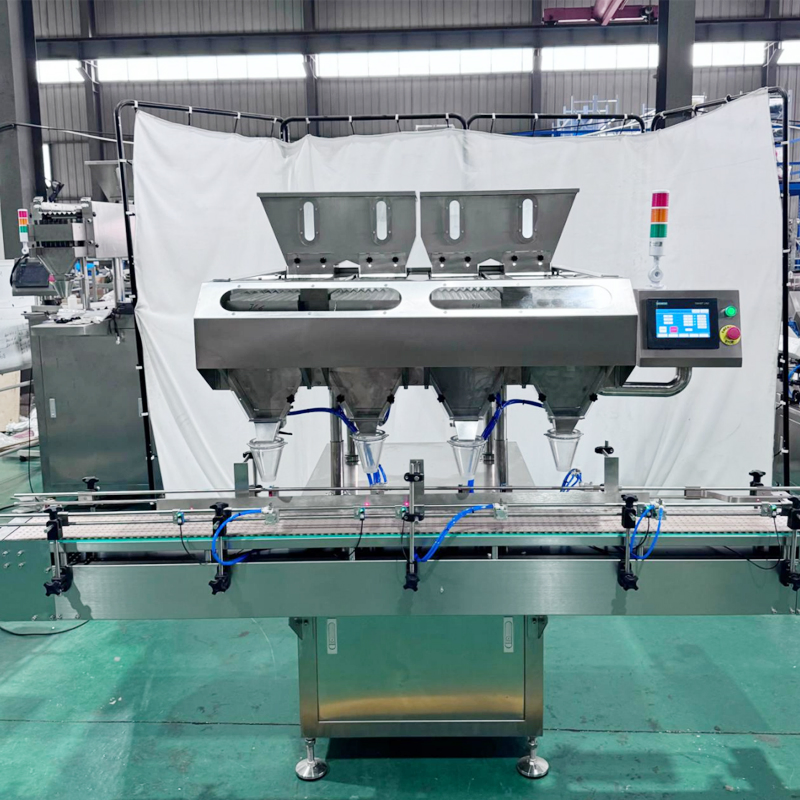

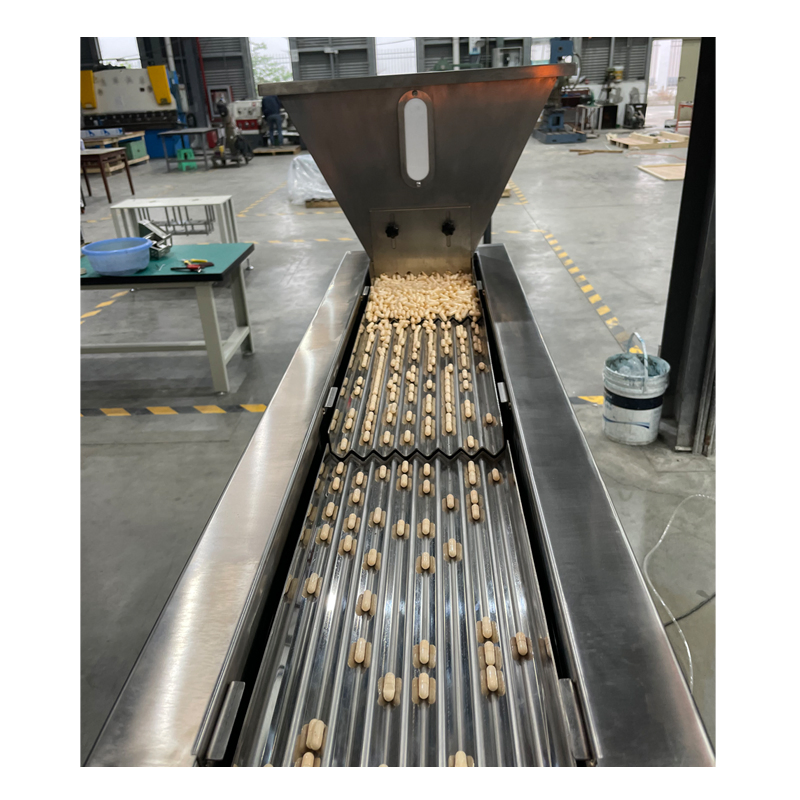

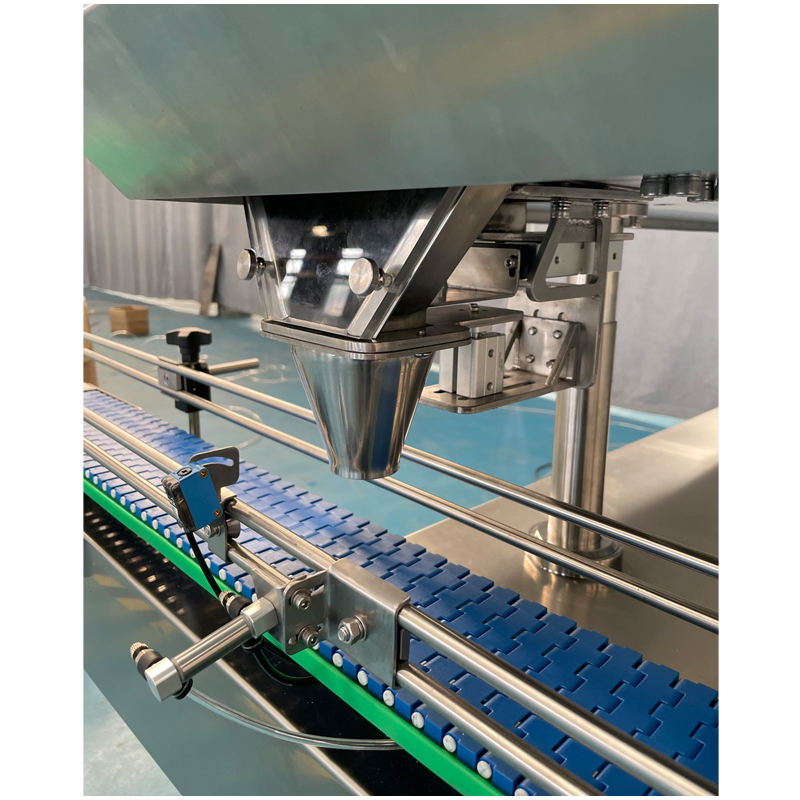

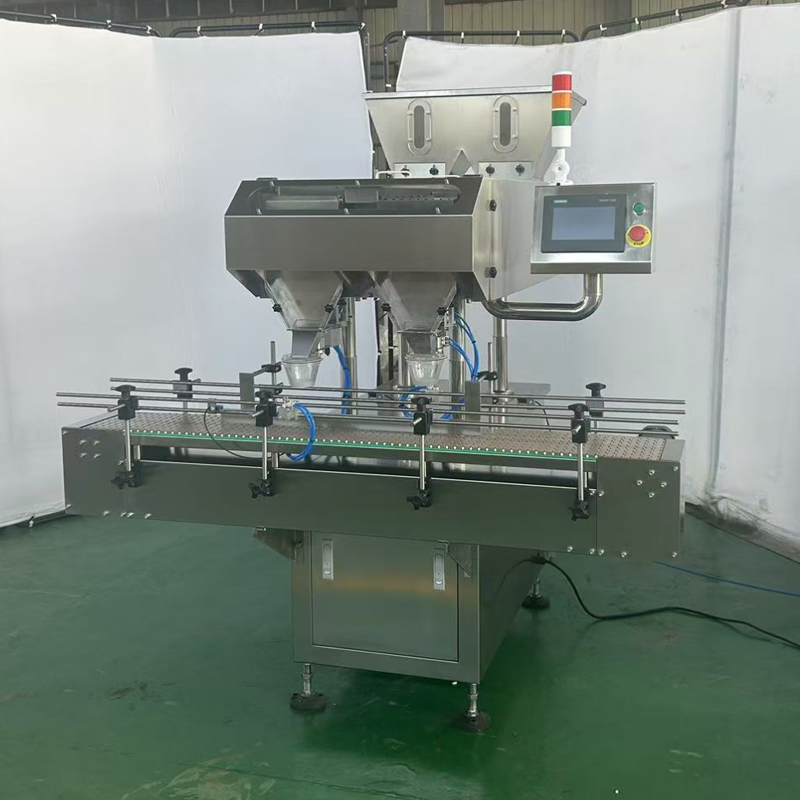

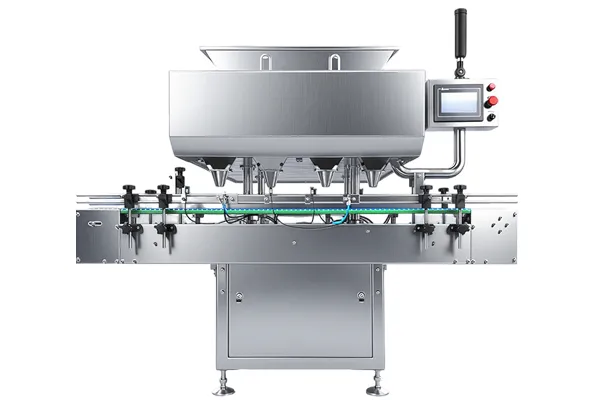

3. Counter & Filler: The heart of the line using vibratory feeders and optical sensors.

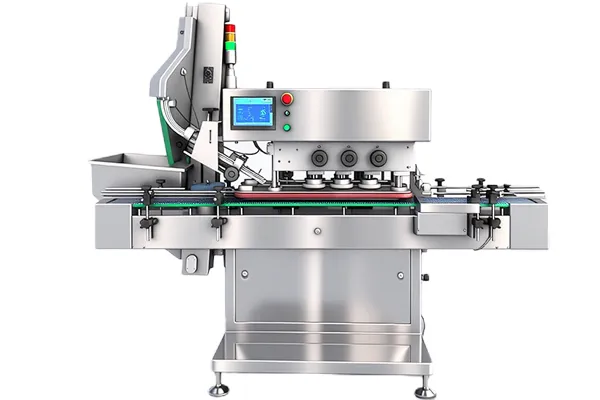

4. Capper: Applies child-resistant or screw-on caps with consistent torque.

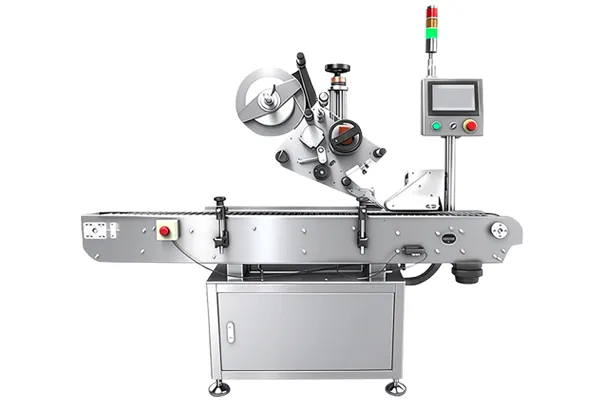

5. Labeler: Applies primary labels with lot numbers and expiry dates.
6. Checkweigher: Rejects bottles outside weight tolerance.
| Model | 8C | 12C | 16C | 24C | 32C |
|---|---|---|---|---|---|
| Speed (bottles/min) | 10-60 | 30-70 | 40-90 | 60-120 | 70-150 |
| Channels | 8 | 12 | 16 | 24 | 32 |
| Power (KW) | 0.5 | 0.5 | 1.1 | 1.6 | 2.1 |
| Accuracy | ≥99.5% | ||||
| Counting Range | 1-9999 units/bottle | ||||
After rigorous quality testing, machines are wrapped in stretch film and fixed in wooden cases to ensure safety during sea, air, or rail transport.
