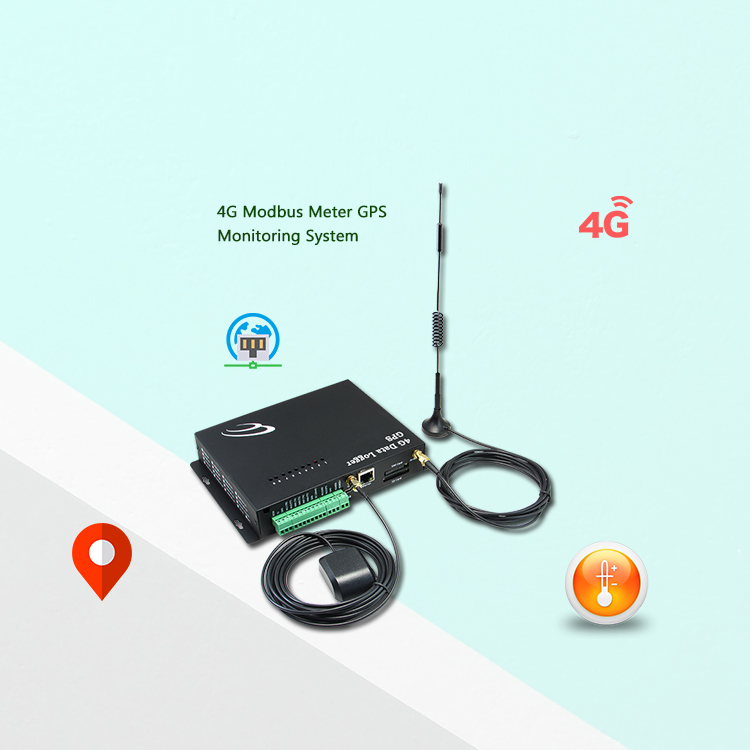

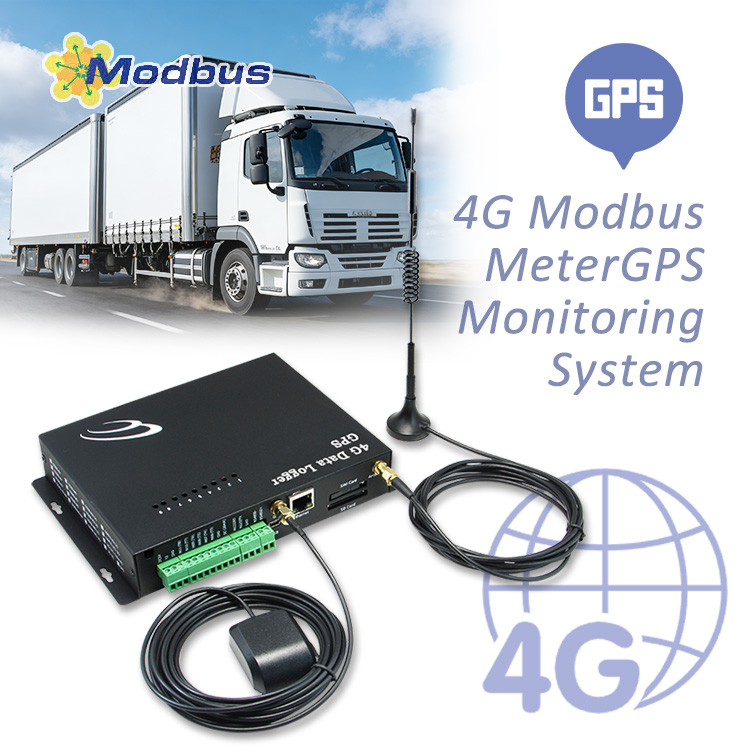

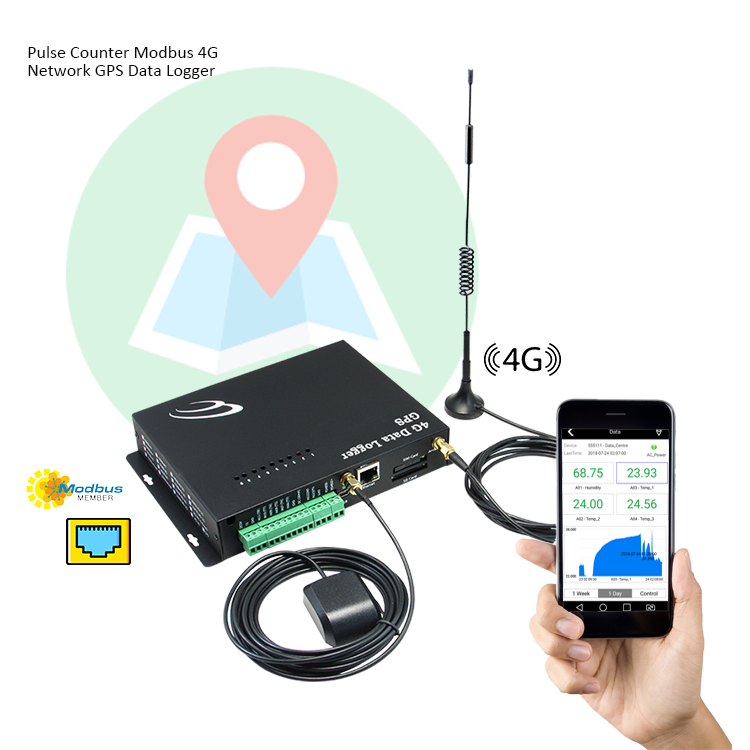

GSN8-MS-4GP is a Modbus and Ethernet Data Logger with GPS.

It uploads sensors data, Modbus meter reading via 4G network.

It is a 4G Ethernet Modbus Data Logger with programmable I/O and GPS. 4G Ethernet Data Logger provides faster wireless connection in a more secure and reliable 4G mobile and Ethernet network.

UPS Feature Its built-in UPS feature providing user alert of AC power loss. During power loss, operation is backed up by internal rechargeable battery.

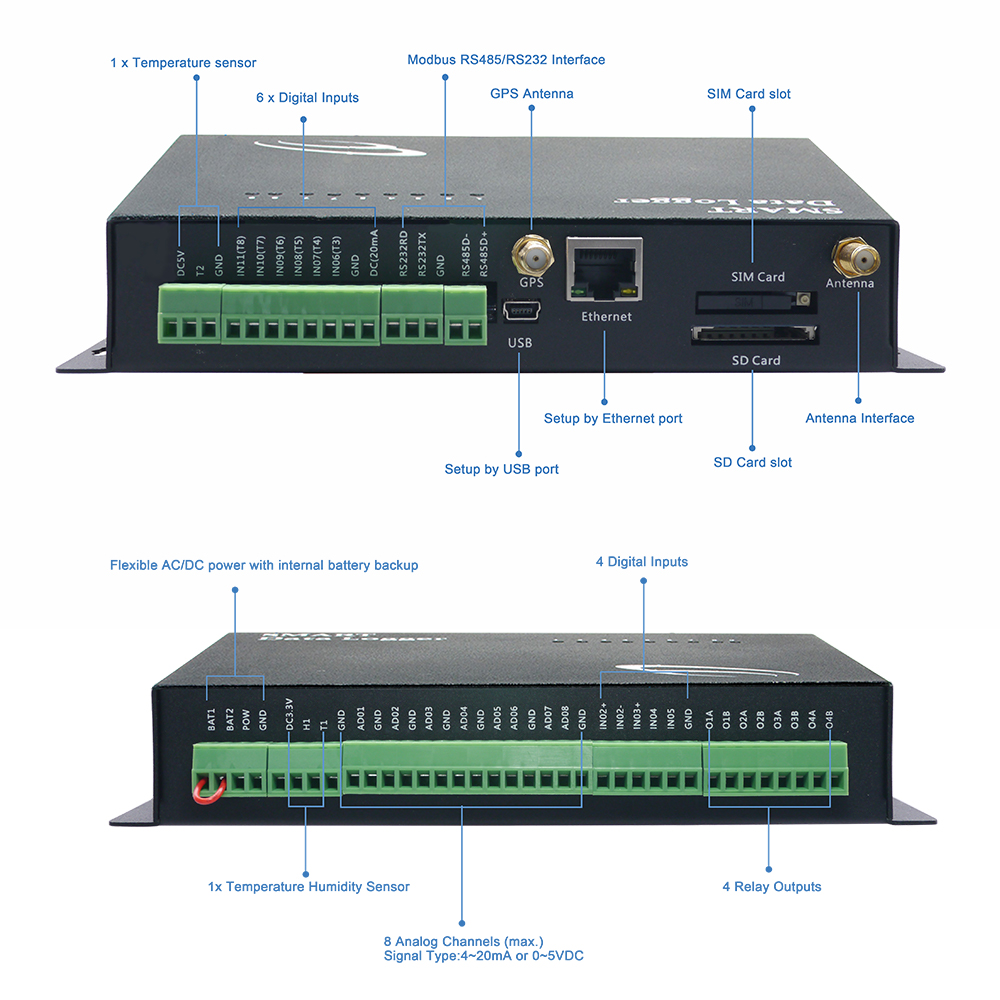

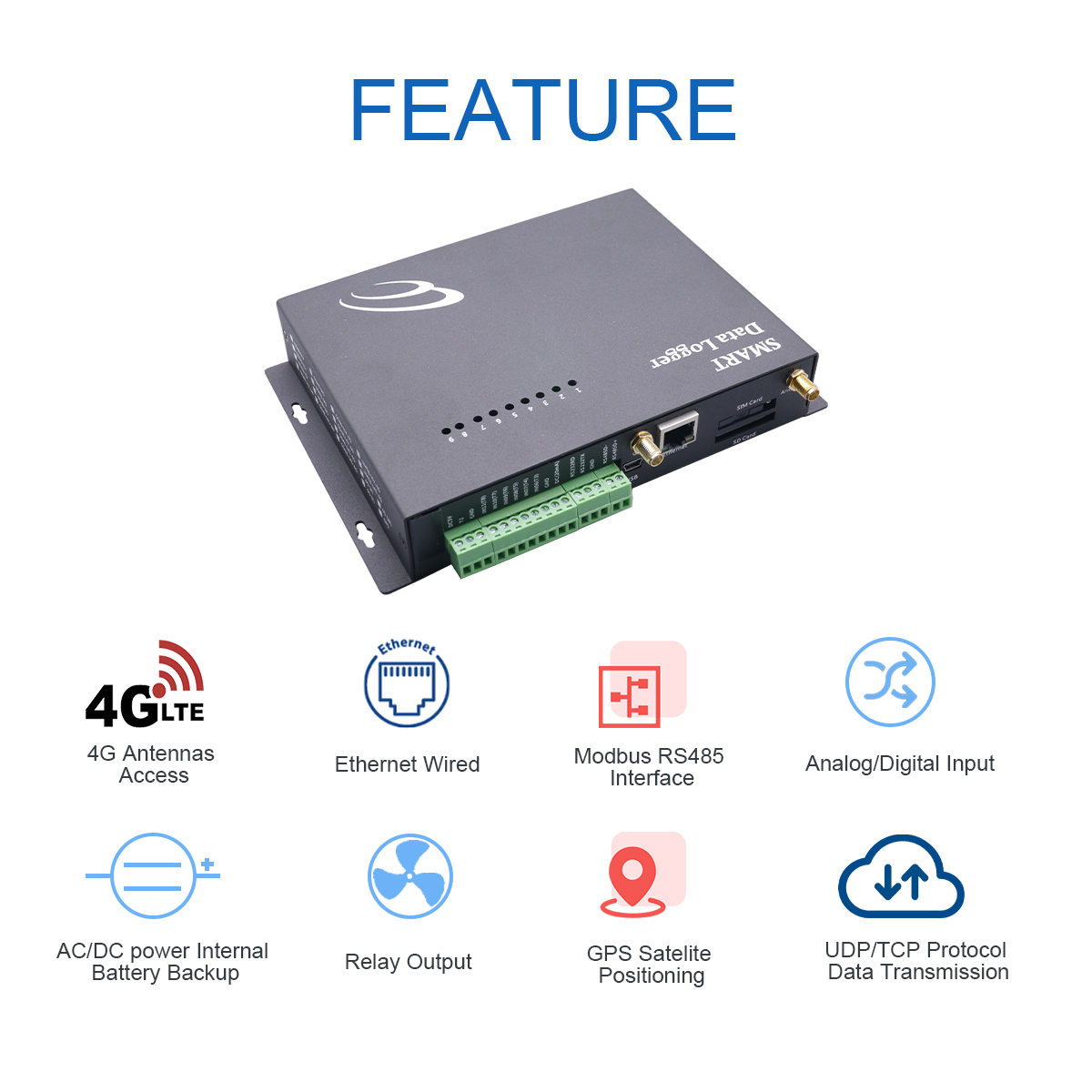

• GPS module built-in
• 2 Temperature Sensors (max.) / 1 Humidity Sensor
• 8 Analog Channels (max.) / 10 Digital Inputs
• 4 Pulse Channels / 4 Relay Outputs
• Modbus RS485 Interface (16 Modbus Data Registers)
• 32GB SD memory card slot
• Internal 4MB memory logs ~30000 data records
• Programmable data logging interval (1 min to 24 hours)

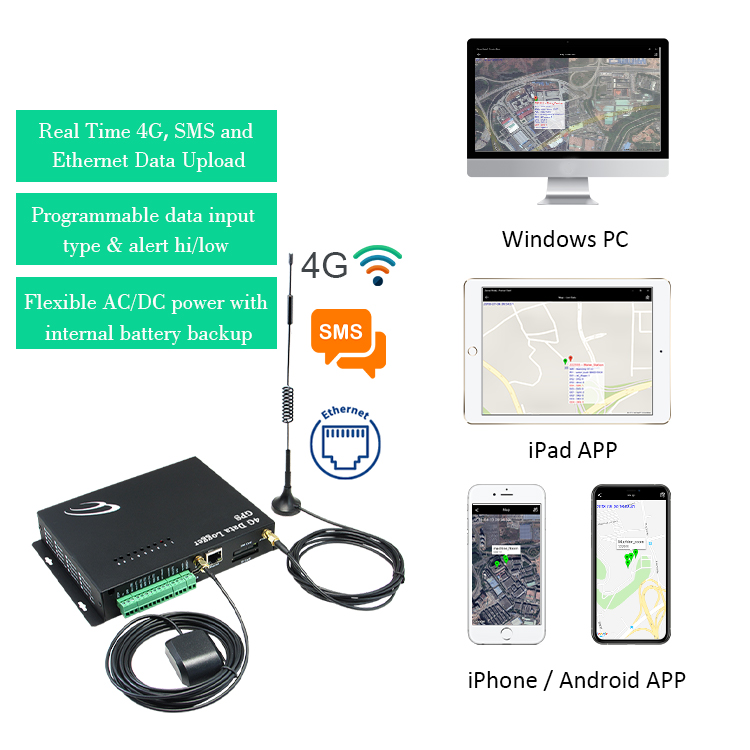

• Real Time 4G and SMS Data Upload with GPS
• Integrated 16 bit MCU & Siemens 4G and Ethernet Module
• Programmable data input type & alert hi/low
• Easy setup via USB port by PC software or Remote 4G network
• RS485 Port support data capturing in Modbus protocol
• Support Dynamic Domain Name or Fixed IP, UDP/TCP transmission
• Flexible AC/DC power with internal battery backup

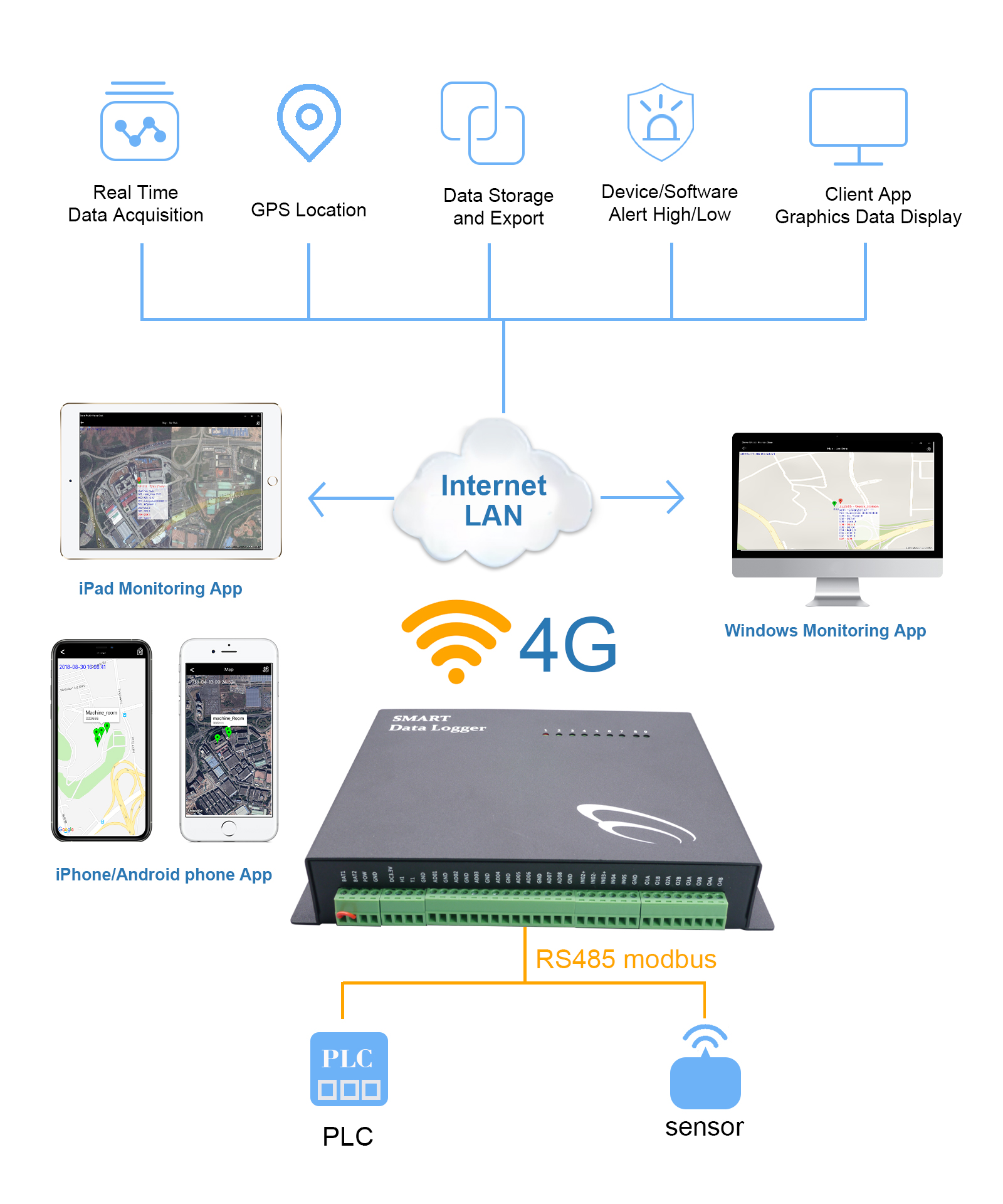

1) Setup Software: Bundled for routine configuration via USB port locally.

2) Centre Software: Provided for receiving data via 4G mobile network.

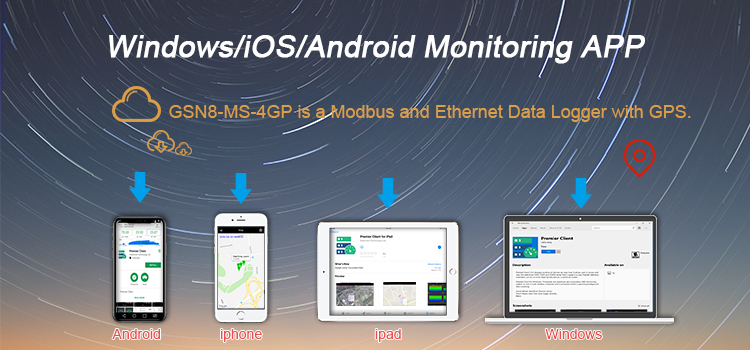

3) Smart Client Lite App: (Windows, iPad, Android) Free for user friendly graphics data display.

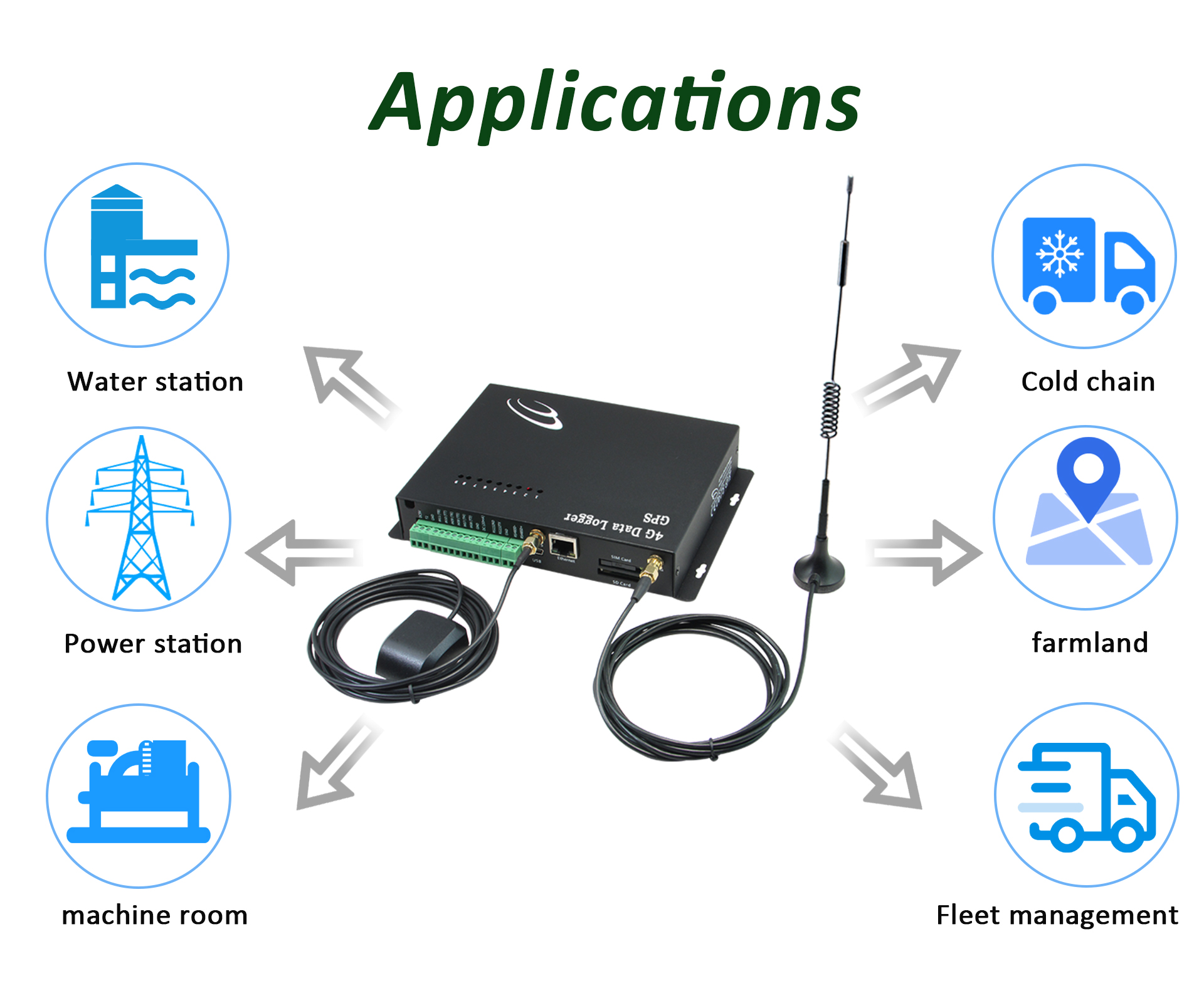

• Water & Oil/Gas pipes network real time monitoring
• Underground water level monitoring
• Environmental system: wind, temp, humidity, CO2, pressure
• Remote Industrial and Rural equipment monitoring (power plants, antenna towers)
• Food chain, storage, transport industry and building management
• Agricultural, farming, laboratory, and medical industry
