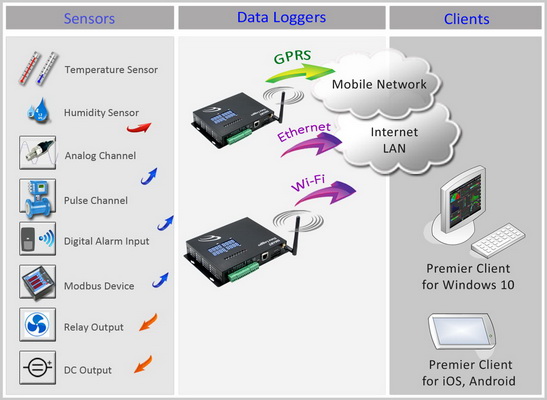

GSN8-HV-4G uploads data via 4G mobile and Ethernet network.
All channels can be configured with alarm levels.

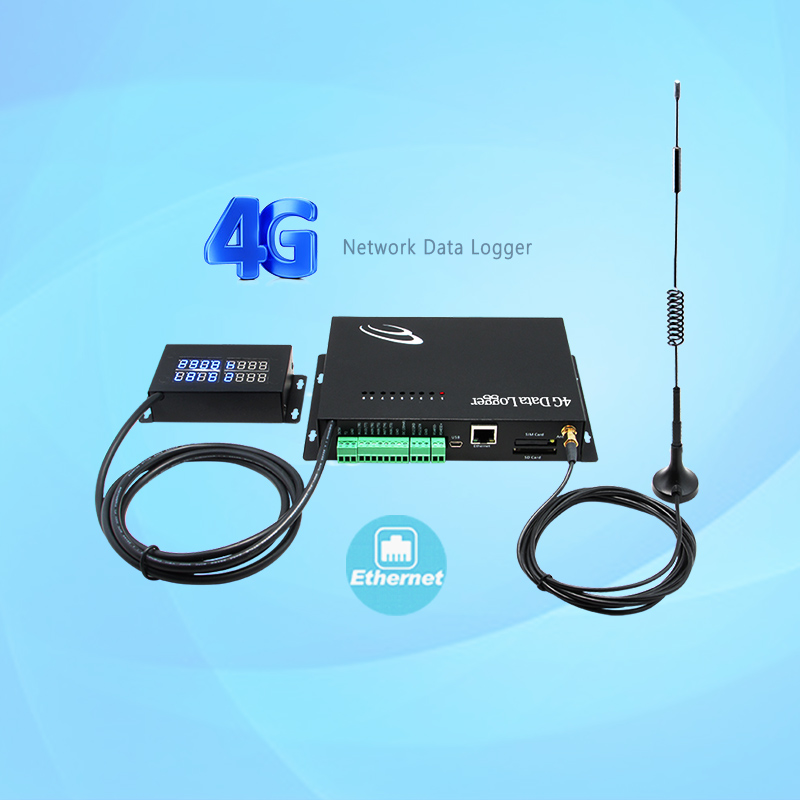

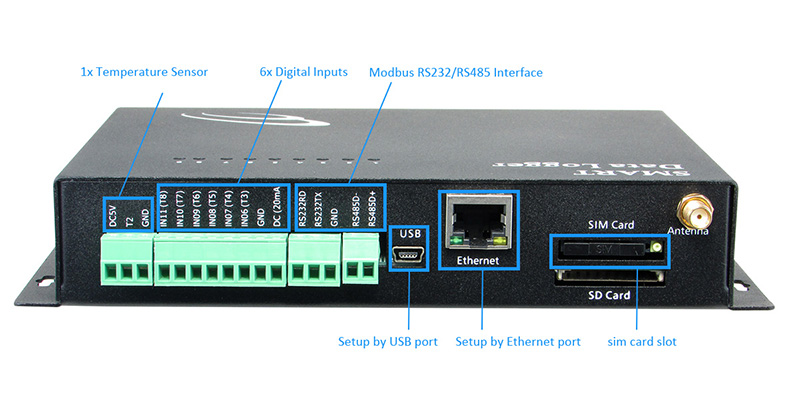

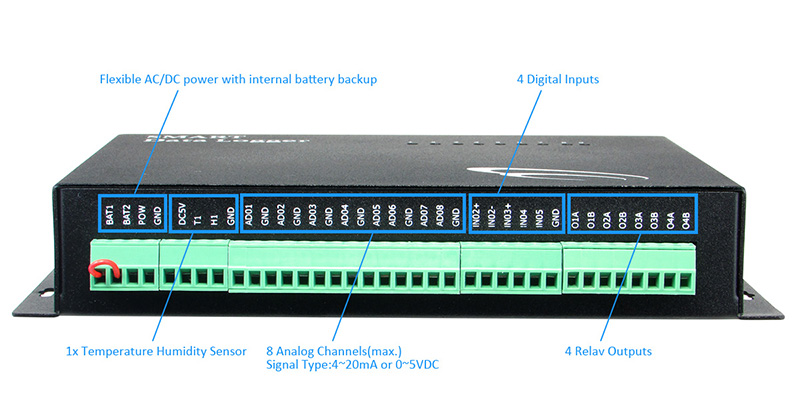

GSN8-HV-4G is a data collector with temperature, humidity, analog, pulse and digital channels.
Data is delivered via 4G mobile and Ethernet network.

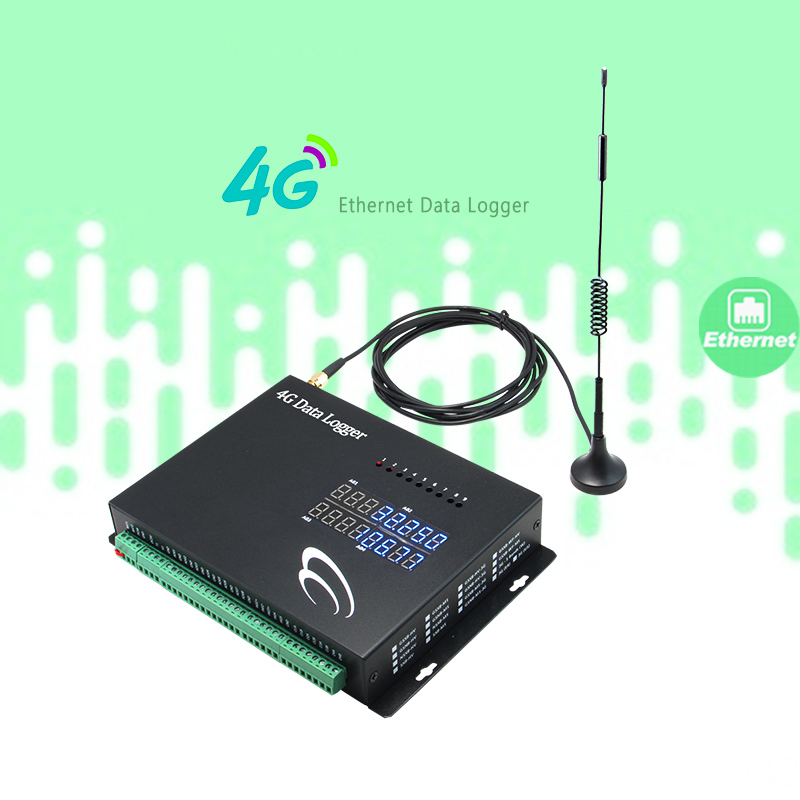

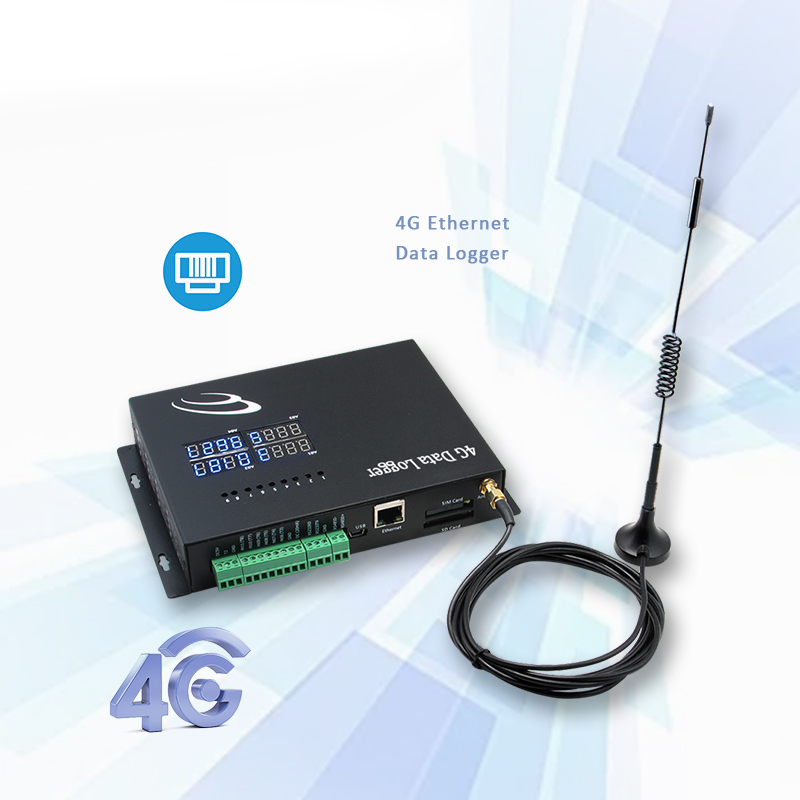

It is a Temperature and Humidity Data Logger with built-in module supporting worldwide 4G mobile network. 4G Ethernet Data Logger provides faster wireless connection in a more secure and reliable 4G mobile and Ethernet network.
Its built-in UPS feature providing user alert of AC power loss. During power loss, operation is backed up by internal rechargeable battery.
Its internal 4MB memory logs ~30000 data records, and expandable to 32GB with SD card. Data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power. Programmable data logging interval starts from 1 minute up to 24 hours.
| System Parameter | Details | ||
|---|---|---|---|
| Power Input | 9 ~ 15VDC | Data Upload | On Schedule / Manual Request / Alarm Triggered |
| Protocol | [Ethernet - UDP & TCP], [GPRS - UDP & TCP] | Certificate | CE, RoHS |
| Display Type | Analog and Digital | Internal Data Record | Average 30000 records (4MB) |
| Alarm Trigger | Digital Alarm / AD Level High or Low / Power Loss | Digital Channel | Alarm Dry Contact |
| Signal Type | 4~20mA or 0~5VDC | Data Logging Interval | Programmable (1 ~ 60 minutes) |
| Data Transmission | GPRS, SMS, Ethernet | Data Upload Interval | Programmable (5s ~ 24 hours) |
| Temperature Channel | -55 ~ 125 °C | Pulse Channel | On/Off Switching |
