The pioneer supplier of turnkey plants provides integrated engineering solutions for worldwide pharmaceutical factories such as IV solution, vaccine, oncology etc., in compliance with EU GMP, US FDA cGMP, PICS, and WHO GMP.
We provide the most reasonable project design, high-quality equipment, and customized service to different pharmaceutical and medical factories from A to Z for Non-PVC soft bag IV solution, PP bottle IV solution, Glass vial IV solution, Injectable Vial & Ampoule, Syrup, Tablets & Capsules, Vacuum blood collection tube etc.

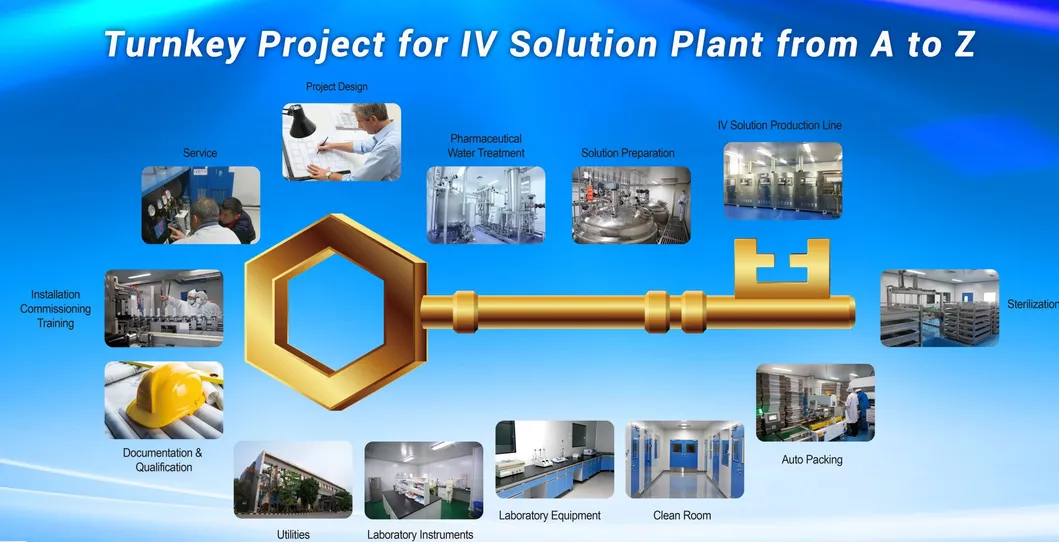

Integrated engineering solutions for pharmaceutical and medical factories include the clean room, auto-control and monitoring system, pharmaceutical water treatment system, solution preparing and conveying system, filling and packing system, automatic logistics system, quality control system, central laboratory and etc. Customized engineering solutions meticulously cover:

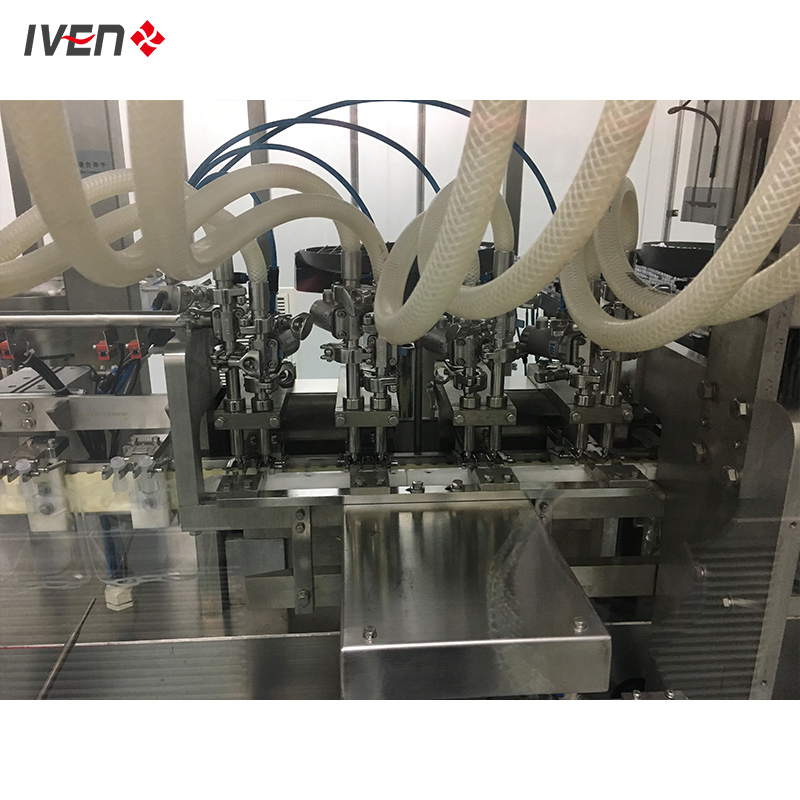

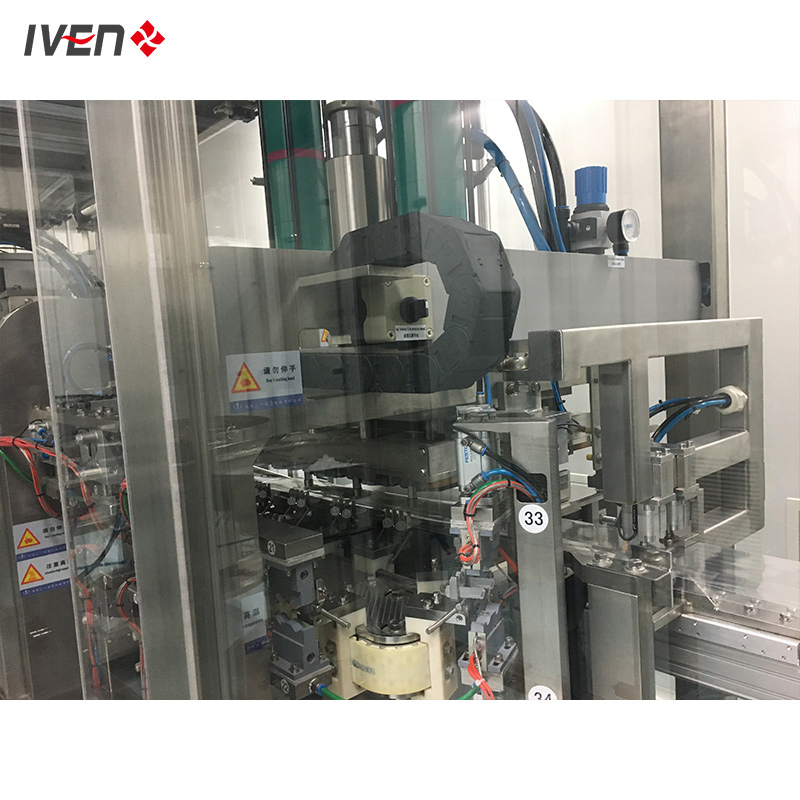

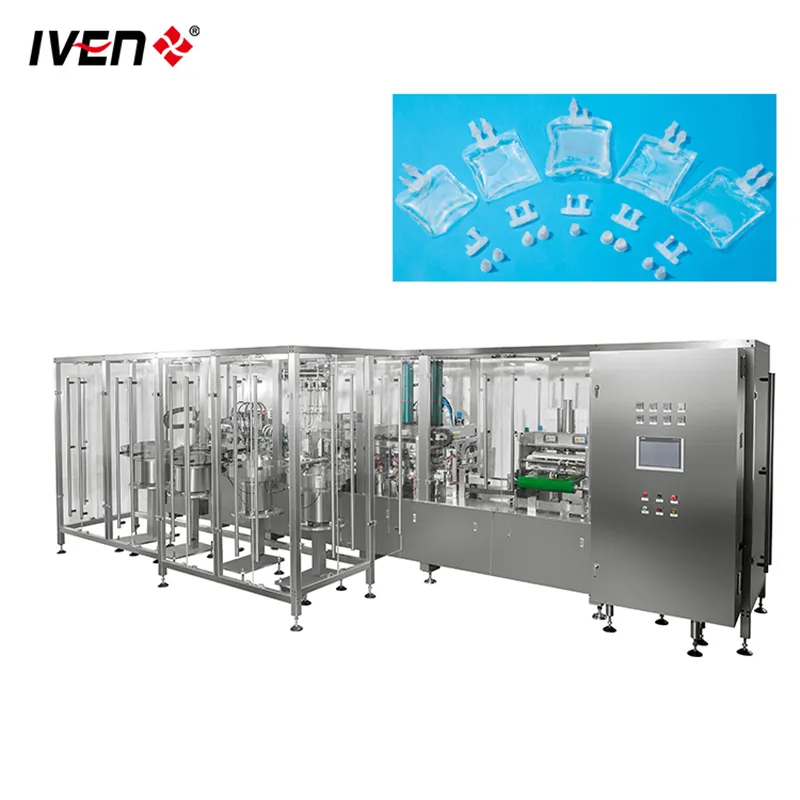

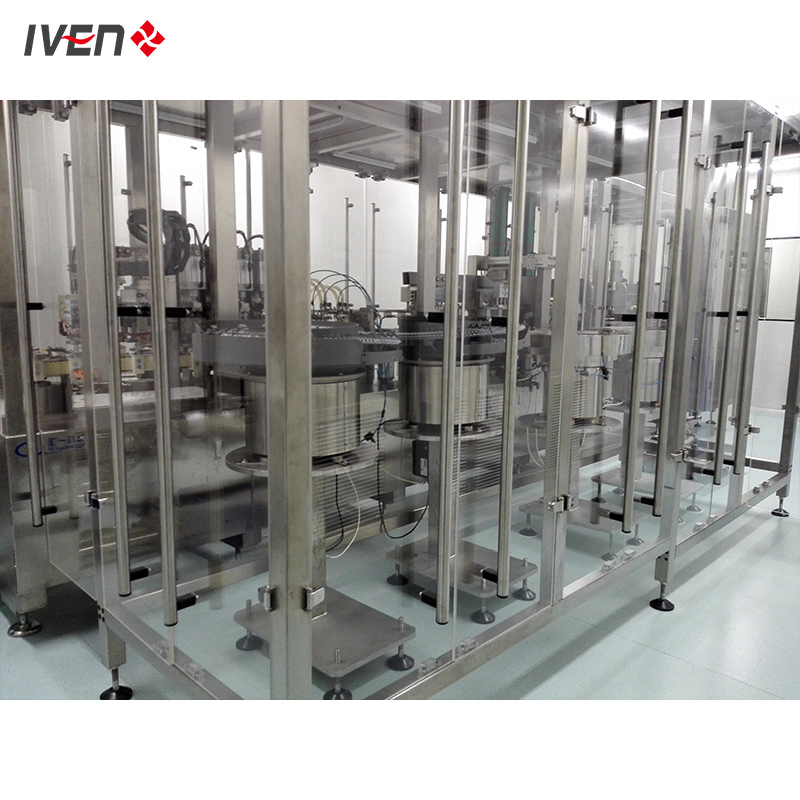

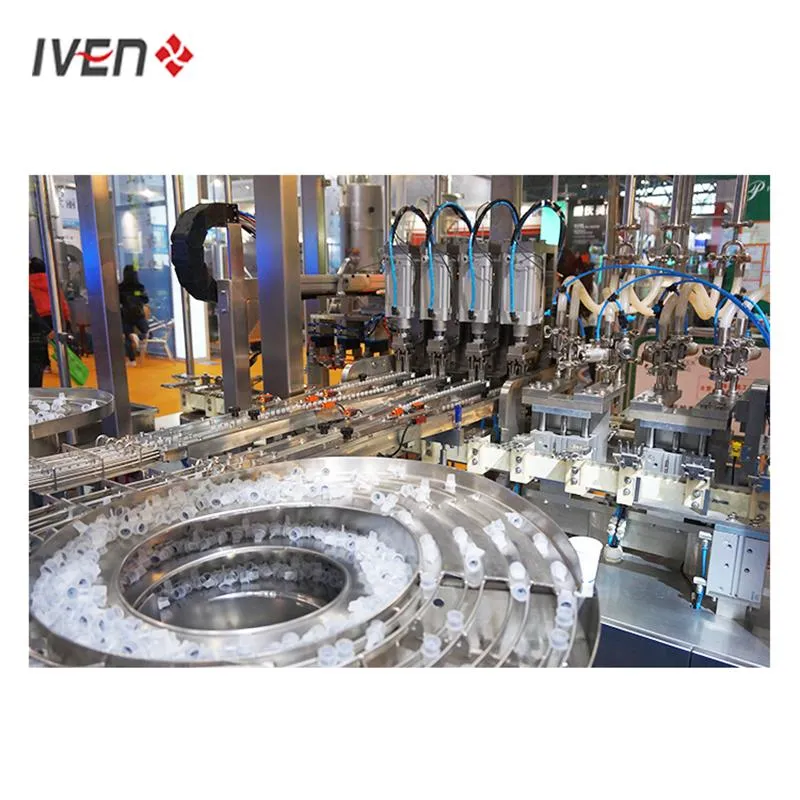

1. Non-PVC soft bag IV solution Forming-Filling-Sealing production line:

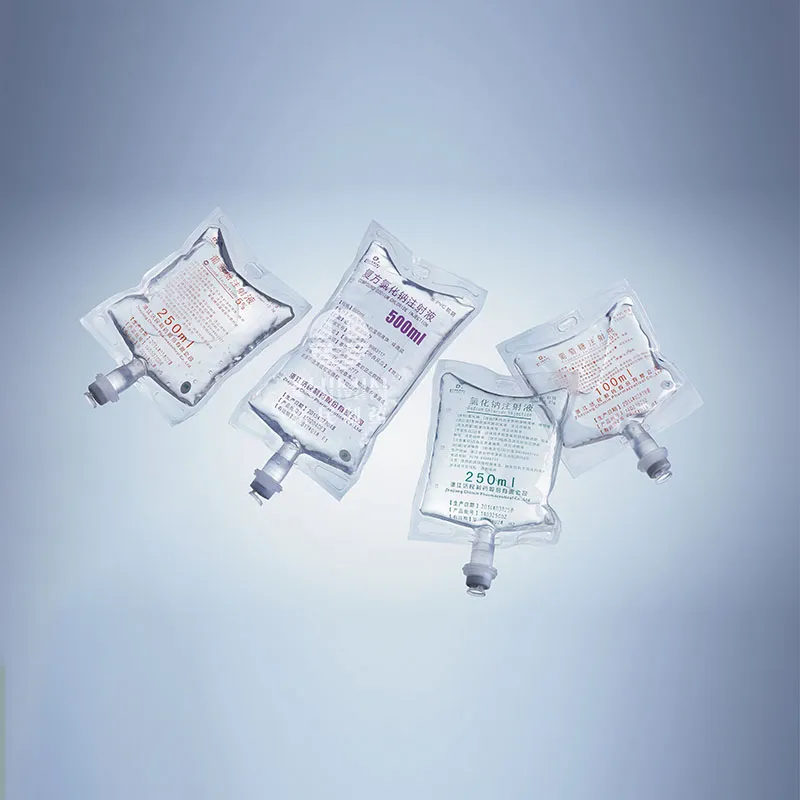

This line is used to produce IV bag by Non-PVC(PP) film, and finishing bag forming, printing, filling and sealing by the same machine. The IV bag size ranges from 100ml - 5000ml. Only need half an hour to change from one size to another. It has special design of 130mm width to save film, also can realize 100% film utilization, no any waste material.

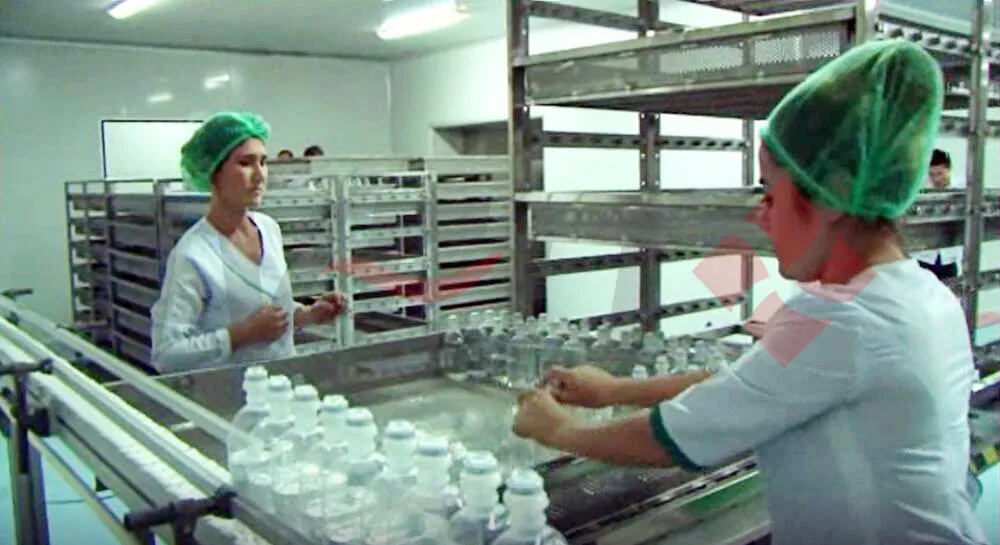

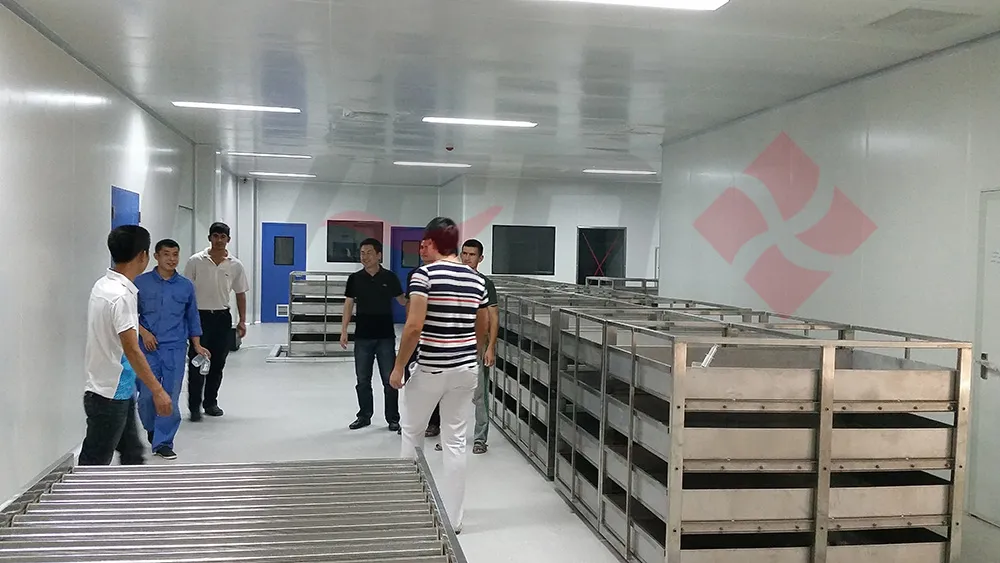

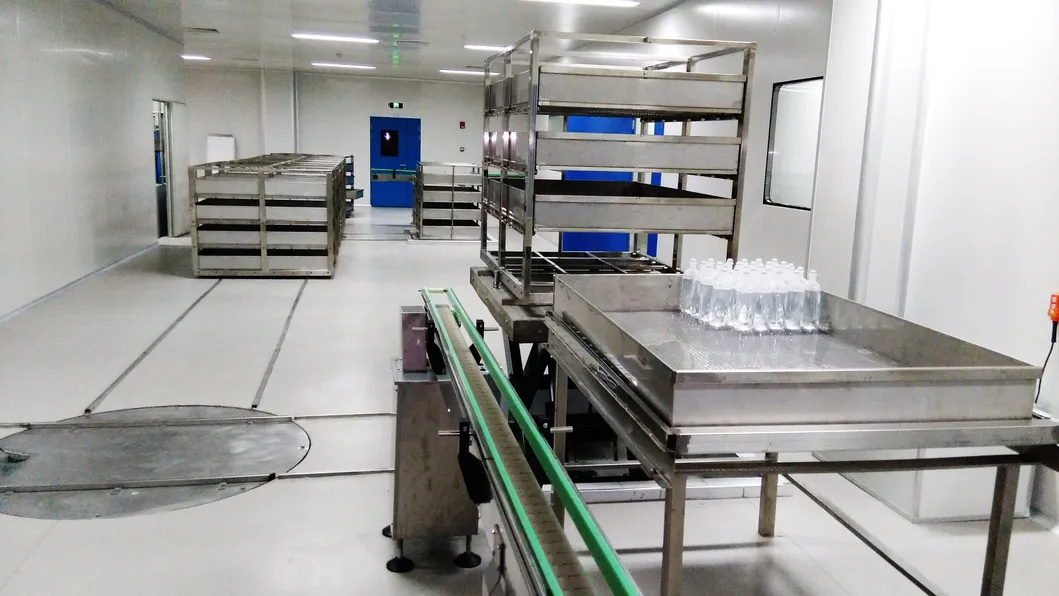

2. Sterilizing system:

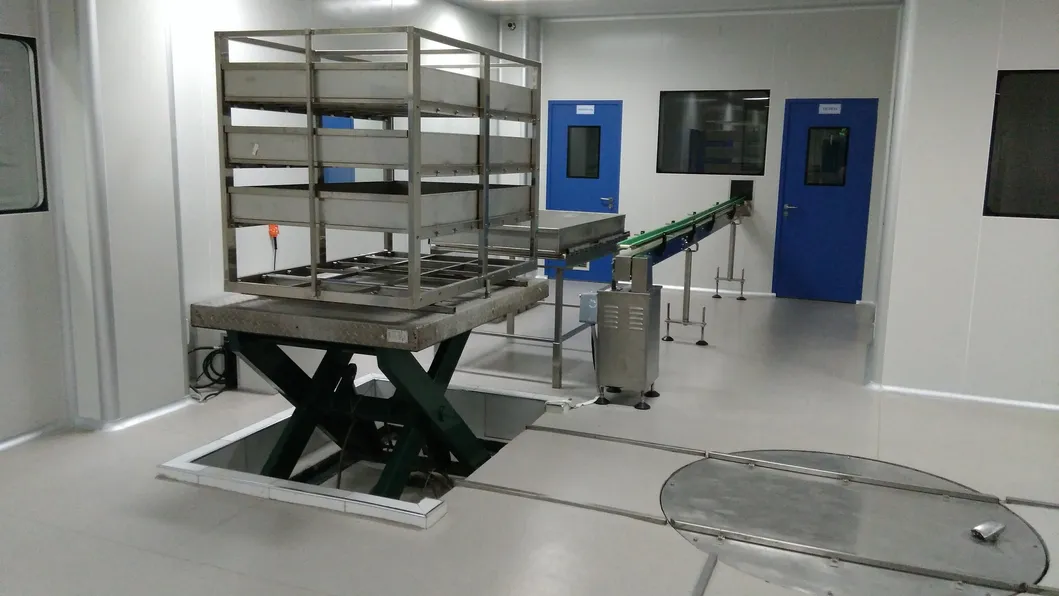

Used to sterilize the finished IV bag by superheated water at 121ºC. Sterilizing time ranges from 15 - 30 minutes. We can equip with automatic IV bag loading/unloading machines and automatic sterilizing carts conveying systems.

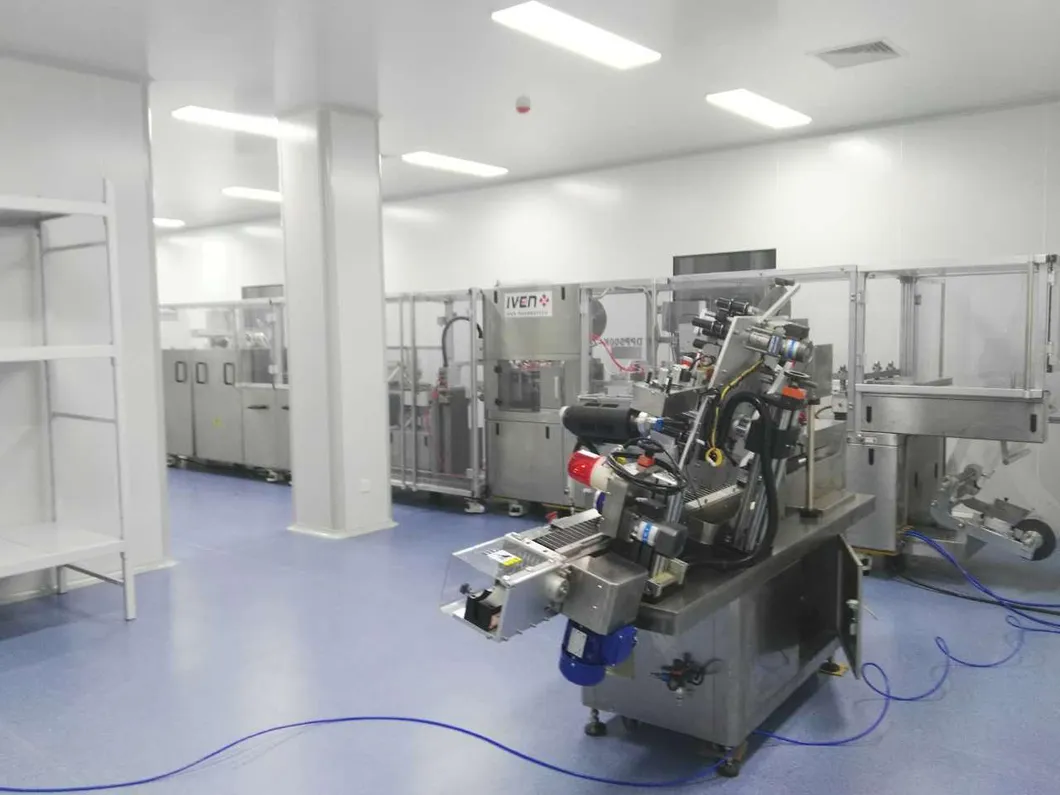

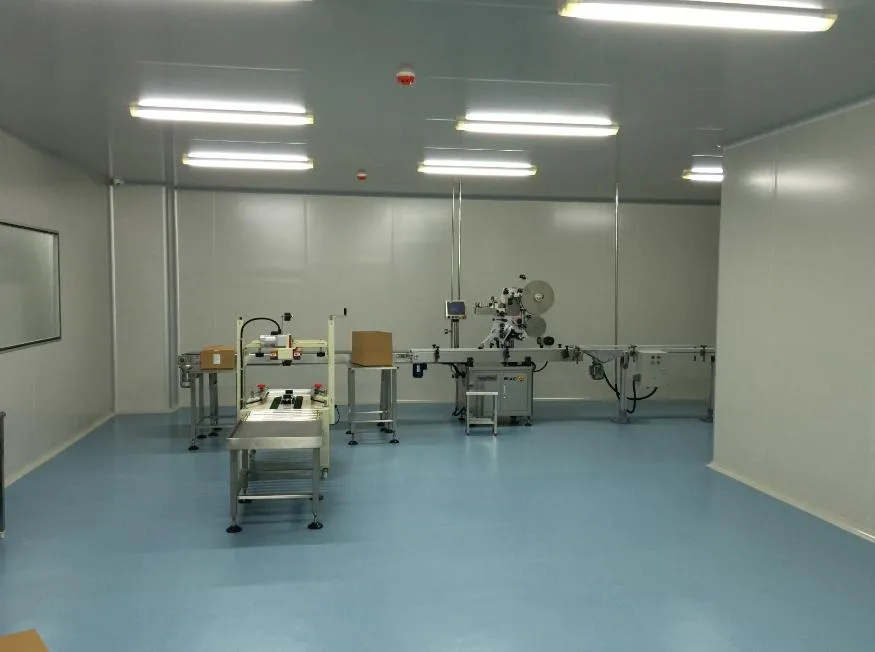

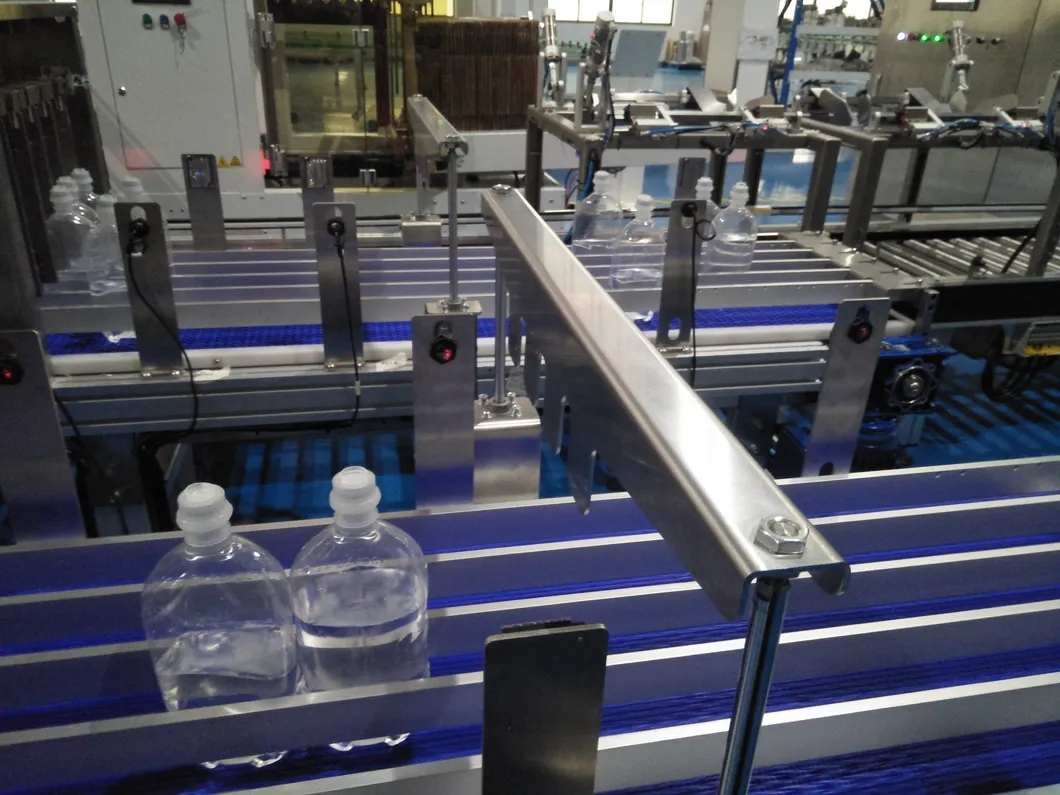

3. Packing system:
Finishes IV bag drying, leak detection, light inspection, overwrapping and carton packing. Includes options for automatic shipping carton opening, manual/certificate inserting, sealing, labeling, data tracing, and auto rejection systems.

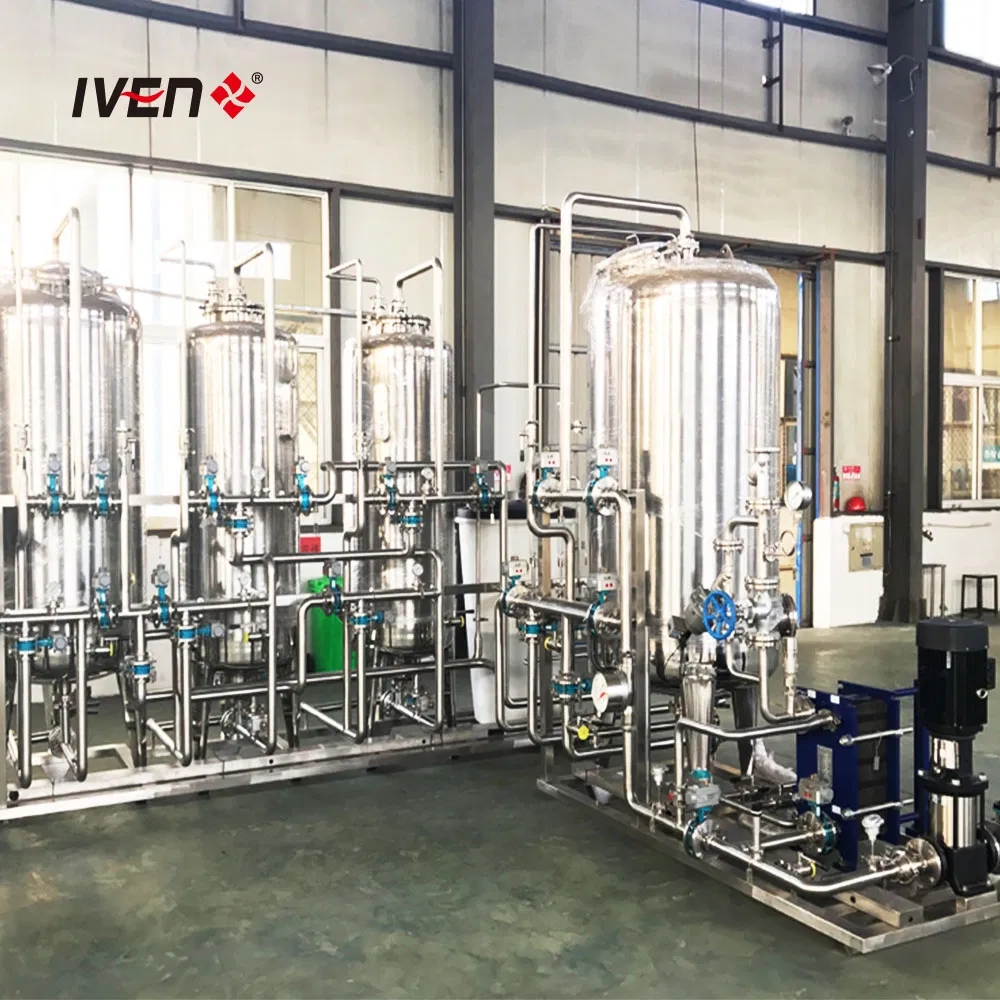

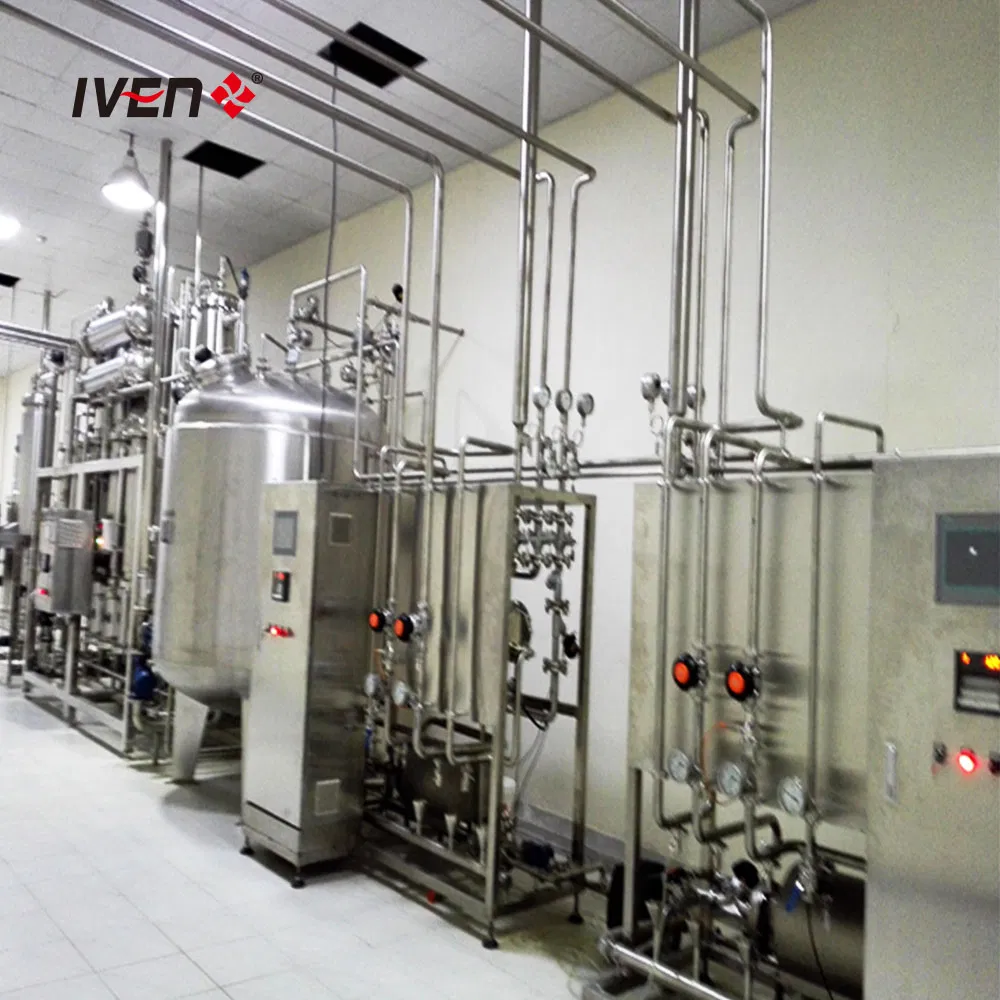

4. Pharmaceutical water treatment:
Includes purified water treatment (2RO+EDI), water distiller (WFI), and pure steam generator. PW tank and WFI tank are included.

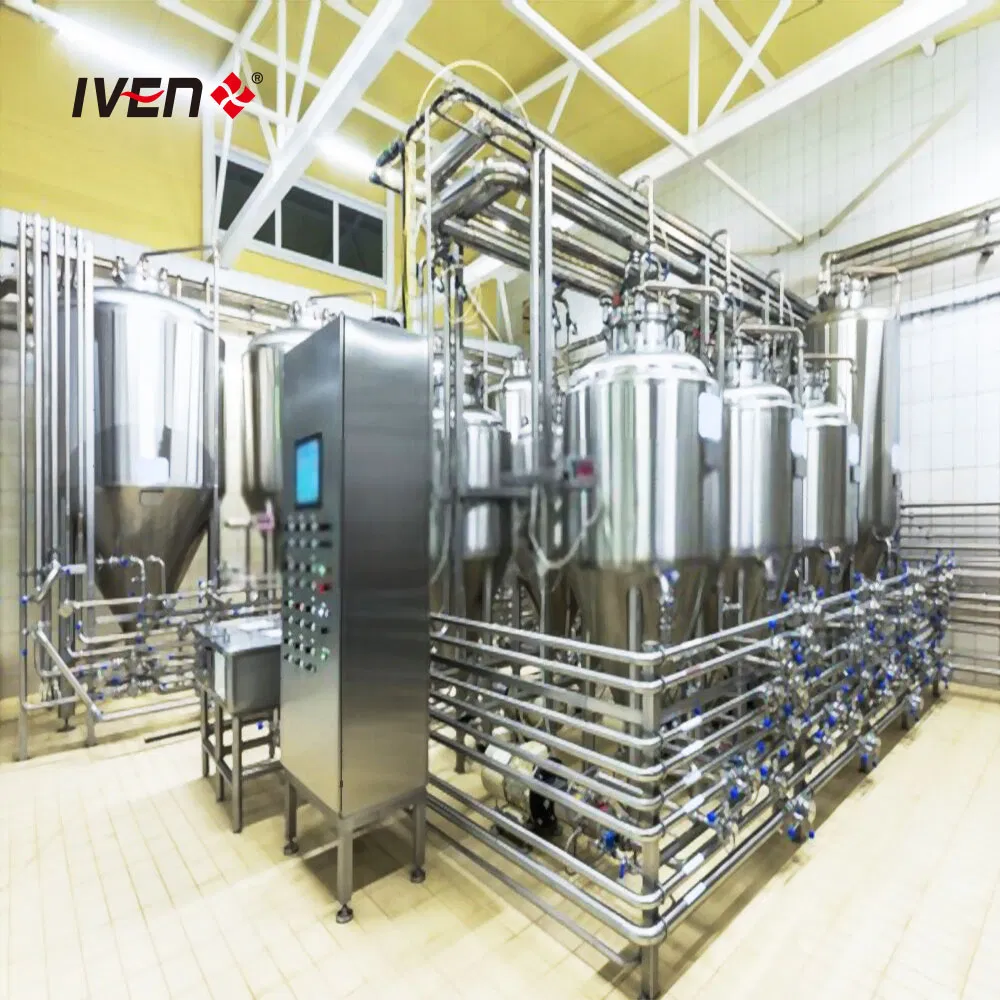

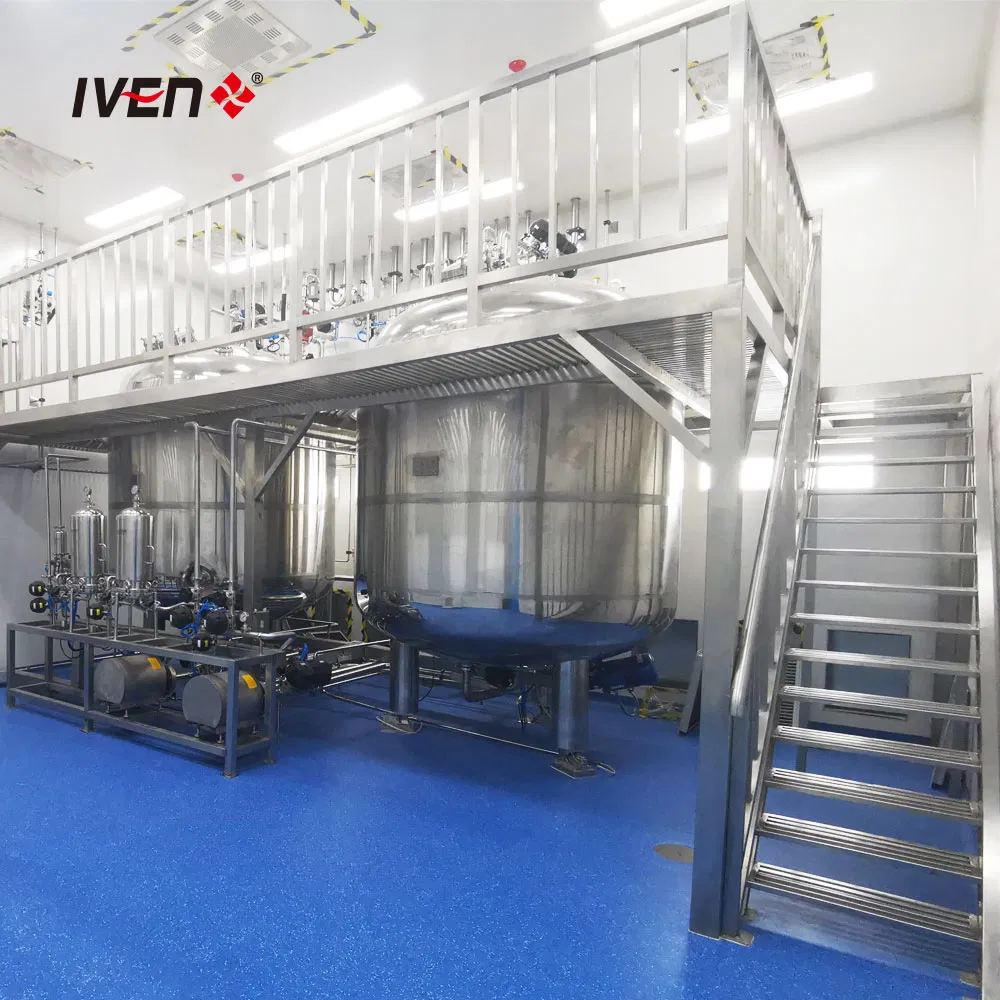

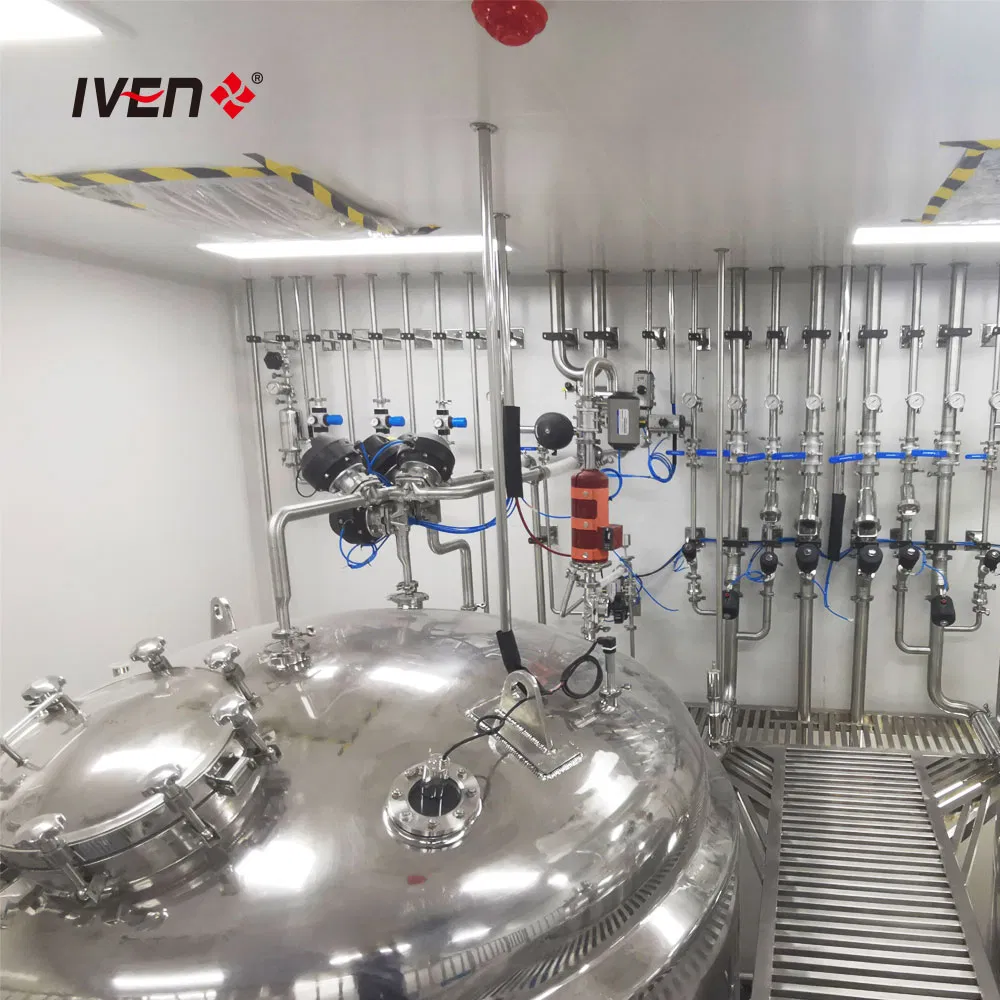

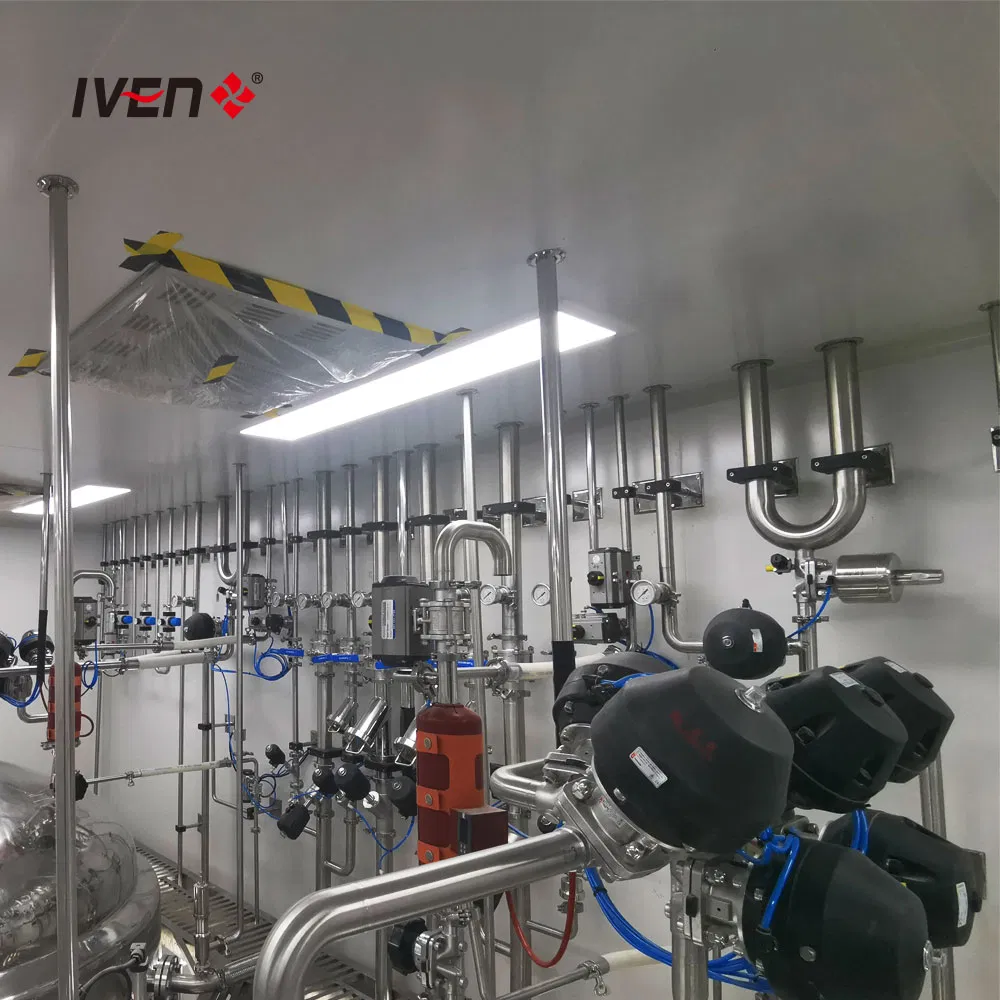

5. Solution preparation system:
Mixes medicine with injection water using solution preparation tanks equipped with load cells and magnetic stirring systems.

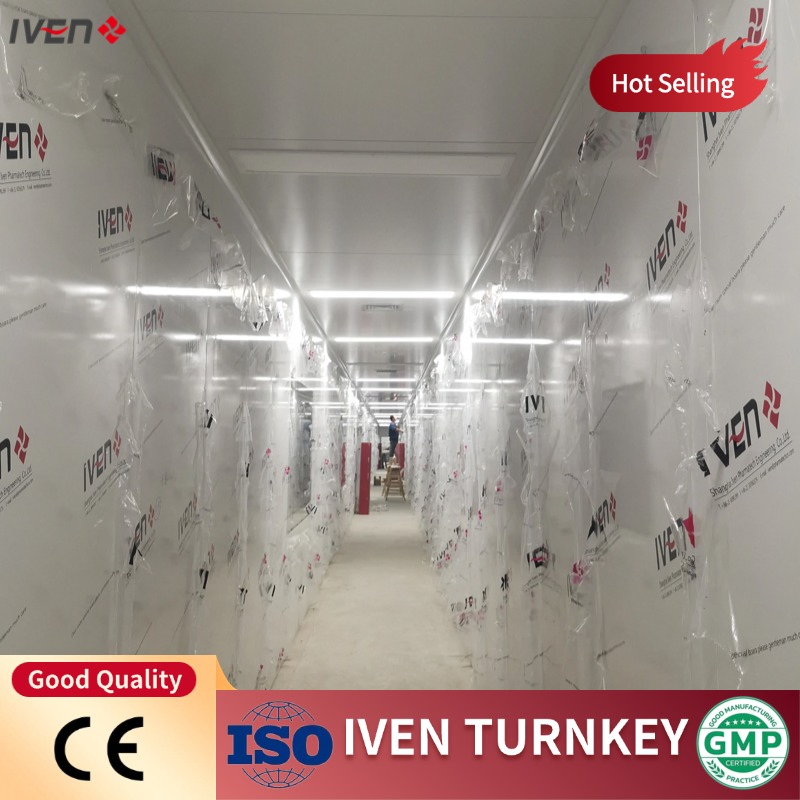

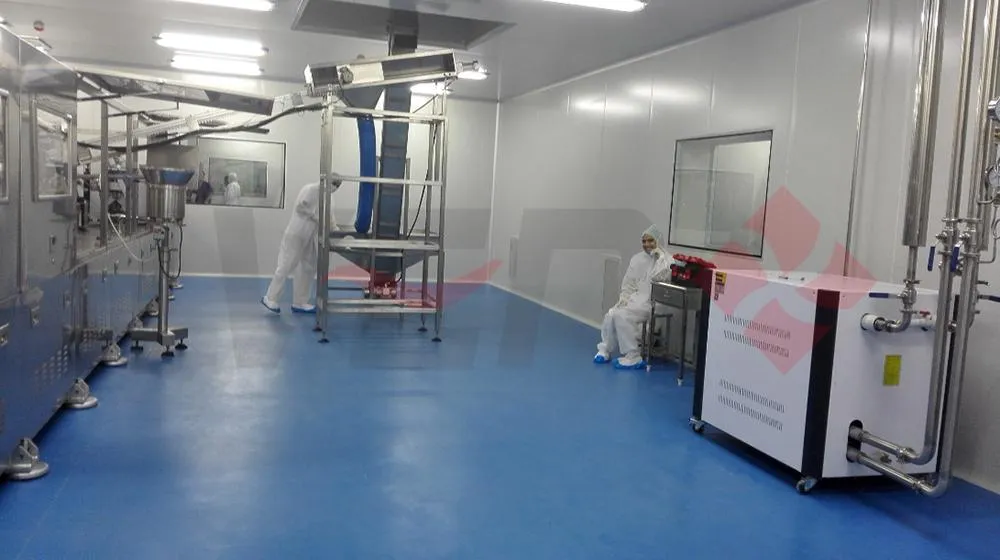

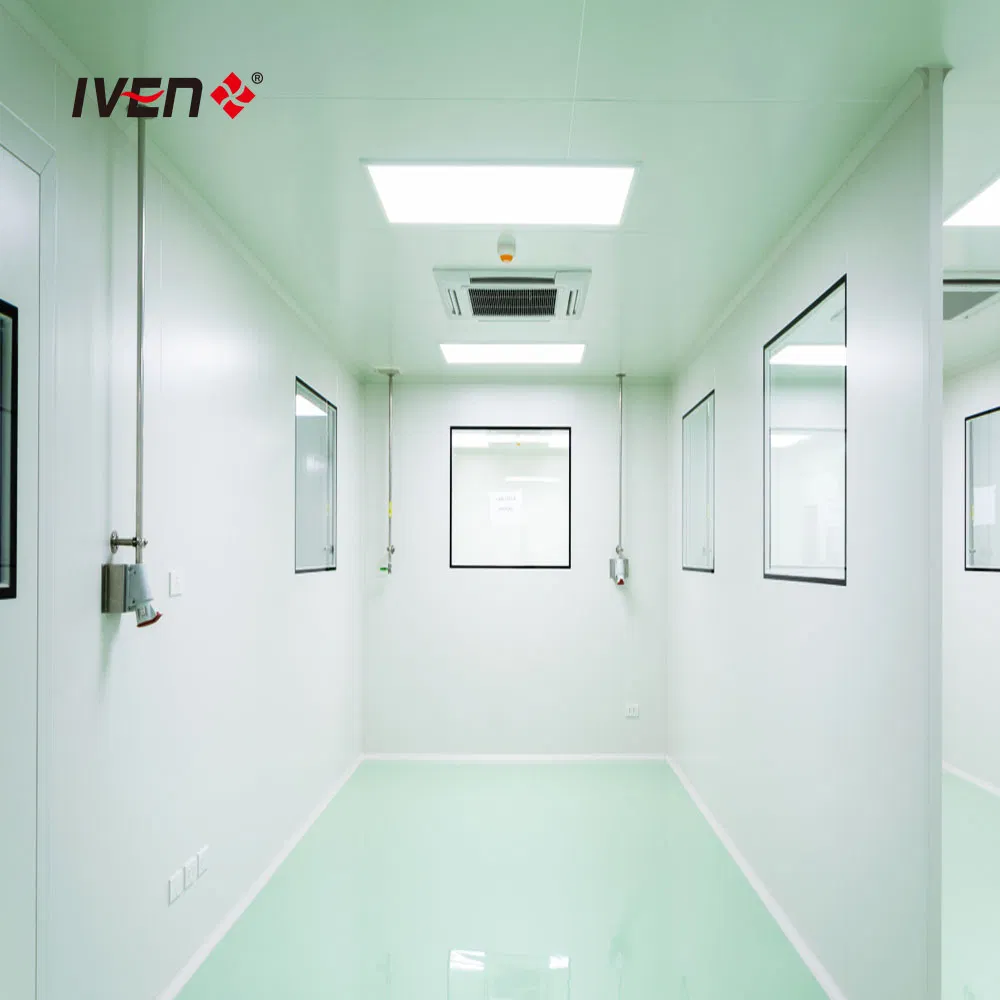

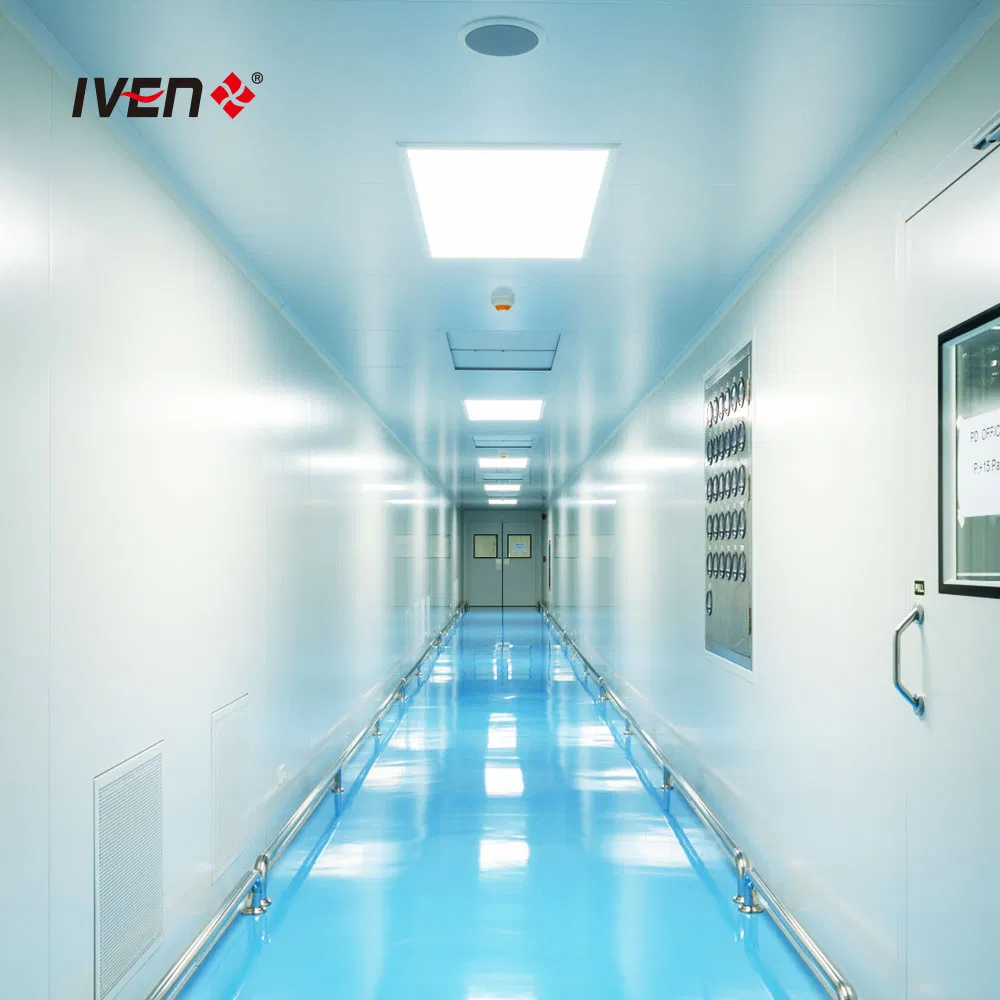

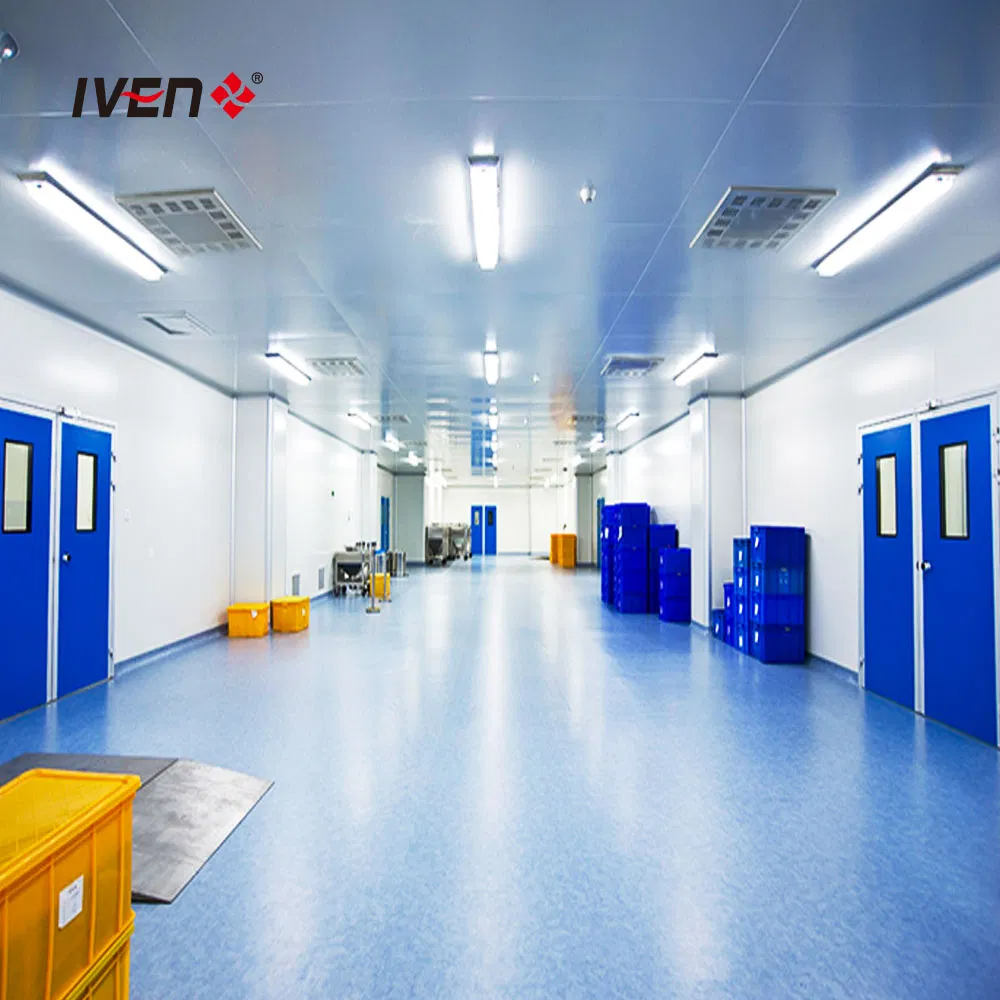

6. Clean room & HVAC:
Includes wall panels, ceiling panels, windows, doors, flooring, lighting, AHU, HEPA filters, air ducts, and auto control systems to maintain Class C + A environments.

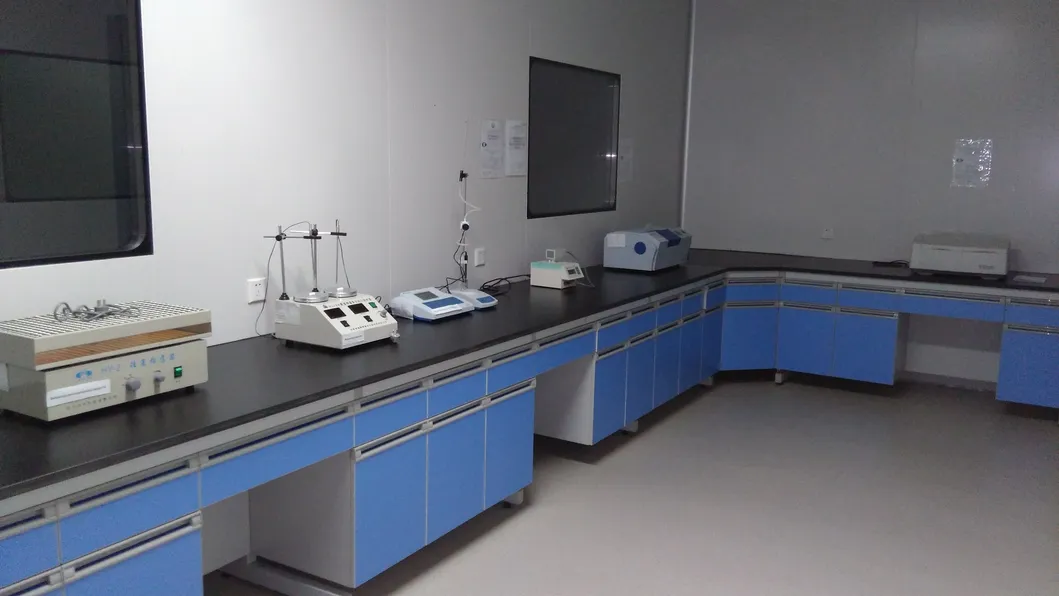

7. Laboratory:
Equipped with lab testing instruments and furniture for IV bag samples and raw material testing, including stability chambers, HPLC, and spectrometers.
| Model | Srd1a | Srd2a | Srd3a | Srd4a | Srd6a | Srd12a |
|---|---|---|---|---|---|---|
| Capacity (500 ml) | 900 bph | 2000 bph | 2800 bph | 3600 bph | 5000 bph | 8000 bph |
| Power Source | AC 380V 50Hz | |||||
| Power (kw) | 8 | 22 | 26 | 32 | 32 | 60 |
| Compressed Air | ≥ 0.6 mpa, dry and oil-free | |||||
| Running Noise | <75 db | |||||
| Overall size (m) | 3.26*2.0*2.1 | 4.72*2.6*2.1 | 5.52*2.7*2.1 | 6.92*2.7*2.1 | 8.97*2.7*2.25 | 8.97*4.65*2.25 |
