• Structure: Evaporator, preheater, and condenser designed with double tube sheets to avoid cross-contamination.
• Separation: Three-stage separation system involving falling film evaporation, gravity separation, and spiral flow.
• Material Quality: All parts in contact with raw water and pure steam are constructed from SS316L.
• Insulation: High-stability aluminum silicate needle-punched blankets ensure excellent heat retention.
• Surface Treatment: Electrochemical polishing ensures smooth internal and external surfaces; sandblasting available for external parts.
• Energy Saving: Optimized communicating device design allows rapid production capacity and full utilization of industrial steam condensate.
• Advanced Welding: Automatic argon-protected welding and direct stretching of elbows to minimize welding points.
• Full Control: HMI+PLC automatic control system with multiple authority levels and online parameter monitoring (conductivity, temp, flow).

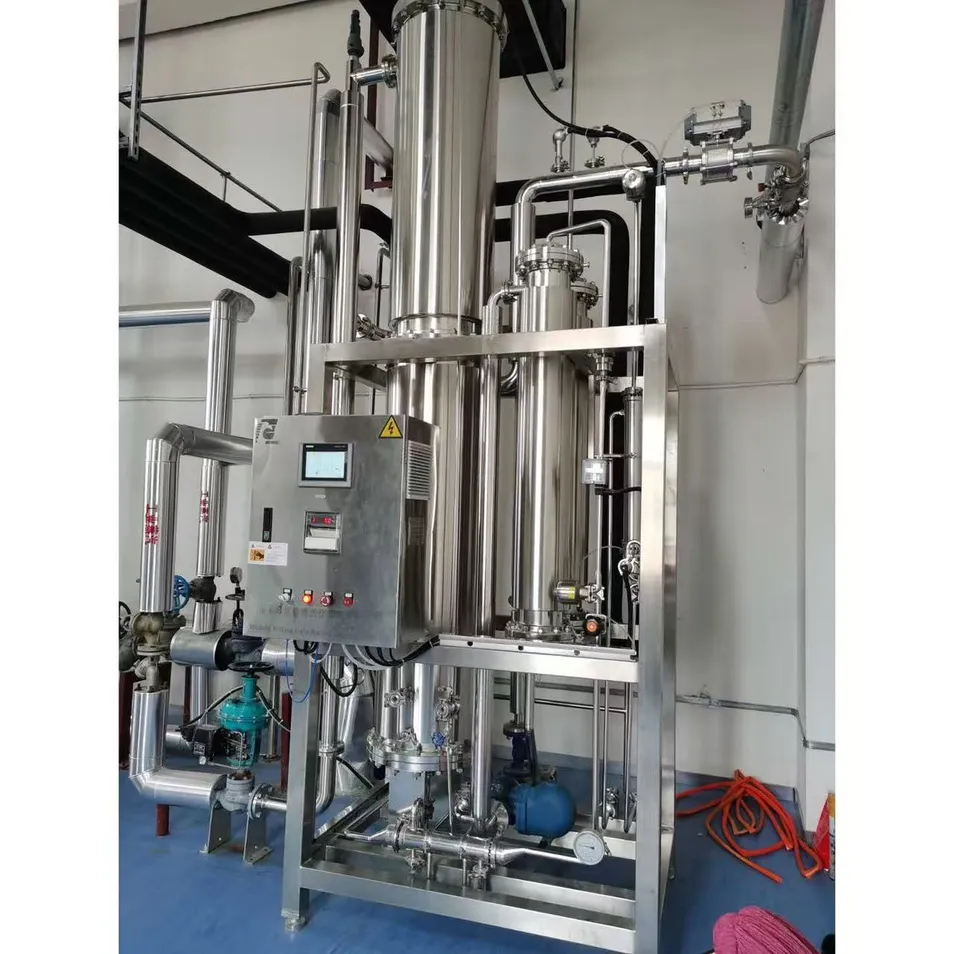

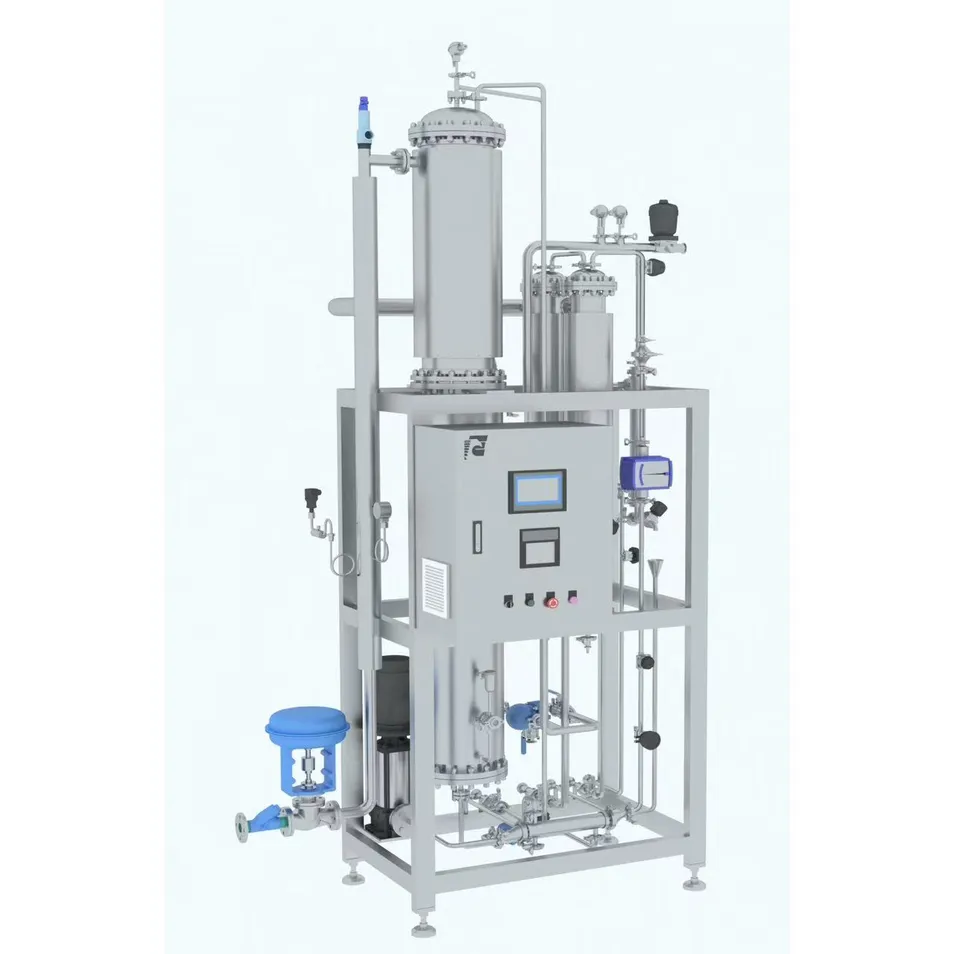

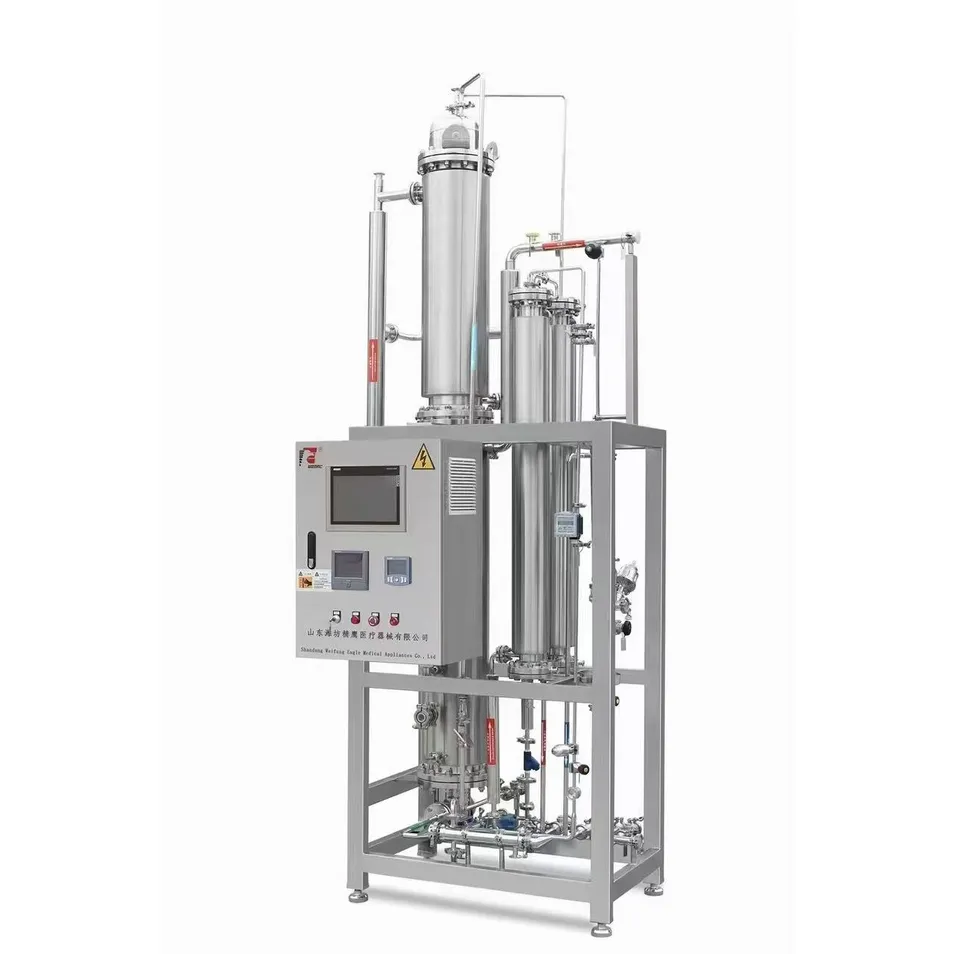

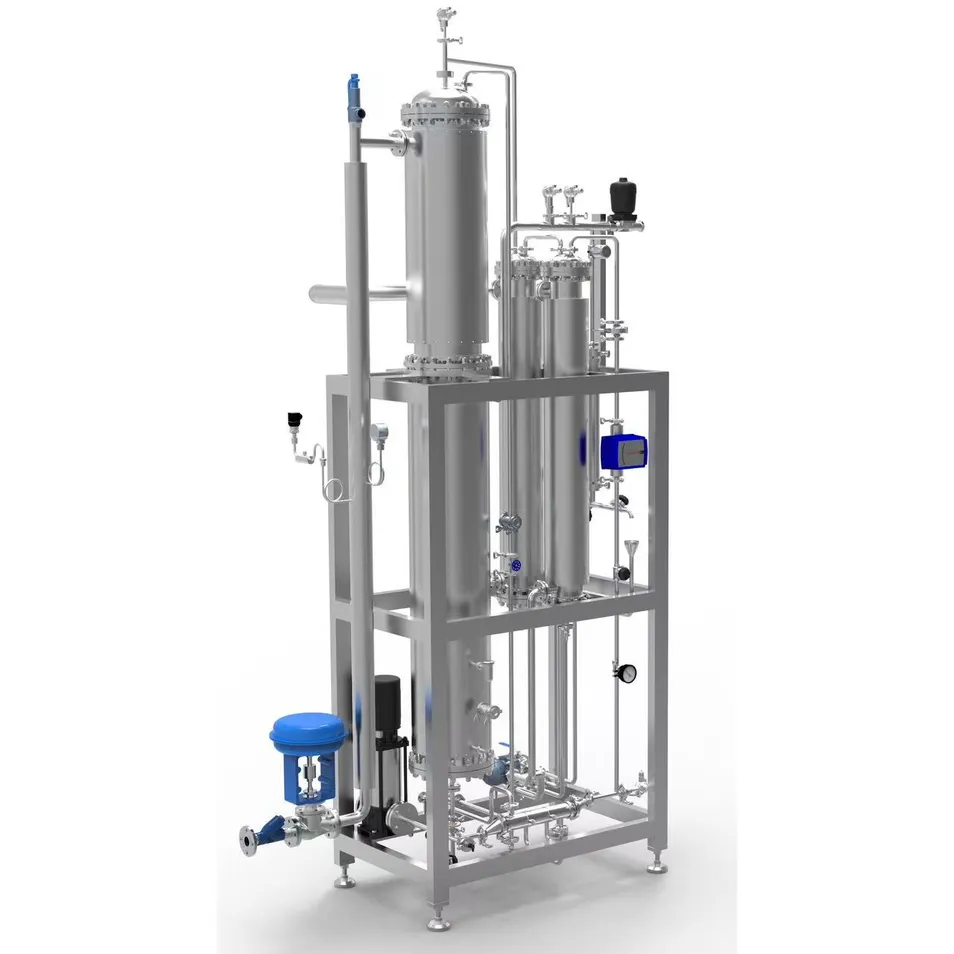

Qualified raw water is pressurized by a multi-stage pump and enters the pipeline condenser to utilize waste heat. It then proceeds through a series of preheaters before reaching the evaporator. The water is sprayed in a film status onto the heating tube walls, where it is vaporized by industrial steam.

The resulting secondary steam passes through a three-stage separation device to remove water droplets, culminating in the production of ultra-pure steam.
