The One-Stop Smart Restroom Solution Equipped with Diverse Sensors and IoT Technologies

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Info.
Model NO.
Smart Restroom Solution
Relative Humidity
≤95% (Non-Condensing)
Housing & Color
PC + ABS, White
Ingress Protection
IP67
Battery Life
Around 4 Years (Sf7, EU868 & Us915)
Installation
Wall Screw Mounting, Pole Mounting
Regulatory
CE, FCC, Telec
Environmental
RoHS
Transport Package
Paper Carton
Specification
285 × 258 × 218 mm
Origin
China
HS Code
9031809090
Production Capacity
100000/Year
📦 Packaging & Delivery
Package Size
29.00cm * 26.00cm * 22.00cm
Package Gross Weight
10.000kg
⚙️ Product Description

Smart Restroom Solution seamlessly integrates advanced operational and environmental sensors and IoT technologies

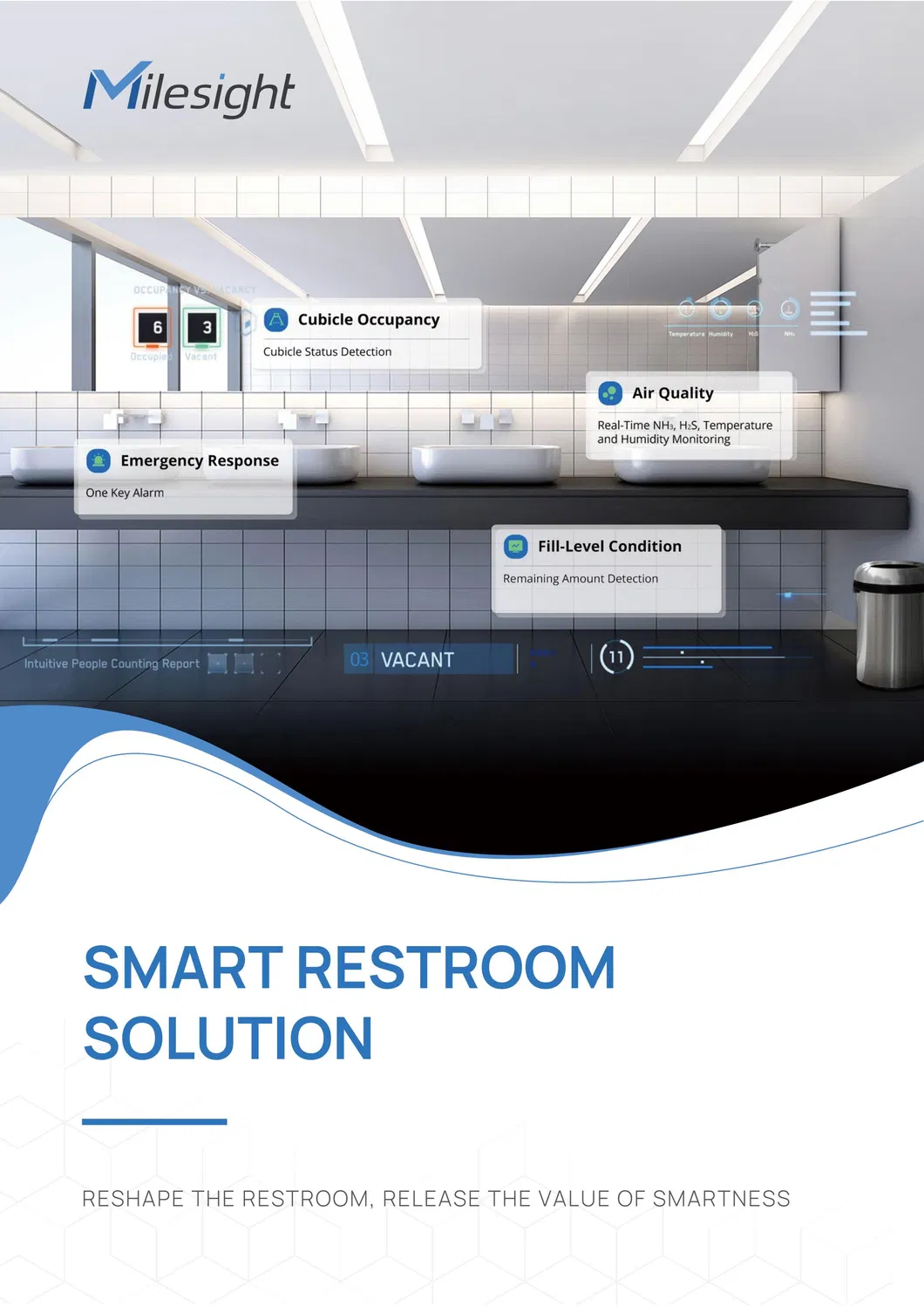

The Smart Restroom kit allows real-time monitoring of any traditional restroom. Gain efficiency in bathroom maintenance, receive alerts when dispensers need refilling, monitor strong odors, traffic flow and more. Built on LoRaWAN® and D2D protocols, the kit enables seamless wireless communication between devices with ultra-low power consumption and sub-second latency. This makes it ideal for real-time monitoring and automation.

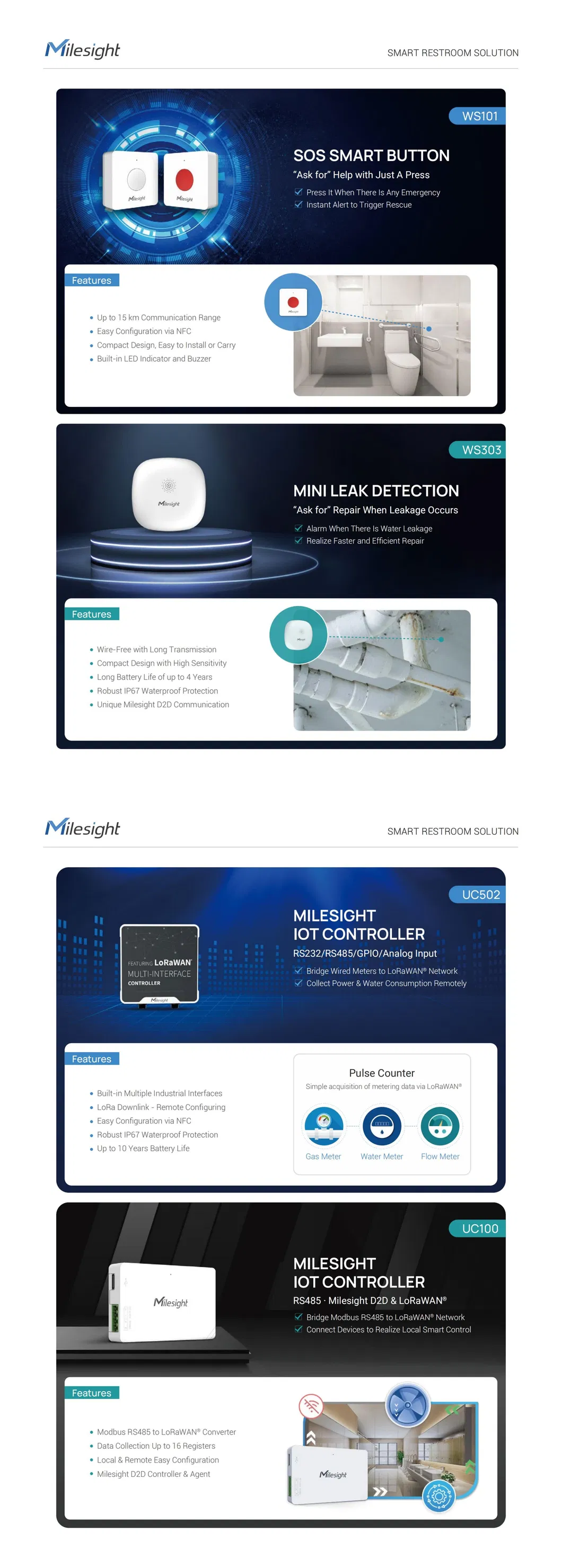

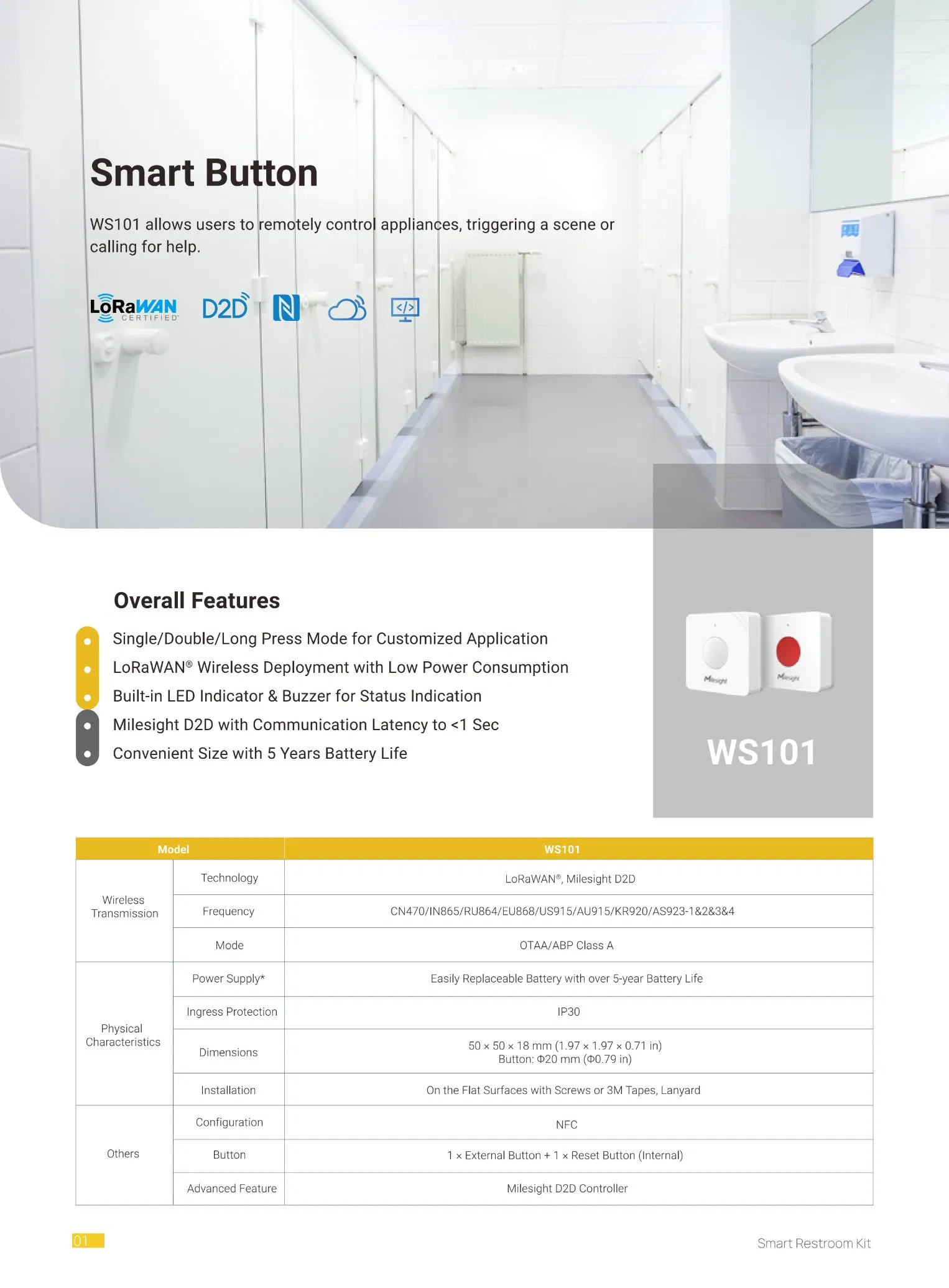

WS101 Smart Button: A compact, multi-mode button for triggering scenes, alerts, or remote control actions. Features include LED indicators, buzzer, and up to 5 years of battery life.

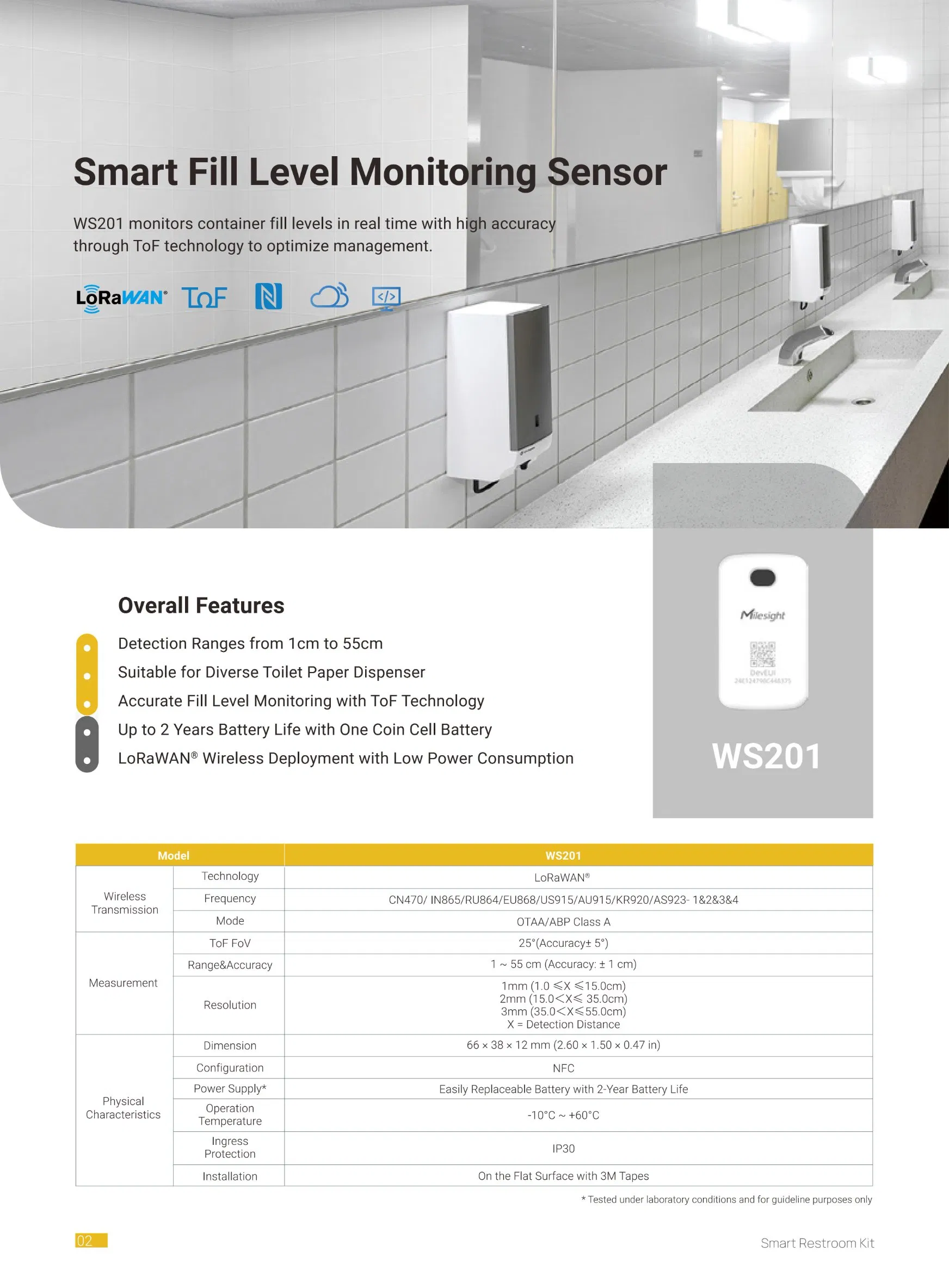

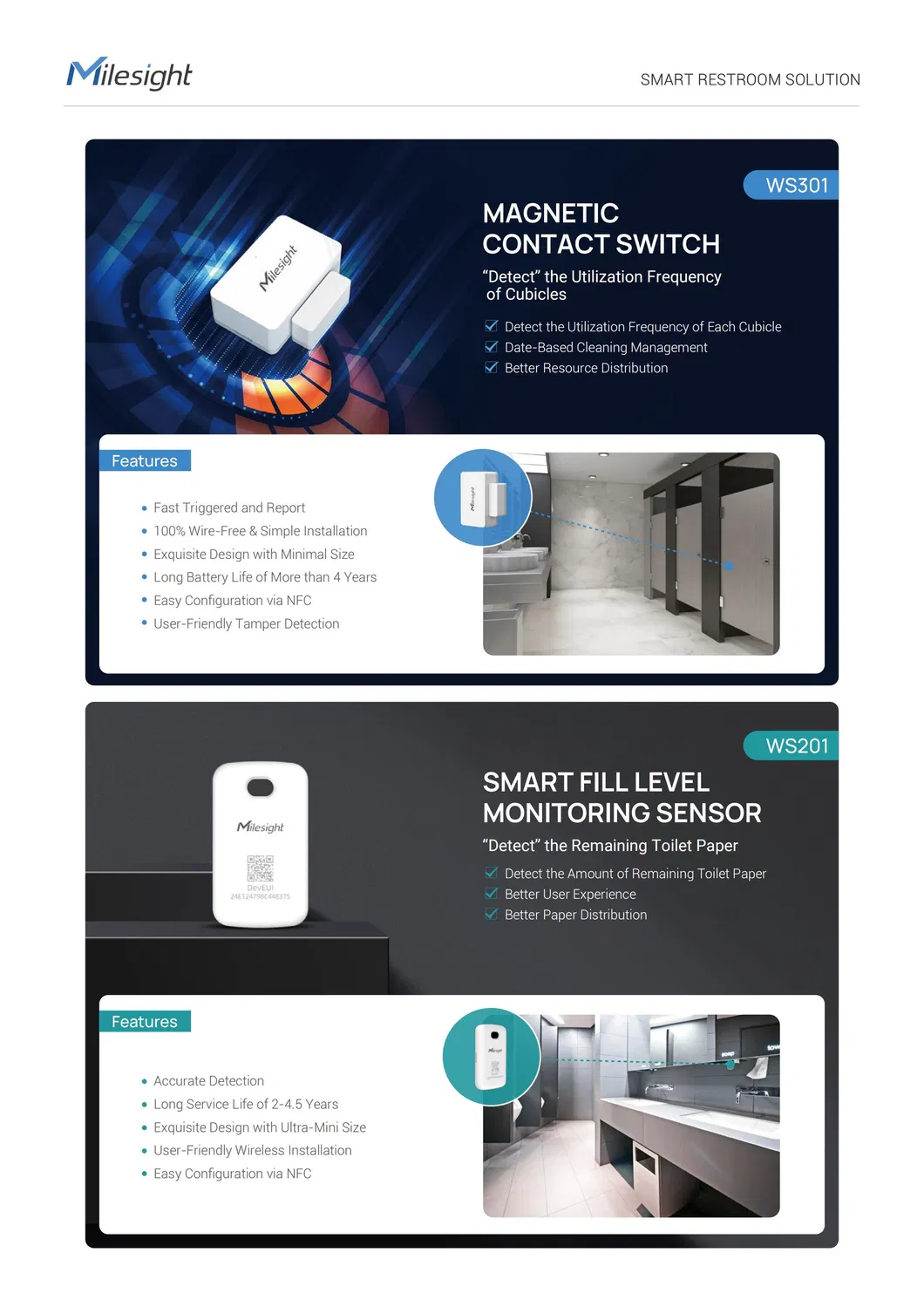

WS201 Fill Level Sensor: Uses Time-of-Flight (ToF) technology to monitor toilet paper dispenser levels with high accuracy (±1 cm), supporting battery life up to 2 years.

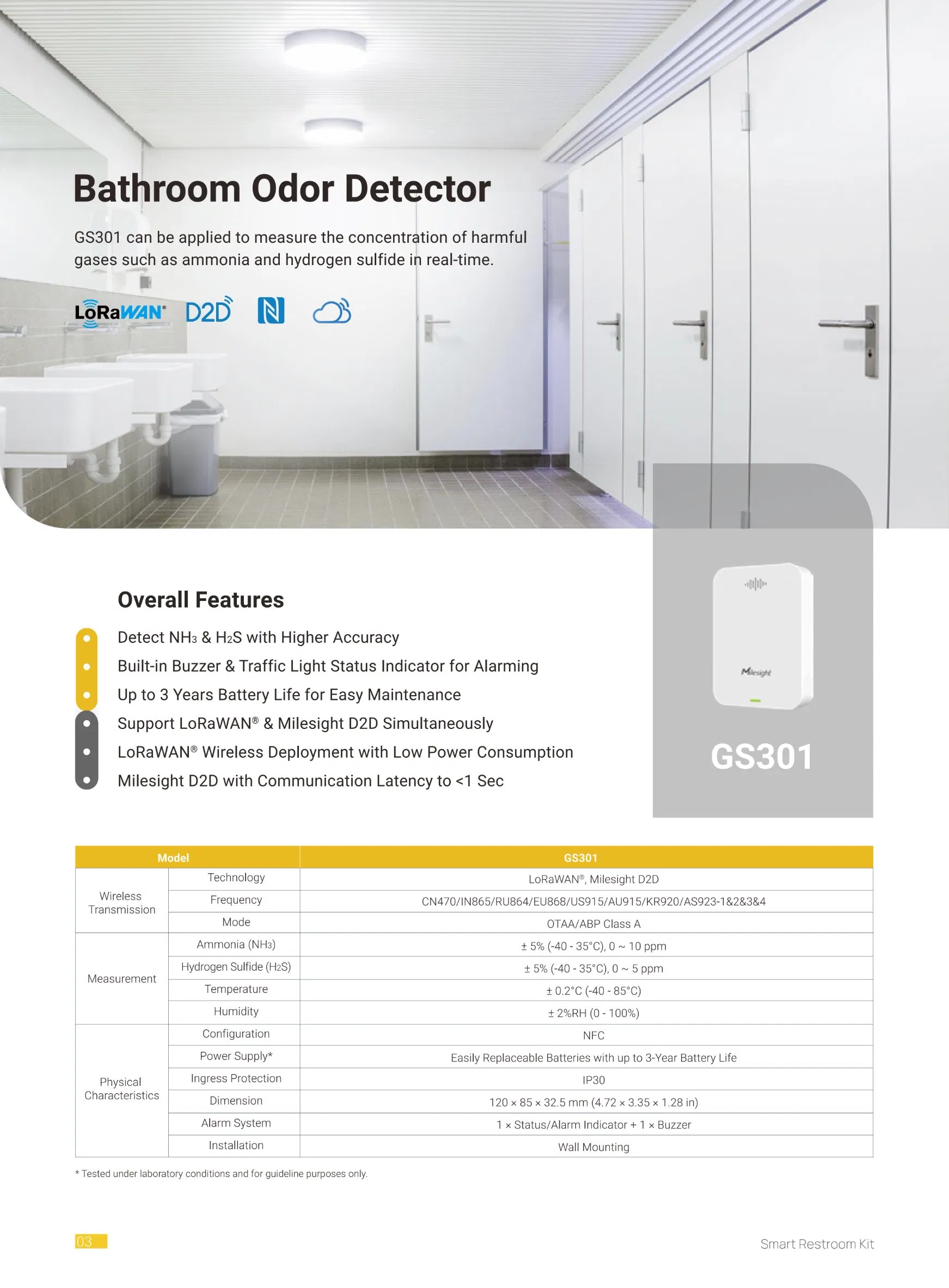

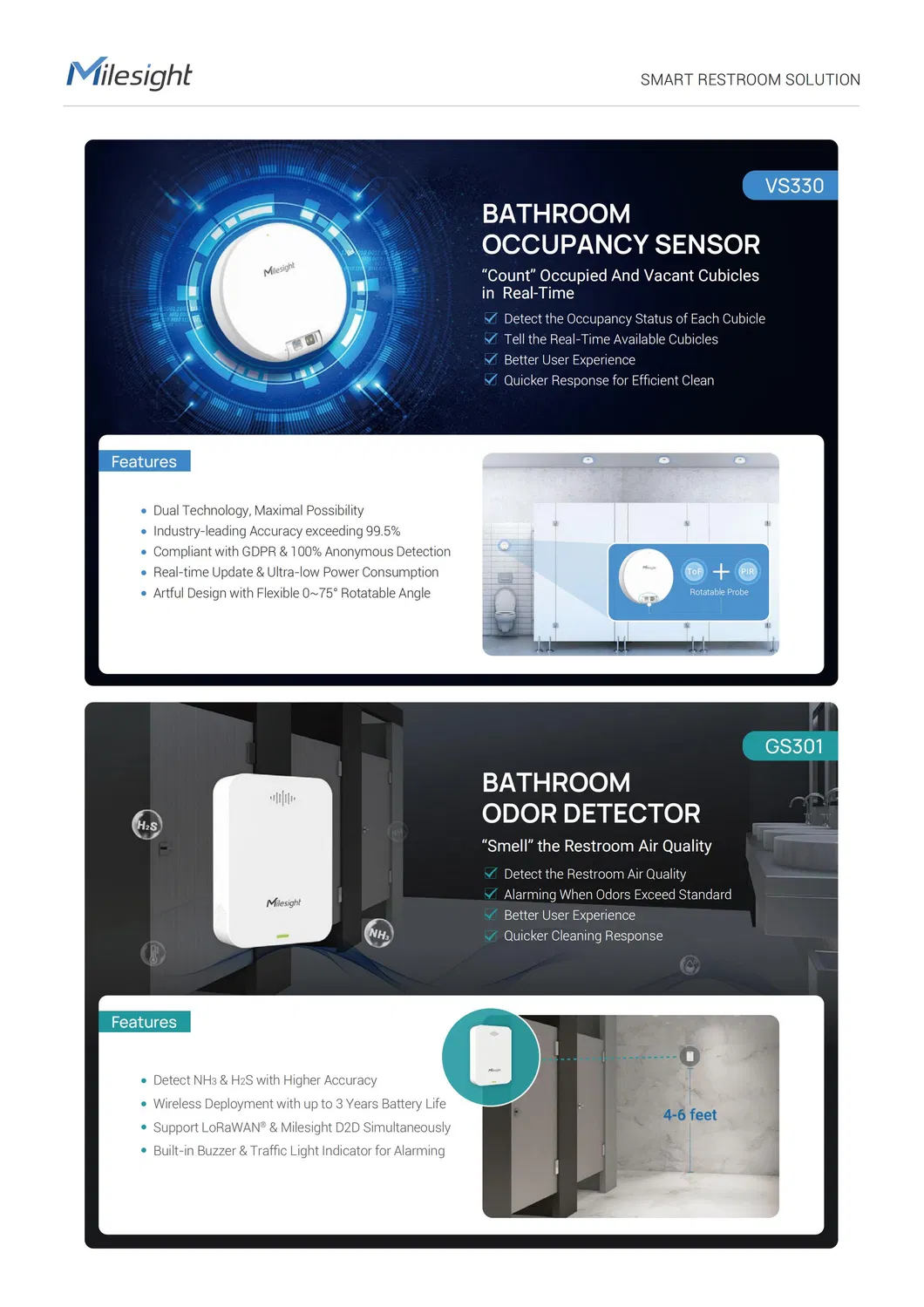

GS301 Odor Detector: Detects ammonia (NH3) and hydrogen sulfide (H2S) concentrations with built-in alarms and traffic light indicators. Offers up to 3 years of battery life.
VS330 Cubicle Occupancy Sensor: Combines PIR and ToF technologies for 99.5% accurate stall occupancy detection. GDPR-compliant and fully anonymous.
UC100 Modbus to LoRaWAN Controller: Bridges Modbus RS485 devices to LoRaWAN networks, supporting up to 16 registers and autonomous operation.

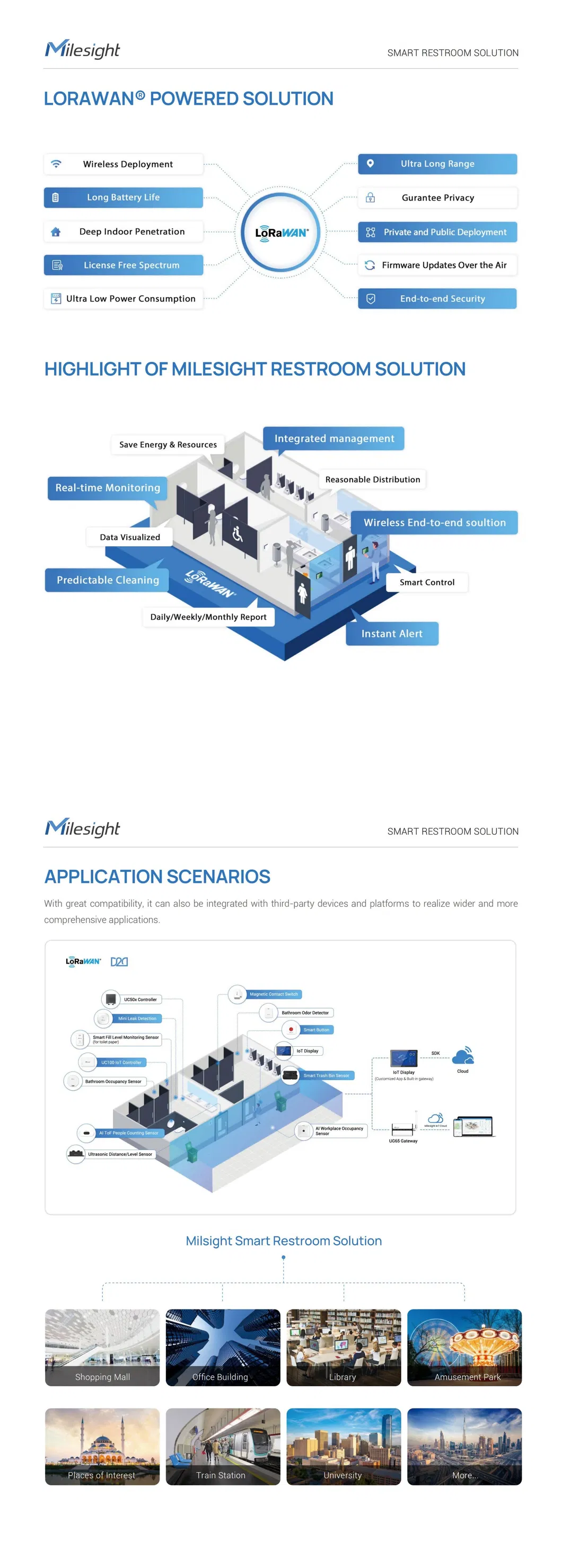

UG56 Industrial LoRaWAN Gateway: A robust 8-channel gateway with Ethernet, Wi-Fi, and cellular connectivity. Compatible with major network servers and supports BACnet/IP for BMS integration.

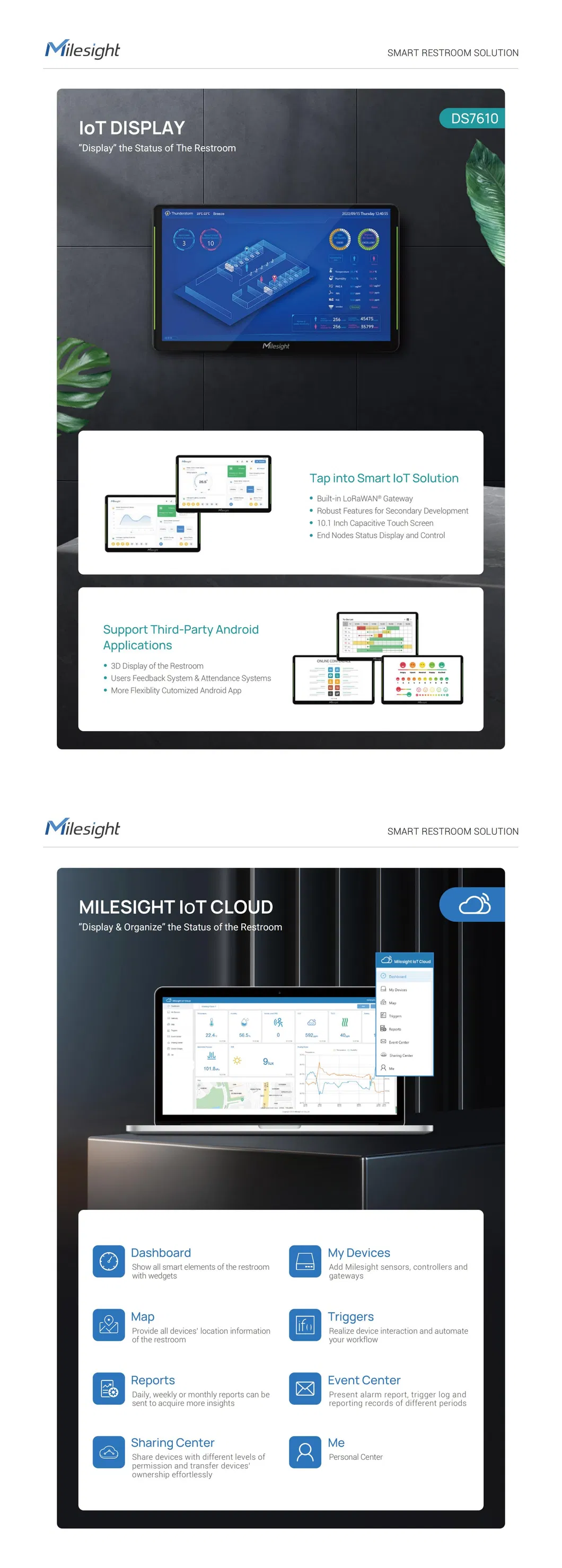

All devices are designed for easy installation, long battery life, and IP30 ingress protection. The kit integrates seamlessly with the IoT Cloud, enabling centralized device management, real-time dashboards, and automated alerts—all built on secure infrastructure.

🖼️ Detailed Photos
Smart Restroom Solution 1

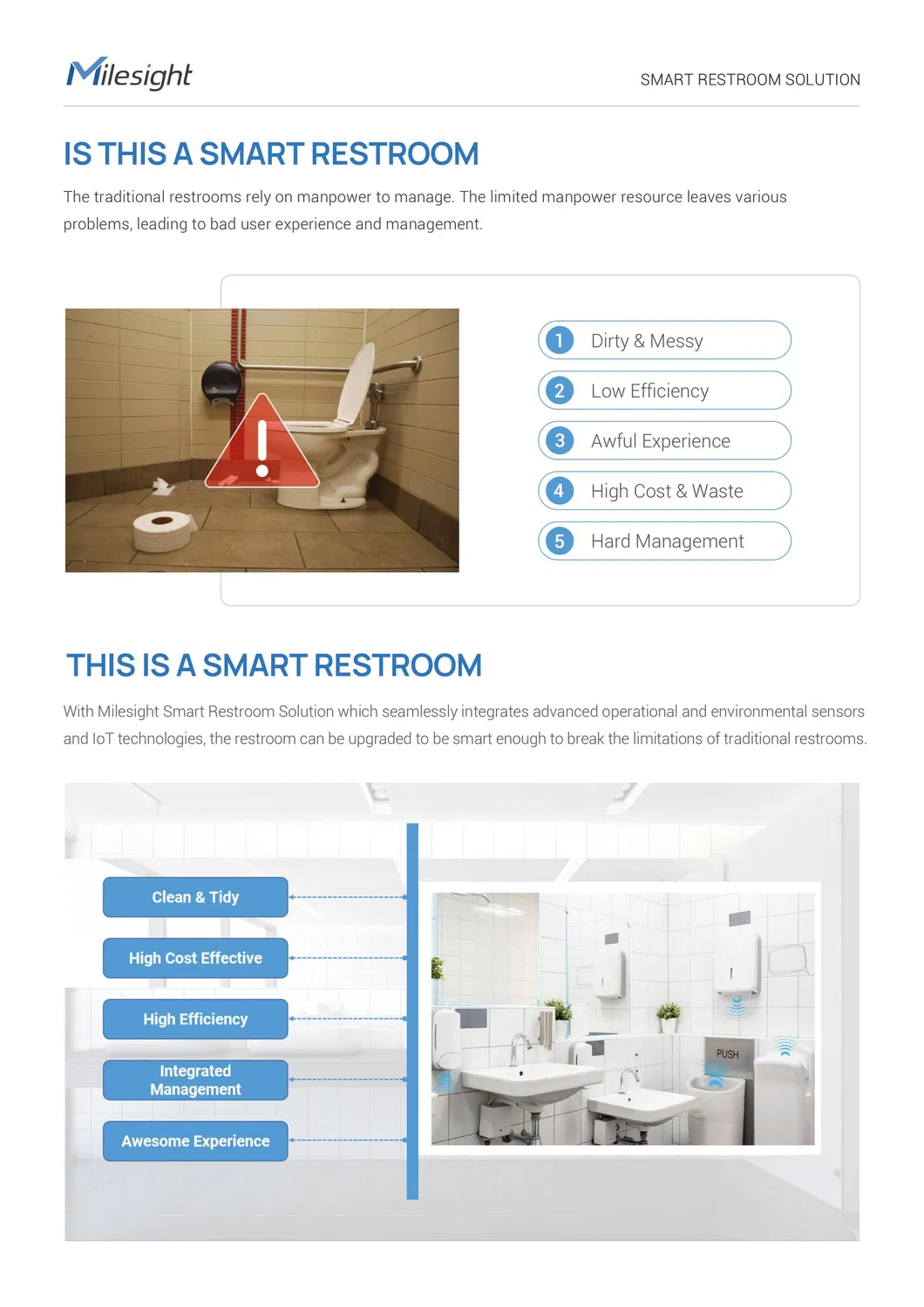

Smart Restroom Solution 2

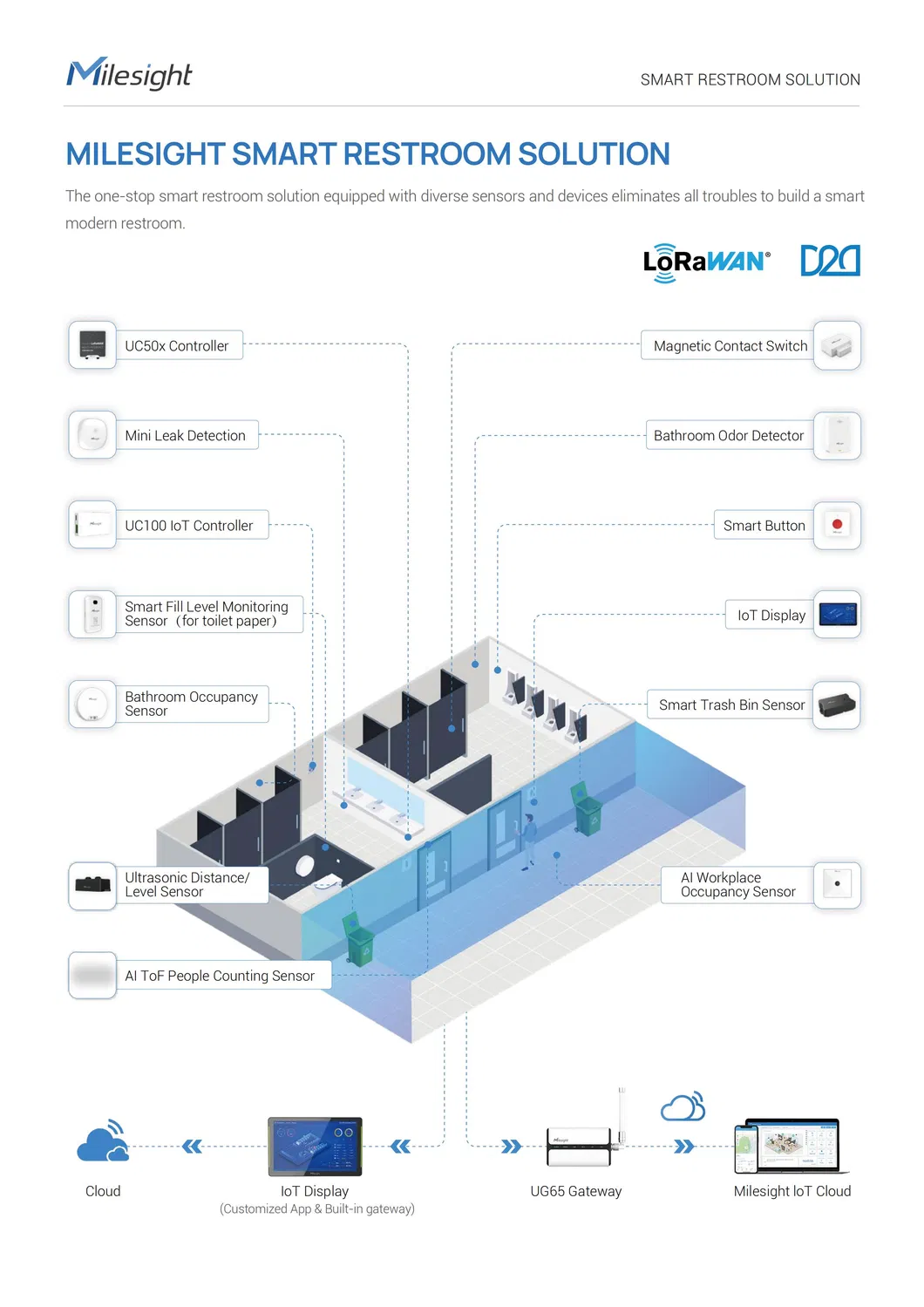

Smart Restroom Solution 3

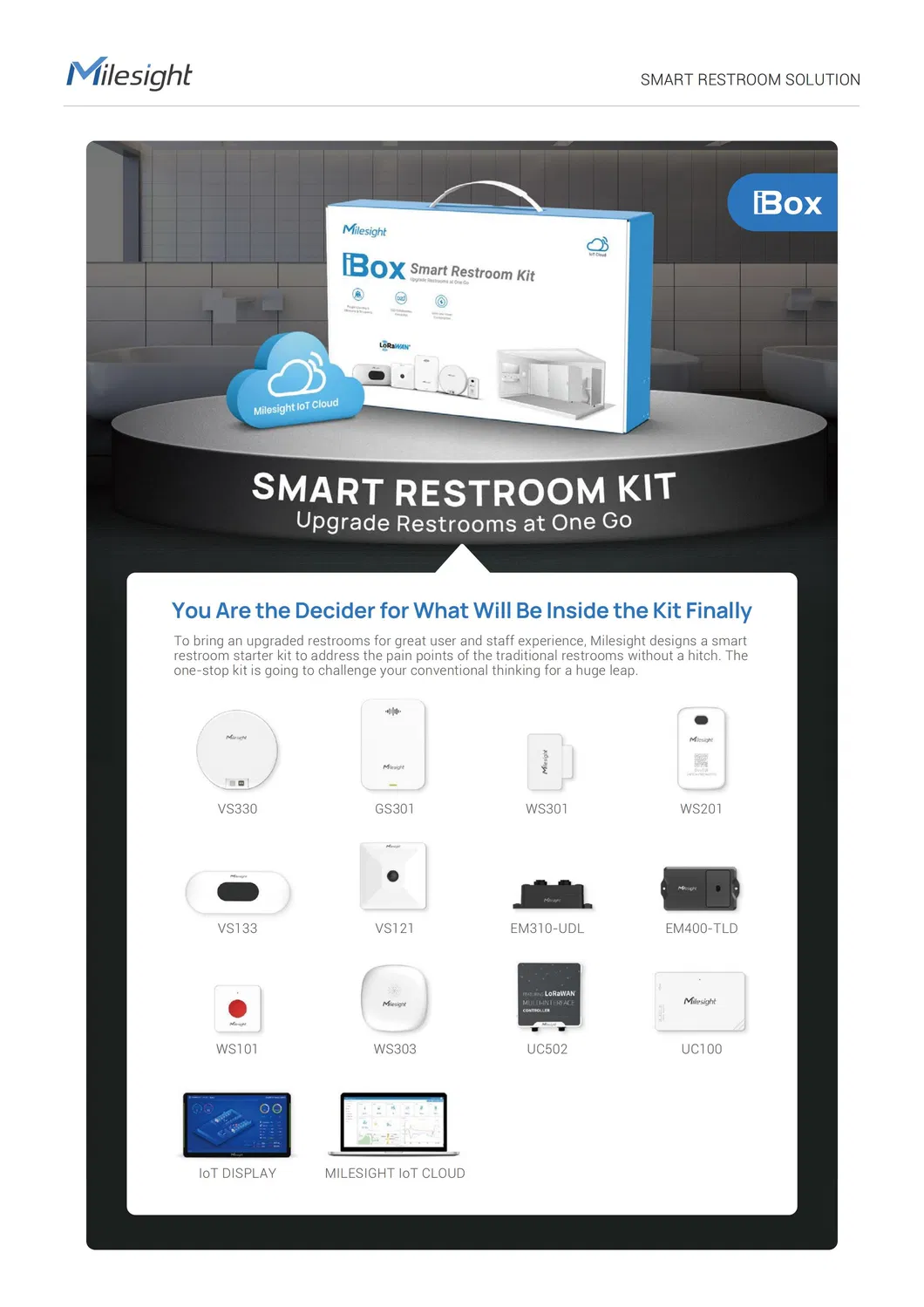

Smart Restroom Solution 4
Smart Restroom Solution 5
Smart Restroom Solution 6

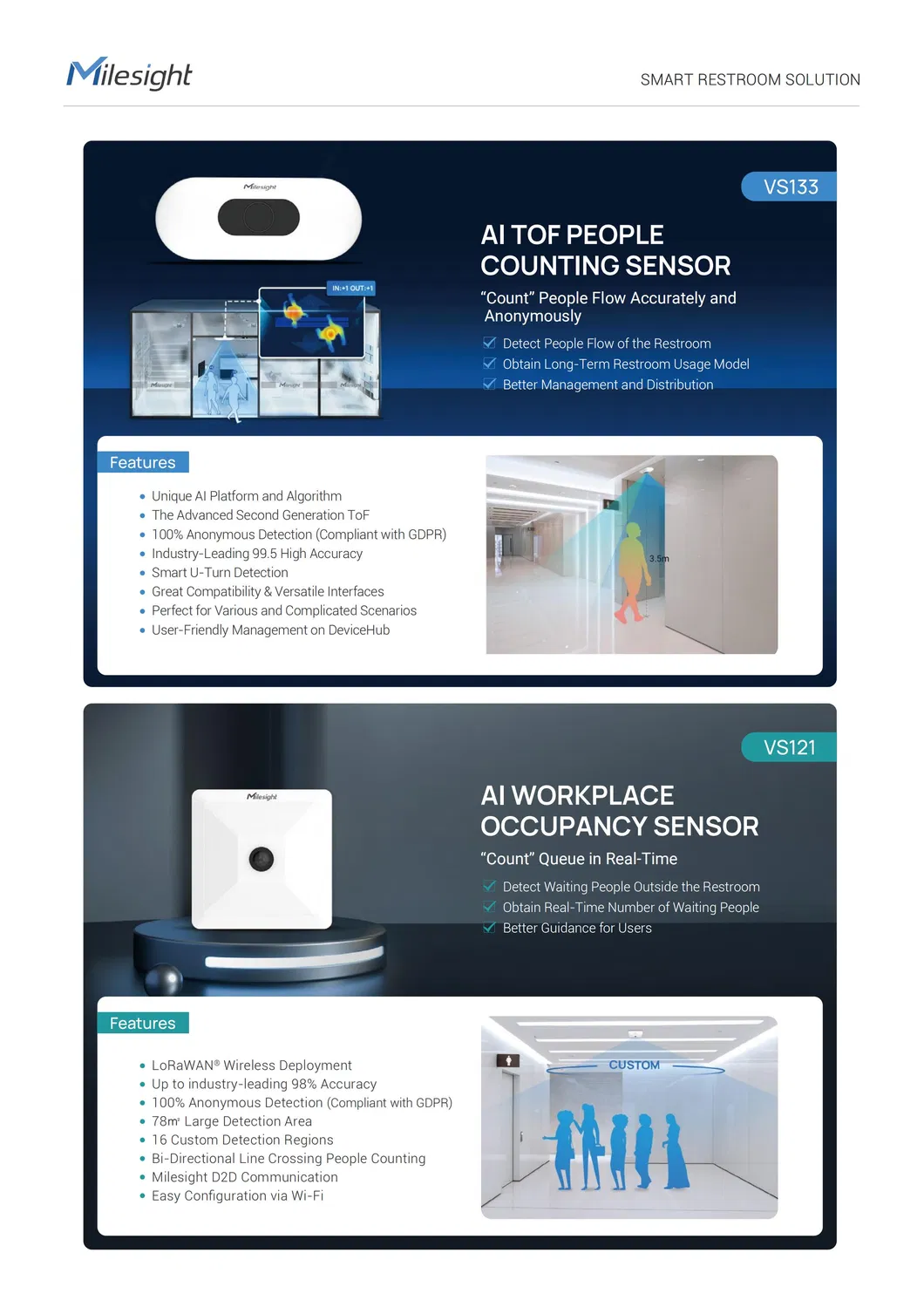

Smart Restroom Solution 7
Smart Restroom Solution 8
Smart Restroom Solution 9
Smart Restroom Solution 10
Smart Restroom Solution 11
🏢 Company Profile

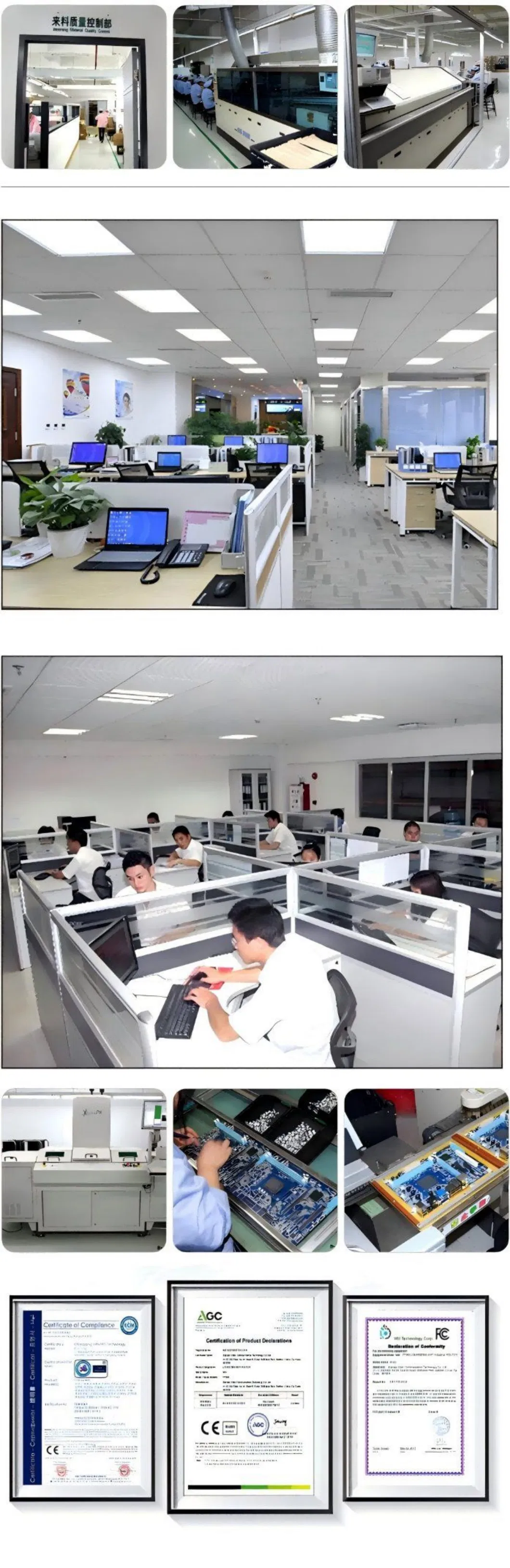

Company Facility

Our team offers multi-potential sensing products to capture the most meaningful data and makes it accessible across diverse applications. It innovatively applies emerging technologies such as AI, 5G, and IoT to distinct use scenarios. With a commitment to making sensing matter, we quickly respond to customer-specific challenges and collaborate with an expanding network of partners to deliver unique data value.

Advanced Technology: Over half of our employees are R&D engineers. With 15% annual investment of sales revenue, solid knowledge, and years of experience, we have gained strong R&D strength, introducing innovative products and satisfied customized solutions.

Better Quality: Aiming at providing more functional and affordable IoT products, we endeavor to develop stylish and quality products with low defect rates. We are ISO9001 authorized and products are certificated with CE, FCC, LoRaWAN®, RoHS, RCM, etc.

Worldwide Coverage: Adapting to diverse global market demands, we provide services over 120+ countries and regions, creating end-to-end solutions for retail, government, industry, education, and beyond.

FAQ
What is the battery life of the smart restroom sensors?
Most sensors in the kit offer a long battery life. For example, the Smart Button lasts up to 5 years, while the Fill Level Sensor and Odor Detector typically last between 2 to 3 years depending on the configuration.
How accurate is the cubicle occupancy detection?
The occupancy sensor achieves 99.5% accuracy by combining PIR (Passive Infrared) and ToF (Time-of-Flight) technologies, ensuring reliable real-time status updates.
Are the sensors compliant with privacy regulations like GDPR?
Yes, the cubicle occupancy sensors are specifically designed to be GDPR-compliant and ensure full anonymity as they do not capture any identifiable imagery.
Can this solution integrate with existing Building Management Systems (BMS)?
Absolutely. The industrial LoRaWAN gateway supports BACnet/IP, which allows for seamless integration into most modern Building Management Systems.
What communication technology does the kit use?
The kit utilizes LoRaWAN® and D2D protocols, which provide long-range, wireless communication with ultra-low power consumption and minimal latency.
What kind of maintenance alerts can I receive?
Users can receive real-time alerts for toilet paper dispenser refills, high concentrations of ammonia or hydrogen sulfide (odors), and unusual traffic flow patterns.
