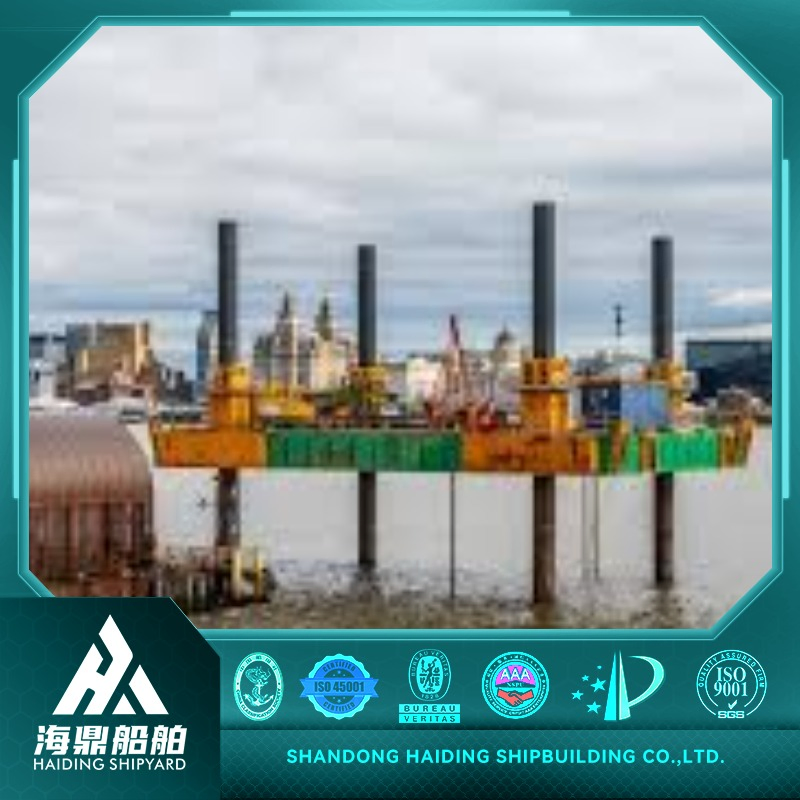

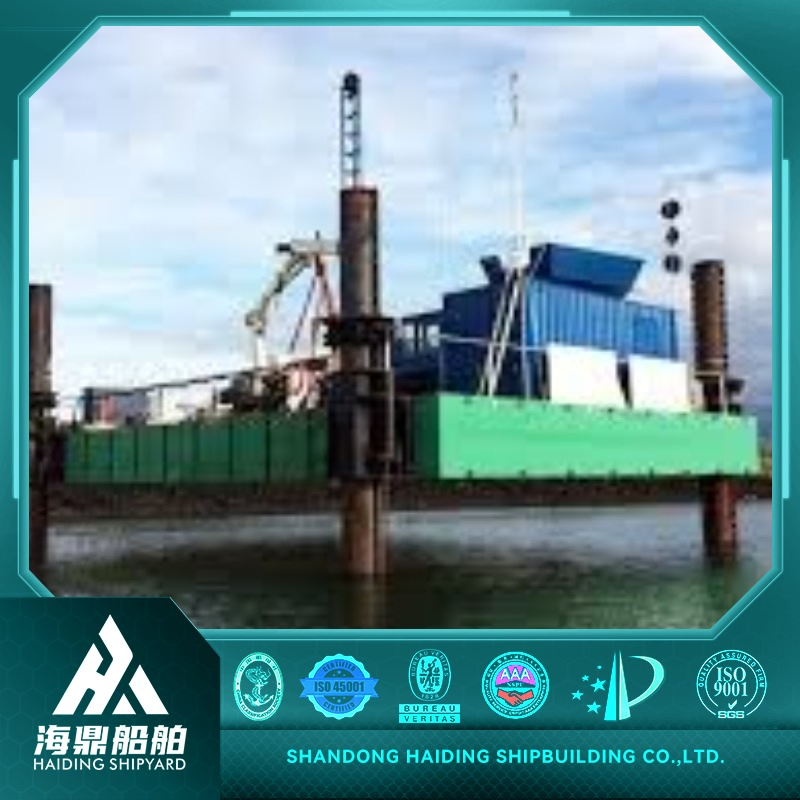

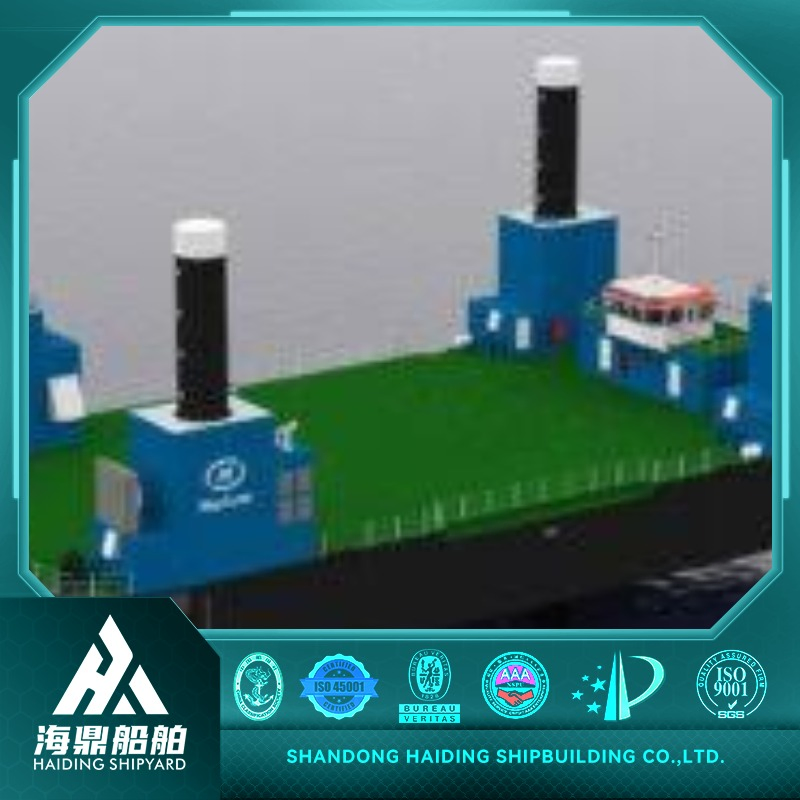

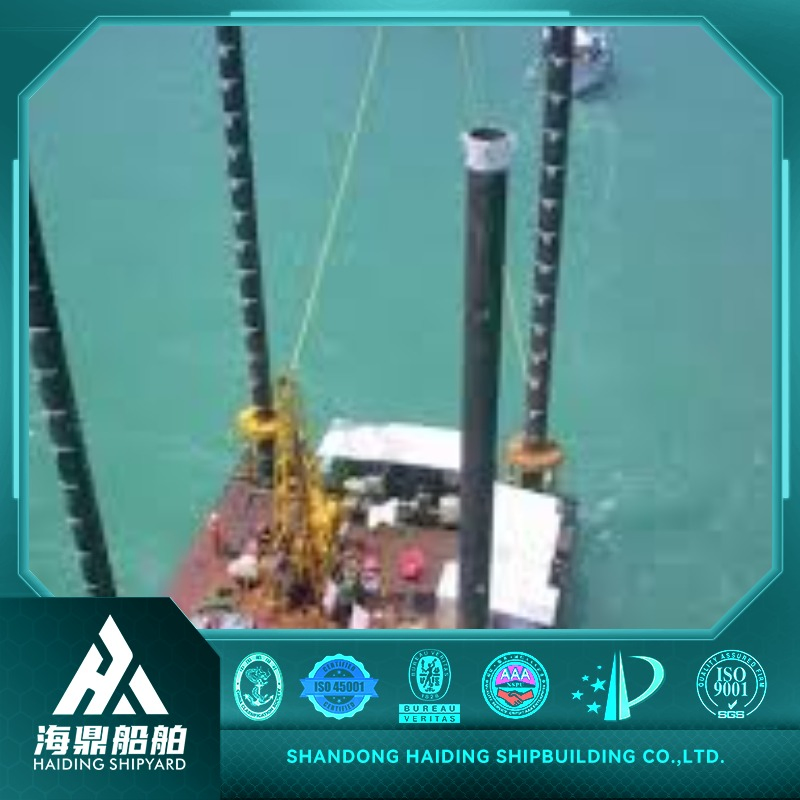

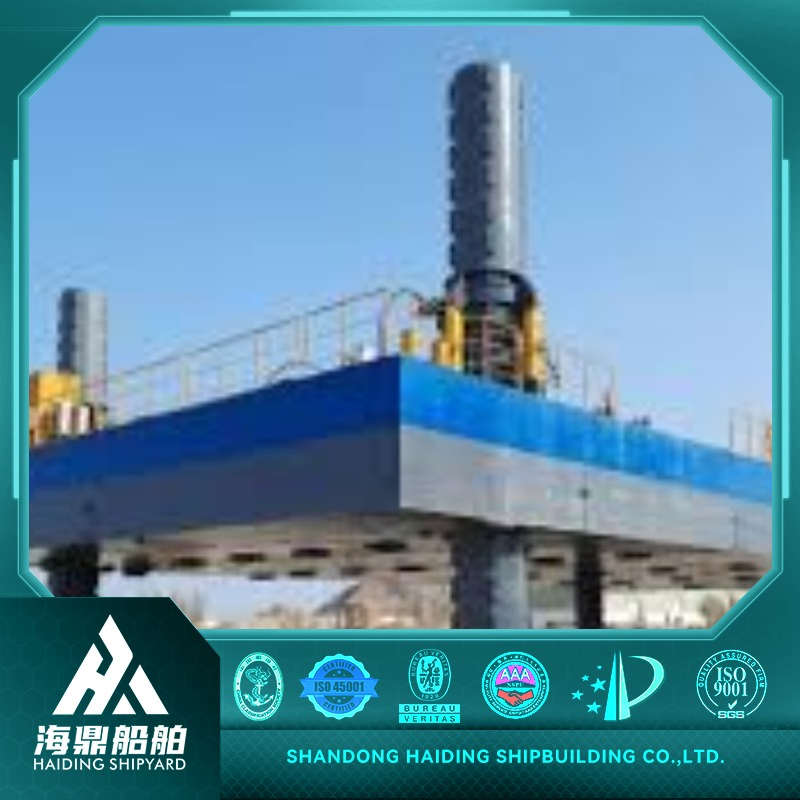

Offshore Jack-up Platform for Shallow Waters, Offering a Stable Workbench for Marine Coastal Survey and Data Collection Jack up Barge

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

Technical Overview
Model NO.
HD-PT12
Hull Material
Steel
Certification
ISO
Type
Jack up Barge
Length
11.80m
Width
11.80m
Mold Depth
1.5m
Max Load
30t
Deck Strength
3t/M²
Jacking Speed
22m/H
Lifing Capacity
40 T Per Spud
Package Size
1219.2cm * 243.8cm * 290cm
Offshore Lifting Platform

The Offshore Lifting Platform is equipped with high-efficiency lifting pile legs and an optional propulsion system. During operation, the pile legs are securely seated into the seabed, allowing the ship to climb up the legs and leave the sea surface. This creates a stable "air gap" away from seawater impacts. Once the work is completed, the legs are retracted, returning the vessel to a floating state for navigation to new work areas. This platform is ideal for drilling, heavy-duty cranes, and excavation across various marine projects.

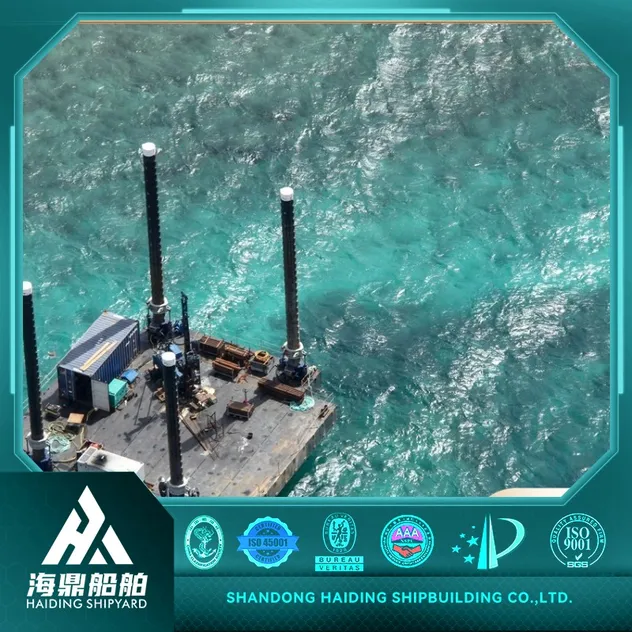

Jack up Barge Platform

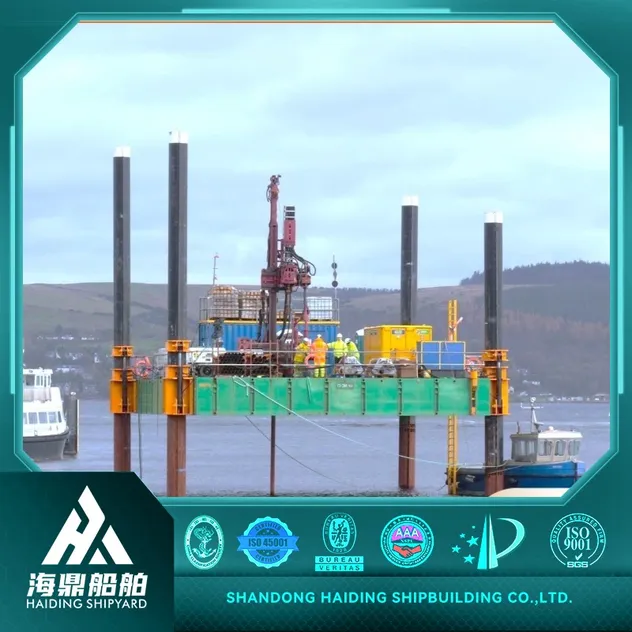

Offshore Workbench

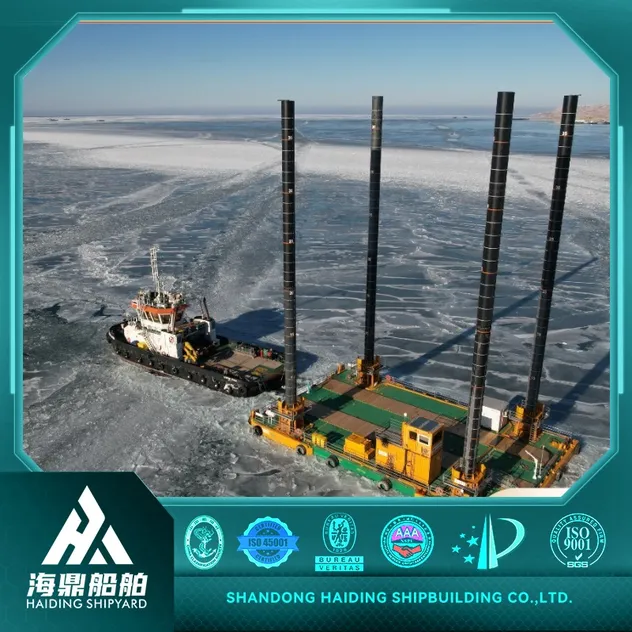

Stable Marine Survey Platform
Core Applications
Energy Development: Construction and maintenance of offshore oil drilling, natural gas extraction, and wind farms.
🏗️
Marine Engineering: Port construction, submarine pipeline laying, and bridge projects.
🔬
Scientific Research: Geological exploration and deep-sea monitoring activities.
🆘
Emergency Rescue: Temporary command platform for maritime rescues and infrastructure support.

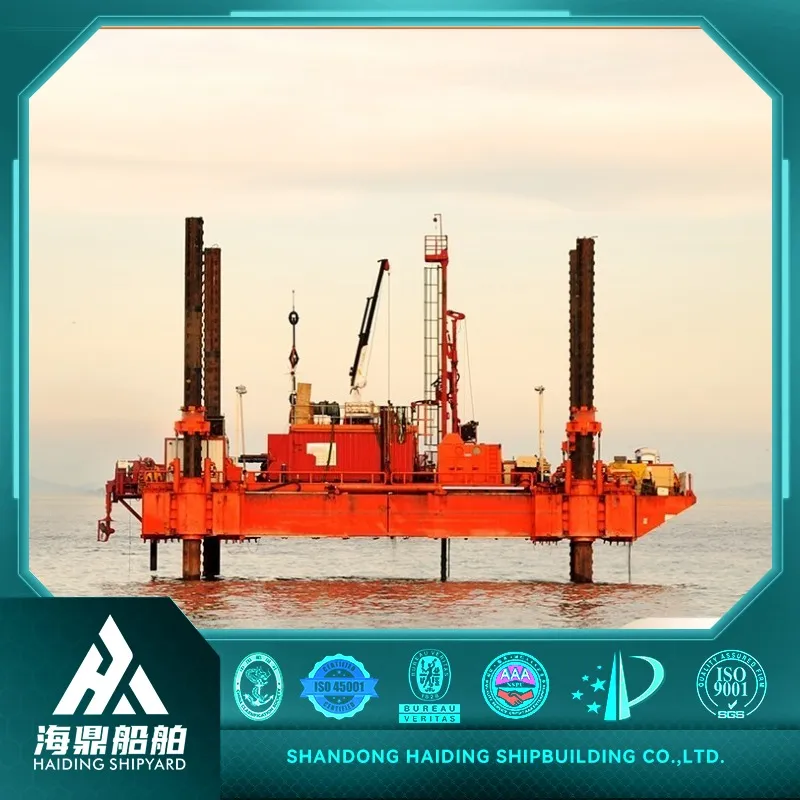

Application Case
Performance & Advantages
Maximum Stability: Stable pile leg support adapts to harsh sea conditions.
High Efficiency: Fast lifting function suitable for various water depths.
Operational Safety: Excellent positioning and emergency avoidance capabilities.
Modular Design: Can be loaded into containers for rapid global deployment.
Technical Specifications
Model HD-PT12 HD-PT22 HD-PT30 HD-PT36
Length11.80m22.0m30.5m36.6m
Width11.80m18.0m18.3m27.4m
Mold Depth1.5m2.0m2.2m2.8m
Free Deck Area80m²322m²520m²910m²
Max Load30T100T150T350T
Deck Strength3T/m²15T/m²15T/m²15T/m²
Lifting MethodHydraulic/MechanicalHydraulic/MechanicalHydraulic/MechanicalHydraulic/Mechanical
Jacking Speed22m/h22m/h12m/h18m/h
Lifing Capacity40T per spud40T per spud300T per spud600T per spud

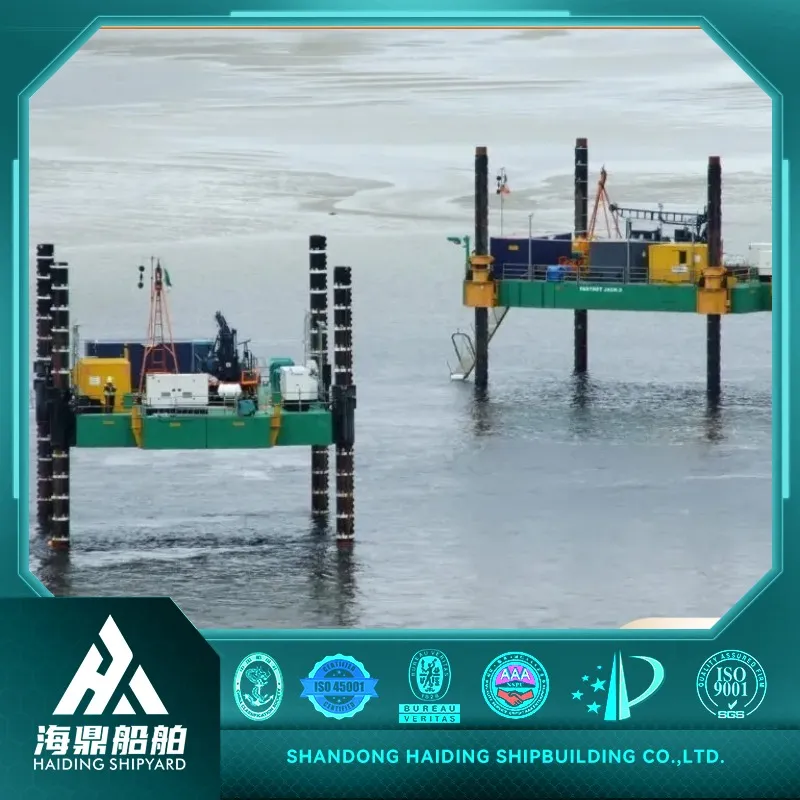

Spec Detail 1

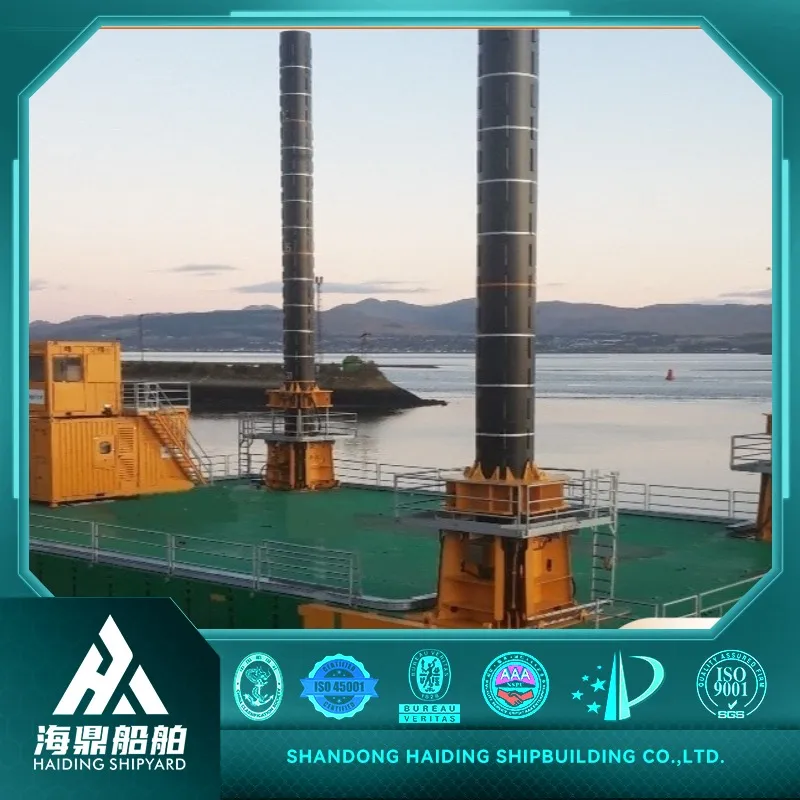

Spec Detail 2
Heavy Duty Model Range
Feature HD-PT55 HD-PT60
Length Overall55.5m60.0m
Breath / Width32.2m45.0m
Free Deck Area1000m²2200m²
Max Load Capacity800T1000T
Deck Capacity9.3T/m²15-25T/m²
Positioning Pile Height78.85m80.0m - 100m
Lifting Speed0.4m/min1.0m/min
Working DepthStandardUp to 45m

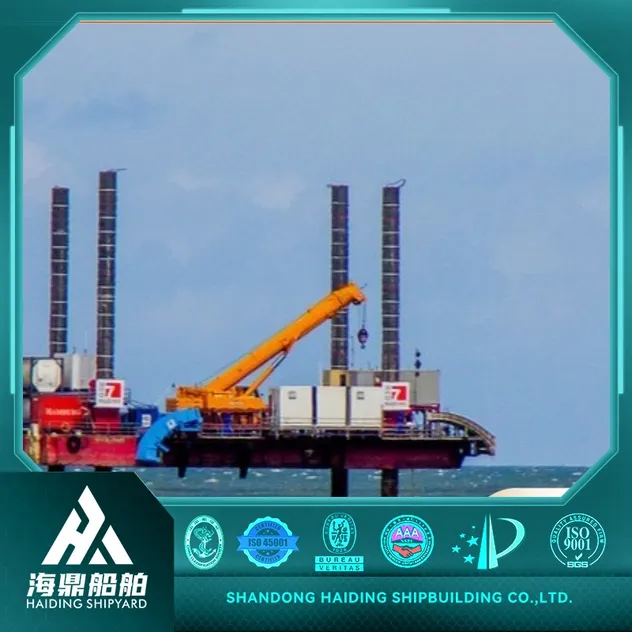

HD Barge 1

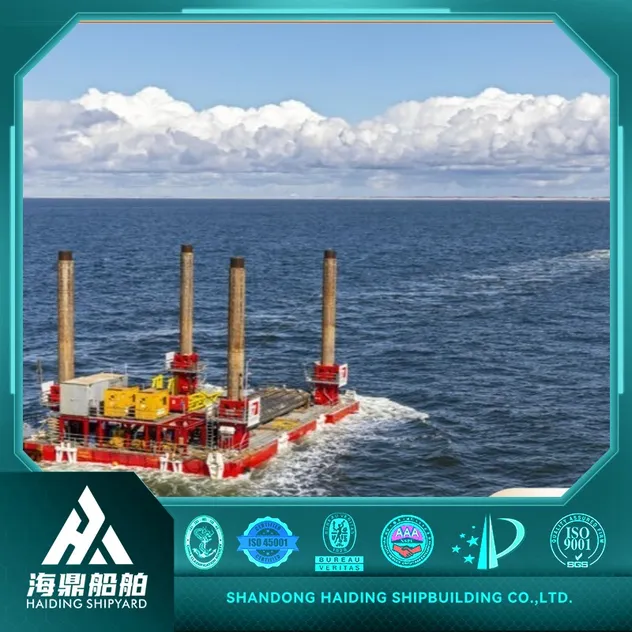

HD Barge 2

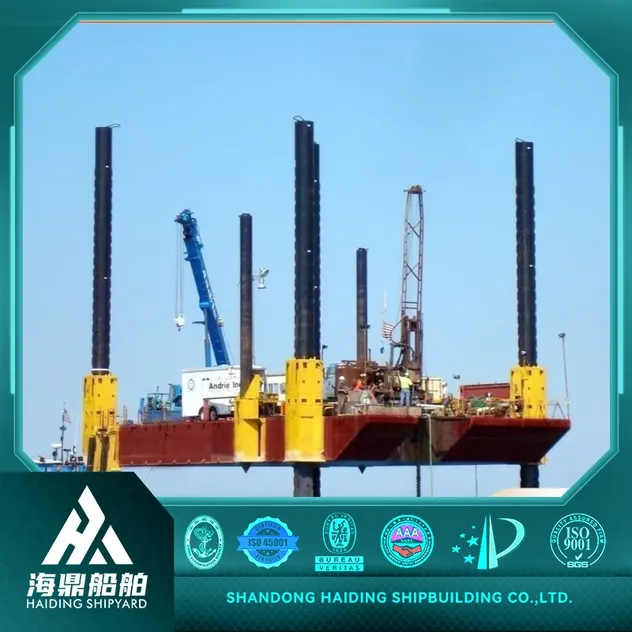

HD Barge 3
Support & Service
🛠️
On-Site Installation: Specialized technicians provide hands-on commissioning and operational training.
🛡️
12-Month Warranty: Comprehensive coverage for hull structures, new engines, and all installed components.
🌐
24/7 Support: Dedicated technical and sales teams ensure continuous operational success.
Shipbuilding Expertise

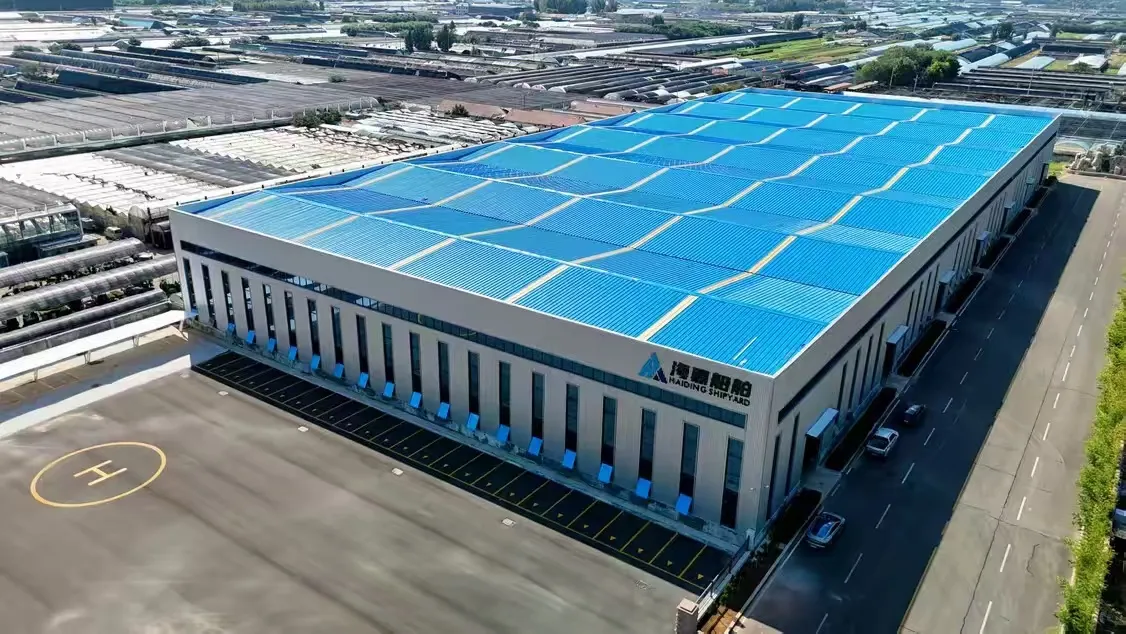

Manufacturing Facility

Specializing in the production of professional engineering ships, our vessels are designed for modular transportation worldwide. We offer personalized custom shipbuilding with a focus on modular innovation to reduce procurement and shipping costs.

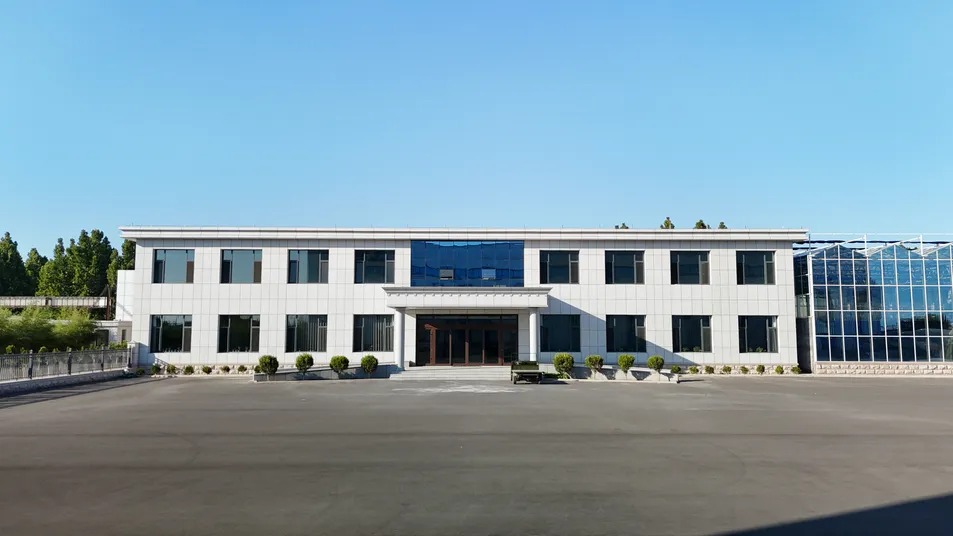

Workshop

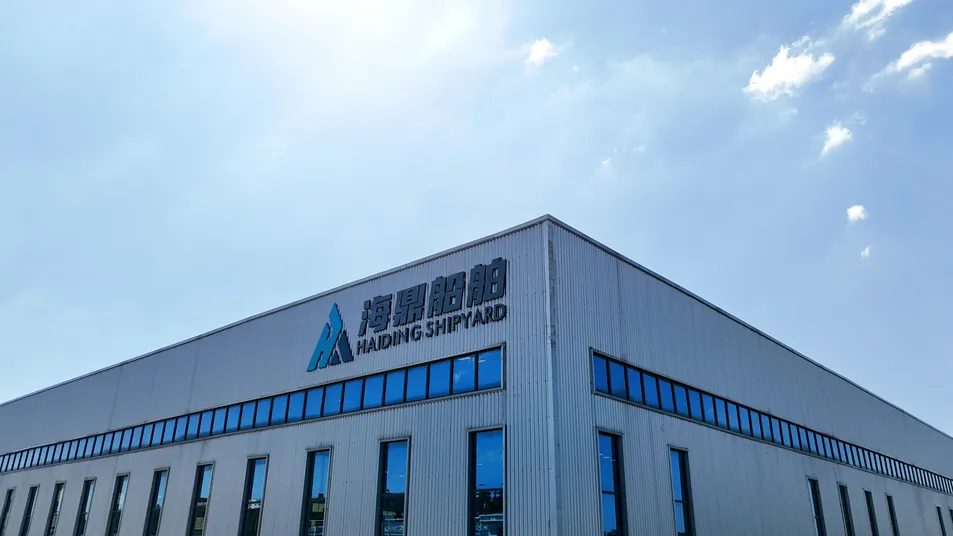

Production Line
Frequently Asked Questions
Q1: What types of offshore platforms can be customized?
We specialize in various engineering vessels including jack-up platforms, deck barges, backhoe dredgers, and multi-purpose service ships, all tailored to your specific project requirements.
Q2: How does modular transportation benefit the client?
Our modular design allows large vessels to be disassembled and loaded into standard containers, significantly reducing international shipping costs and simplifying delivery to remote locations.
Q3: What are the standard payment terms?
Typically, we require a 30% T/T deposit in advance, 40% T/T after major engine installation, and the final 30% T/T balance before shipment.
Q4: What is the warranty period for new engineering ships?
We provide a 12-month comprehensive warranty on all newly installed components, engines, hull structures, and fabricated parts.
Q5: Is on-site technical training provided?
Yes, we dispatch expert technicians to your operational site to guide the assembly process and provide complete operational training for your crew.
Q6: How are the platforms delivered?
Depending on the size and modular configuration, delivery is arranged via standard shipping containers or bulk carriers to ensure safety and cost-efficiency.
