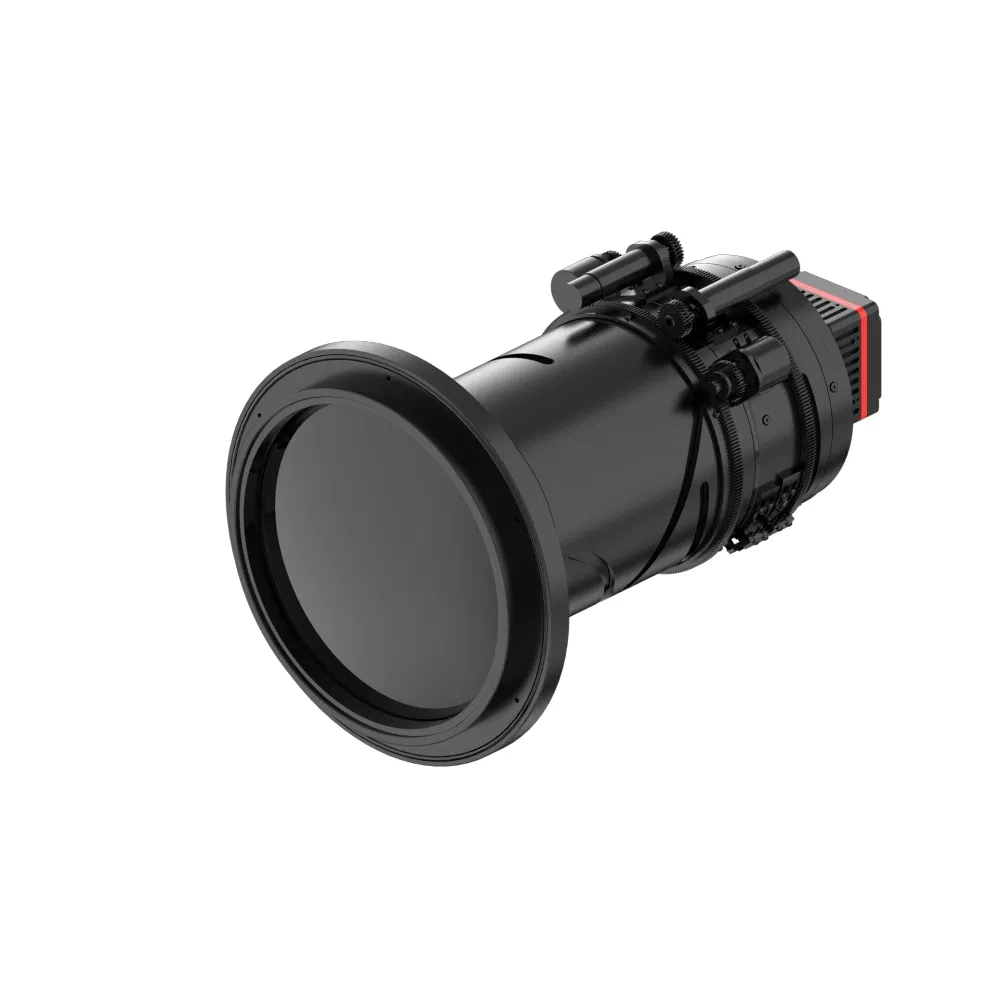

Turing F1280 uncooled infrared module has a built-in high-sensitivity VOx infrared detector, providing a consistently high-performance kernel, ultimate image algorithms, and technology of lens control, bringing a new experience for long-distance monitoring. The product can be widely used in application scenarios such as perimeter security, high-altitude observation, forest fire prevention, and water area monitoring.
Built-in high-sensitivity VOx infrared detector with ultimate image algorithms. Ideal for perimeter security, forest fire prevention, and industrial temperature measurement.
Optimized for special scenarios such as forests, sea, sky, rainy, and foggy weather, providing clear and sharp infrared images.
Supports athermalized prime lenses, prime electric focusing lenses, and continuous zoom lenses. Supports electric focus and defocusing compensation.

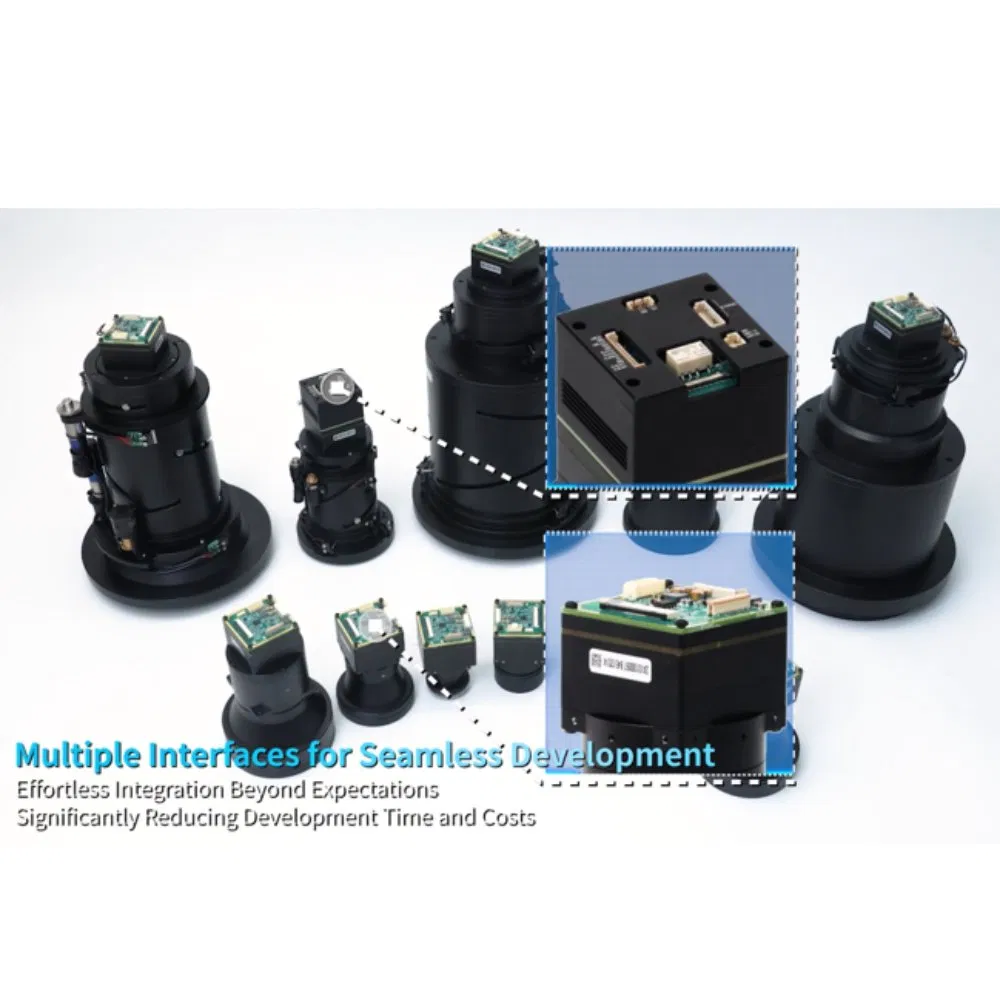

Options include Ethernet, LVCMOS, BT.1120. Expandable SDI, USB, Cameralink, and HDMI. SDK provided for easy secondary development.
| Performance Characteristics | |
|---|---|
| Detector Type | Uncooled VOx infrared detector |

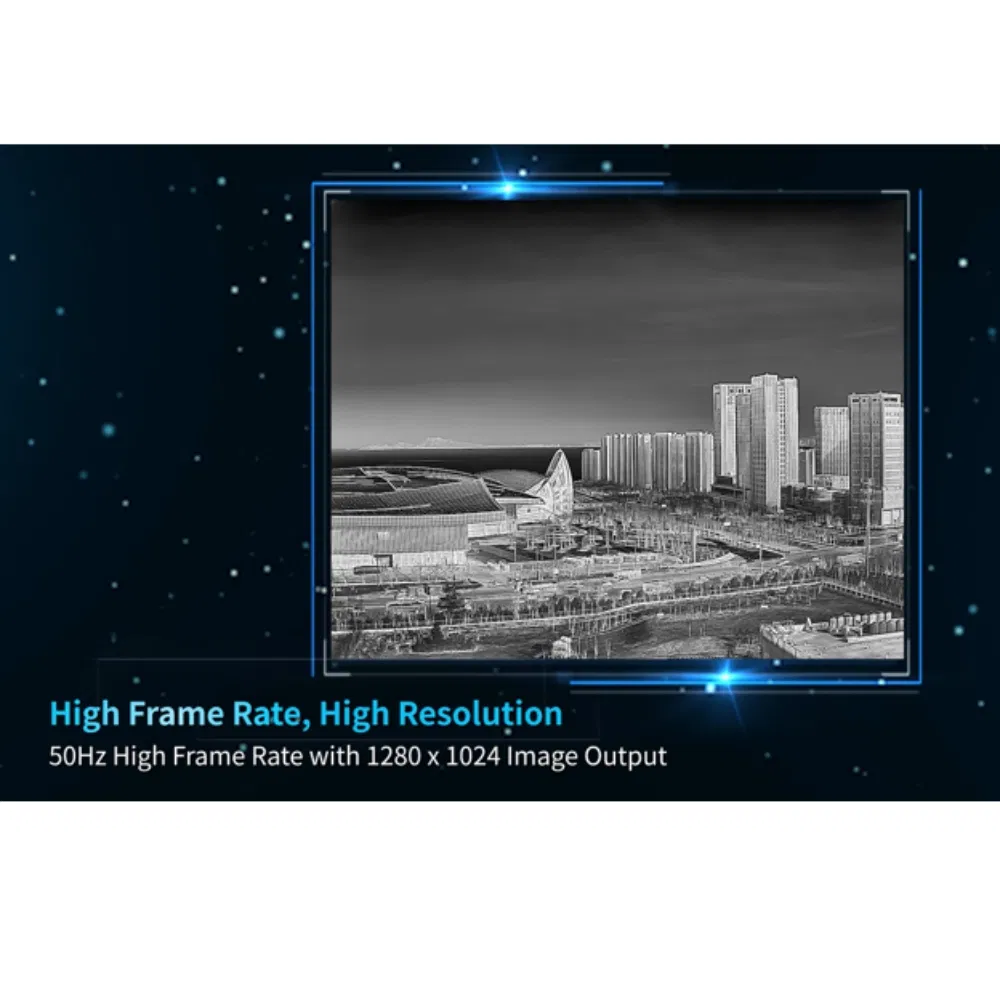

| Resolution | 1280×1024 |
| Pixel Pitch | 12μm |
| NETD | ≤50mK @ 25ºC, F#1.0 |
| Image Adjustment | |
| Palette | Support (20 modes) |
| Digital Zoom | 1.0~4.0× continuous zoom |
| Image Processing | Non-uniformity correction, noise reduction, detail enhancement |
| Intelligence & Network | |
| Network Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, RTSP, etc. |

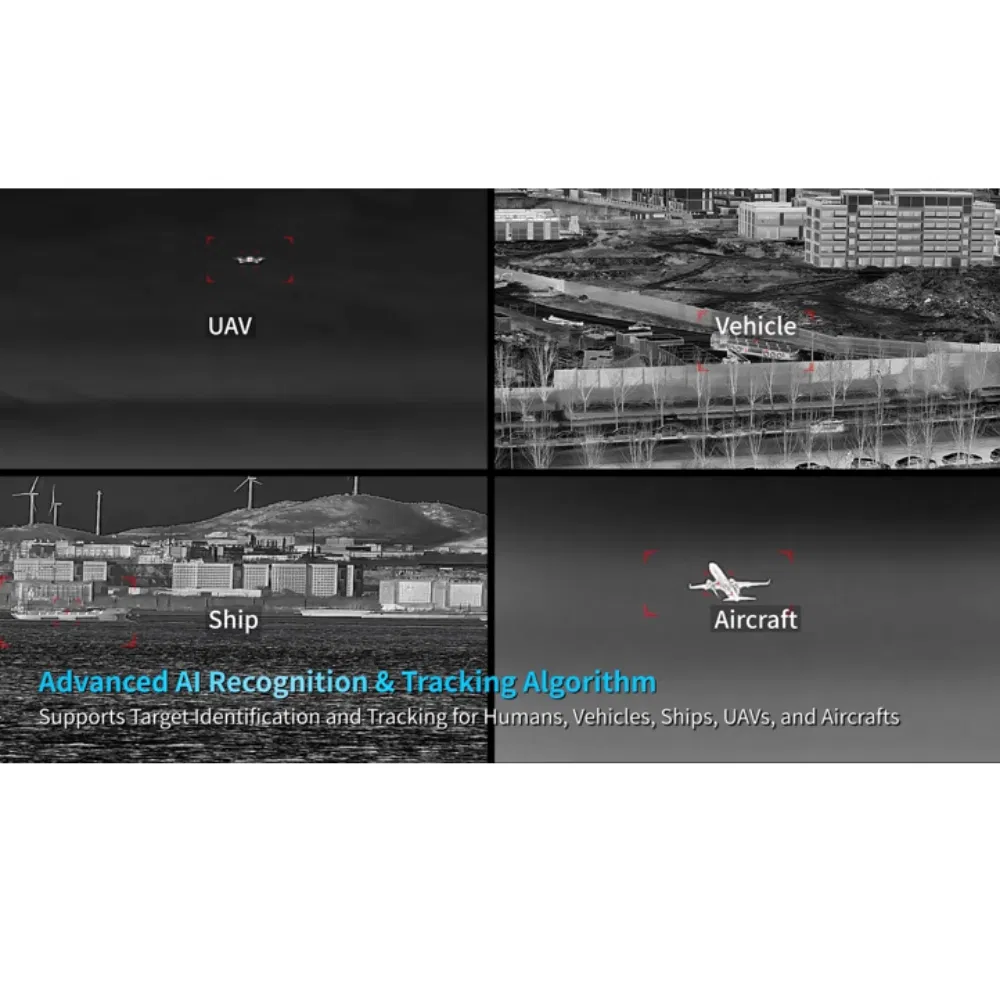

| Intelligent Detection | Tripwire, border-crossing, regional intrusion, fire point detection |
| Physical & Power | |
| Power Supply | 5-24V DC (12V recommended) |
| Power Consumption | < 2.6W (Typical) |
| Dimensions | 55mm × 55mm |
| Operating Temp | -40ºC ~ +60ºC |
