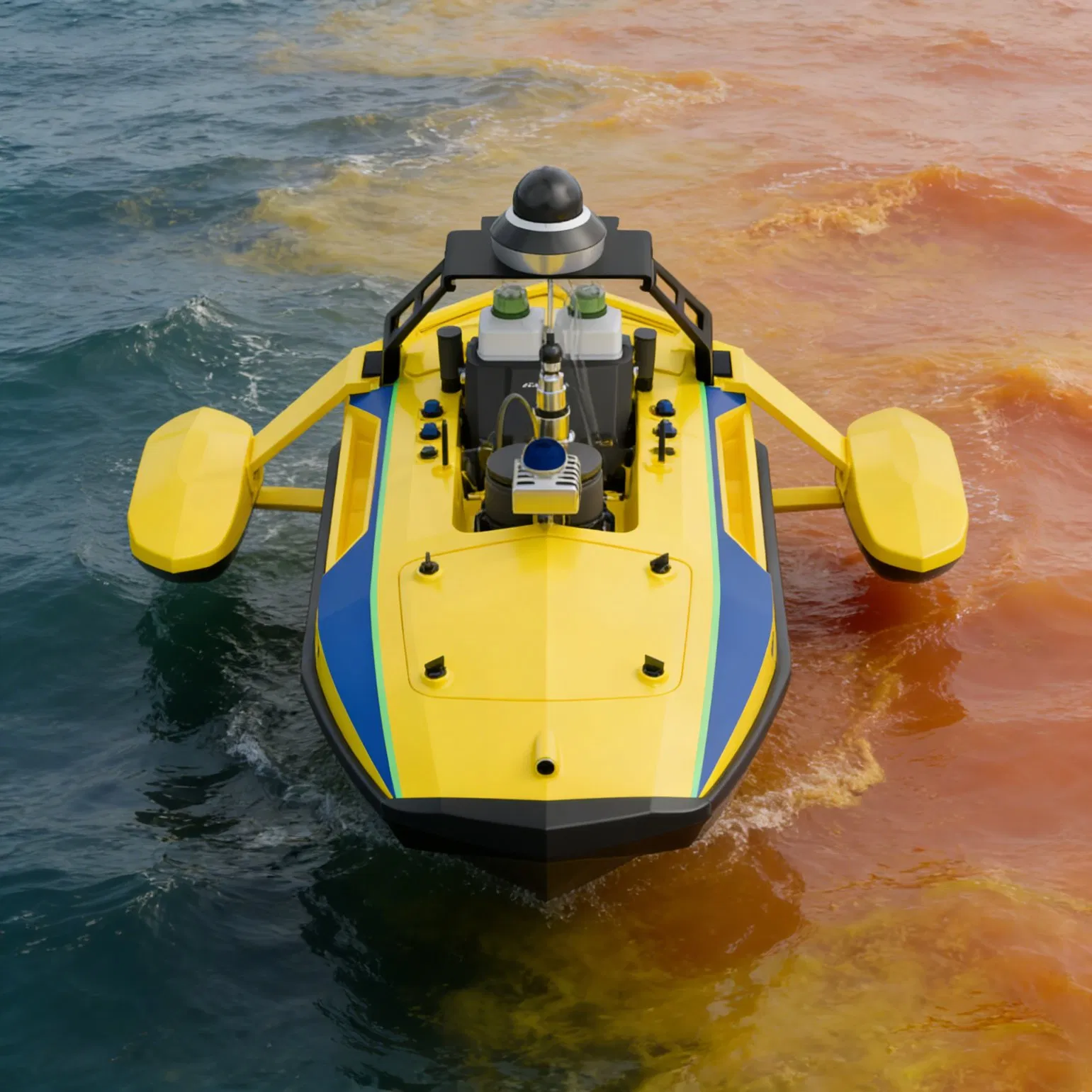

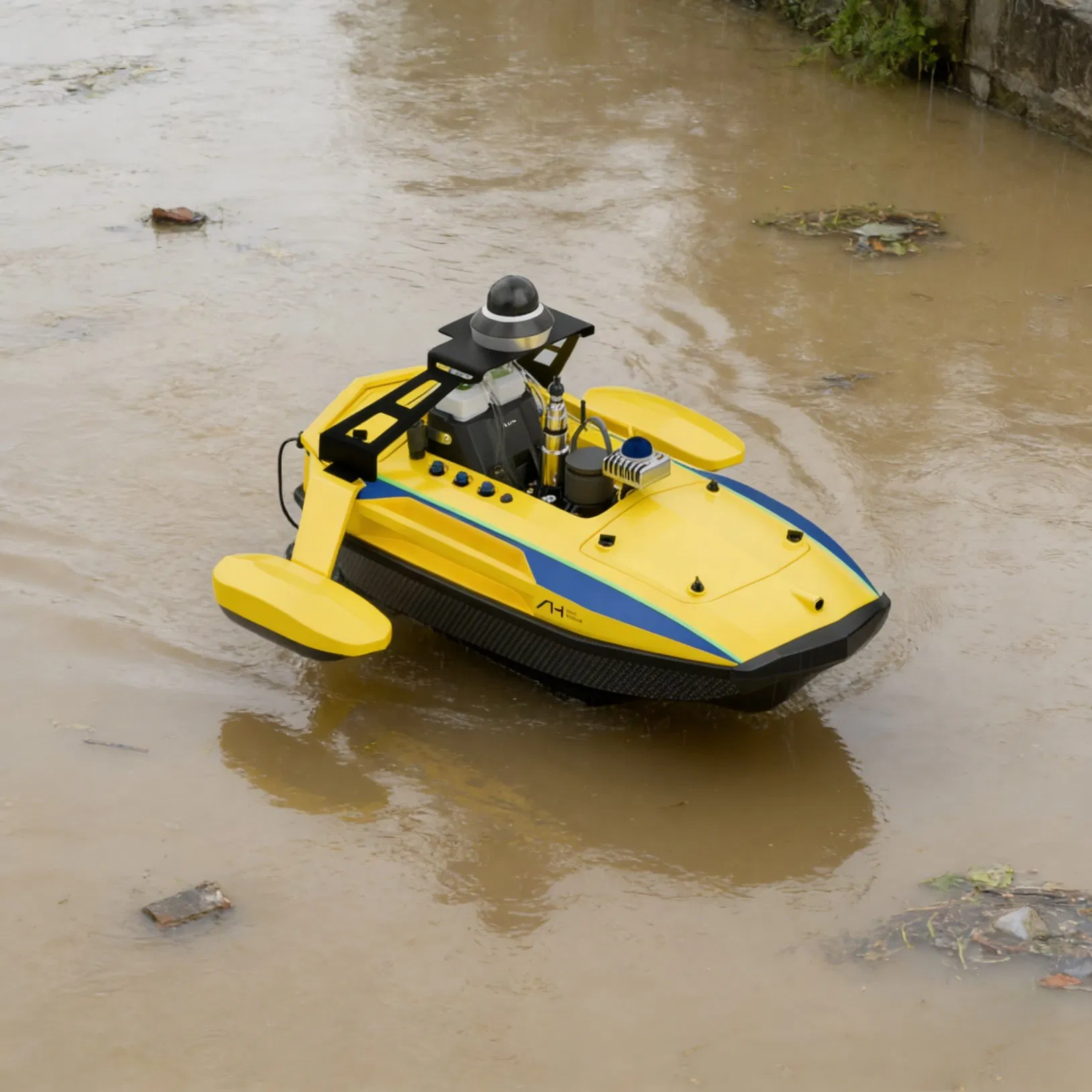

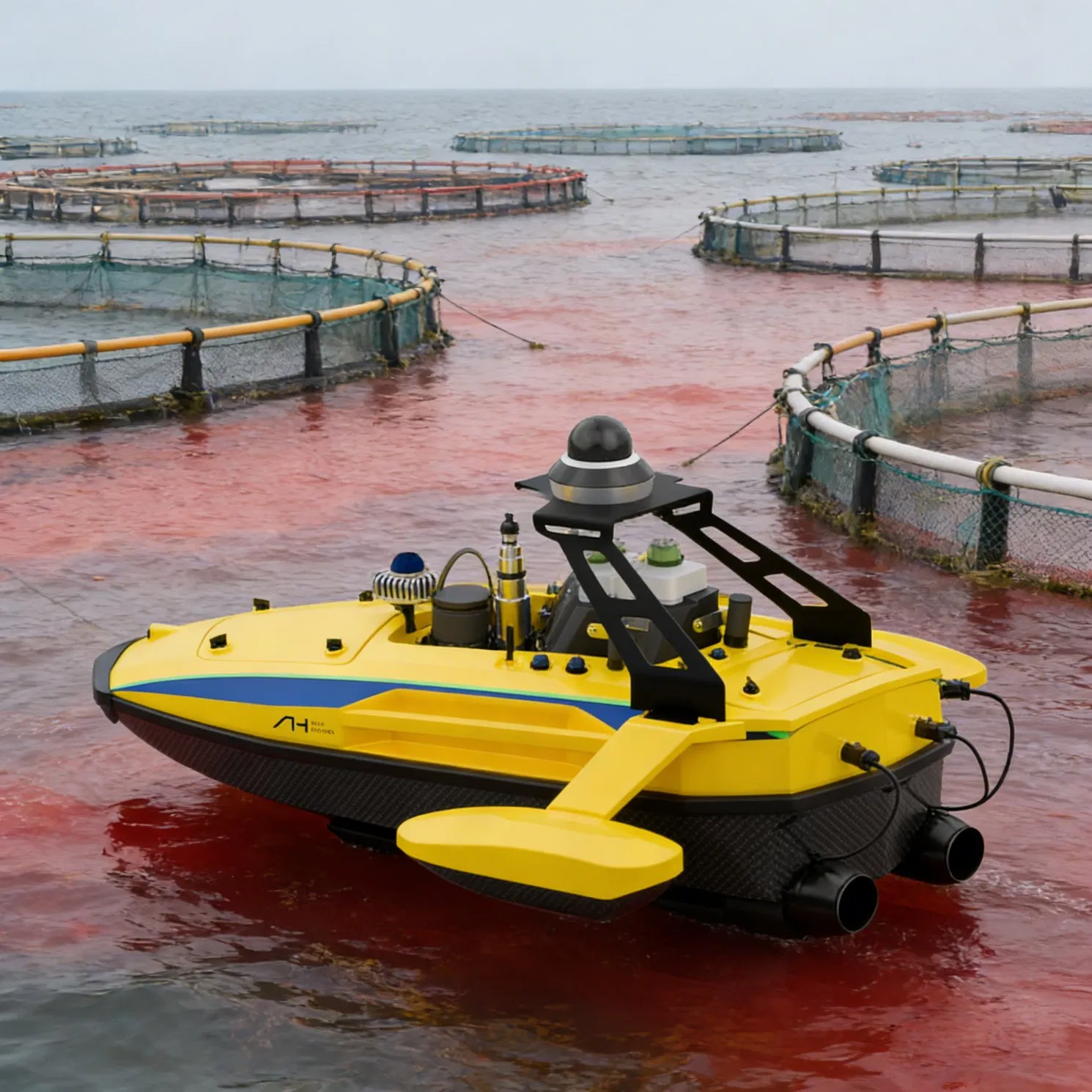

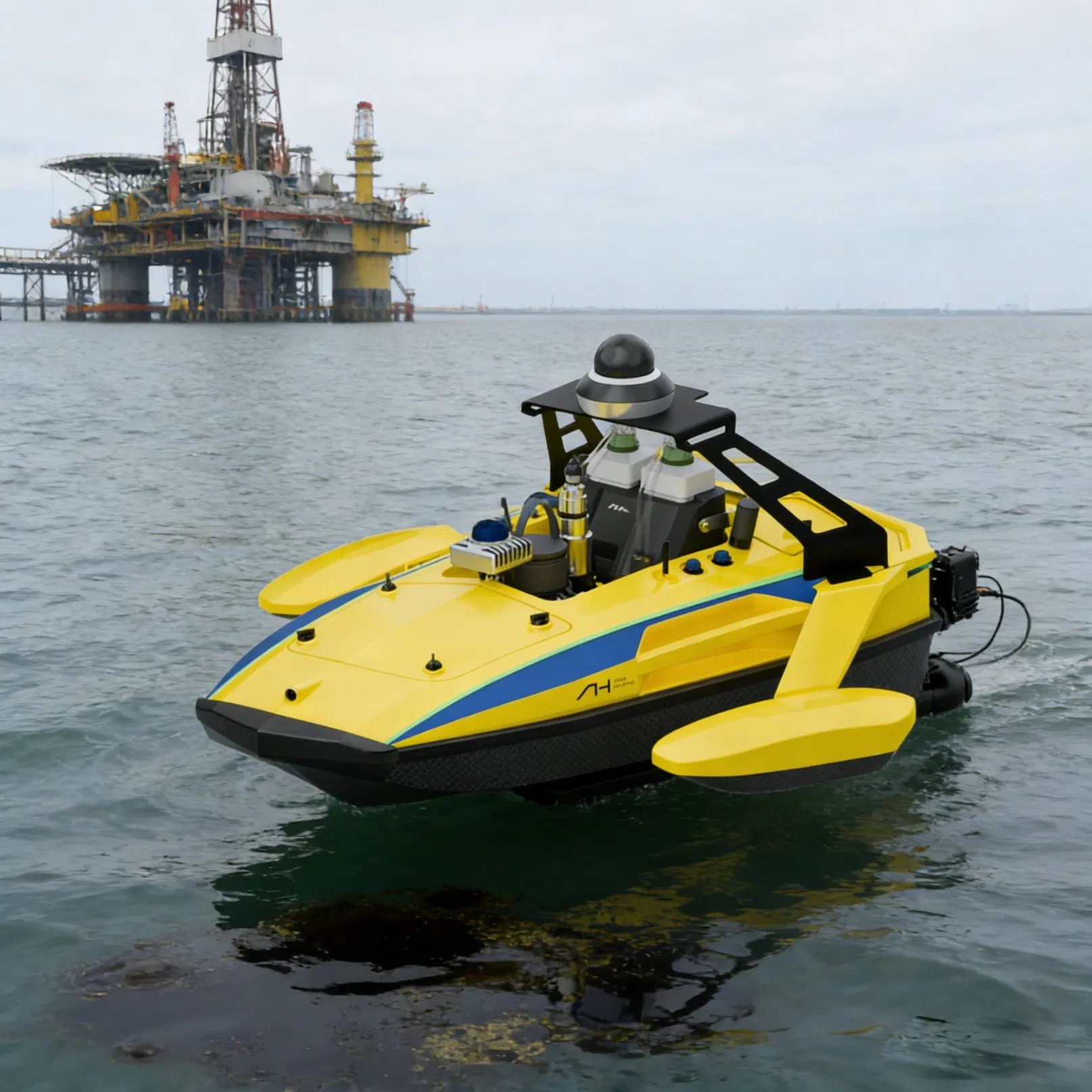

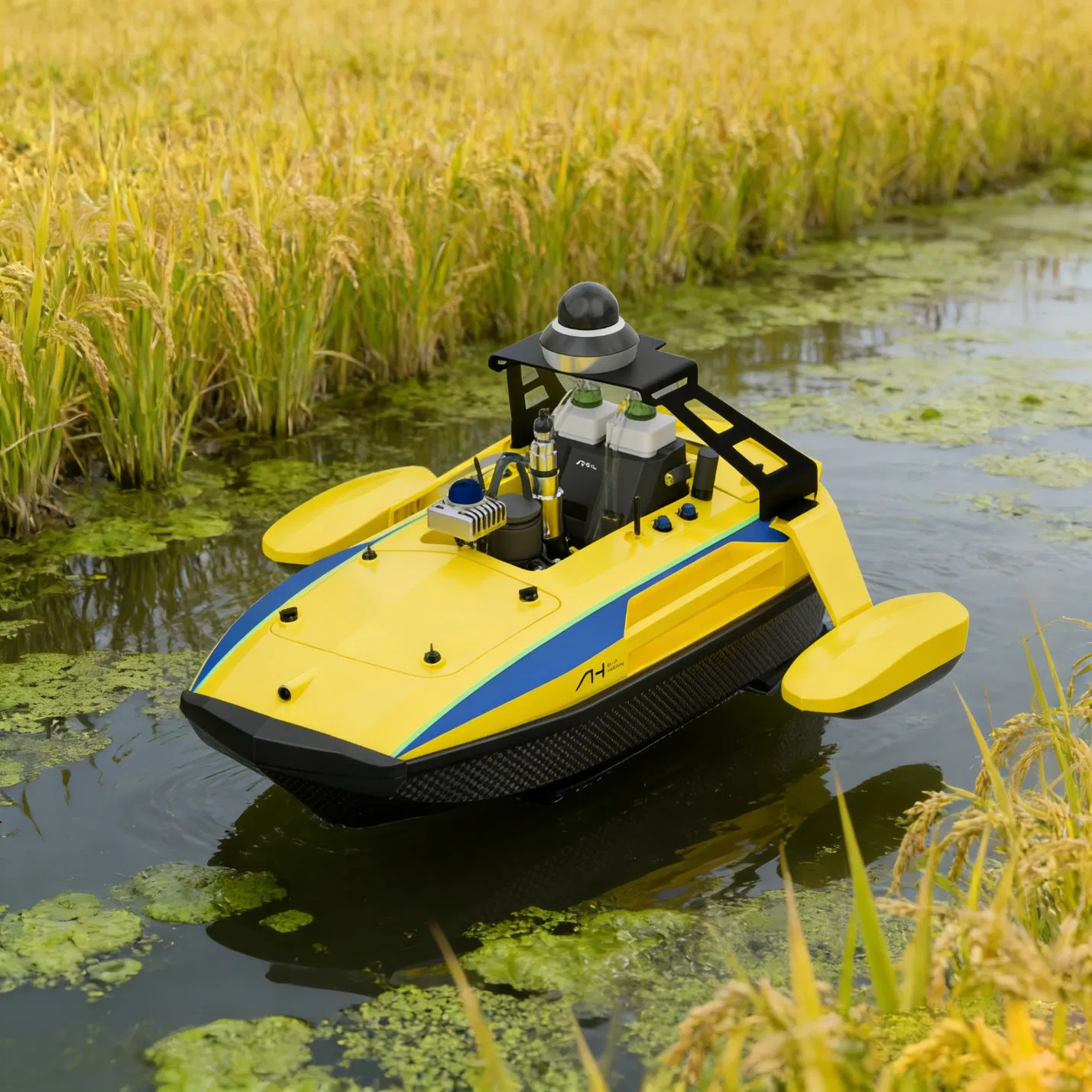

Multi-Configuration Usv Platform for Customized Monitoring Solutions

1 / 5

Multi-Configuration Usv Platform for Customized Monitoring Solutions

Customization:	Available
After-sales Service:	Online Support, Spare Parts, Remote Training
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

KOI SERIES

Type

Unmanned Surface Vehicle

Accuracy Grade

High

Load Way

Electronic Load

Control

Computer Control

Hull Material

Nano Carbon Fiber Composite

Working Mode

Fully Automatic, Manual

Communication

4G, Digital Transmission

Waterproof Rate

IP65 Hull

Cruising Capacity

3 Hours

Technical Specifications

Parameter	Details
Boat type	Monohull, Variable Trimaran

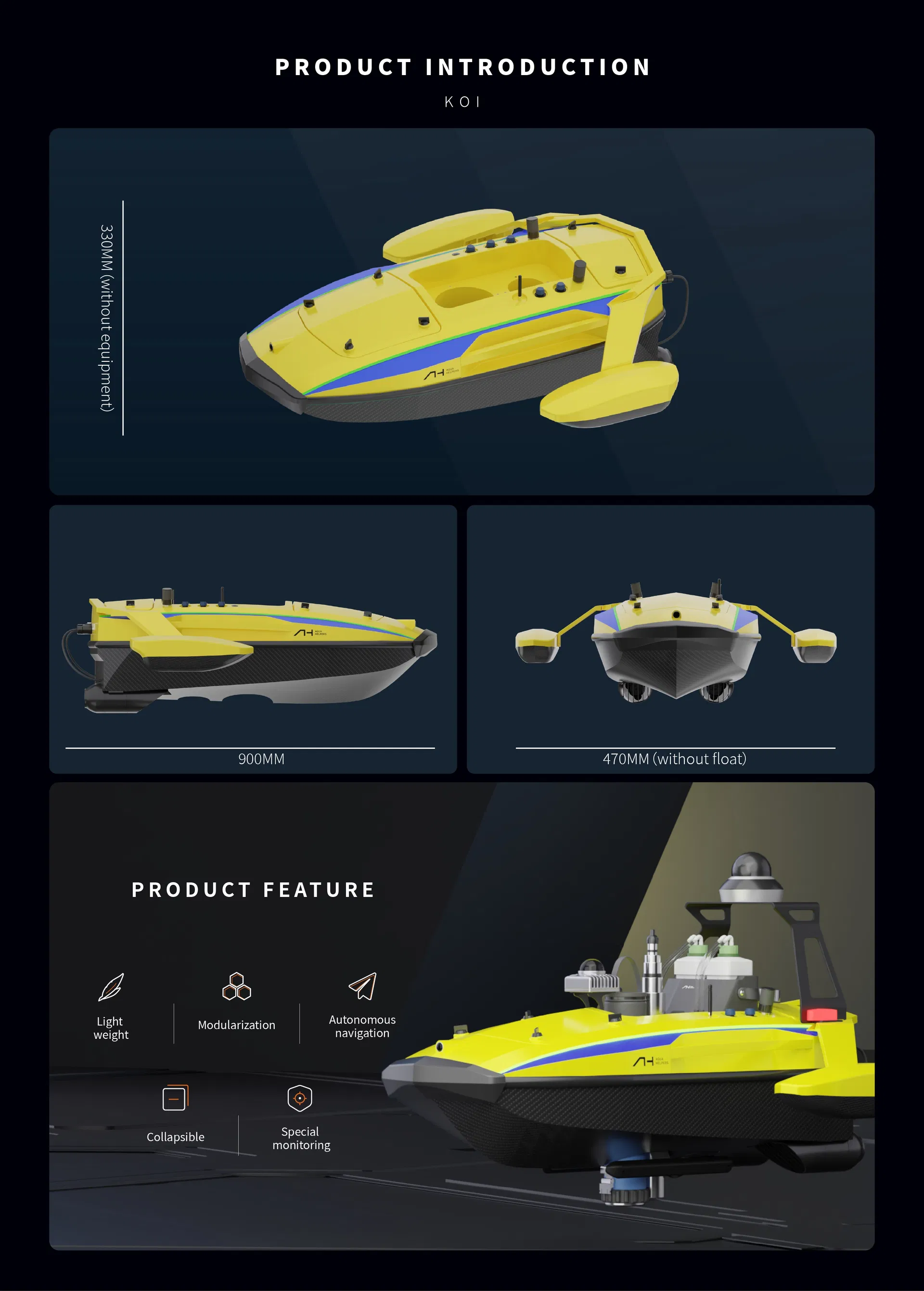

Hull size(m)	L 0.99 - W 0.47 - H 0.33
Hull Material	Nano carbon fiber composite materia
Wind and wave resistance	Class 3 wind, 1 meter wave
Battery type	High polymerization lithium battery
Data transmission	5 KM
Working speed	1.5m/s (Endurance 5 hrs)
Maximum speed	7m/s
Standard Load Capacity	10-20KG
Draught	15cm Safe range

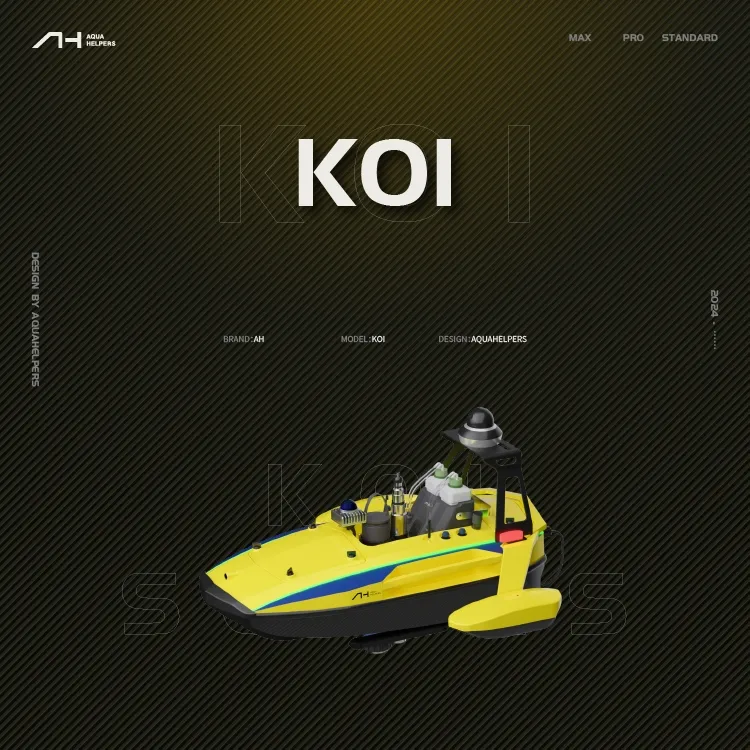

Product Presentation

Packaging & Delivery

Package Size

108.00cm * 58.00cm * 42.00cm

Package Gross Weight

31.000kg

Transport Package

Export Wooden Case, Foam Protection

Certifications & Partnerships

Frequently Asked Questions

What is a USV (Unmanned Surface Vessel)?

A USV is a remotely operated or autonomous boat designed to perform tasks on water without onboard crew. It's commonly used for environmental monitoring, hydrological surveys, security patrols, and data collection.

What are the typical applications of these USVs?

Our USVs are used in water quality monitoring, hydrological mapping, port and reservoir inspections, river/lake patrol, scientific research, and emergency response.

Can the USVs operate autonomously?

Yes. These USVs are equipped with autonomous navigation systems featuring GNSS positioning, obstacle avoidance, and route planning. Manual remote control is also available via base station or mobile device.

What water conditions are suitable for operation?

The vessels are designed for inland rivers, lakes, reservoirs, ports, and coastal areas. Different models suit calm urban waters or more complex environments like large lakes or tidal zones.

How long can a USV operate on a single charge?

Depending on the model, typical runtime ranges from 4 to 12 hours. For extended missions, optional battery packs and autonomous docking/recharging systems are available.

What data can the USVs collect?

They support multi-sensor integration, including water quality sensors (pH, DO, turbidity), ADCP, echo sounders, LiDAR, cameras, and meteorological modules.
