| Model NO. | HY-INS3-400W-L01 |
| Type | Motion Simulator (3 Axis Turntable) |
| Usage | Electric Component Tester, Inertial Components R&D |
| Load Weight | 40kg |
| Load Table Size | 400 * 400mm |
| Accuracy | ±2 Arc Sec |

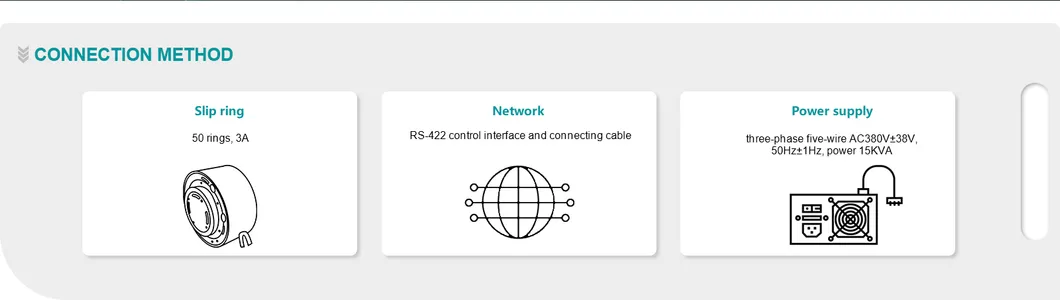

| Power Source | 380VAC/50Hz |
| Environment | Room Temperature |

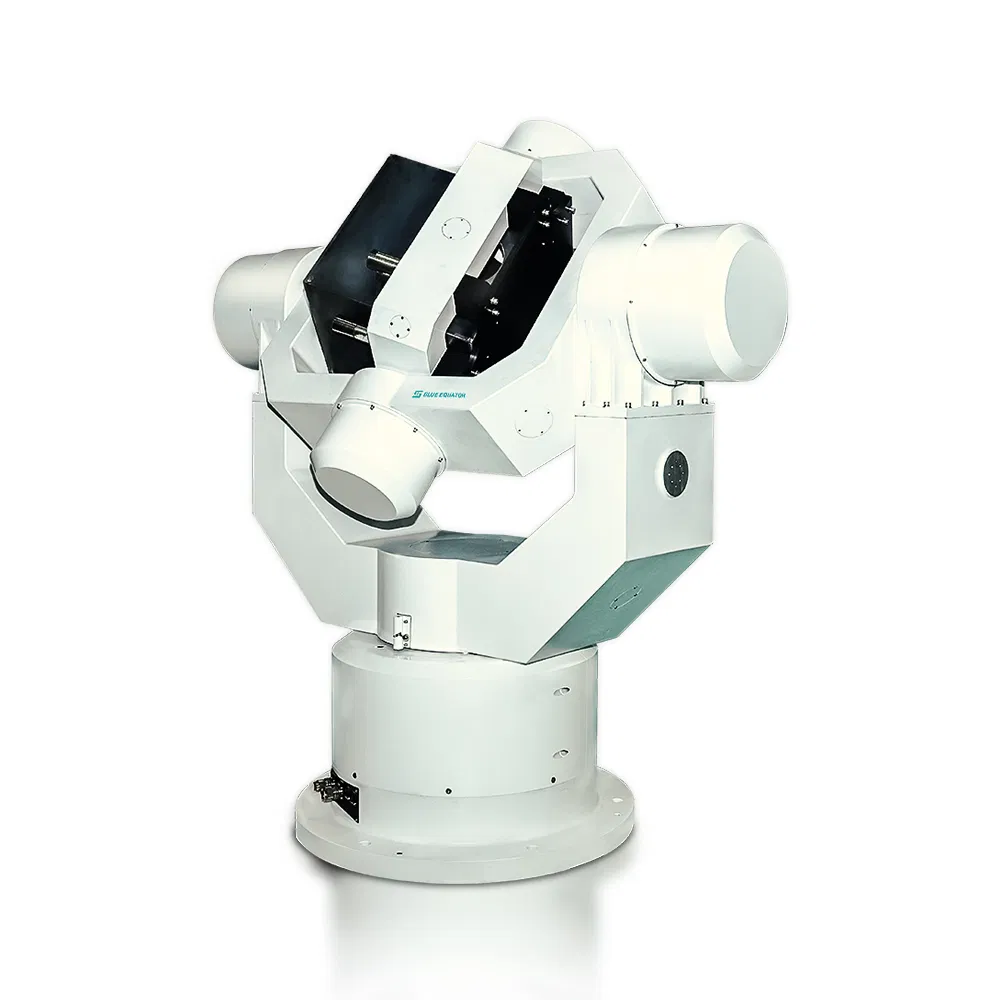

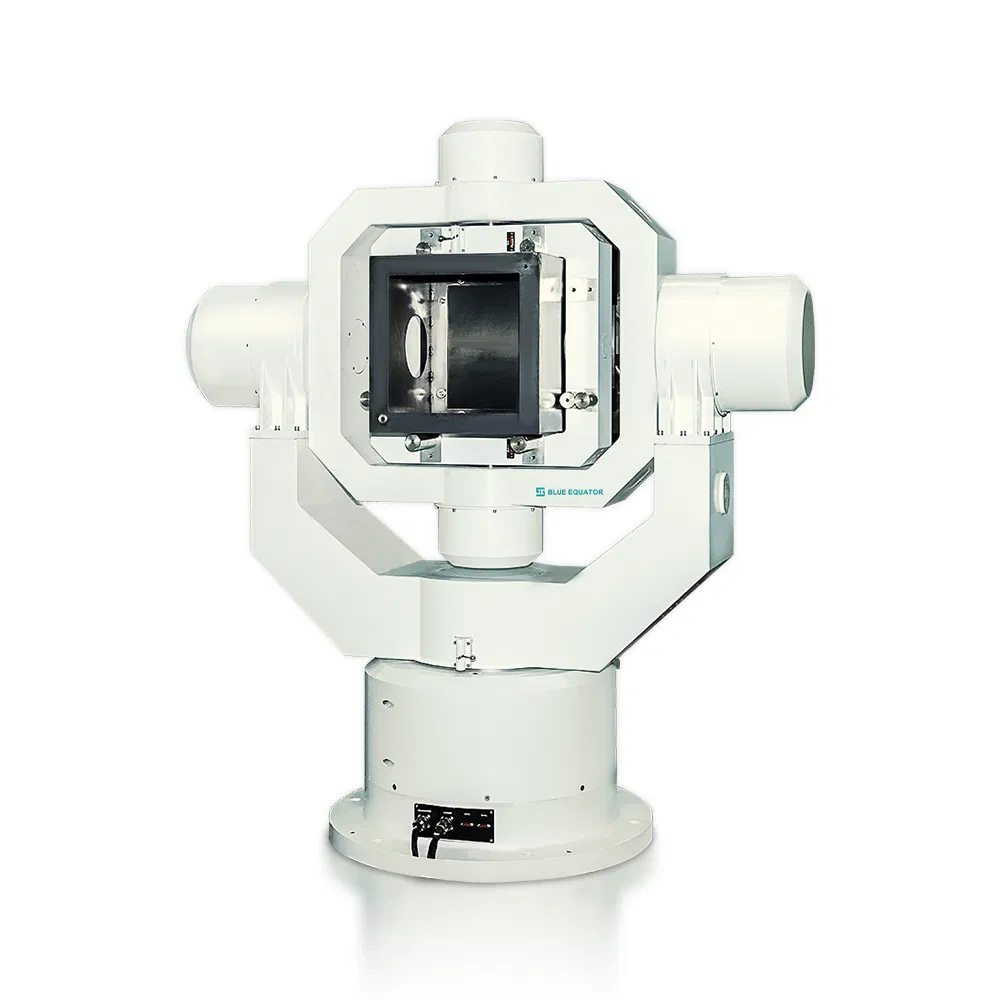

The HY-INS3-400 three-axis positioning and rate stage provides an unparalleled motion simulation environment for Inertial Measurement Units (IMU) and gyroscopes. It delivers stable and reliable angle and rate control, ensuring the precision of every sensor calibration and performance benchmark verification.

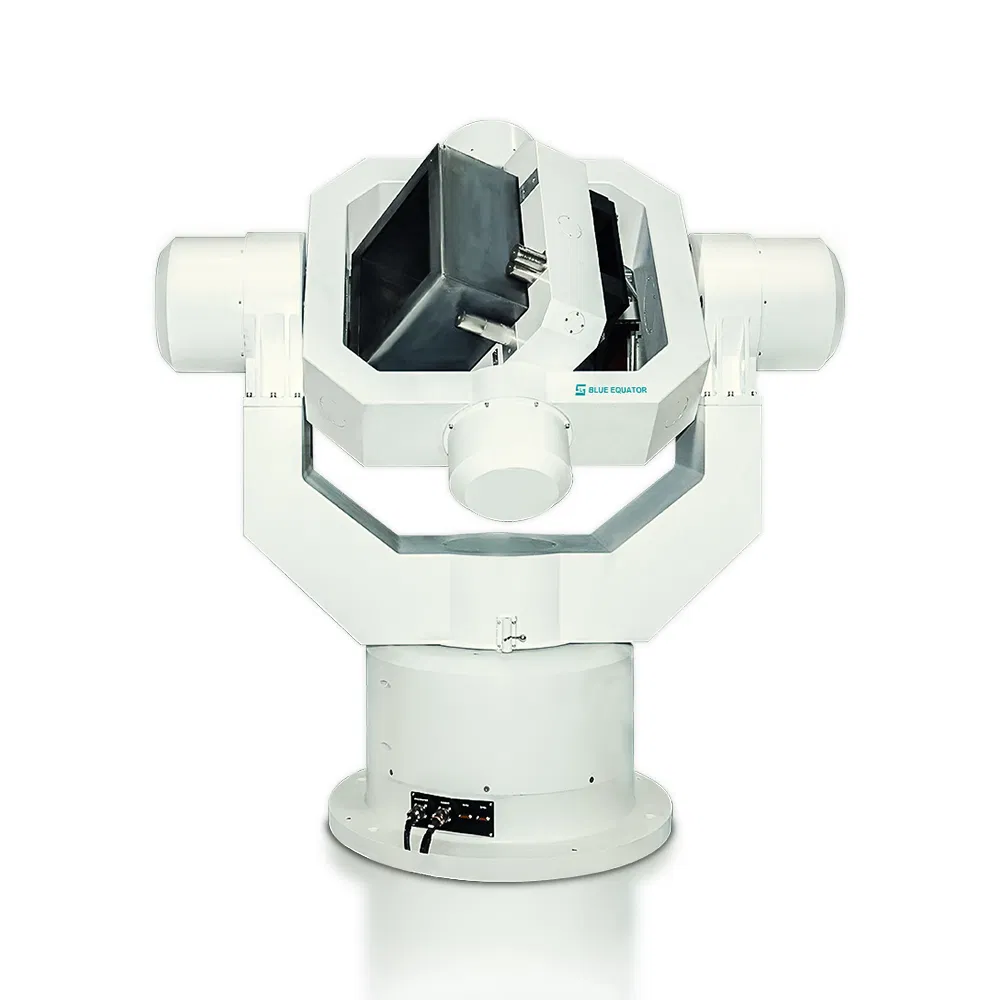

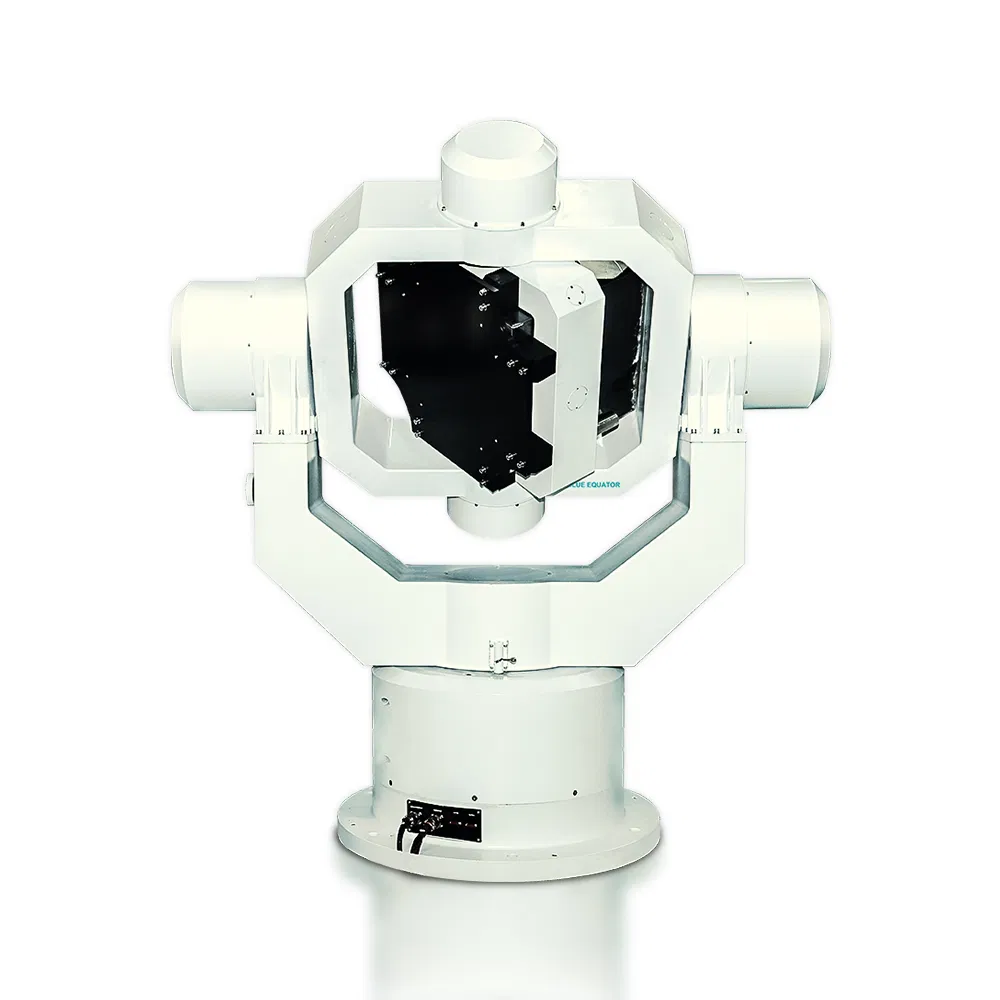

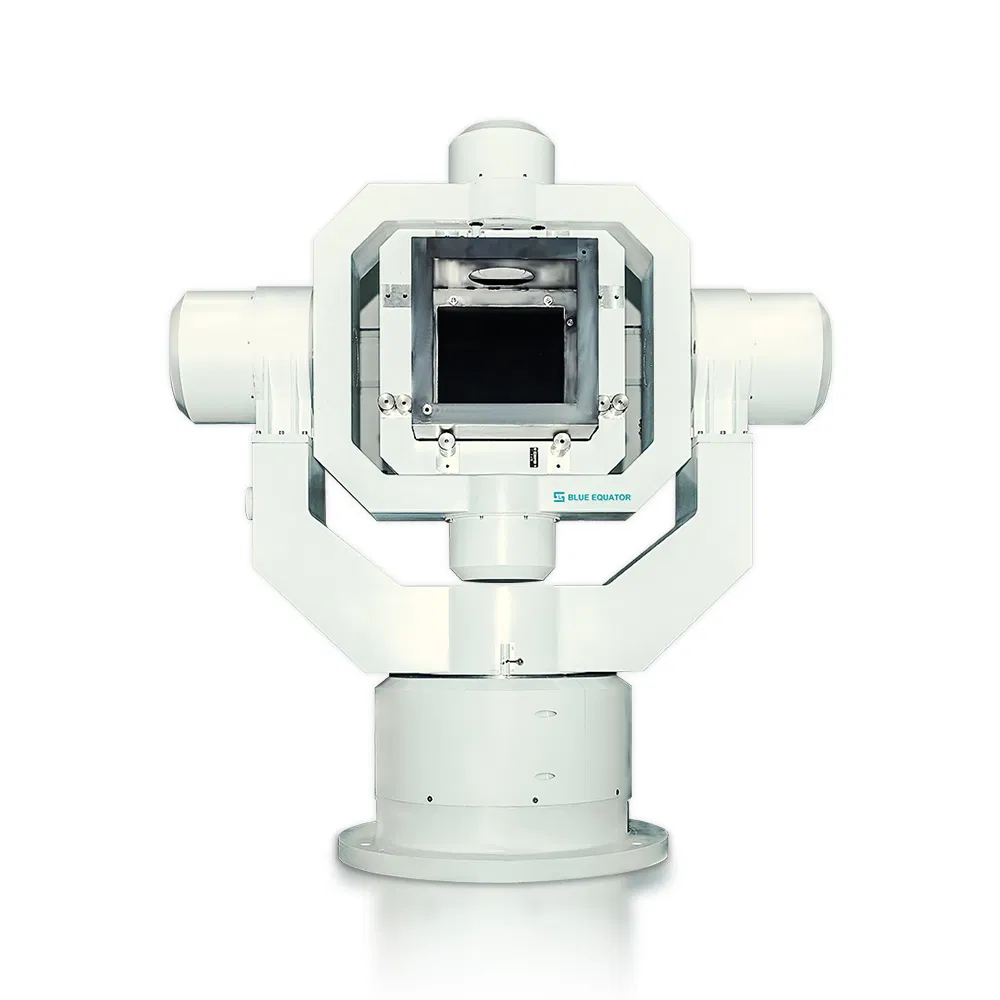

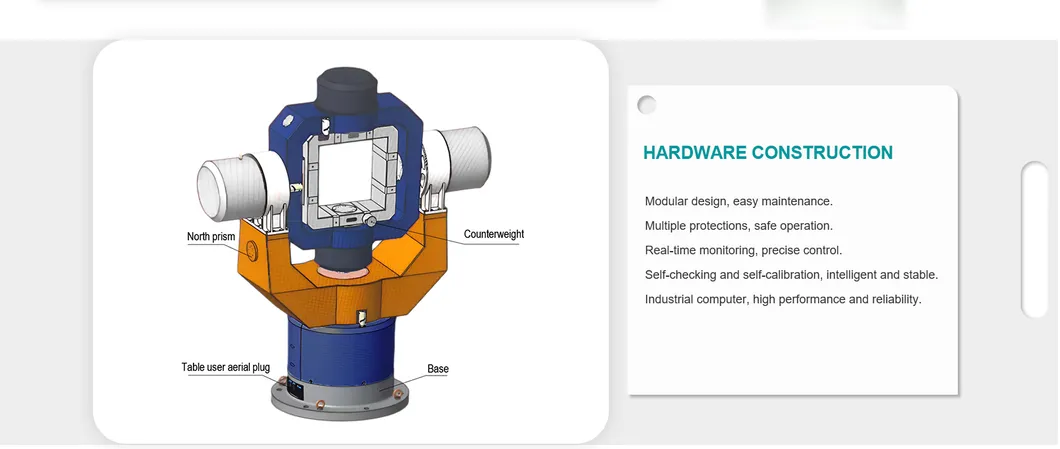

1. Structural Configuration: Employs a classic three-axis gimbal structure (inner, middle, and outer frames) for full-attitude rotation.
2. Material Craftsmanship: Core frame constructed from high-strength aluminum alloy or premium alloy steel with precision heat treatment.
3. Dynamic Response: Exceptional acceleration and deceleration control capabilities for fast tracking of motion commands.
4. Error Mitigation: Extremely low axis wobble and radial runout with isolated electromagnetic interference.

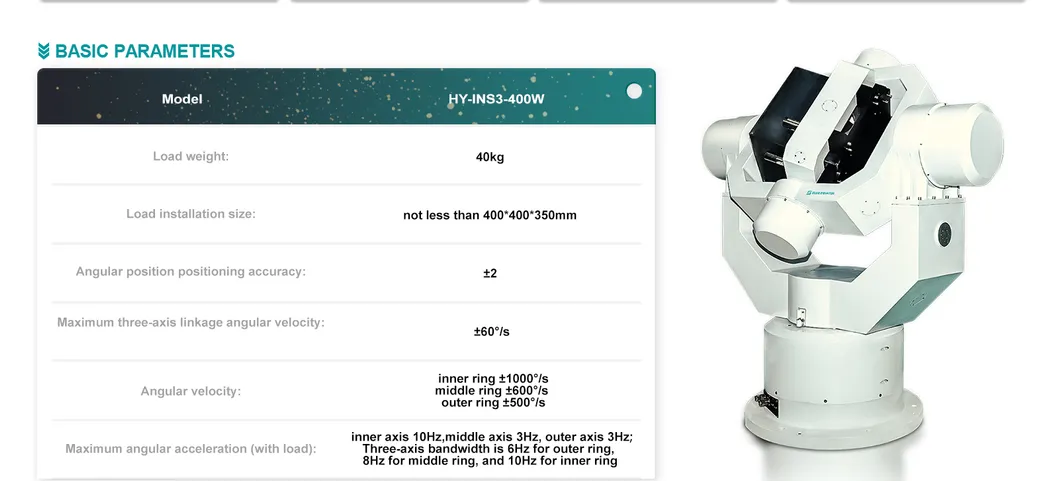

| Parameter | Inner Axis | Middle Axis | Outer Axis |
|---|---|---|---|
| Angular Freedom | Continuous | Continuous | Continuous |
| Position Accuracy | ±2 arc sec | ±2 arc sec | ±2 arc sec |
| Repeatability | ±1 arc sec | ±1 arc sec | ±1 arc sec |
| Rate Range | ±0.001 ~ 1000 deg/s | ±0.001 ~ 600 deg/s | ±0.001 ~ 500 deg/s |
| Max Acceleration | 300 deg/sec² | 200 deg/sec² | 100 deg/sec² |
| Swing Frequency | 10 Hz | 8 Hz | 6 Hz |
We arrange various modes of transportation including land, sea, or air based on specific needs. Products are professionally packaged using standards for export goods to ensure protection from vibration and impacts during transit.
| Package Size | 195.00cm * 128.00cm * 182.00cm |
| Gross Weight | 2000.00kg |
