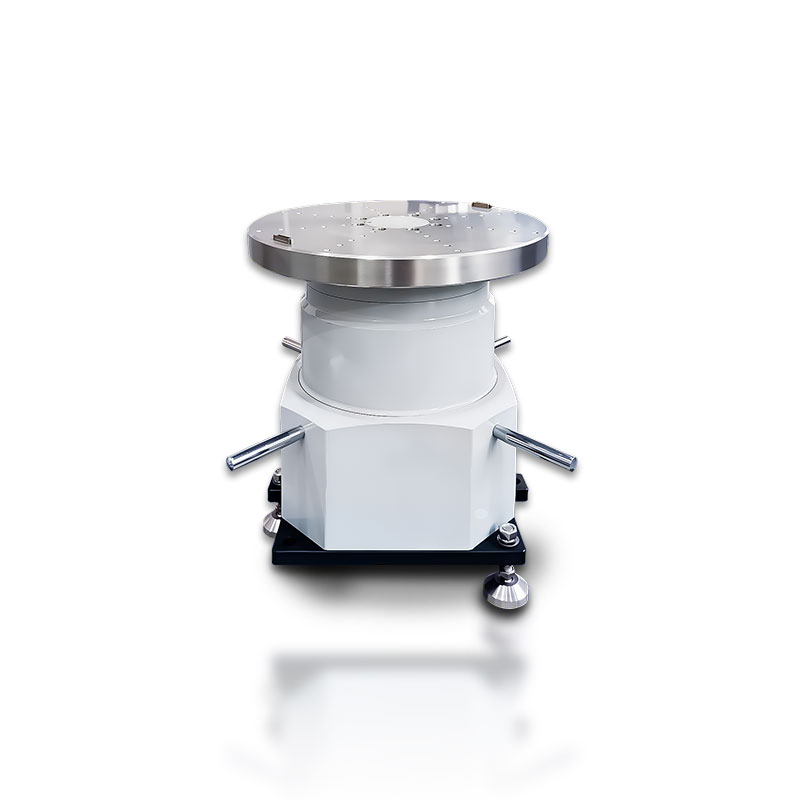

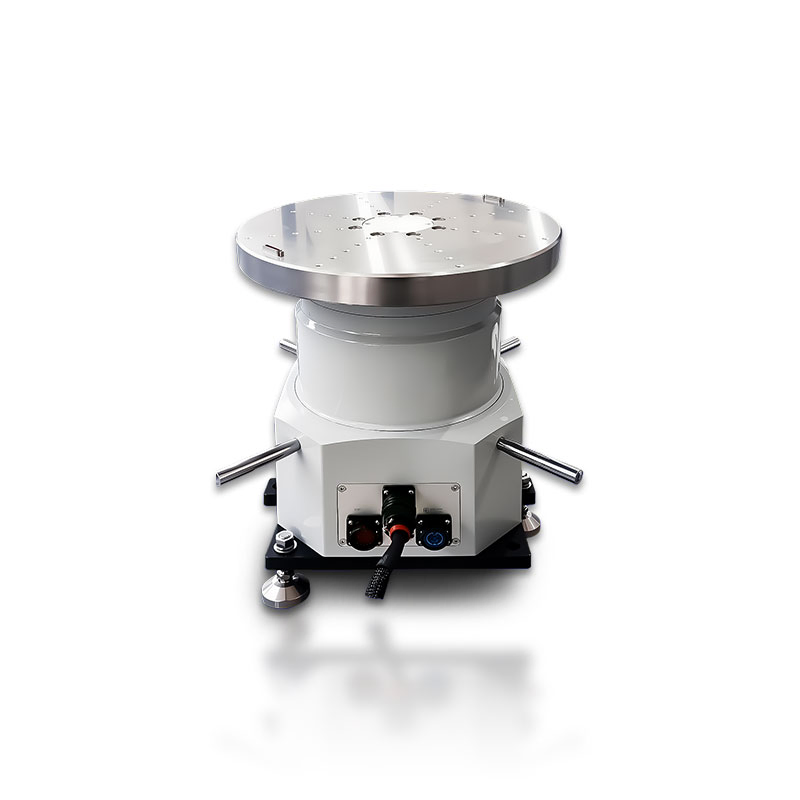

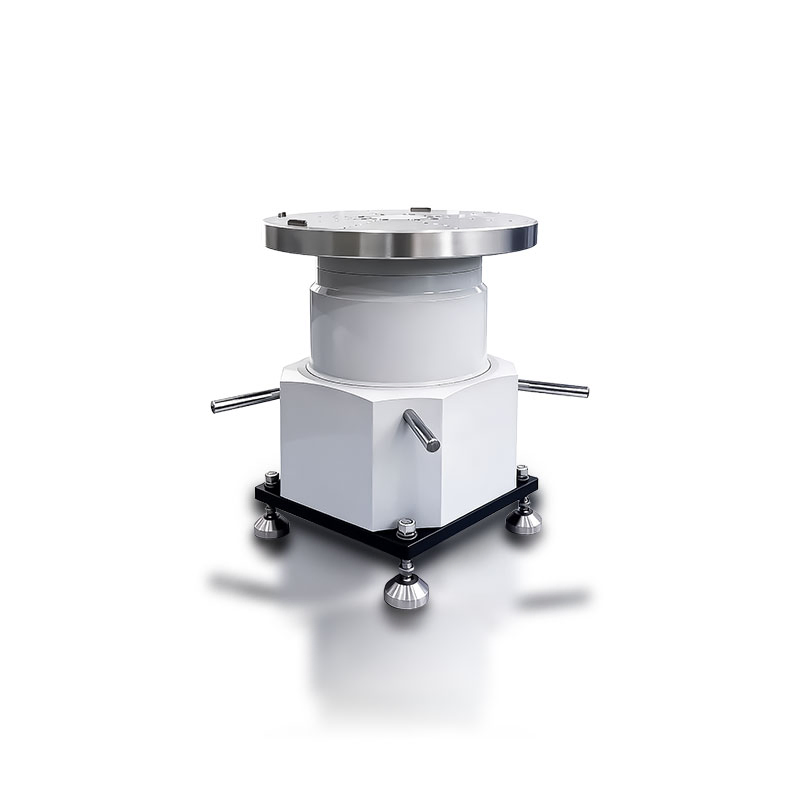

With precise angle control and outstanding stability, our product is equipped with advanced angle and rate control technologies and integrated high-low temperature environmental simulation. It delivers exceptional long-term stability and ultra-high testing accuracy, providing reliable assurance for performance testing of inertial devices and gyroscopes. Continuously reducing operation and maintenance costs while comprehensively improving testing standards, it ensures accurate and trustworthy results in every test.

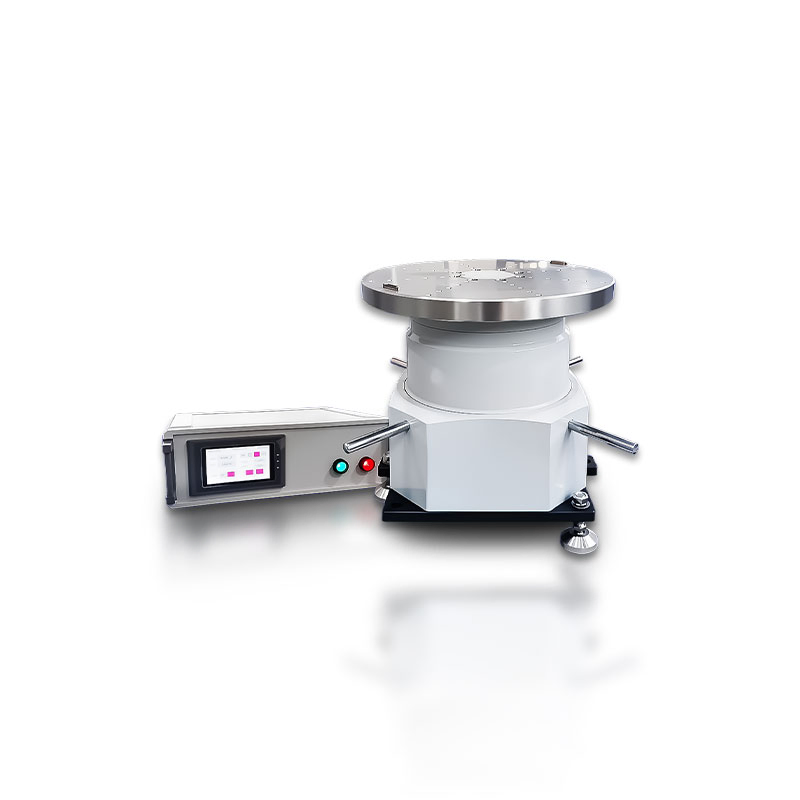

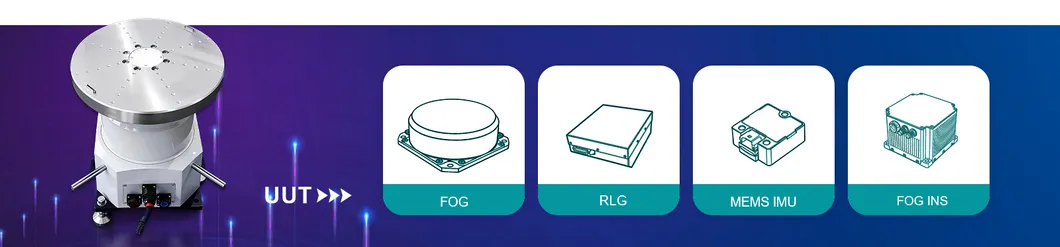

Built on advanced angle and rate control technologies, the system delivers industry-leading performance in motion control and angular positioning. With fast system response and precise control stability, it provides a highly reliable testing environment for gyroscopes, IMUs and other precision inertial devices.
The turntable integrates high-low temperature environmental simulation to reproduce complex working conditions. It enables one-stop environmental adaptability testing without additional auxiliary equipment, streamlining testing procedures and maintaining stable performance.
The system supports long-hour continuous operation while maintaining outstanding performance consistency. It effectively suppresses fluctuations and drift during prolonged testing, greatly enhancing reliability in batch inspection and extended experiments.

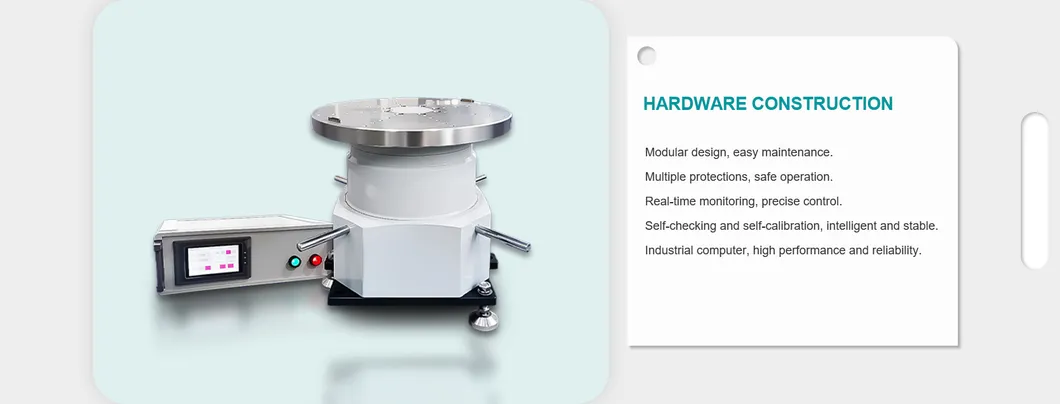

Featuring a robust structural design and high-performance configuration, the equipment features lower failure rates and easier maintenance, significantly reducing annual maintenance costs and delivering a higher return on investment.

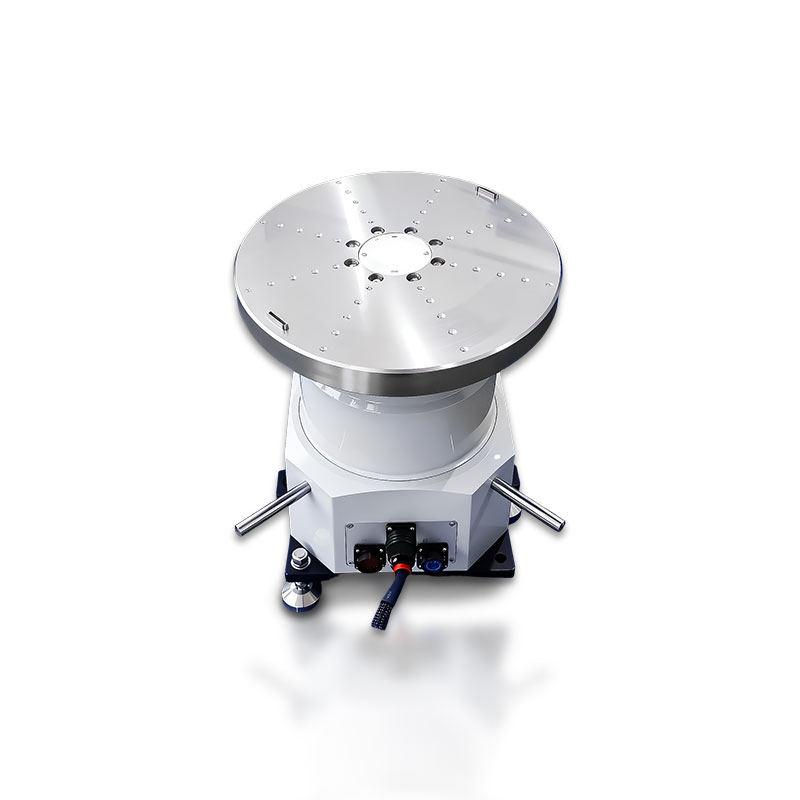

| Diameter: | Φ680mm |
| Table material: | titanium alloy |
| Flatness: | 0.01mm |
| Table leakage: | ≤1mT (10mm above the table) |
| Angle range: | continuous and unlimited |
| Load weight: | ≤80kg |
| Load moment of inertia: | ≥230kg·m² |
| Rate range: | ±0.001°/s ~ ±250°/s |
| Rate resolution: | 0.001°/s |
| Rate accuracy and stability: | 5×10⁻⁵ (360° avg); 5×10⁻⁴ (10° avg); 5×10⁻³ (1° avg) |
| Position accuracy: | ±2″ |
| Position repeatability: | ±1″ |
| Position resolution: | 0.18″ |
| Maximum angular acceleration: | 200°/s² |
| Swinging motion: | Max swing frequency 10Hz; Amplitude limited by max acceleration |
| Temp. Chamber Range: | -60°C ~ +70°C |
| Temp. Control Accuracy: | ±0.5°C (empty box) |
| Max Temp. Change Rate: | +1°C/min |
We maintain partnerships with professional freight forwarding companies, enabling us to flexibly arrange various modes of transportation—land, sea, or air—according to specific customer needs. Before shipment, products are professionally packaged based on export standards and customized requirements, using high-quality materials to protect against vibration and impacts during transit.
